TOPENS JY9132 Heavy Duty Dual Swing Gate Opener
- 25+ Years of Expertise -Trusted leader in the automatic gate opener industry.
- Lifetime Customer Support -24/7 technical assistance and step-by-step guides for easy installation.
- Free Shipping -Enjoy fast, free delivery across the continental U.S.
- Extended Warranty -Includes 1-year warranty, extendable up to 2 or 3 years.
- Worry-Free Returns -30-day hassle-free return policy on all purchases.

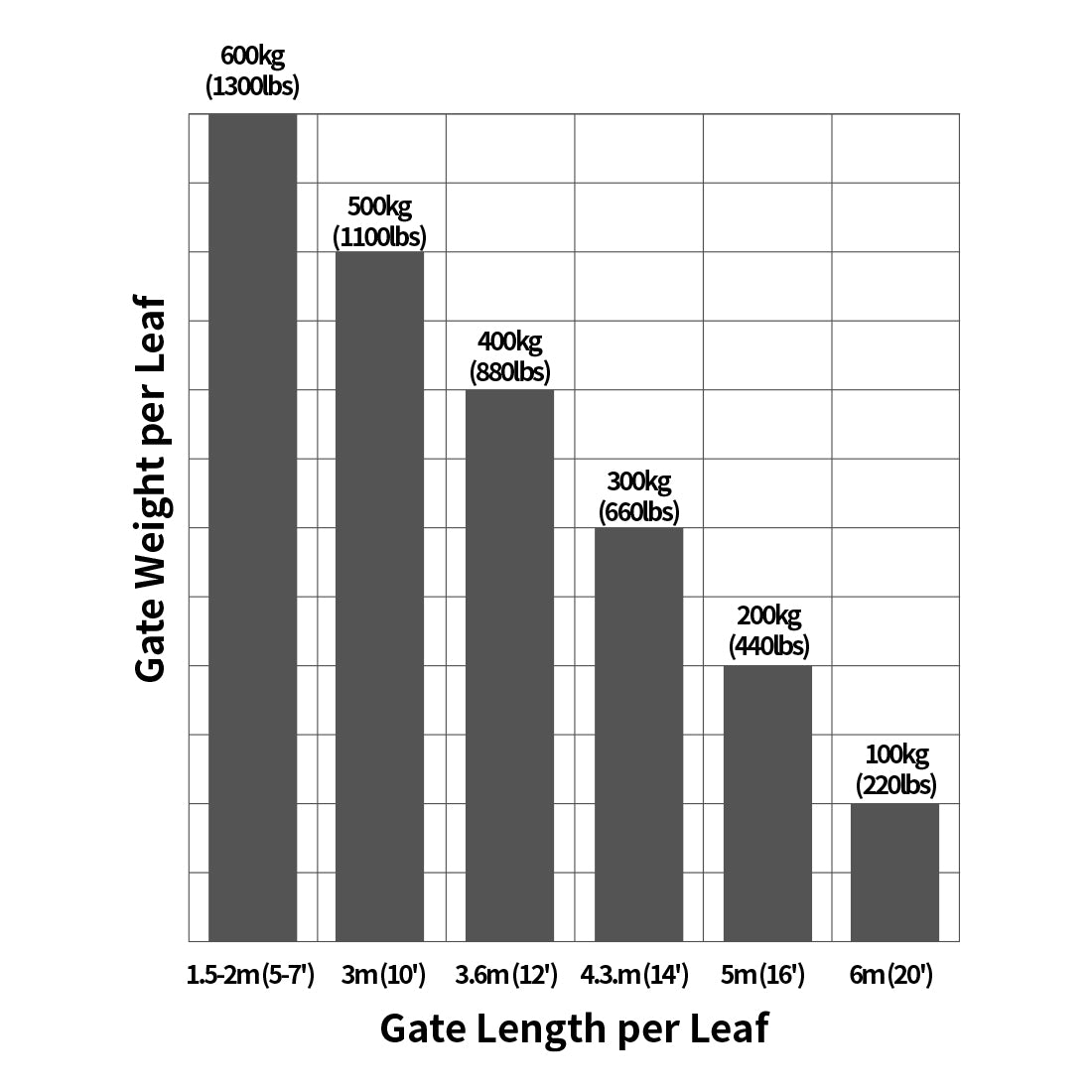

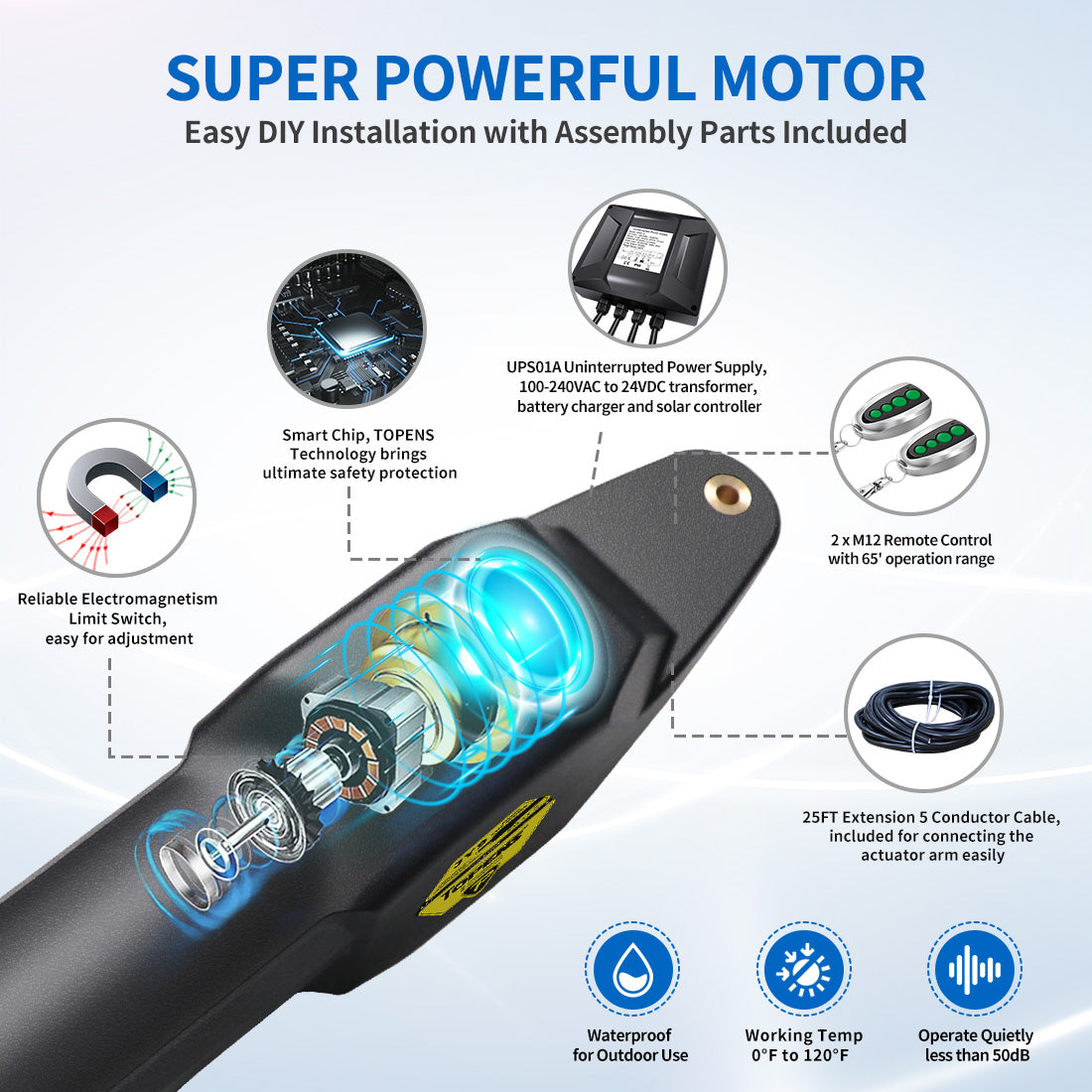

- Powerful Performance -Equipped with two stable 24VDC 100W motors, the JY9132 easily operates heavy-duty dual swing gates up to 1300 lbs. or 20 ft. per gate leaf.

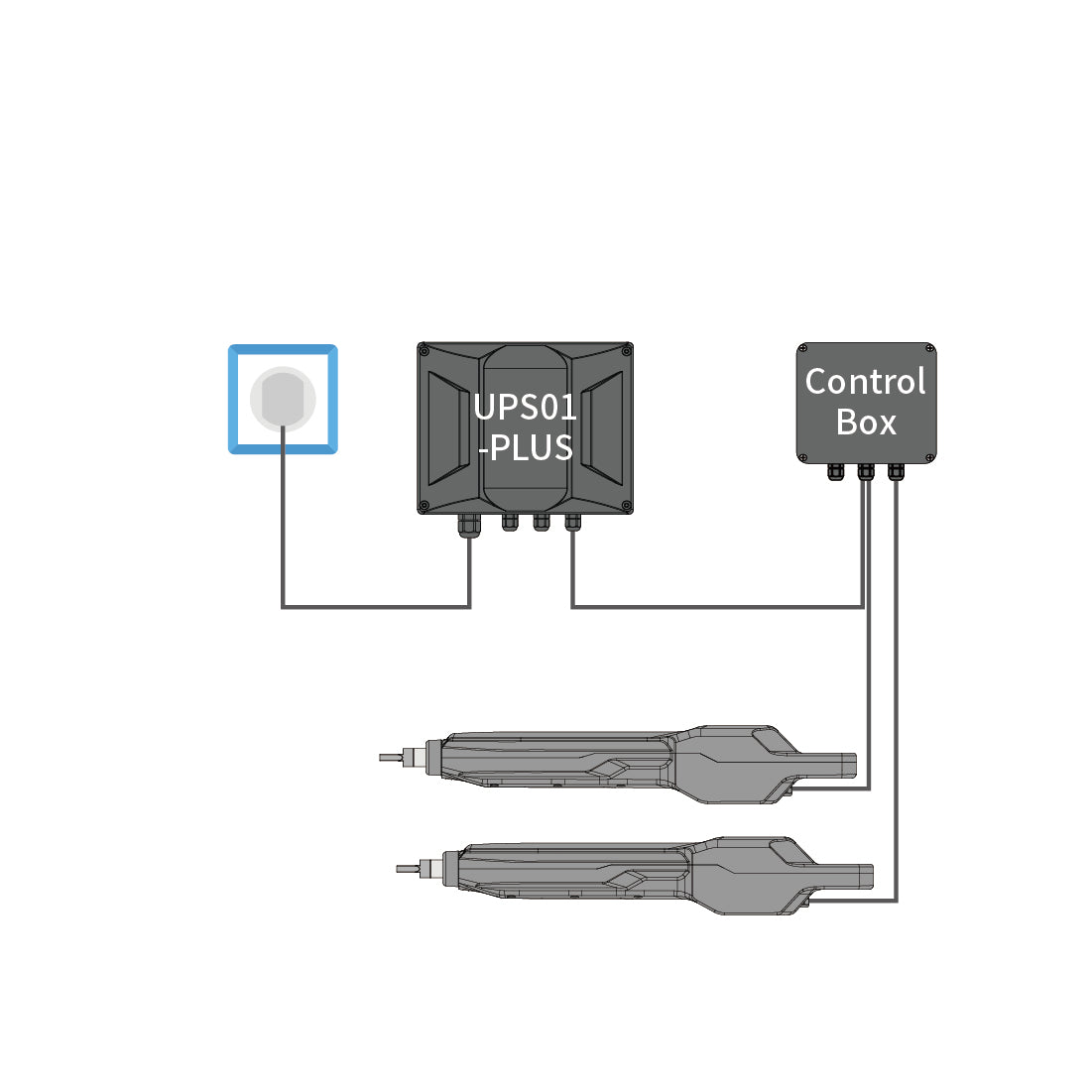

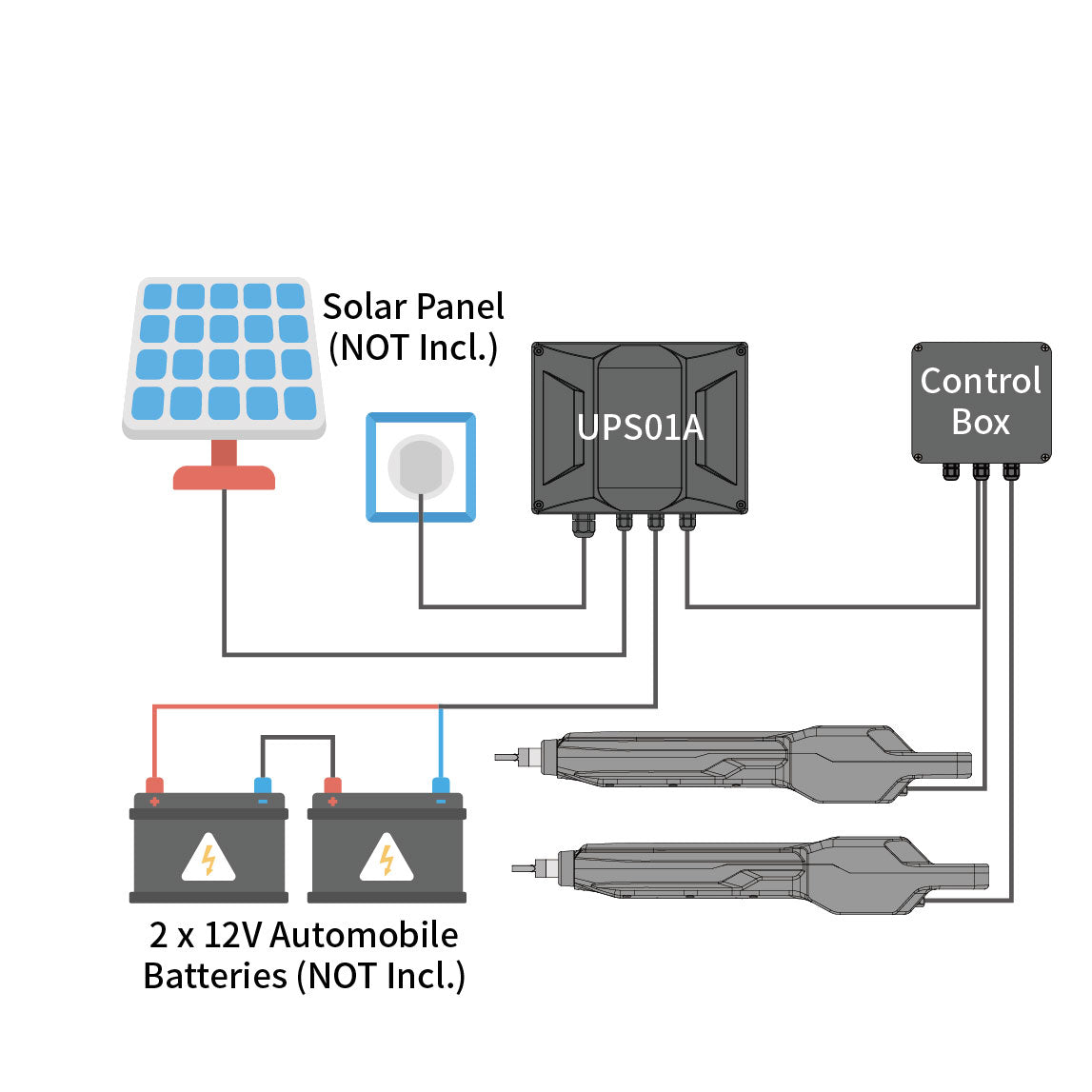

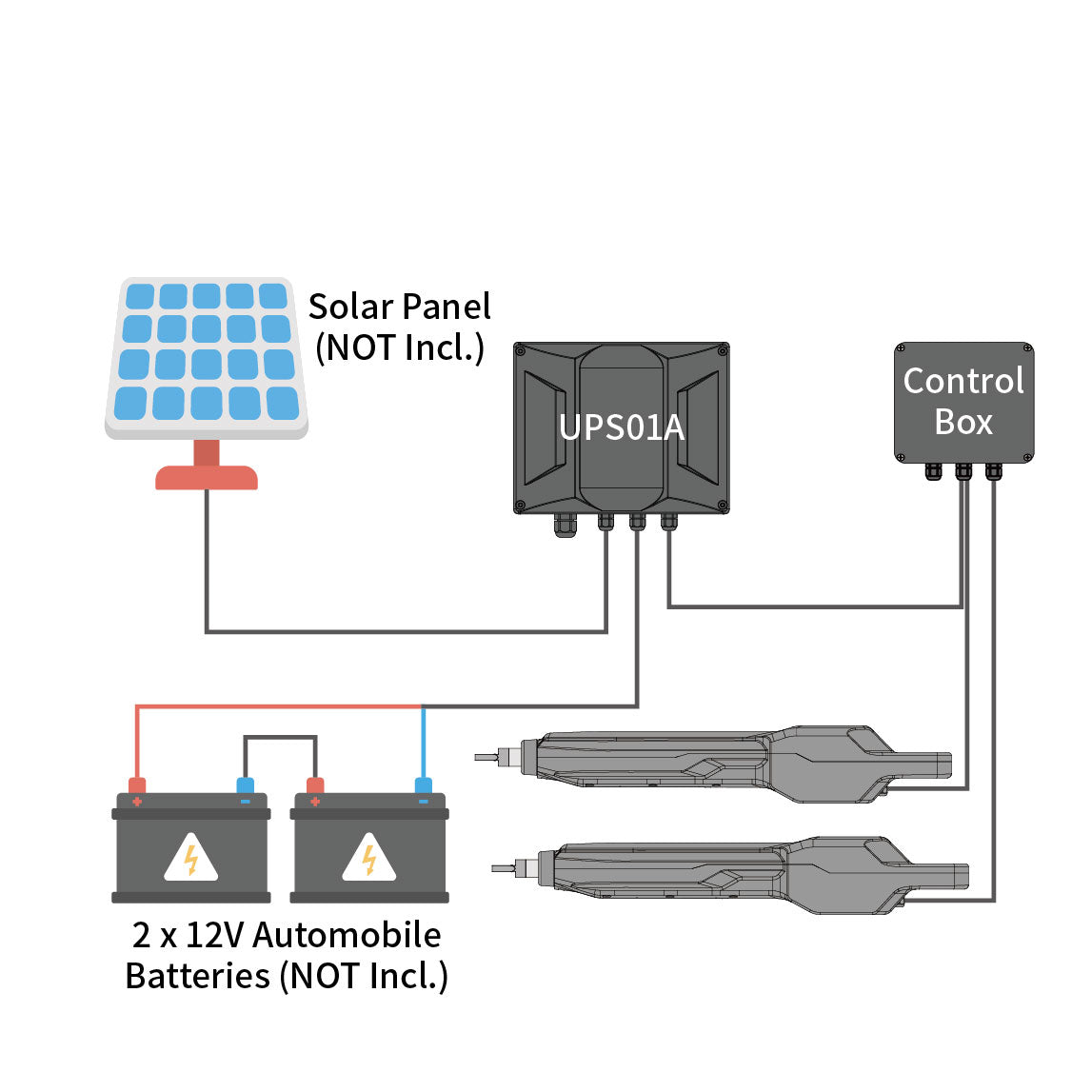

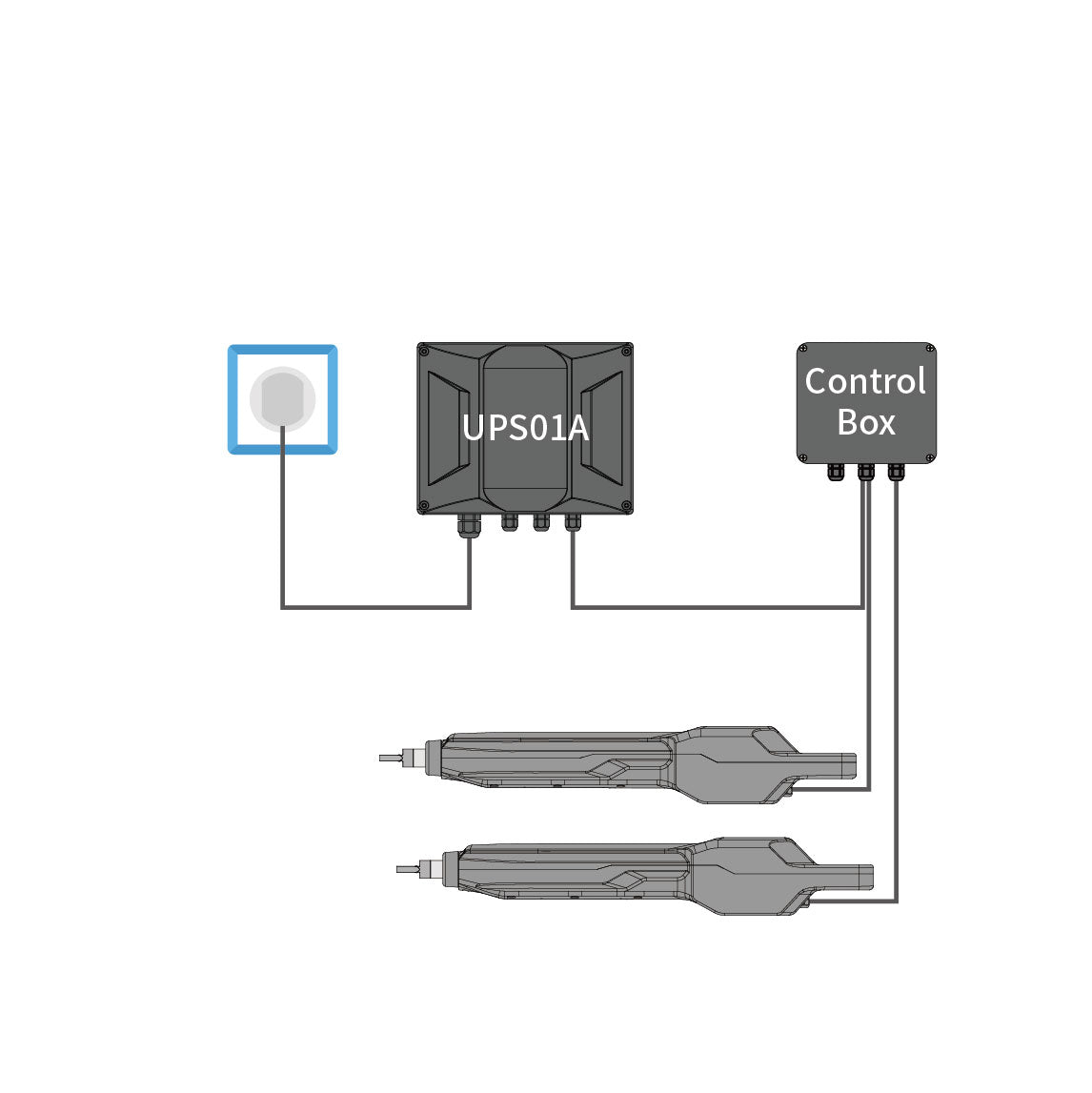

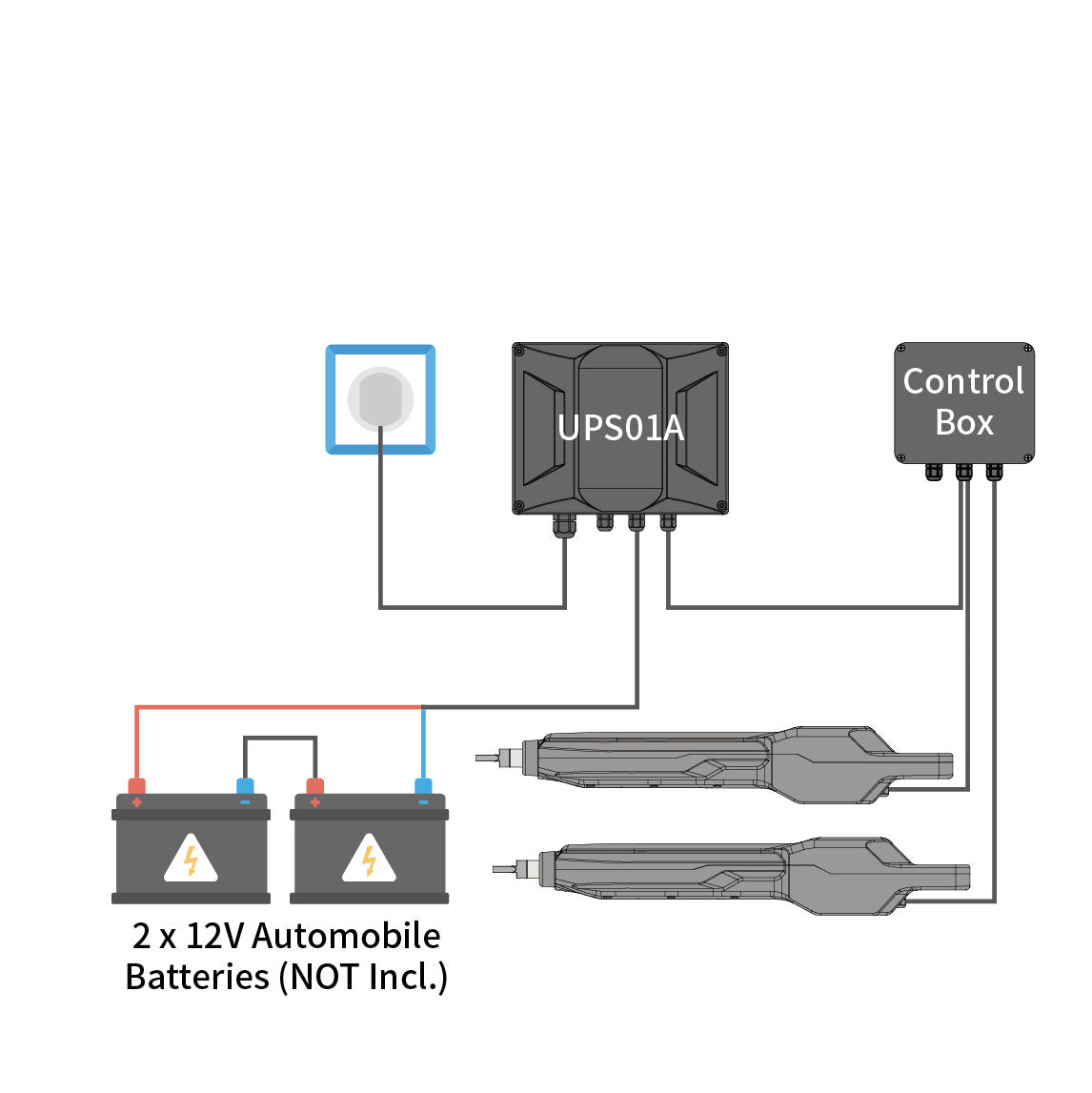

- Multiple Power Solutions -Simply connect to household power, add batteries as a backup or pair with 24V solar panels as the primary power source for eco-friendly operation.
- Customizable Gate Automation -Compatible with a wide range of TOPENS accessories, making it easy to tailor your gate system.
- Enhanced Safety & Security -Automatically stops or reverses if the gate is obstructed during operation for added safety. Auto-close ensures your property is always secured after use.
- Wide Usage -Suitable for various types of swing gates made of steel, wood, vinyl, chain-link, or other styles. Perfect for residential, commercial, courtyard, farm, and ranch applications.
- Product Model :JY9132 Gate Opener
- Performance :Super Heavy Duty
- Compatible Accessories :All the TOPENS Accessories
- Motor Voltage :24VDC
- Motor Power :100W
- Rated Current :5A
- Gate Opening / Closing Speed :0.6 in/s(16 mm/s)
- Max. Arm Travel :19.3” (490mm)
- Gate Opening / Closing Time : Approx. 15 seconds(ideal condition)
- Type of Limit Switch :Electromagnetism Limit

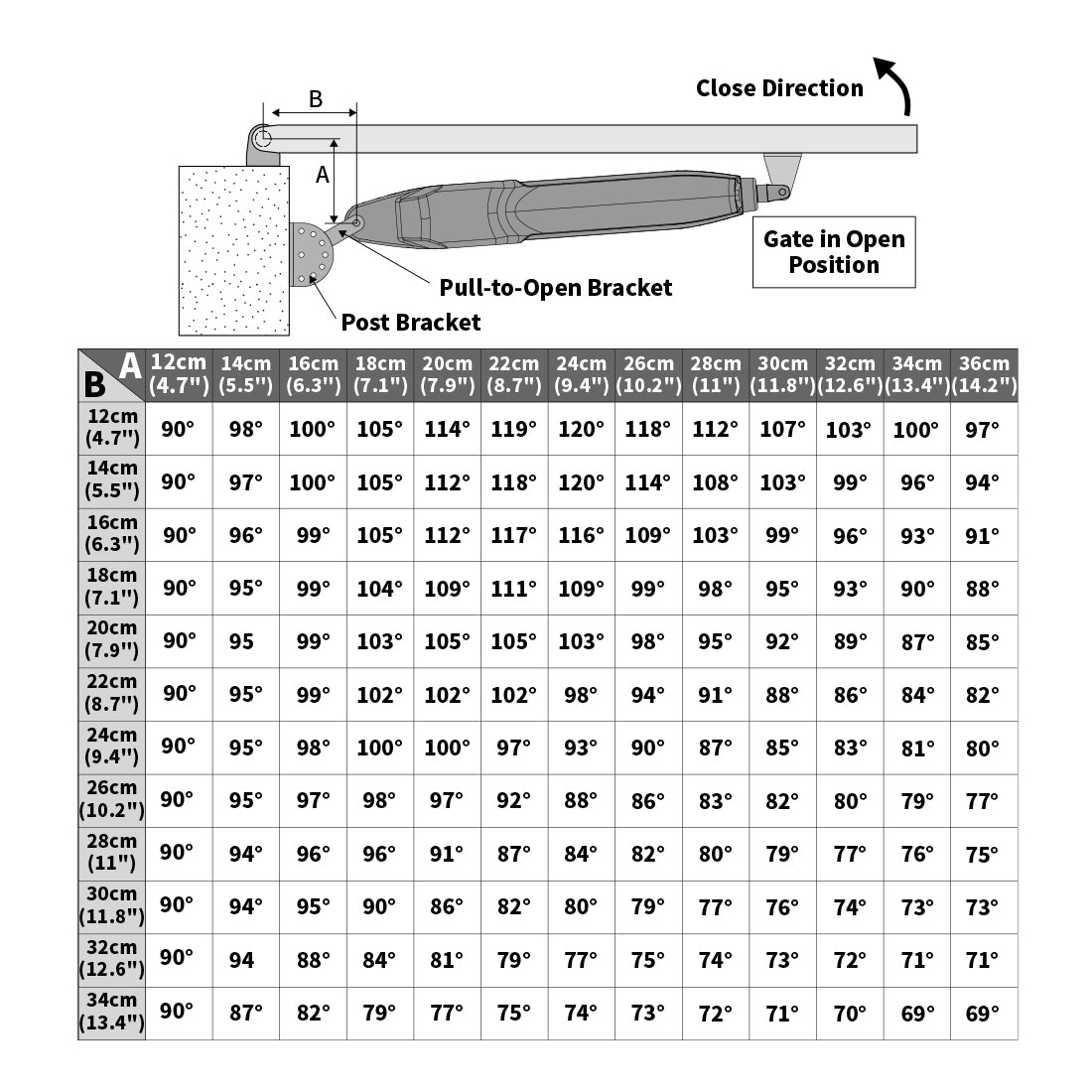

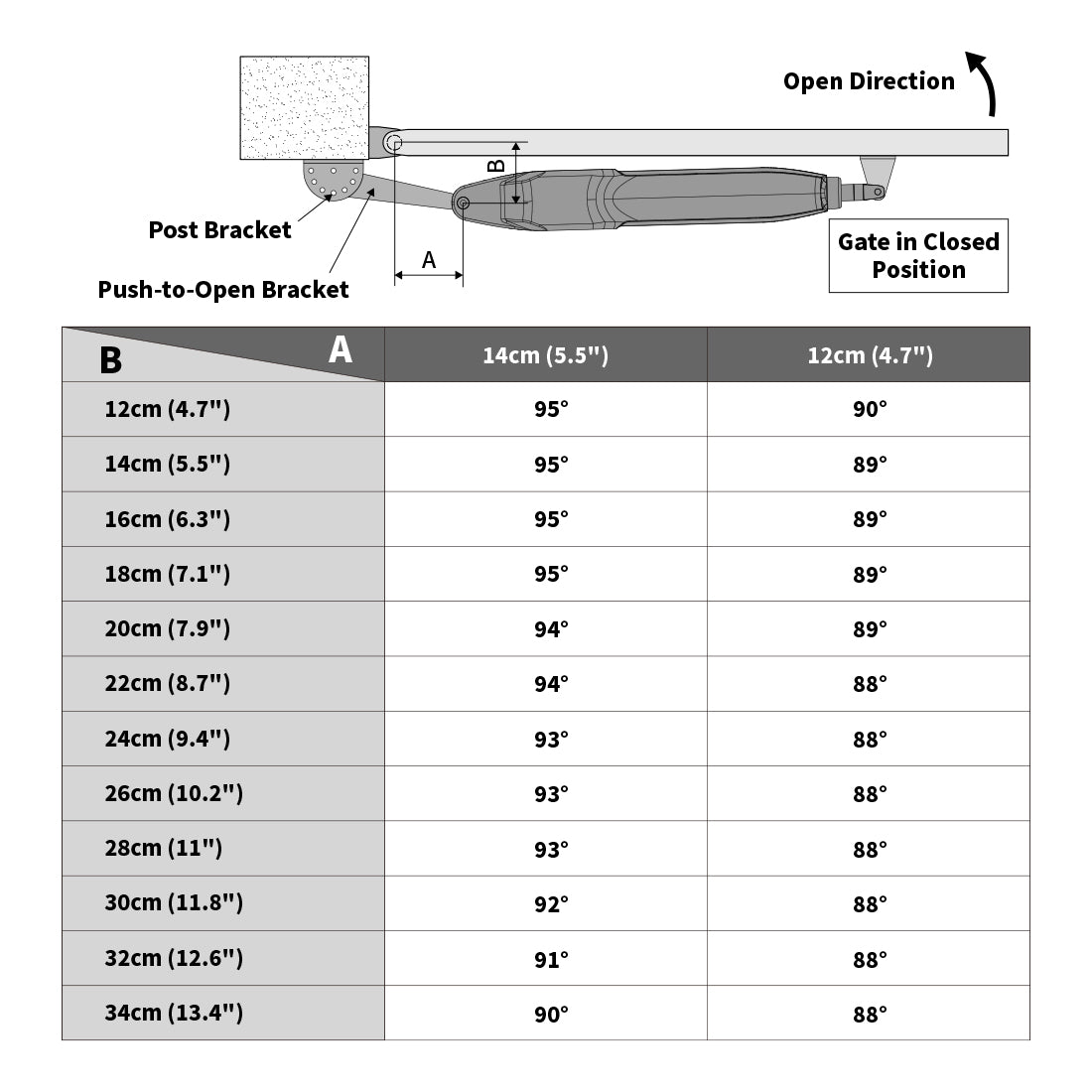

- Max. Opening Angle :69° - 120° depends on the installation mode
- Remote Control Operation Range :65ft (20m)
- Max. # of Remote Control Supported :8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver (sold separately)
- Working Temperature :0°F to 120°F (-20℃~ +50℃)
- Sound Level :< 50 dB
- Protection Class :IP44 Waterproof
- Solar Kit Inlcuded :Not Incl.

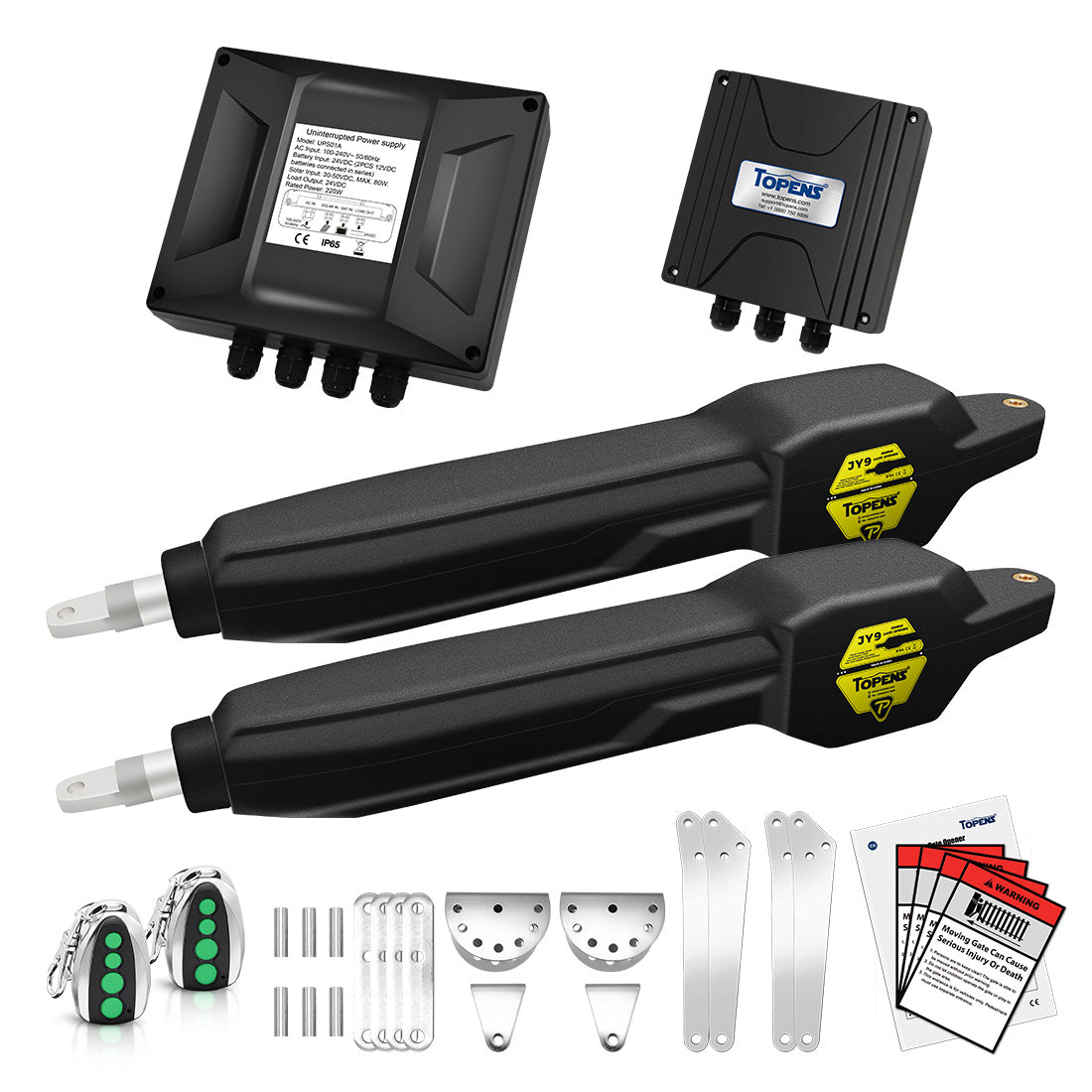

- 2 x Gate Opener Arm, with a 5 feet 5-Conductor Cable per Arm
- 1 x Waterproof Control Box
- 1 x UPS01 Uninterrupted Power Supply (IP65 Waterproof)
- 2 x M12 Remote Control Transmitter
- 1 x 25ft. Extension 5-Conductor Cable for the Gate Opener Arm
- 4 x Pull-to-Open Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)
- 4 x Push-to-Open Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)
- 2 x Post Bracket
- 2 x Gate Bracket
- 1 x Full Set of Required Installation Hardware
- 4 x Warning Sign
- 1 x Installation Manual
Free shipping to the 48 states and Washington, D.C. in mainland USA, with 1-3 business days for processing and 3-6 business days for delivery.
Read full shipping policy HERE
24/7 customer support from installation to any questions you may have throughout the life of your product.
Contact us HERE or email us at support@topens.com
30-Day Hassle-Free Returns - Request a return within 30 days of delivery. Orders can also be canceled before shipping for a full refund.
Read full return and refund policy HERE
Choose options
BUNDLE SALE - BUY MORE SAVE MORE - 8% OFF Bundle any gate opener with at least 3 Accessories
Frequently Bought Together
- Total price:
TOPENS in Real Life
Features

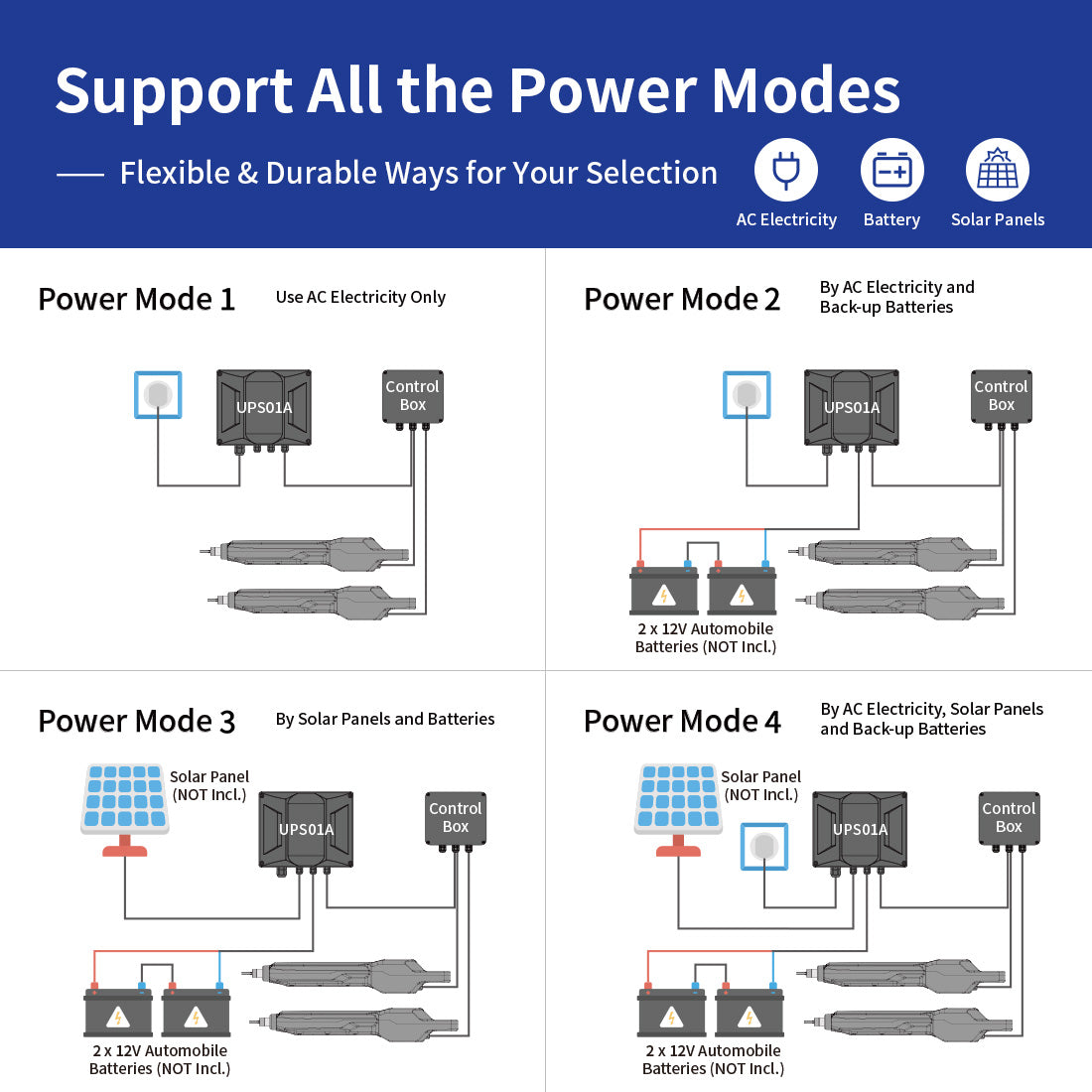

Flexible Power Modes
Product Comparison

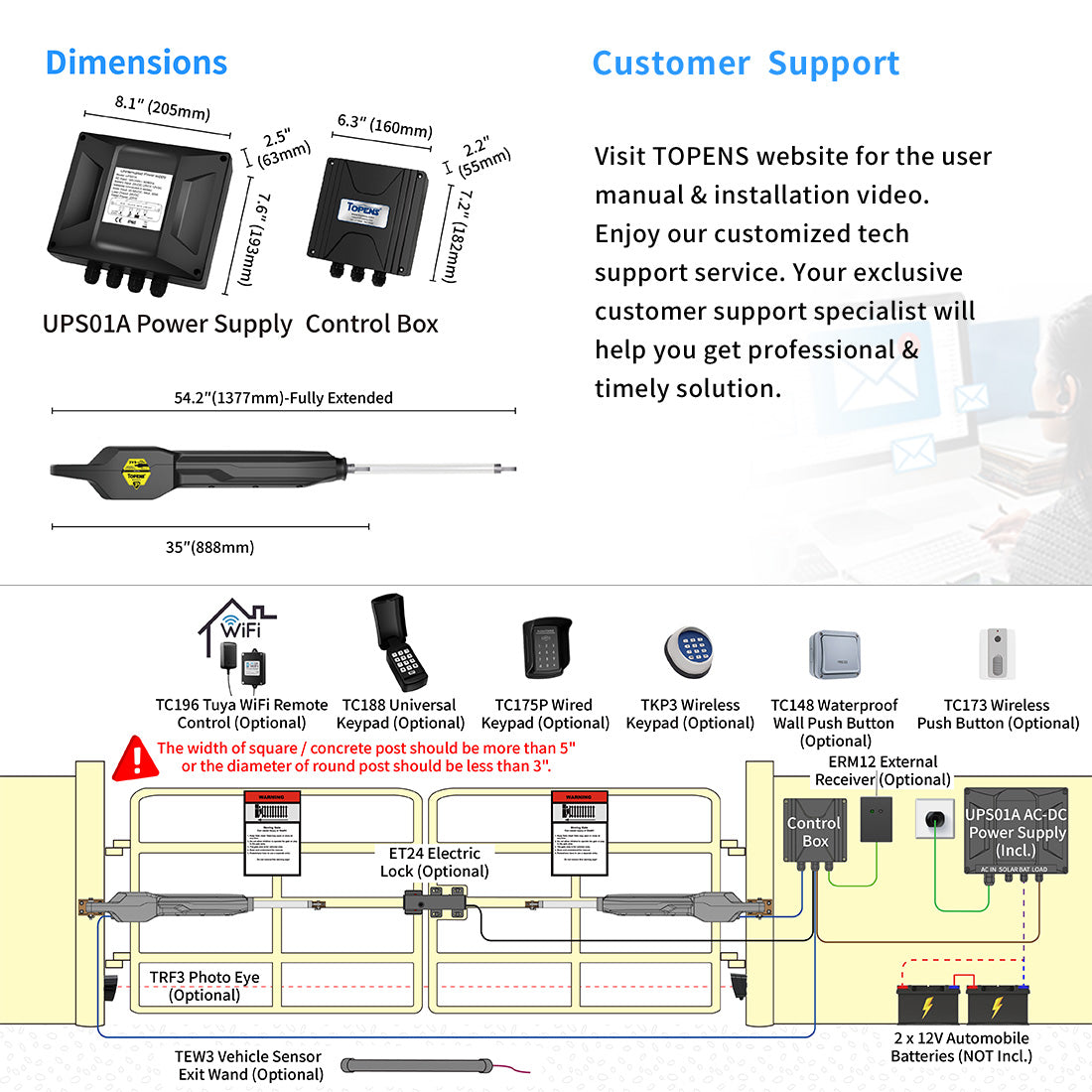

Complete Your Gate System
ALL Gate Openers and Accessories
Customer Reviews

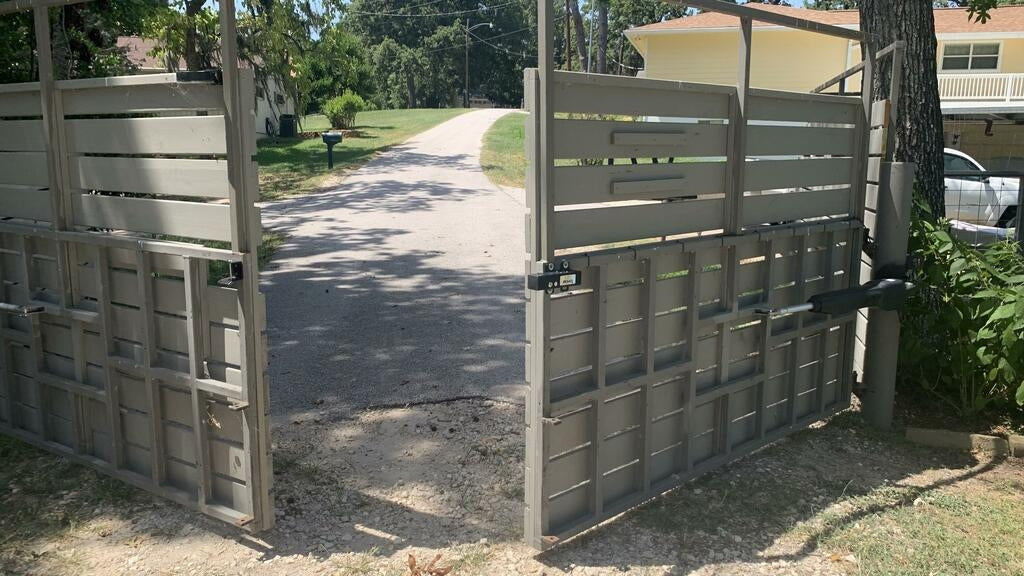

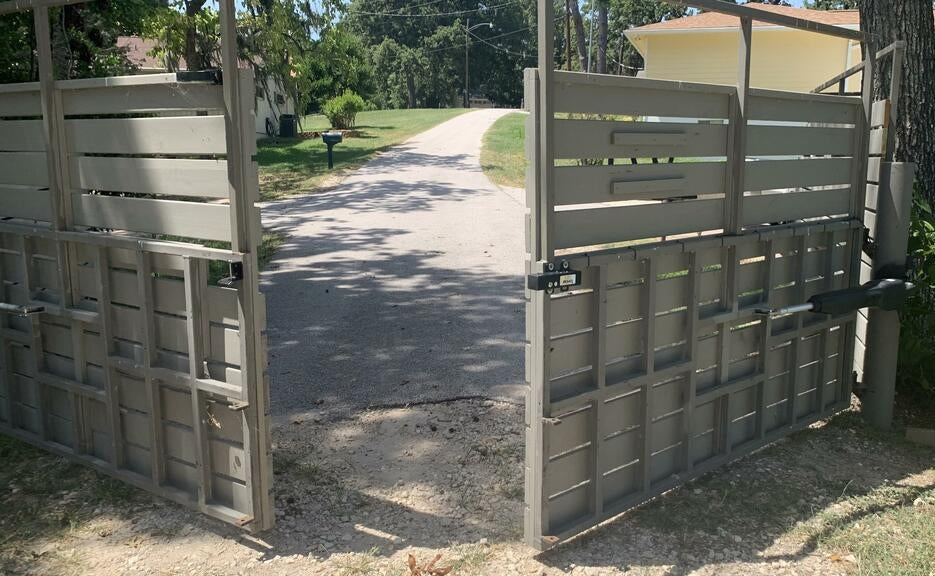

After not being able to find suitable
Openers for solid panel vinyl gates I reached out to topens who quickly replied without concerns and recommended a couple options. I ended up ordering the largest JY9132 opener which I’m sure it way overkill. I did this so I had a little insurance if the gate experienced high wind at some point while operating.
I added PVC wood to the gates screwed and siliconed on with through bolts mounting hardware.
To this point everything is operating perfectly and I would recommend these openers and controls. It took awhile staging everything but once it was all ready install was reasonable. Picture was during install, wiring was later secured to the pvc wood.
Self-installed the JY9132 heavy duty dual gate opener. Was a pretty straight forward easy installation. Good detailed instructions from TOPENS. Comes with two types of brackets (square post and round), and because my posts were 7" in diameter, my simplest installation was to weld the brackets to the metal posts. All-in-all, probably took about five hours including the brackets. The opener comes with a 24v power supply that will run off 120v AC or 24v batteries; batteries can be charged off AC or a solar panel (power supply includes an integrated solar charge controller). I ended up just on AC as the 120v plug at my gate is also powered by a whole house generator. Also installed the ET24 gate lock which really holds the gate firm in the middle. Would definitely recommend this opener.
Dear Greg, thank you so much for your kind review. You really did a great job! We hope that our gate opener can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.
Customer Testimonials
It has been wonderful to open and close my gate from my car. We are very very satisfied with this.
My husband installed this for my father and we all are so impressed with its features and performance.
I really appreciate the customer service that we received with TOPENS. We highly recommend this gate system.
I am pleased with my choice. Instructions are very clear and well written in English.
I used it to replace an existing opener system, it is working great. I have installed several TOPENS openers and I have been happy with all of them.
These were so easy to install. The gate opener was installed easily by my daughter by herself.
