Medium Duty50WSolar Panel Incl.Dual

TOPENS AD5S Solar Dual Swing Gate Opener

Sale price$539.00 Regular price$599.00
Save $60.00

Tax included. Free Shipping.

  • 25+ Years of Expertise -Trusted leader in the automatic gate opener industry.
  • Lifetime Customer Support -24/7 technical assistance and step-by-step guides for easy installation.
  • Free Shipping -Enjoy fast, free delivery across the continental U.S.
  • Extended Warranty -Includes 1-year warranty, extendable up to 2 or 3 years.
  • Worry-Free Returns -30-day hassle-free return policy on all purchases.
  • Powerful Performance -Equipped with two stable 24VDC 50W motors, the AD5S easily operates medium-duty dual swing gates up to 550 lbs. or 16 ft. per gate leaf.
  • (See detailed max gate weight & length combination HERE )
  • Multiple Power Solutions -Includes 20W solar panels and a solar charge controller for off-grid use, or add the UPS01 Uninterruptible Power Supply to combine AC power with solar operation.
  • Customizable Gate Automation -Compatible with a wide range of TOPENS accessories, making it easy to tailor your gate system.
  • Enhanced Safety & Security -Automatically stops or reverses if the gate is obstructed during operation for added safety. Auto-close ensures your property is always secured after use.

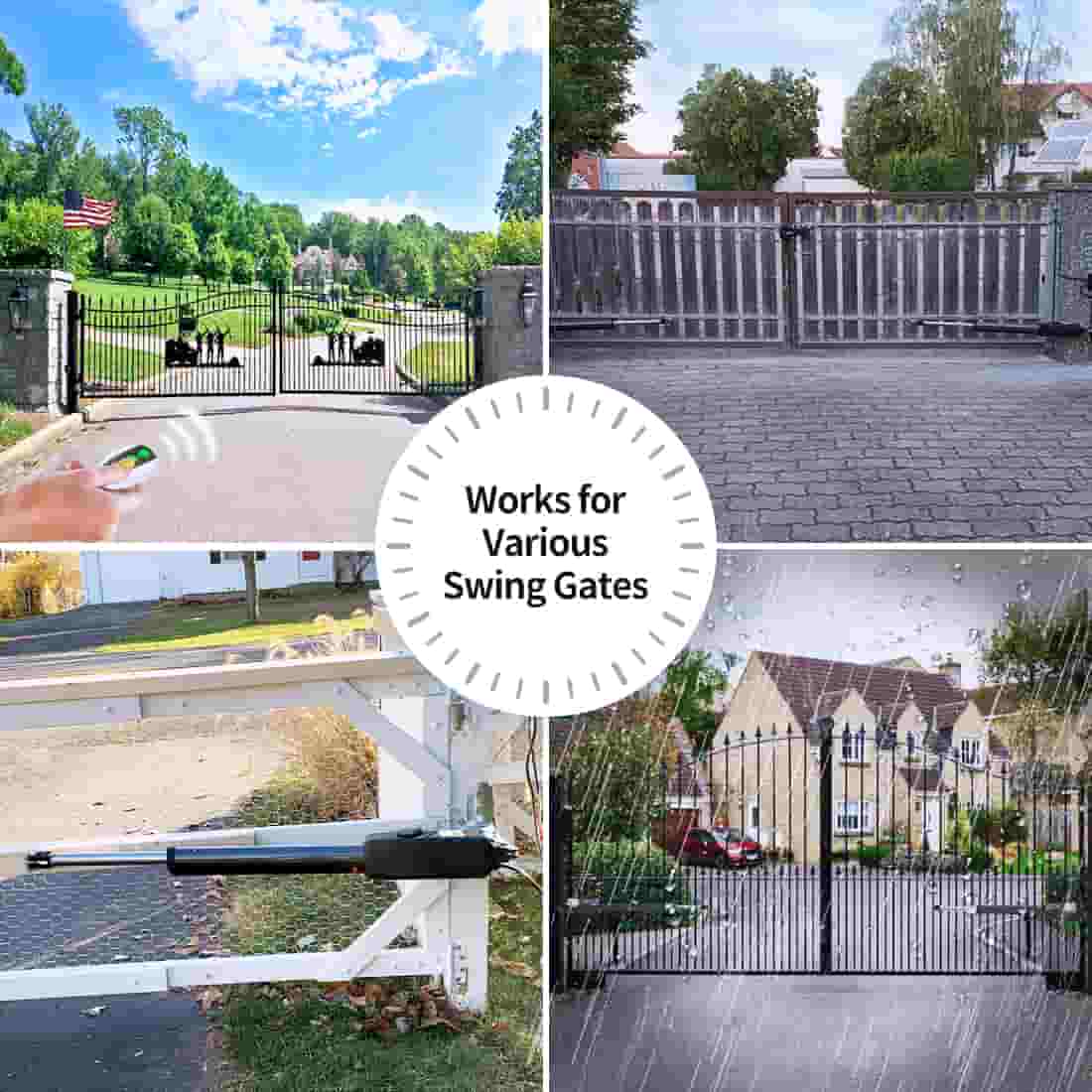

  • Wide Usage -Suitable for various types of swing gates made of steel, wood, vinyl, chain-link, or other styles. Perfect for residential, commercial, courtyard, farm, and ranch applications.
Motor Power: 50W
Warranty:12-Month Warranty
Checkout Securely with
American Express Diners Club Discover Maestro Mastercard PayPal Union Pay Visa
  • Product Model :AD5S Gate Opener
  • Performance :Medium Duty

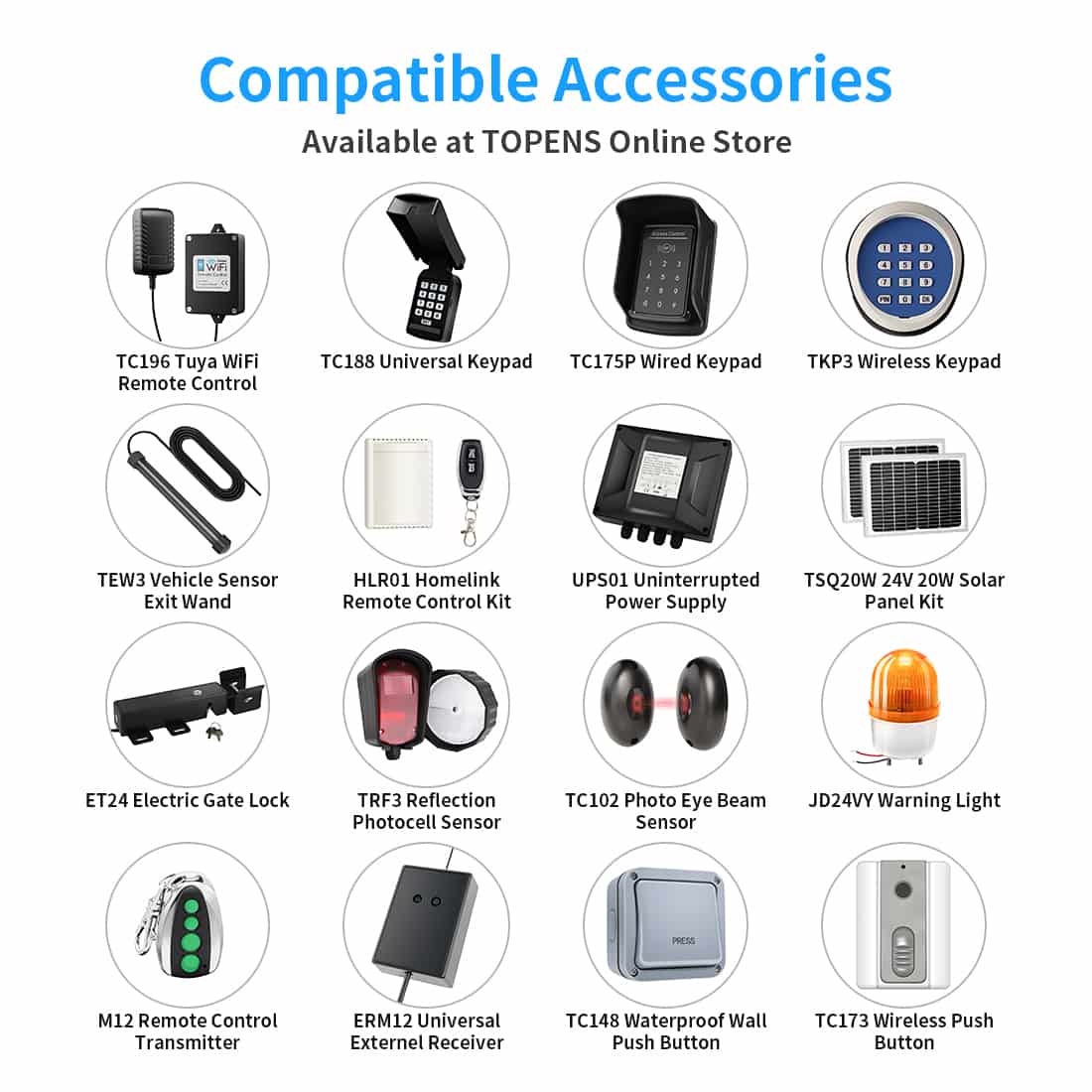

  • Compatible Accessories :All the TOPENS Accessories
  • Motor Voltage :24VDC
  • Motor Power :50W
  • Rated Current :2A
  • Gate Opening / Closing Speed :0.6 in/s(16 mm/s)
  • Max. Arm Travel :15.2” (385mm)
  • Gate Opening / Closing Time : Approx. 15 seconds(ideal condition)
  • Type of Limit Switch :Electromagnetism Limit
  • Max. Opening Angle :68° - 120° depends on the installation mode
  • Remote Control Operation Range :65ft (20m)
  • Max. # of Remote Control Supported :8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver (sold separately)
  • Working Temperature :0°F to 120°F (-20℃~ +50℃)
  • Sound Level :< 50 dB
  • Protection Class :IP44 Waterproof
  • Solar Kit Inlcuded :2 x 10W 24V Solar Panel & 1 Solar Charge Controller Incl.
  • 2 x Gate Opener Arm, with a 5 feet 5-Conductor Cable per Arm
  • 2 x 10W 24V Solar Panel
  • 1 x Solar Charge Controller
  • 1 x Waterproof Control Box
  • 2 x M12 Remote Control Transmitter
  • 2 x Emergency Release Key
  • 1 x TS24-U Adapter, with a 4 feet Cord (ONLY Used to Charge the Battery)
  • 1 x 25ft. Extension 5-Conductor Cable for the Gate Opener Arm
  • 2 x Pull-to-Open Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)
  • 2 x Push-to-Open Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)
  • 4 x Post Bracket
  • 2 x Gate Bracket
  • 1 x Full Set of Required Installation Hardware
  • 4 x Warning Sign
  • 1 x Installation Manual

Free shipping to the 48 states and Washington, D.C. in mainland USA, with 1-3 business days for processing and 3-6 business days for delivery.

Read full shipping policy HERE

TOPENS offers a 12-month limited warranty for gate openers and accessories purchased directly from our official website or Amazon stores.
Read full warranty policy HERE

24/7 customer support from installation to any questions you may have throughout the life of your product.

Contact us HERE or email us at support@topens.com

30-Day Hassle-Free Returns - Request a return within 30 days of delivery. Orders can also be canceled before shipping for a full refund.

Read full return and refund policy HERE

BUNDLE SALE - BUY MORE SAVE MORE - 8% OFF Bundle any gate opener with at least 3 Accessories

Frequently Bought Together

Total price:
Save 0

Topens - GUARD YOUR HAPPY FAMILY

25+ Years' Experience in Gate Automation Industry

Extended Warranty

Comes with 1-year warranty, extendable to 2-3 years.

Extended Warranty

Comes with 1-year warranty, extendable to 2-3 years.

Lifetime Customer Support

Our support team delivers professional, custom solutions.

Free Shipping

Free shipping in continental U.S.: 3-6 work days.

30-Day Worry-Free Return

Give TOPENS a try with 30-day worry-free return.

Features

Easy DIY Installation-Get started quickly with our step-by-step, easy-to-follow guide.

Easy DIY Installation

Get started quickly with our step-by-step, easy-to-follow guide.

Easy DIY Installation-Get started quickly with our step-by-step, easy-to-follow guide.

Easy DIY Installation

Get started quickly with our step-by-step, easy-to-follow guide.

Smart Control Board-Easily customize your gate's operation to fit your exact needs.

Smart Control Board

Easily customize your gate's operation to fit your exact needs.

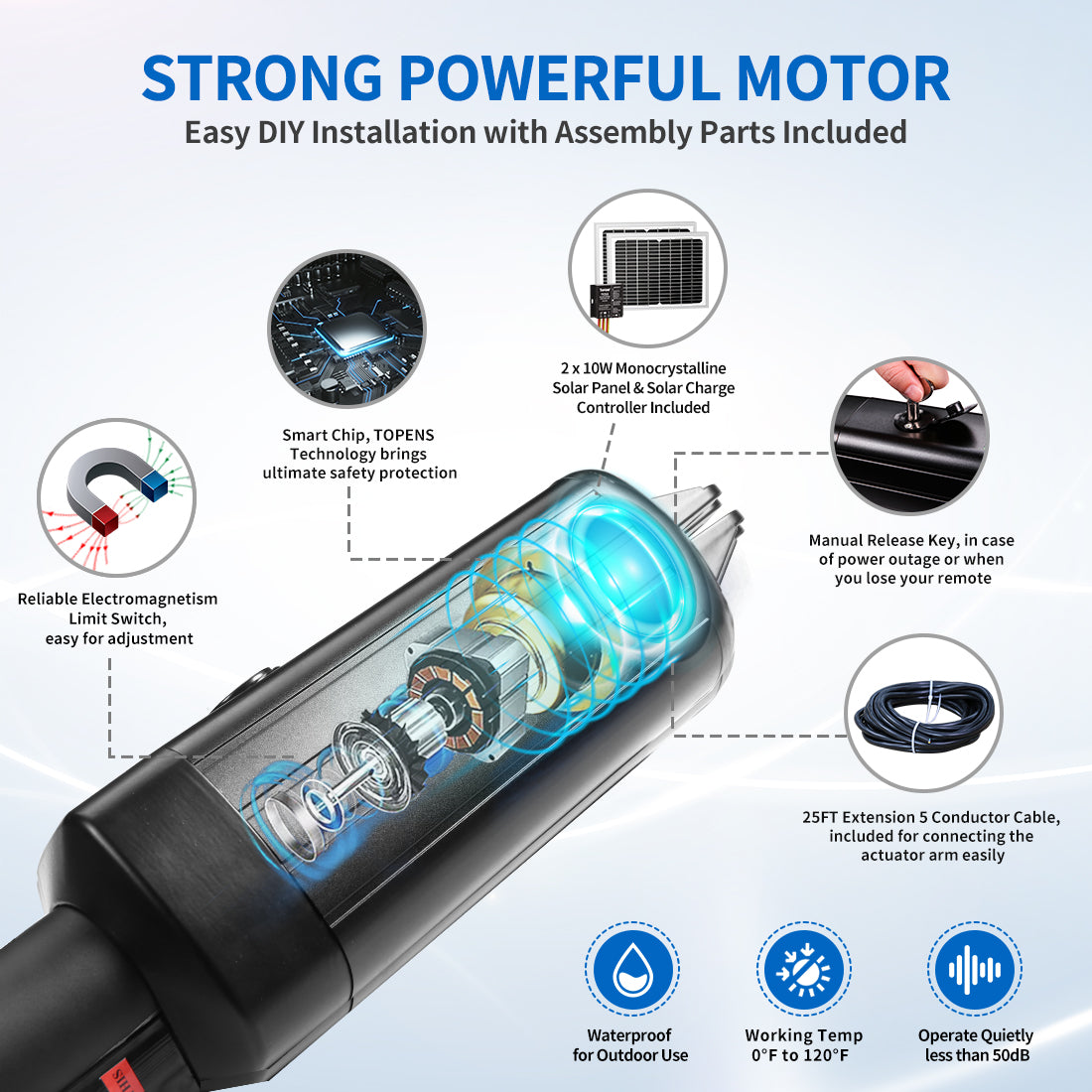

Reliable and Quiet-Built to last with a powerful yet quiet motor for daily use.

Reliable and Quiet

Built to last with a powerful yet quiet motor for daily use.

Wide Applications-The ideal solution for homes, courtyards, farms, and large estates.

Wide Applications

The ideal solution for homes, courtyards, farms, and large estates.

Features open swing gate using remote in the car
  • Off-Grid Capable
    Comes with solar panels and a solar charge controller, simply add batteries to create a self-sustaining power source. Perfect for locations without power lines.
  • Dual Swing Design
    Supports both Pull-to-Open (swing inward) and Push-to-Open (swing outward) configurations. The mounting brackets are included for either setup.
  • Advanced TOPENS Code Technology
    Our system utilizes advanced rolling code technology, preventing code grabbing and ensuring maximum security against unwanted entry.
  • Electromagnetic Limit System
    The electromagnetic limit switch halts the gate at your preset open and close positions, ensuring consistent and automated gate operation every time.
Features car drives through the swing gate
  • Adjustable Obstruction Sensitivity
    Obstruction stall force can be adjusted depending on the gate's weight to ensure the gate reaches both the open and close limits without unnecessary reversing or frequent interruptions.
  • Customizable Open and Close Delay
    Precisely adjust the opening and closing interval between your master and slave gate from 1 to 9 seconds to ensure safe, smooth, and synchronized operation.
  • Soft Start and Soft Stop
    The design protects the motor from jolts and stress, ensuring quieter performance and extending the lifespan of your entire gate system.
  • Manual Release for Emergencies
    The dedicated manual release key is included to quickly and safely disengage the motor, ensuring gate access during a power outage or if the remote control is lost.

Installation

  • Power Drill
  • Tape Measure
  • Wire Strippers
  • C-Clamps - small, medium, and large
  • Level
  • Hacksaw or Heavy Duty Bolt Cutters
  • Phillips Screwdriver
  • Open End Wrenches - 14# & 17# or Adjustable Wrenches

Check the Gate

  • Ensure the gate is plumb, level, and swings freely without obstruction.
  • The mounting post must be a stable structure secured in concrete.
  • Repair or replace any worn or damaged hardware before installation.

Items Not Included but May Needed

  • 24V Battery: Required for solar-powered operation.
  • PVC Conduit: Protects the wiring from the slave arm to the control board.
  • Connection Cable: May be needed for wired accessory installation.
  • Electric Gate Lock: Recommended in windy areas to prevent gate movement and damage.
  • Photocell Sensor: Adds a critical safety layer by detecting obstructions.

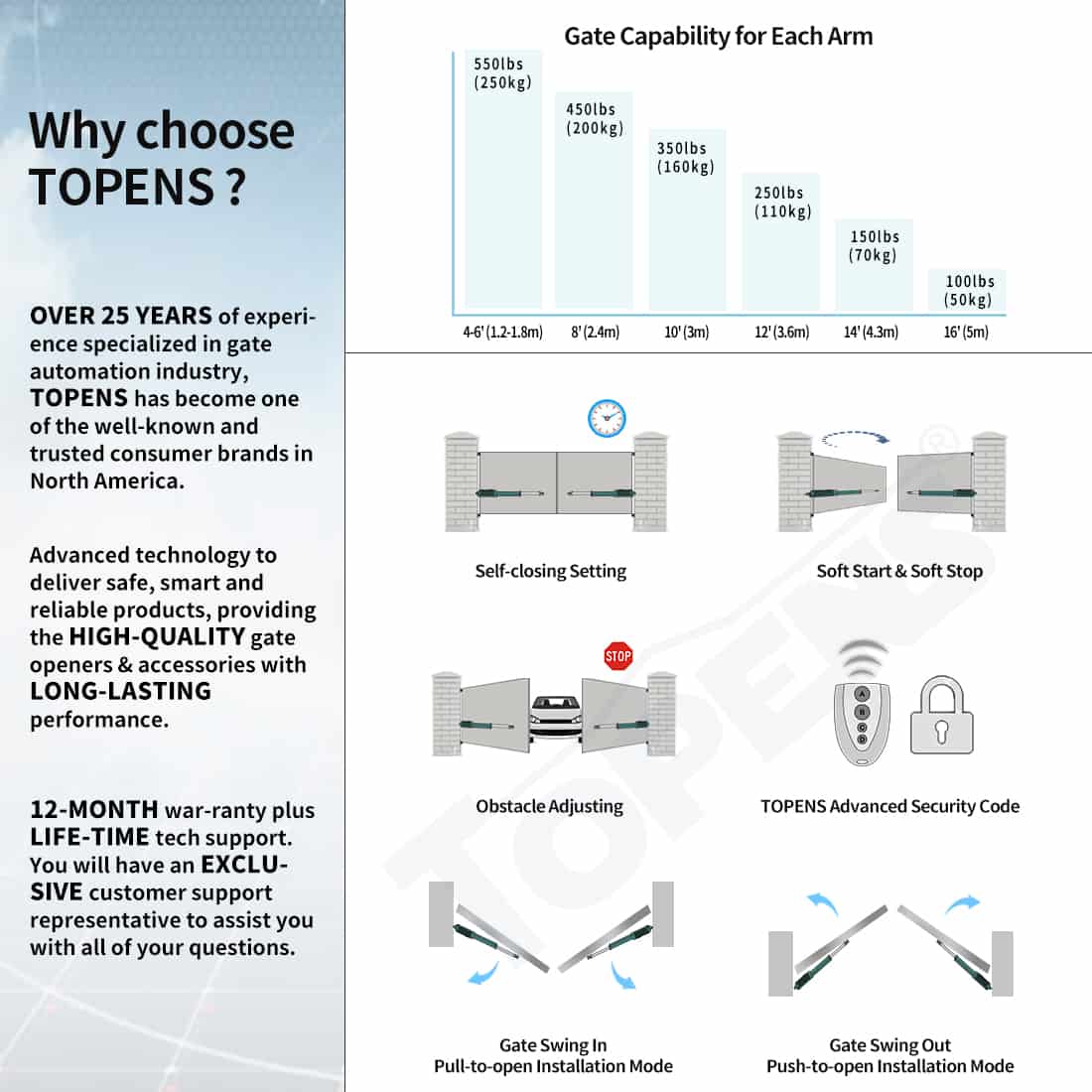

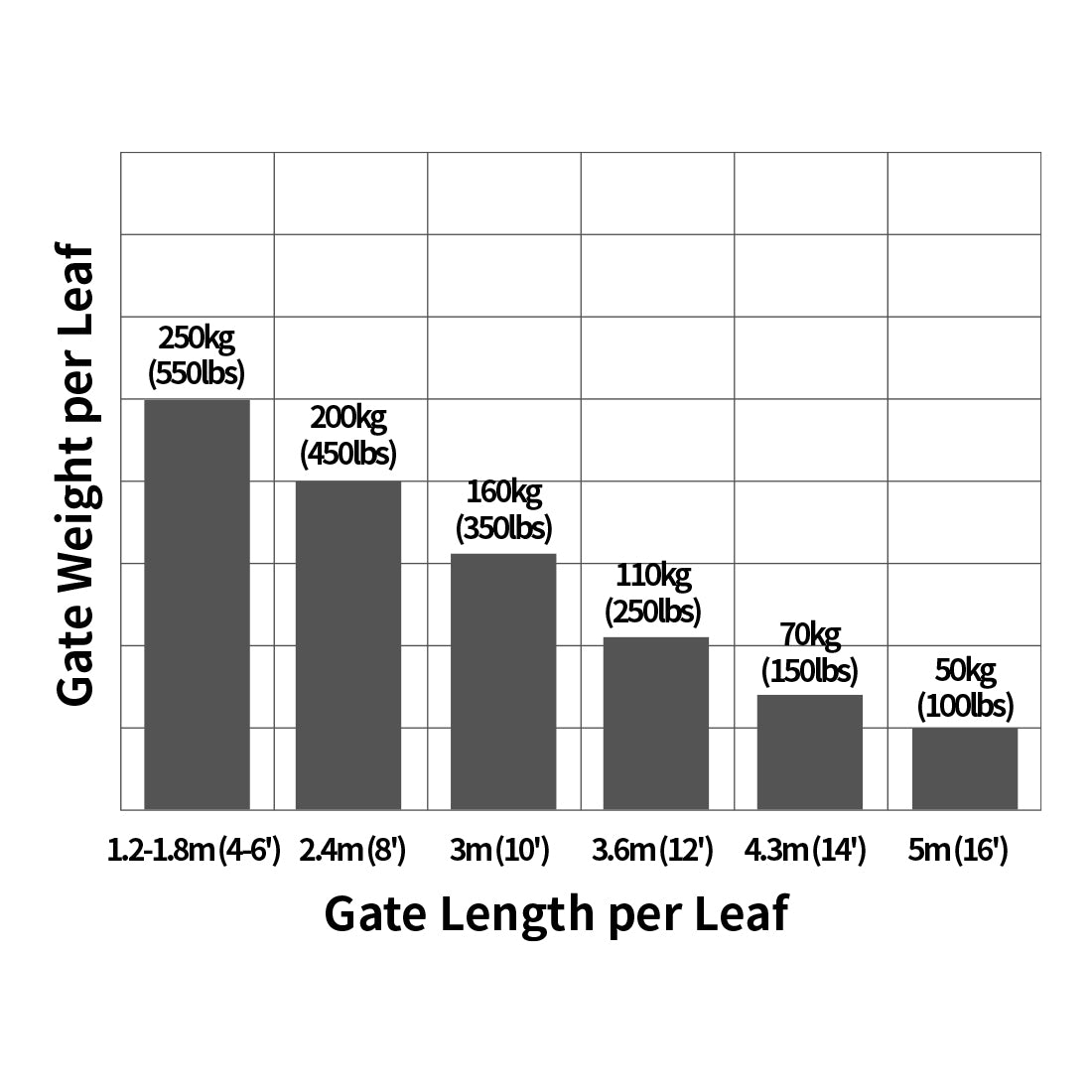

A5 Arm Max Gate Length and Weight Combination per arm

Gate Capability

  • AD5S gate opener works well for the medium duty dual swing gate up to a maximum of 16ft. in length (correspondingly 100lbs. in weight) per gate leaf.
  • Suitable for the swing gate up to 550lbs. in weight (correspondingly 4ft. in length) per gate leaf.
  • Kindly note that the max. gate length capability is inversely proportional to the gate weight.
A8 A5 A3 Arm Max Opening Angle of the Gate in Pull-to-Open installation mode

Opening Angle for Pull-to-Open Installation

  • The gate opens inward toward the property. The required pull-to-open bracket is included.
  • The maximum opening angle adjusts from 68° to 120° based on the bracket’s installation position.
A8 A5 A3 Arm Max Opening Angle of the Gate in Push-to-Open installation mode

Opening Angle for Push-to-Open Installation

  • The gate opens outward from the property. The required push-to-open bracket is included.
  • The maximum opening angle adjusts from 87° to 112° based on the bracket’s installation position.

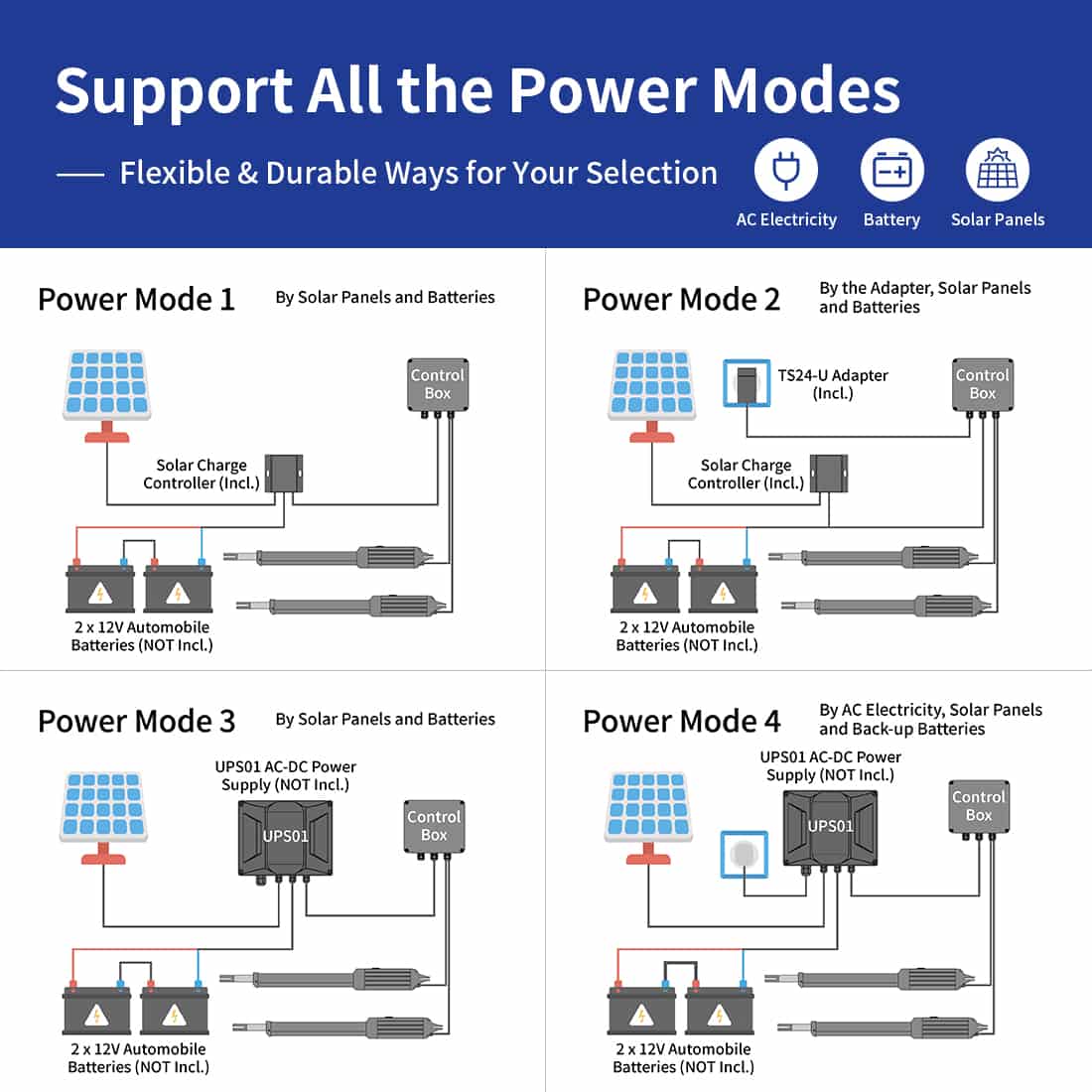

Flexible Power Modes

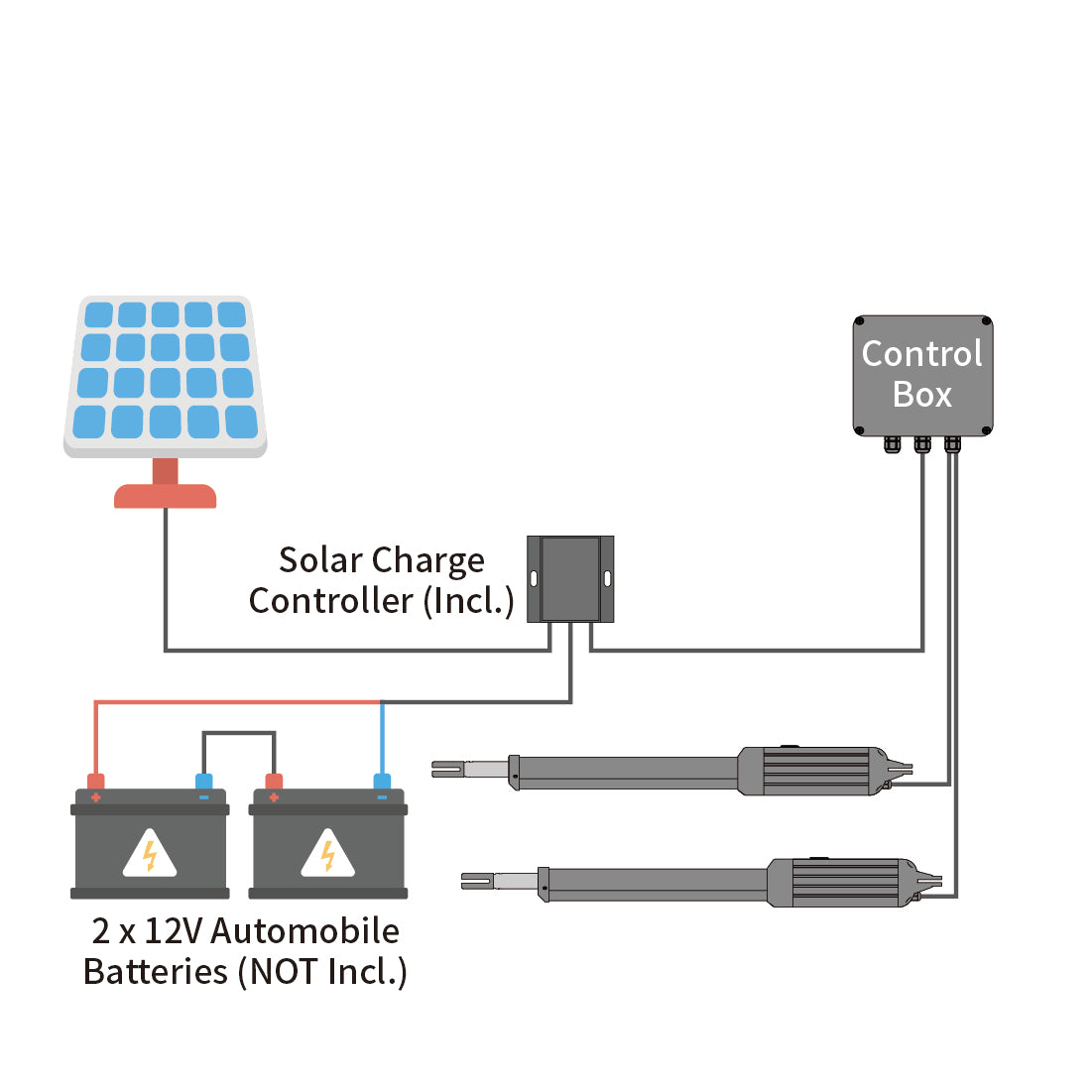

AD8S & AD5S Solar Dual Swing Gate Opener Power Mode 1

Power Mode 1 (Default Mode) - By Solar Panels and Batteries

  • Batteries as main power source, use only solar panel and solar charge controller to charge the batteries.
  • Recommended in remote location such as farm, ranch, pasture, etc.
  • A minimum 24VDC 12Ah automotive/marine battery is required.
  • 2 pcs 12V batteries connected in series for 24V (Battery is NOT included).

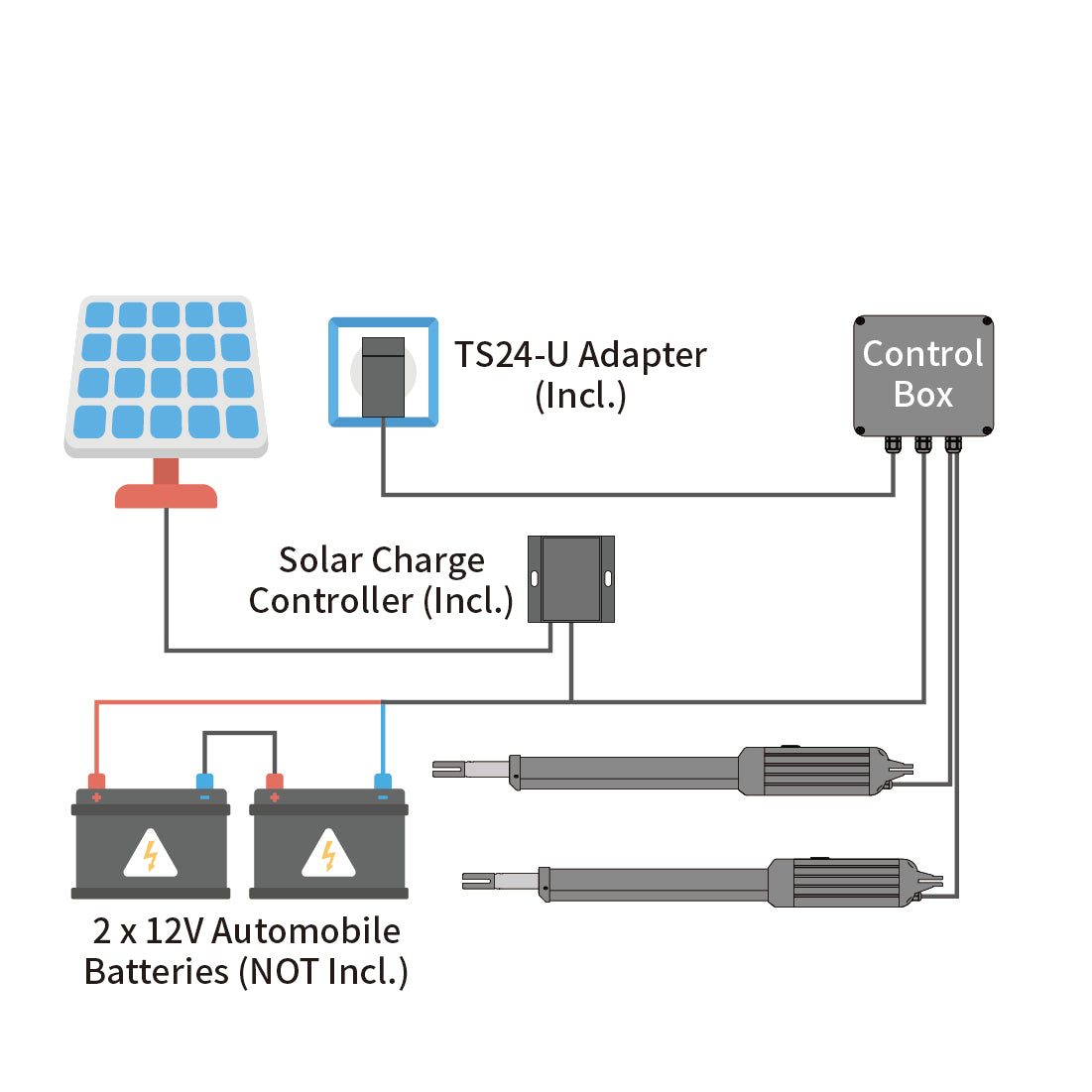

AD8S & AD5S Solar Dual Swing Gate Opener Power Mode 2

Power Mode 2 – By the Adapter, Solar Panels and Batteries

  • Batteries as main power source, use the adapter, solar panel and solar charge controller together to charge the batteries.
  • Recommended where AC electricity is accessible, but not stable.
  • A minimum 24VDC 7Ah automotive/marine battery is required.

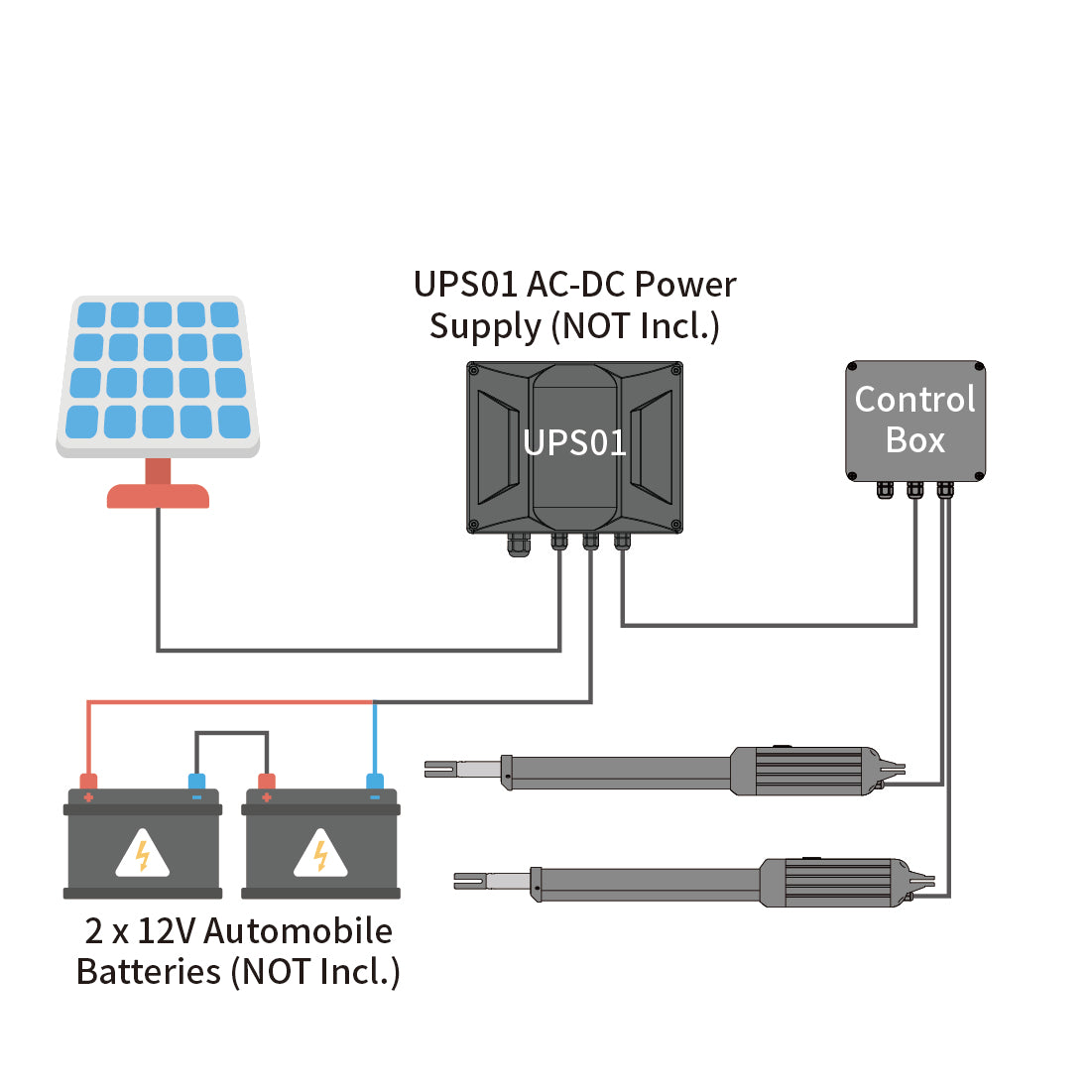

AD8S & AD5S Solar Dual Swing Gate Opener Power Mode 3

Power Mode 3 – By Solar Panels and Batteries

  • Batteries as main power source, use only solar panel to charge the batteries (UPS01 Uninterrupted Power Supply is functioned as a solar charge controller).
  • Recommended in remote location such as farm, ranch, pasture, etc.
  • For AC power interruptions under 8 hours daily, a minimum 24VDC 5Ah automotive/marine battery is sufficient.
  • TOPENS UPS01 Uninterrupted Power Supply is sold separately.

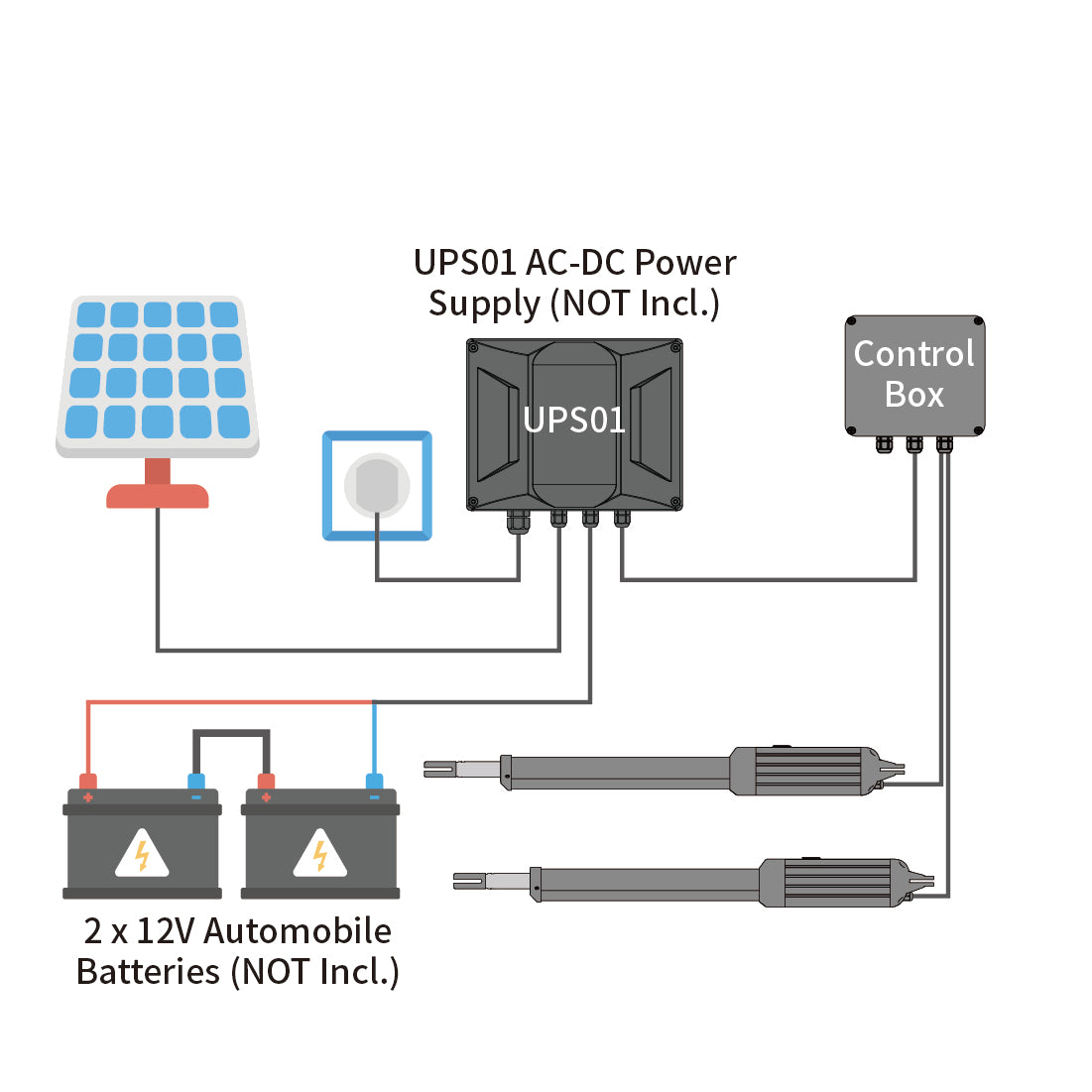

AD8S & AD5S Solar Dual Swing Gate Opener Power Mode 4

Power Mode 4 – By AC Electricity, Solar Panels and Back-up Batteries

  • Batteries as back-up power source, use the AC electricity and solar panel together to charge the batteries (UPS01 converts AC to DC electricity and is also functioned as a solar charge controller).
  • Recommended where AC electricity is accessible, but not stable.
  • For AC power interruptions under 8 hours daily, a minimum 24VDC 5Ah automotive/marine battery is sufficient.
  • TOPENS UPS01 Uninterrupted Power Supply is sold separately.

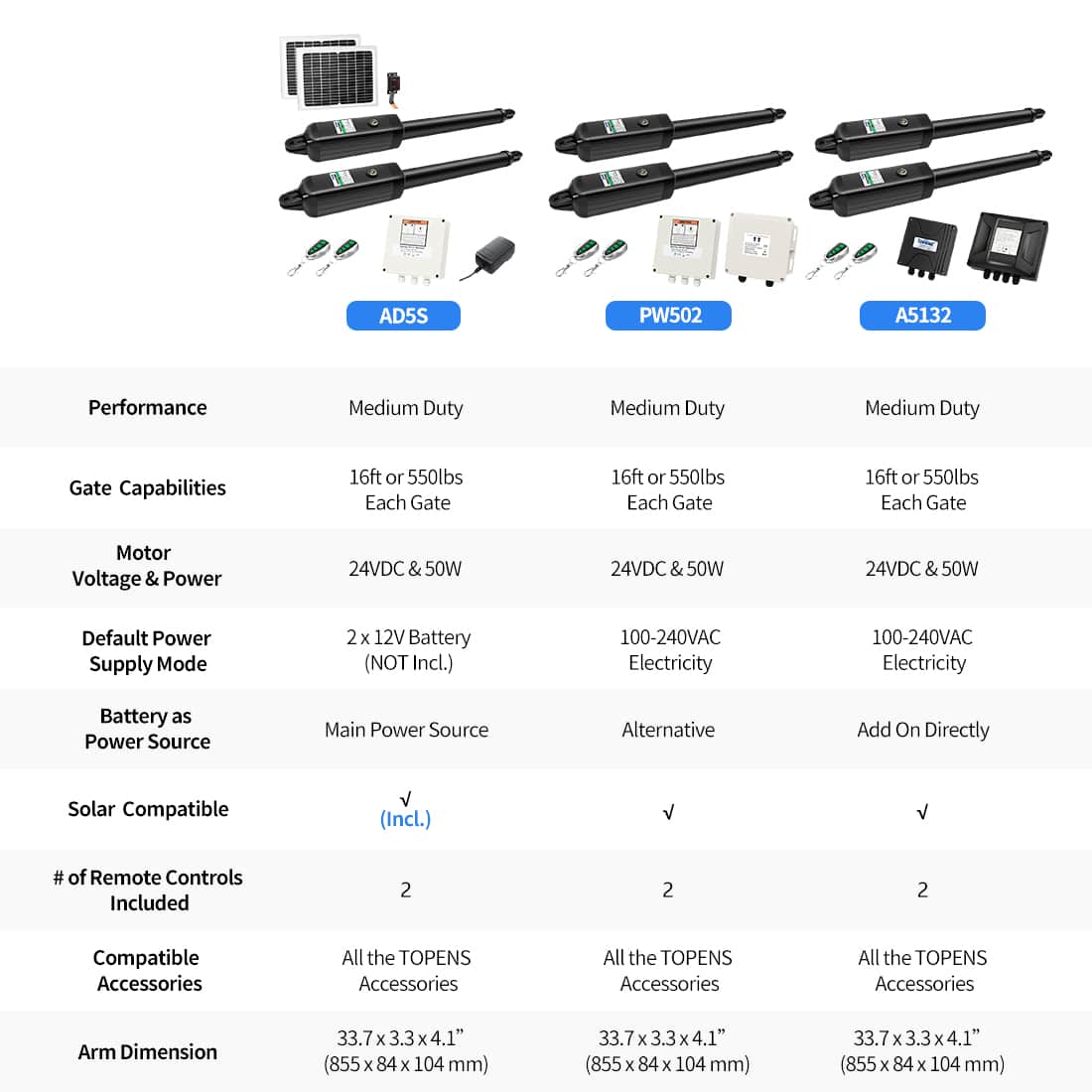

Product Comparison
