TOPENS PW802 Heavy Duty Dual Swing Gate Opener

Heavy Duty80WDual

TOPENS PW802 Heavy Duty Dual Swing Gate Opener

$519.00 $599.00

Save $80.00

Tax included. Free Shipping.

25+ Years of Expertise -Trusted leader in the automatic gate opener industry.
Lifetime Customer Support -24/7 technical assistance and step-by-step guides for easy installation.
Free Shipping -Enjoy fast, free delivery across the continental U.S.
Extended Warranty -Includes 1-year warranty, extendable up to 2 or 3 years.
Worry-Free Returns -30-day hassle-free return policy on all purchases.

Powerful Performance -Equipped with two stable 24VDC 80W motors, the PW802 easily operates heavy-duty dual swing gates up to 880 lbs. or 18 ft. per gate leaf.

(See detailed max gate weight & length combination HERE )

Multiple Power Solutions -Use AC power alone, or add the UPS01 Uninterruptible Power Supply to enable battery backup and connect 24V solar panels for eco-friendly operation.
Customizable Gate Automation -Compatible with a wide range of TOPENS accessories, making it easy to tailor your gate system.
Enhanced Safety & Security -Automatically stops or reverses if the gate is obstructed during operation for added safety. Auto-close ensures your property is always secured after use.
Wide Usage -Suitable for various types of swing gates made of steel, wood, vinyl, chain-link, or other styles. Perfect for residential, commercial, courtyard, farm, and ranch applications.

Motor Power: 80W

Warranty:12-Month Warranty

Variant

Checkout Securely with

Product Model :PW802 Gate Opener
Performance :Heavy Duty

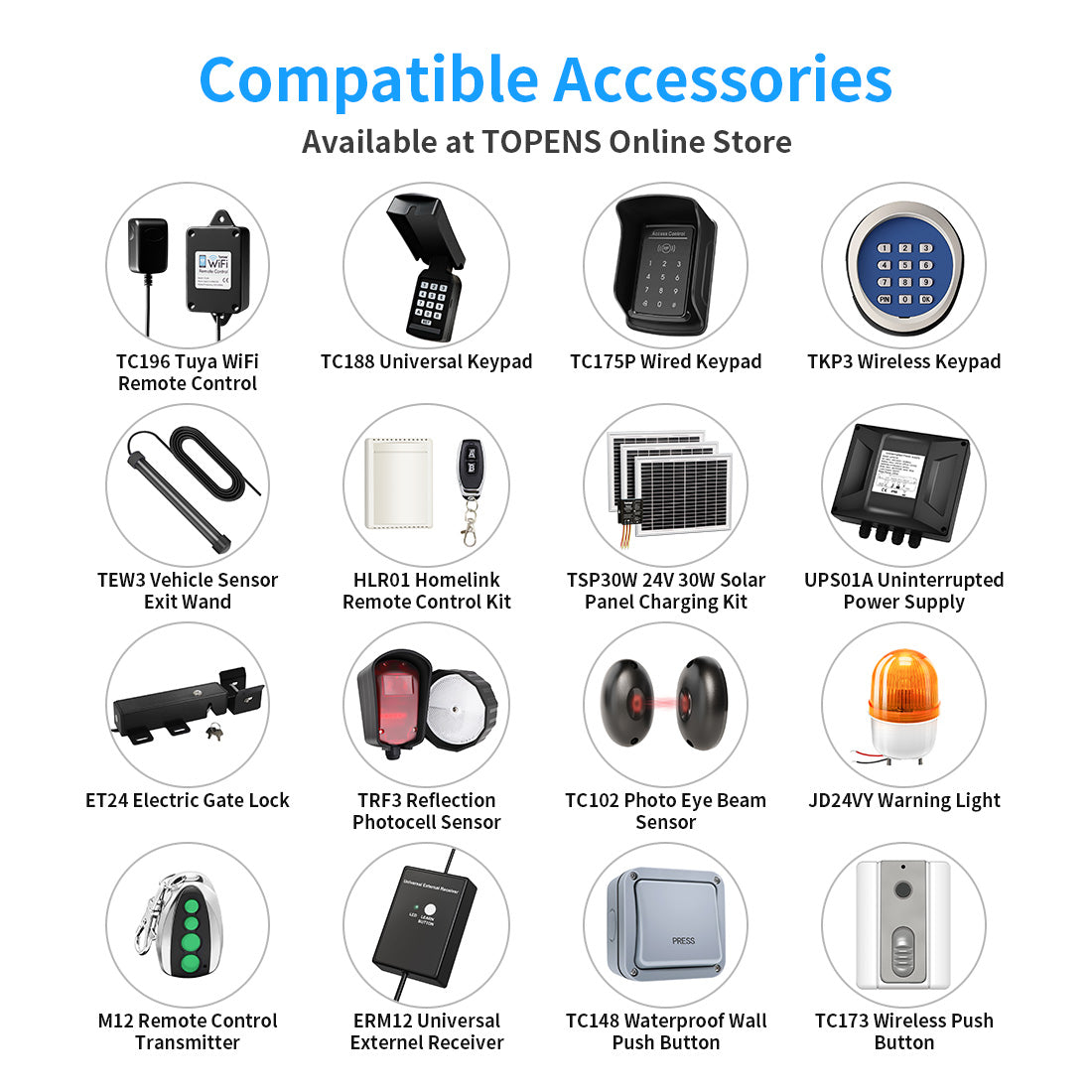

Compatible Accessories :All the TOPENS Accessories
Motor Voltage :24VDC
Motor Power :80W
Rated Current :3A
Gate Opening / Closing Speed :0.6 in/s(16 mm/s)
Max. Arm Travel :15.2” (385mm)
Gate Opening / Closing Time : Approx. 15 seconds(ideal condition)
Type of Limit Switch :Electromagnetism Limit
Max. Opening Angle :68° - 120° depends on the installation mode
Remote Control Operation Range :65ft (20m)
Max. # of Remote Control Supported :8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver (sold separately)
Working Temperature :0°F to 120°F (-20℃~ +50℃)
Sound Level :< 50 dB
Protection Class :IP44 Waterproof
Solar Kit Inlcuded :Not Incl.

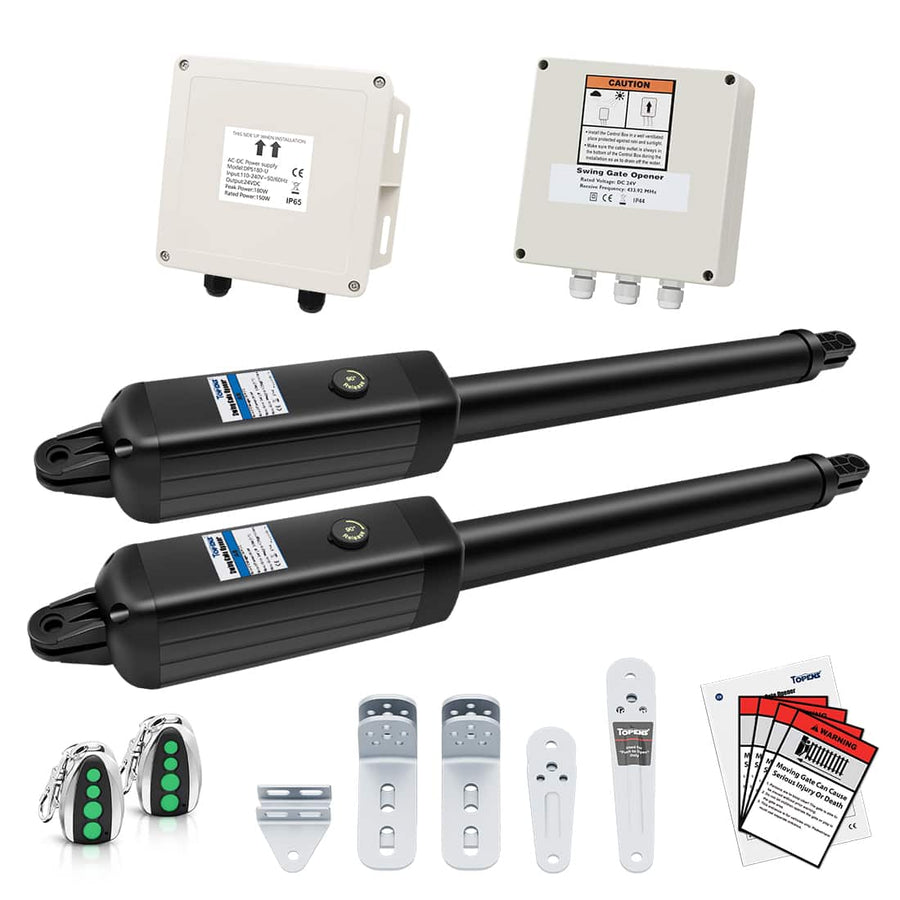

2 x Gate Opener Arm, with a 5 feet 5-Conductor Cable per Arm
1 x Waterproof Control Box
1 x DPS180-U AC-DC Power Supply
2 x M12 Remote Control Transmitter
2 x Emergency Release Key
1 x 25ft. Extension 5-Conductor Cable for the Gate Opener Arm
2 x Pull-to-Open Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)
2 x Push-to-Open Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)
4 x Post Bracket
2 x Gate Bracket
1 x Full Set of Required Installation Hardware
4 x Warning Sign
1 x Installation Manual

Free shipping to the 48 states and Washington, D.C. in mainland USA, with 1-3 business days for processing and 3-6 business days for delivery.

Read full shipping policy HERE

TOPENS offers a 12-month limited warranty for gate openers and accessories purchased directly from our official website or Amazon stores.

Read full warranty policy HERE

24/7 customer support from installation to any questions you may have throughout the life of your product.

Contact us HERE or email us at support@topens.com

30-Day Hassle-Free Returns - Request a return within 30 days of delivery. Orders can also be canceled before shipping for a full refund.

Read full return and refund policy HERE

Topens - GUARD YOUR HAPPY FAMILY

25+ Years' Experience in Gate Automation Industry

Extended Warranty

Comes with 1-year warranty, extendable to 2-3 years.

Extended Warranty

Comes with 1-year warranty, extendable to 2-3 years.

Lifetime Customer Support

Our support team delivers professional, custom solutions.

Free Shipping

Free shipping in continental U.S.: 3-6 work days.

30-Day Worry-Free Return

Give TOPENS a try with 30-day worry-free return.

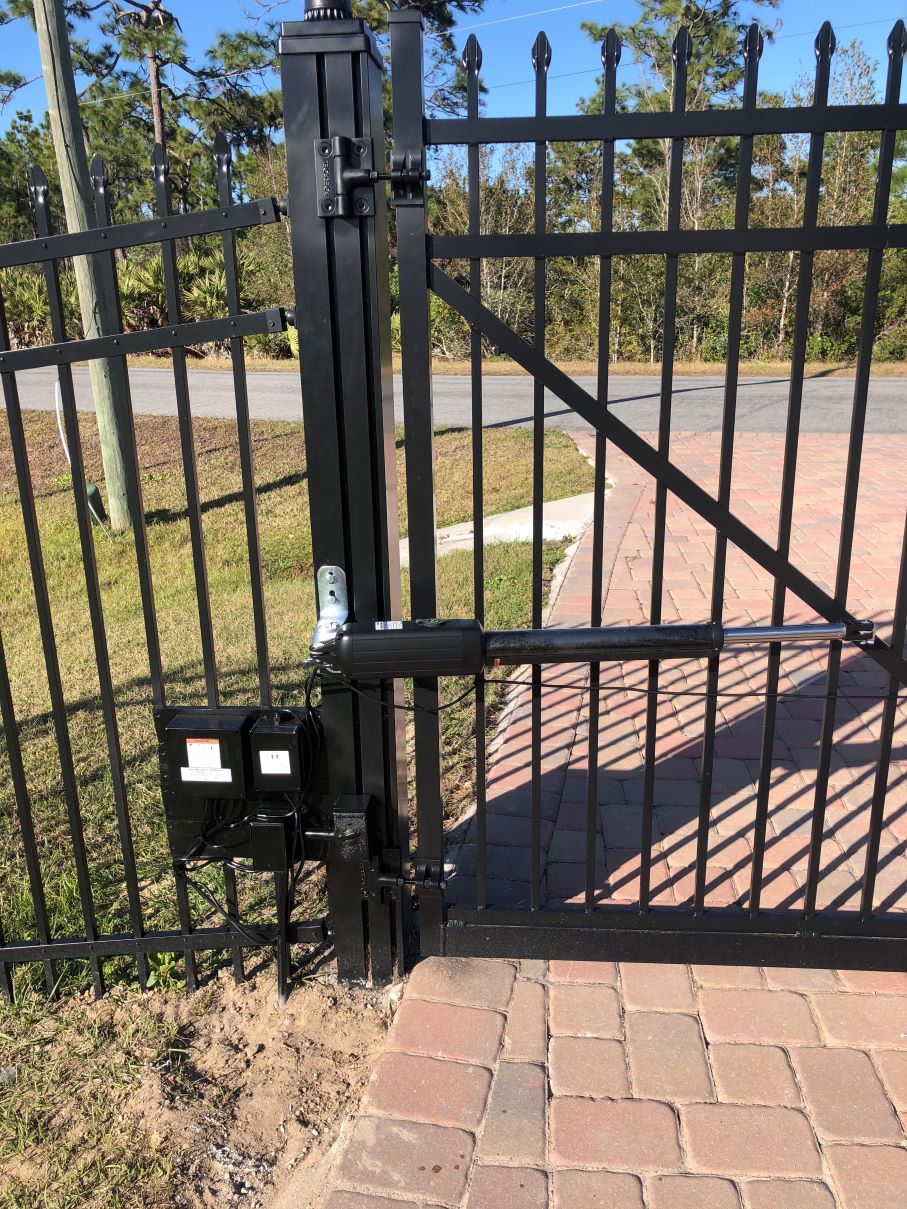

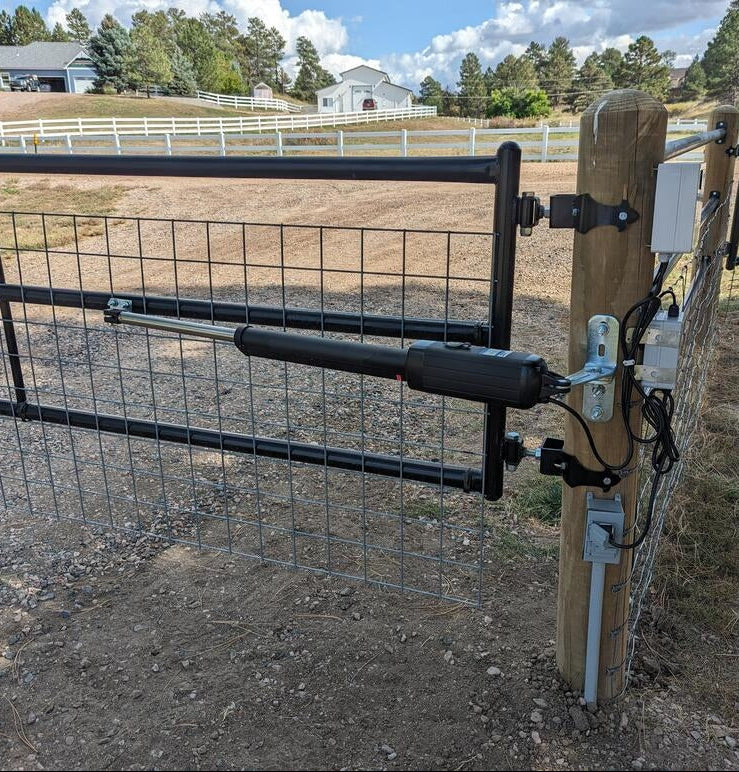

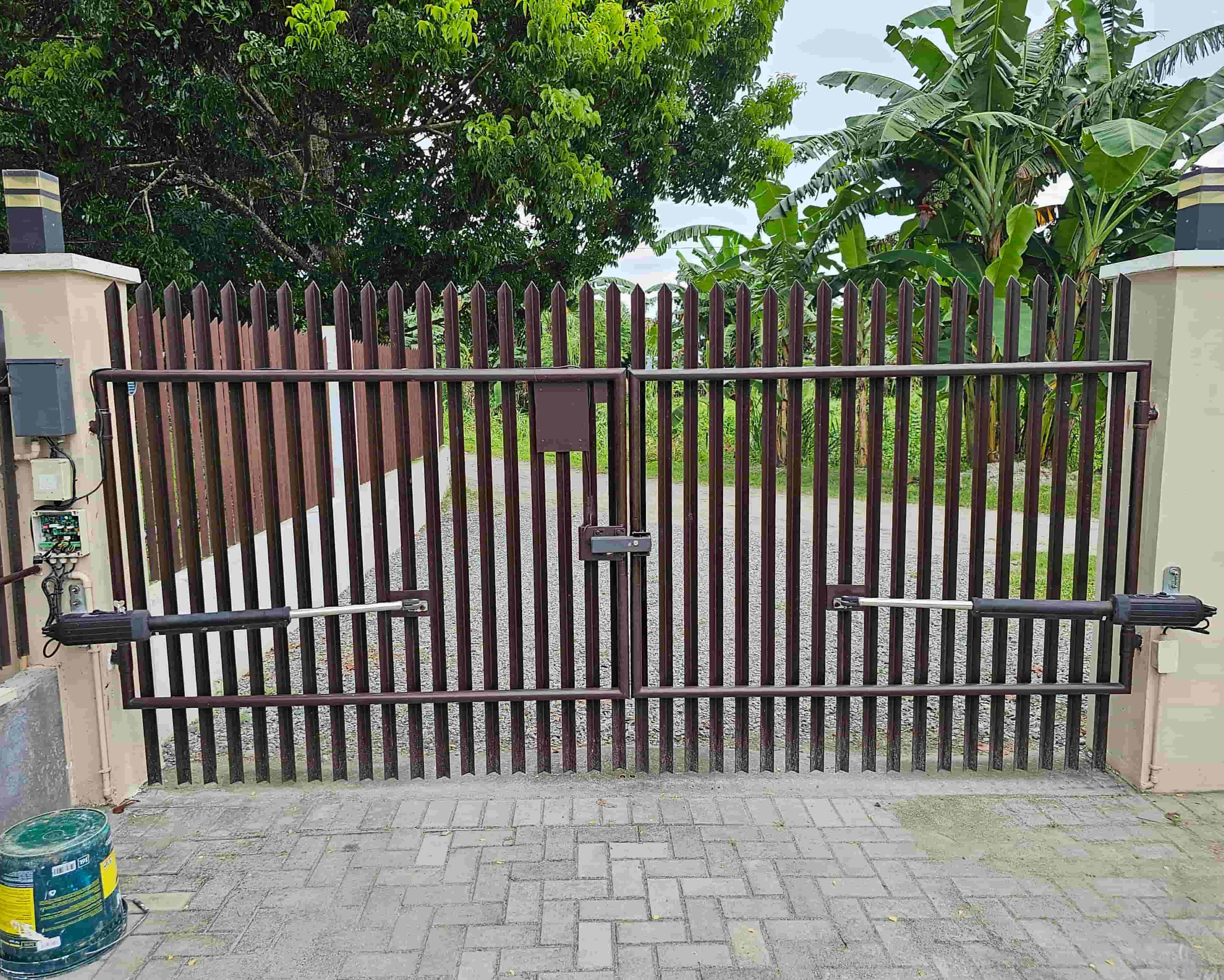

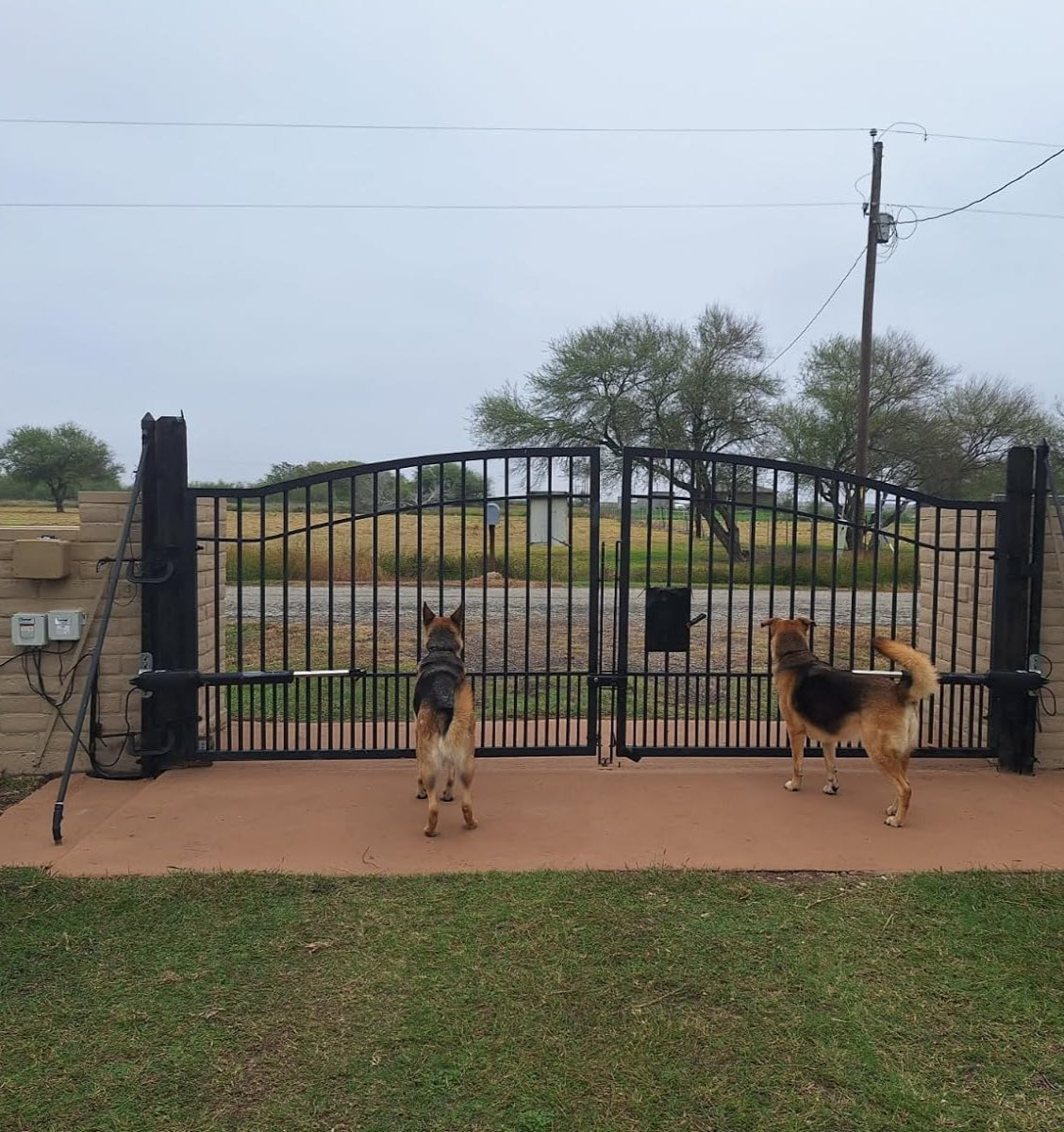

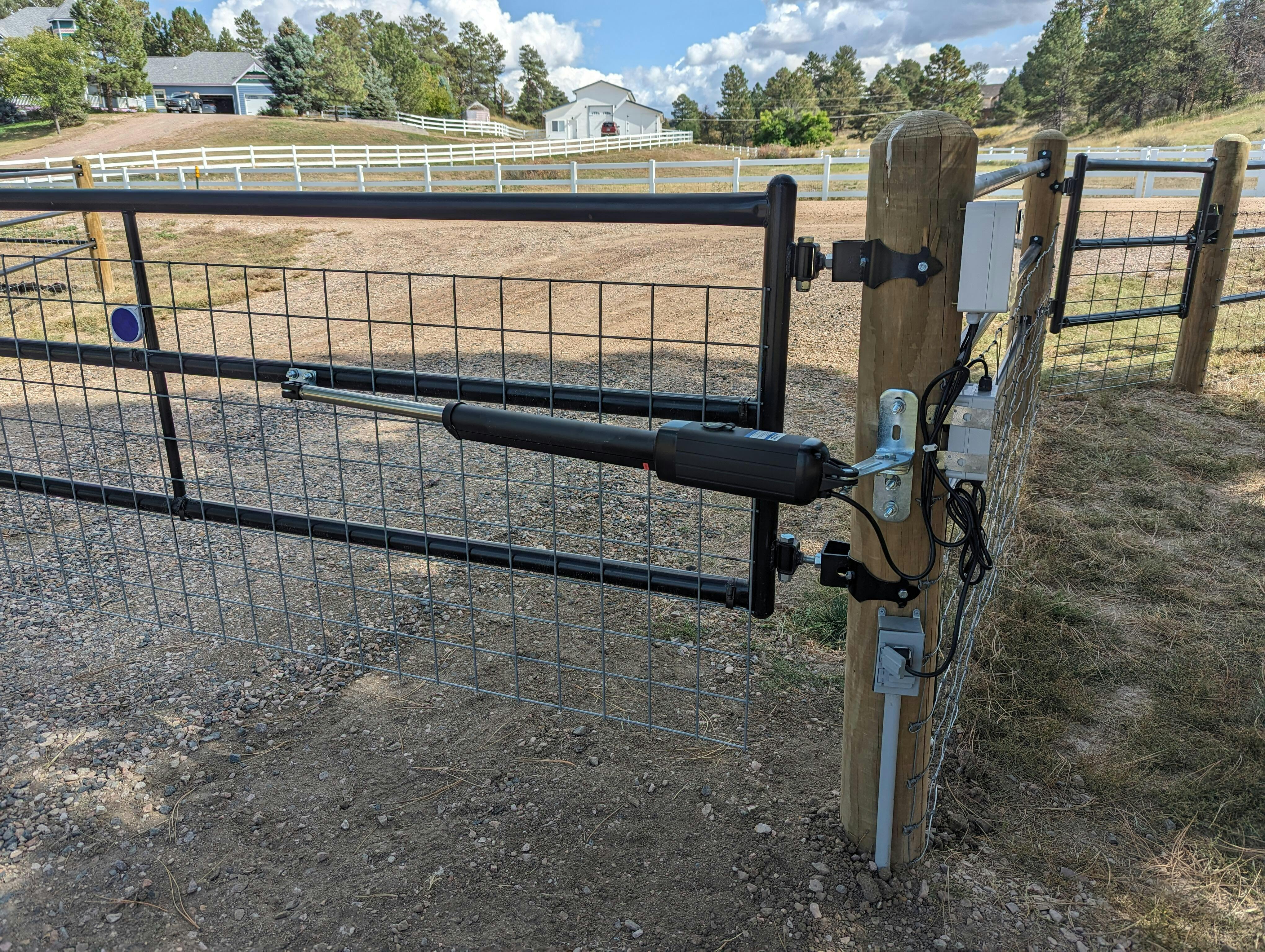

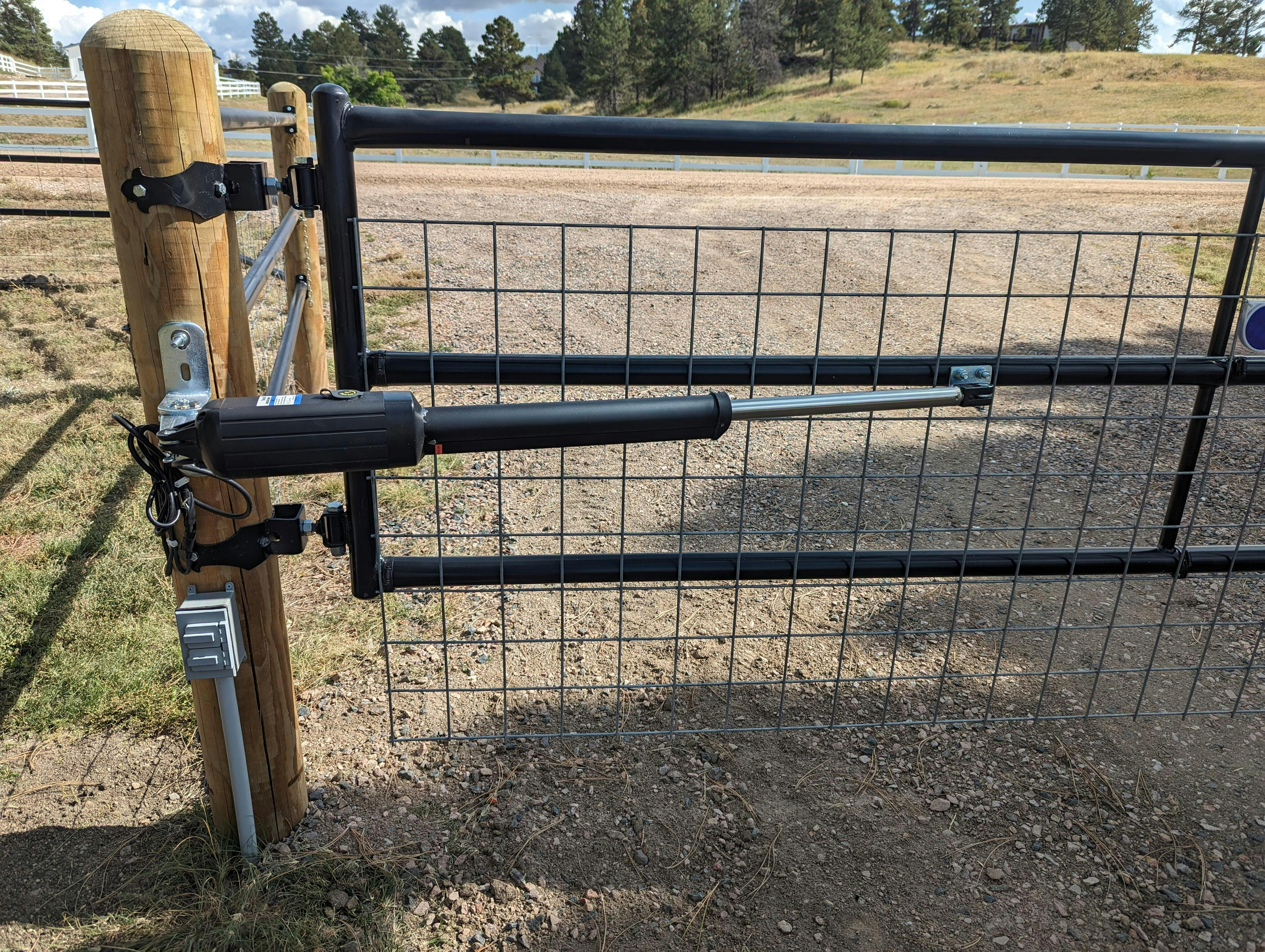

TOPENS in Real Life

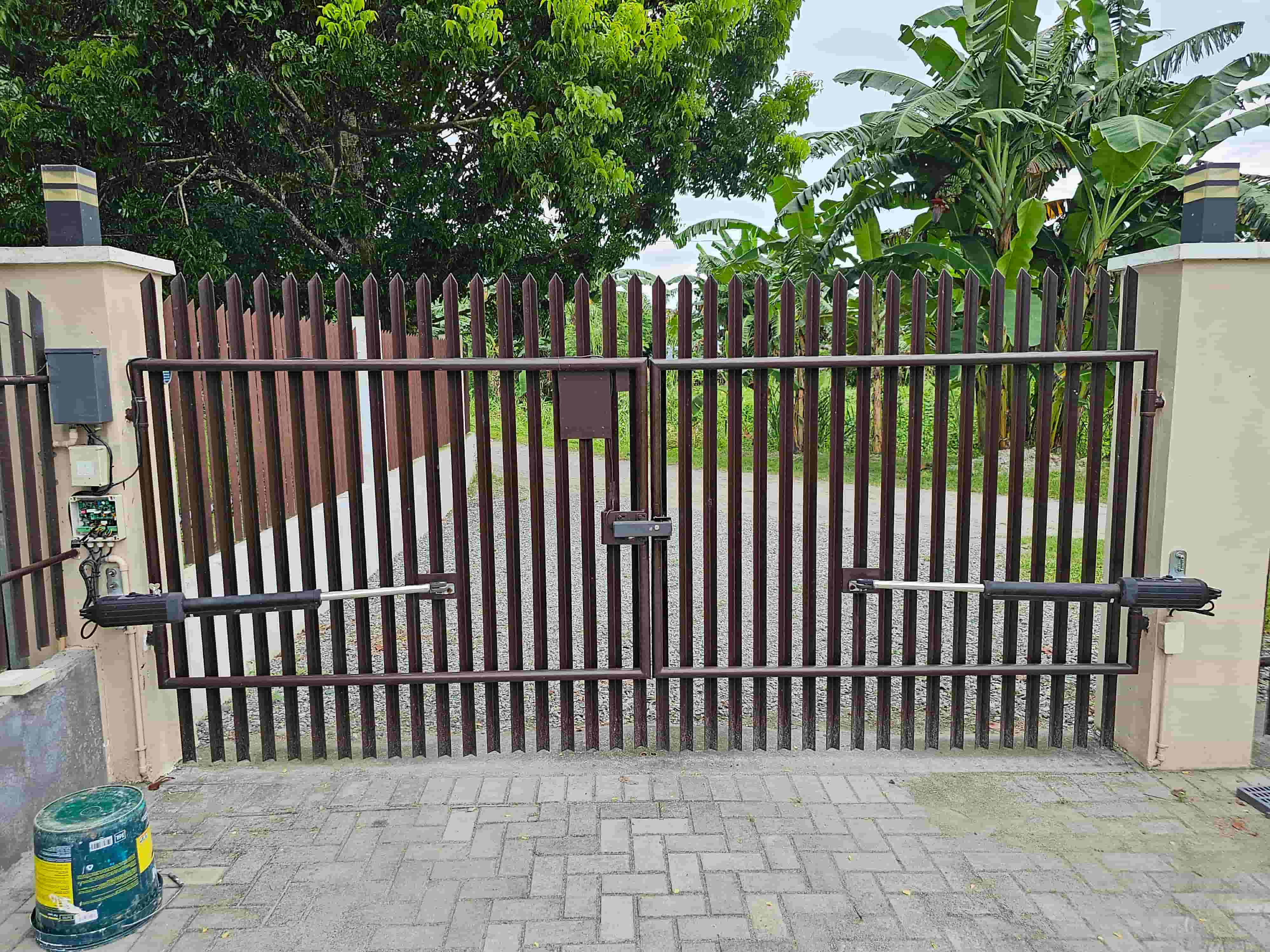

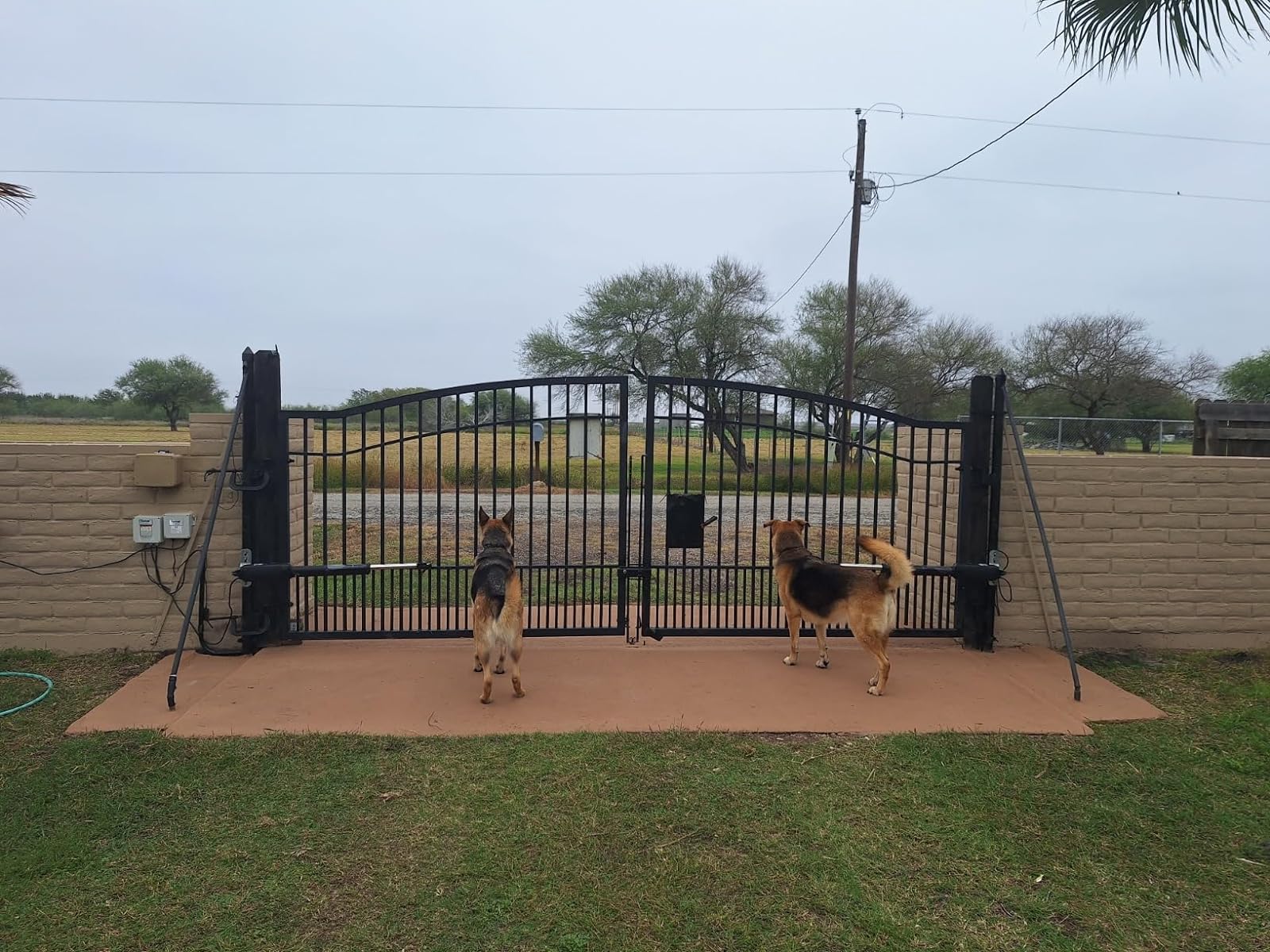

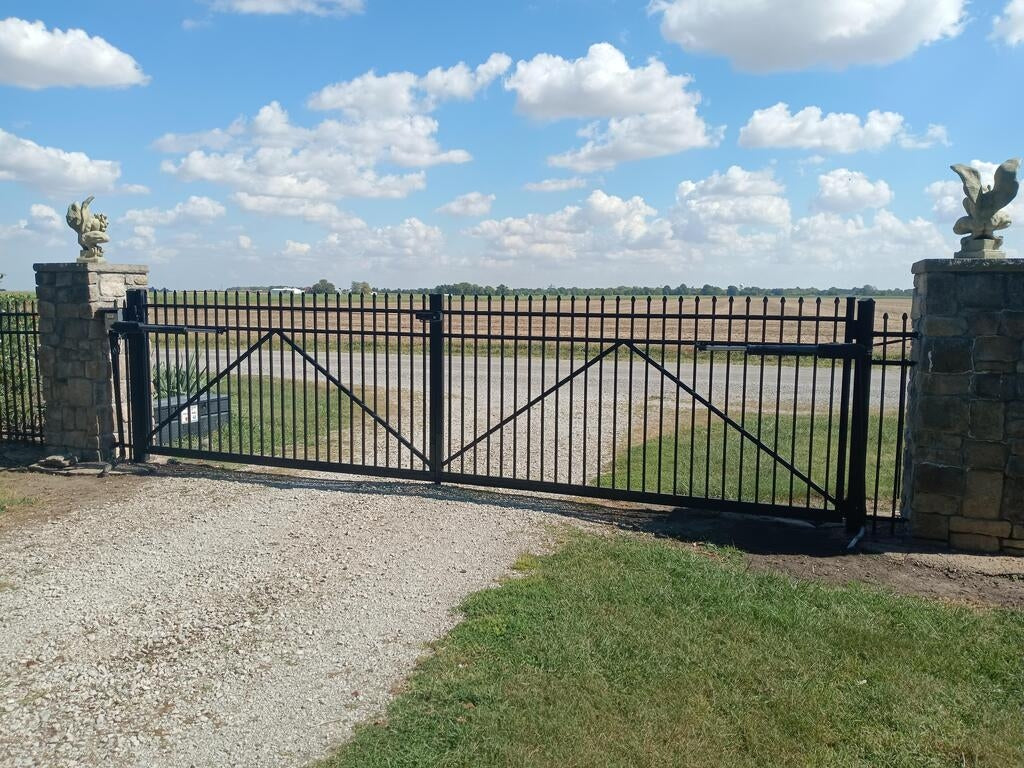

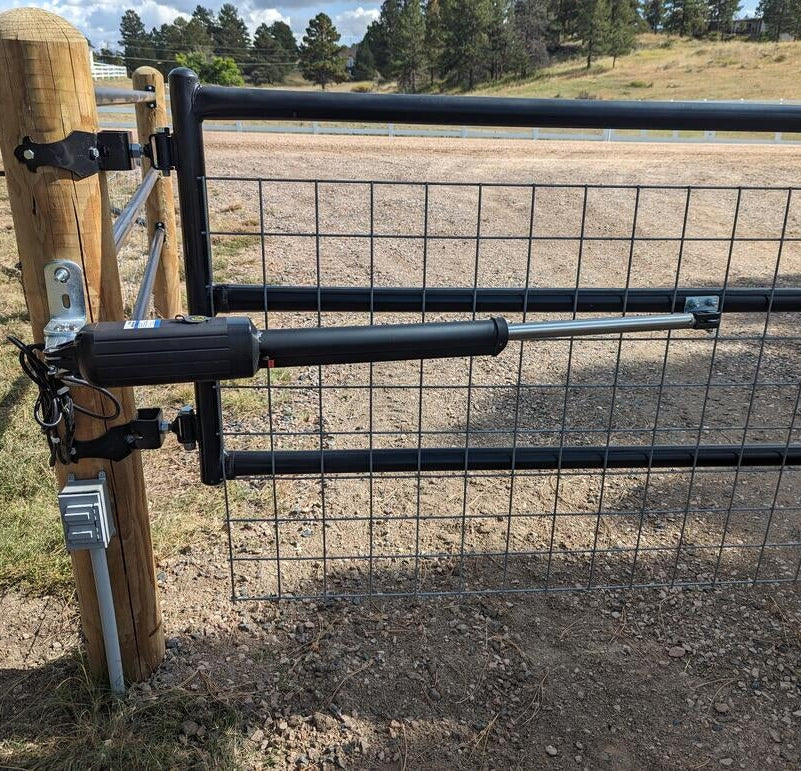

PW802 Heavy Duty Dual Swing Gate Opener in real life

Features

Easy DIY Installation

Get started quickly with our step-by-step, easy-to-follow guide.

Easy DIY Installation

Get started quickly with our step-by-step, easy-to-follow guide.

Smart Control Board

Easily customize your gate's operation to fit your exact needs.

Reliable and Quiet

Built to last with a powerful yet quiet motor for daily use.

Wide Applications

The ideal solution for homes, courtyards, farms, and large estates.

Features open swing gate using remote in the car

Dual Swing Design
Supports both Pull-to-Open (swing inward) and Push-to-Open (swing outward) configurations. The mounting brackets are included for either setup.
Advanced TOPENS Code Technology
Our system utilizes advanced rolling code technology, preventing code grabbing and ensuring maximum security against unwanted entry.
Electromagnetic Limit System
The electromagnetic limit switch halts the gate at your preset open and close positions, ensuring consistent and automated gate operation every time.
Adjustable Obstruction Sensitivity
Obstruction stall force can be adjusted depending on the gate's weight to ensure the gate reaches both the open and close limits without unnecessary reversing or frequent interruptions.

Features car drives through the swing gate

Customizable Open and Close Delay
Precisely adjust the opening and closing interval between your master and slave gate from 1 to 9 seconds to ensure safe, smooth, and synchronized operation.
Soft Start and Soft Stop
The design protects the motor from jolts and stress, ensuring quieter performance and extending the lifespan of your entire gate system.
Manual Release for Emergencies
The dedicated manual release key is included to quickly and safely disengage the motor, ensuring gate access during a power outage or if the remote control is lost.

Installation

Manuals

English - TOPENS PW502 / PW802 Installation Manual

Spanish - TOPENS PW502 / PW802 Installation Manual

Videos

English & Spanish - TOPENS PW502 / PW802 Installation Video

Tools You May Need

Power Drill
Tape Measure
Wire Strippers
C-Clamps - small, medium, and large
Level
Hacksaw or Heavy Duty Bolt Cutters
Phillips Screwdriver
Open End Wrenches - 14# & 17# or Adjustable Wrenches

Consideration Before Installation

Check the Gate

Ensure the gate is plumb, level, and swings freely without obstruction.
The mounting post must be a stable structure secured in concrete.
Repair or replace any worn or damaged hardware before installation.

Items Not Included but May Needed

24V Battery, Solar Panel and Solar Charge Controller: Use battery and solar panel as main power source.
PVC Conduit: Protects the wiring from the slave arm to the control board.
Connection Cable: May be needed for wired accessory installation.
Electric Gate Lock: Recommended in windy areas to prevent gate movement and damage.
Photocell Sensor: Adds a critical safety layer by detecting obstructions.

A8 Arm Max Gate Length and Weight Combination per arm

Gate Capability

PW802 gate opener works well for the heavy duty dual swing gate up to a maximum of 18ft. in length (correspondingly 250lbs. in weight) per gate leaf.
Suitable for the swing gate up to 880lbs. in weight (correspondingly 4ft. in length) per gate leaf.
Kindly note that the max. gate length capability is inversely proportional to the gate weight.

A8 A5 A3 Arm Max Opening Angle of the Gate in Pull-to-Open installation mode

Opening Angle for Pull-to-Open Installation

The gate opens inward toward the property. The required pull-to-open bracket is included.
The maximum opening angle adjusts from 68° to 120° based on the bracket’s installation position.

A8 A5 A3 Arm Max Opening Angle of the Gate in Push-to-Open installation mode

Opening Angle for Push-to-Open Installation

The gate opens outward from the property. The required push-to-open bracket is included.
The maximum opening angle adjusts from 87° to 112° based on the bracket’s installation position.

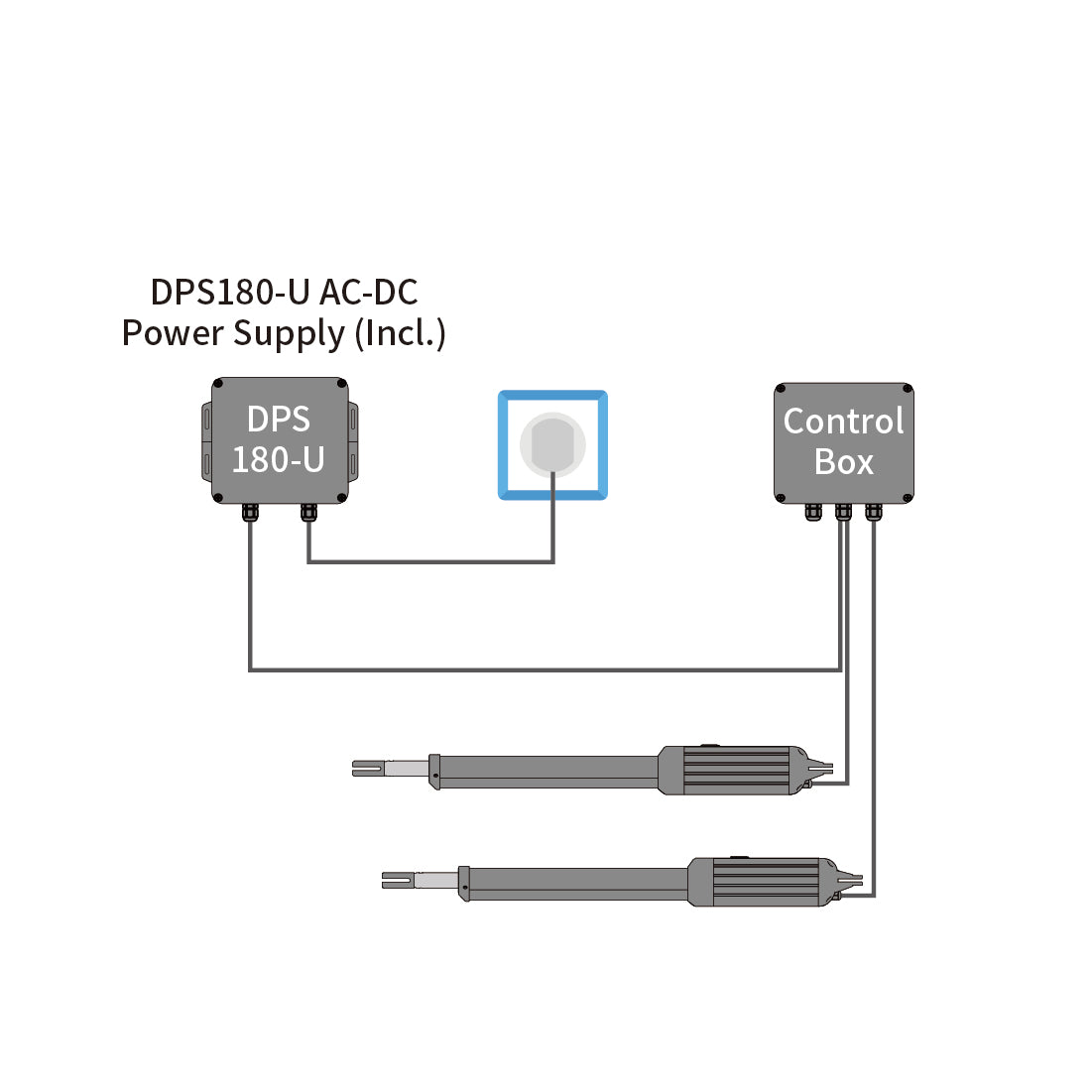

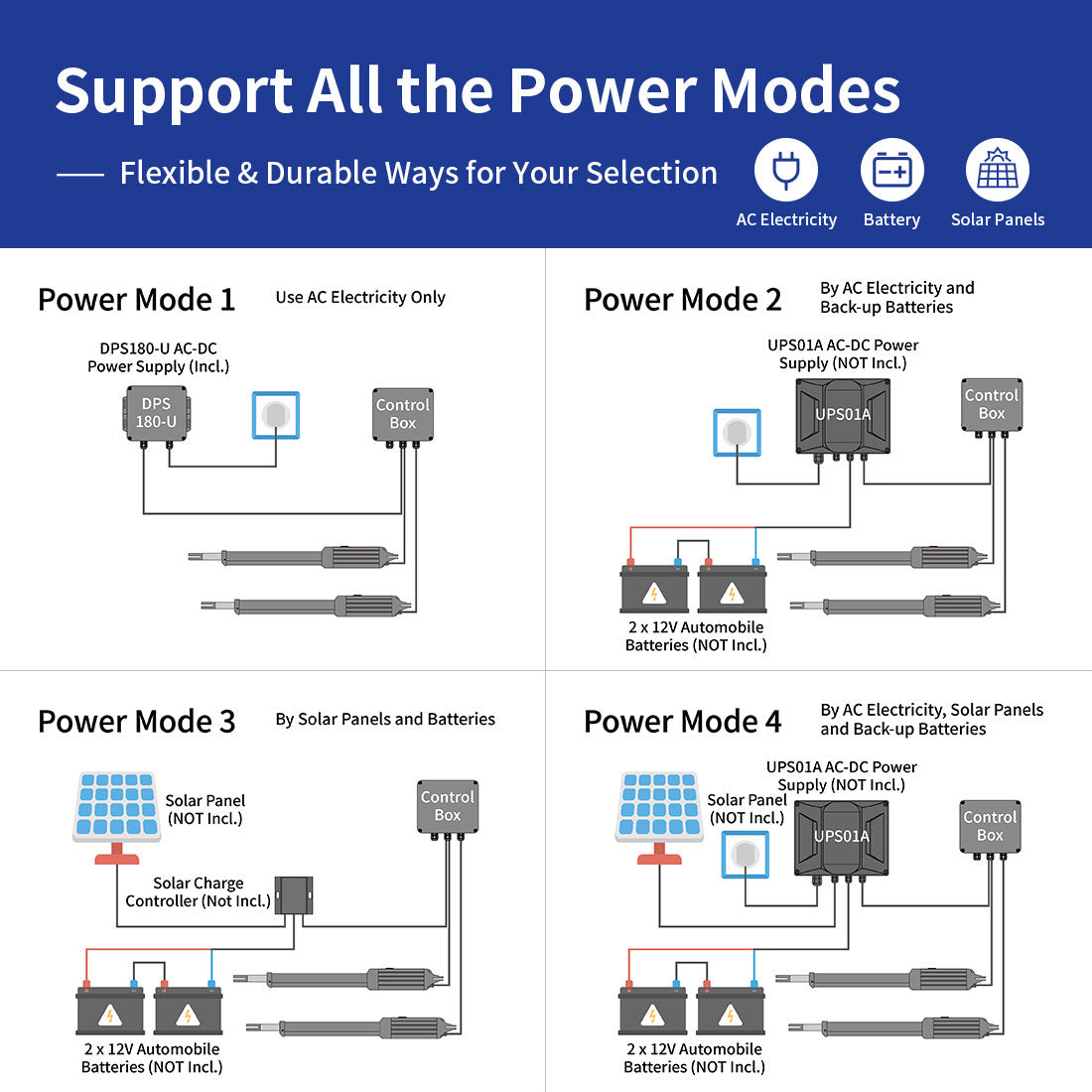

PW802 & PW502 & PW302 Dual Swing Gate Opener Power Mode 1

Power Mode 1 (Default Mode) – Use AC Electricity Only

Use the AC electricity to power the system.
Recommended where AC electricity is accessible and stable.
The DPS180-U Power Supply is plugged into an 100-240VAC 50Hz/60Hz outlet and delivers 24VDC to power the system directly.
Release the clutch and open the gate manually in case of power outage.
Note: DPS180-U can NOT connect with battery or solar panel.

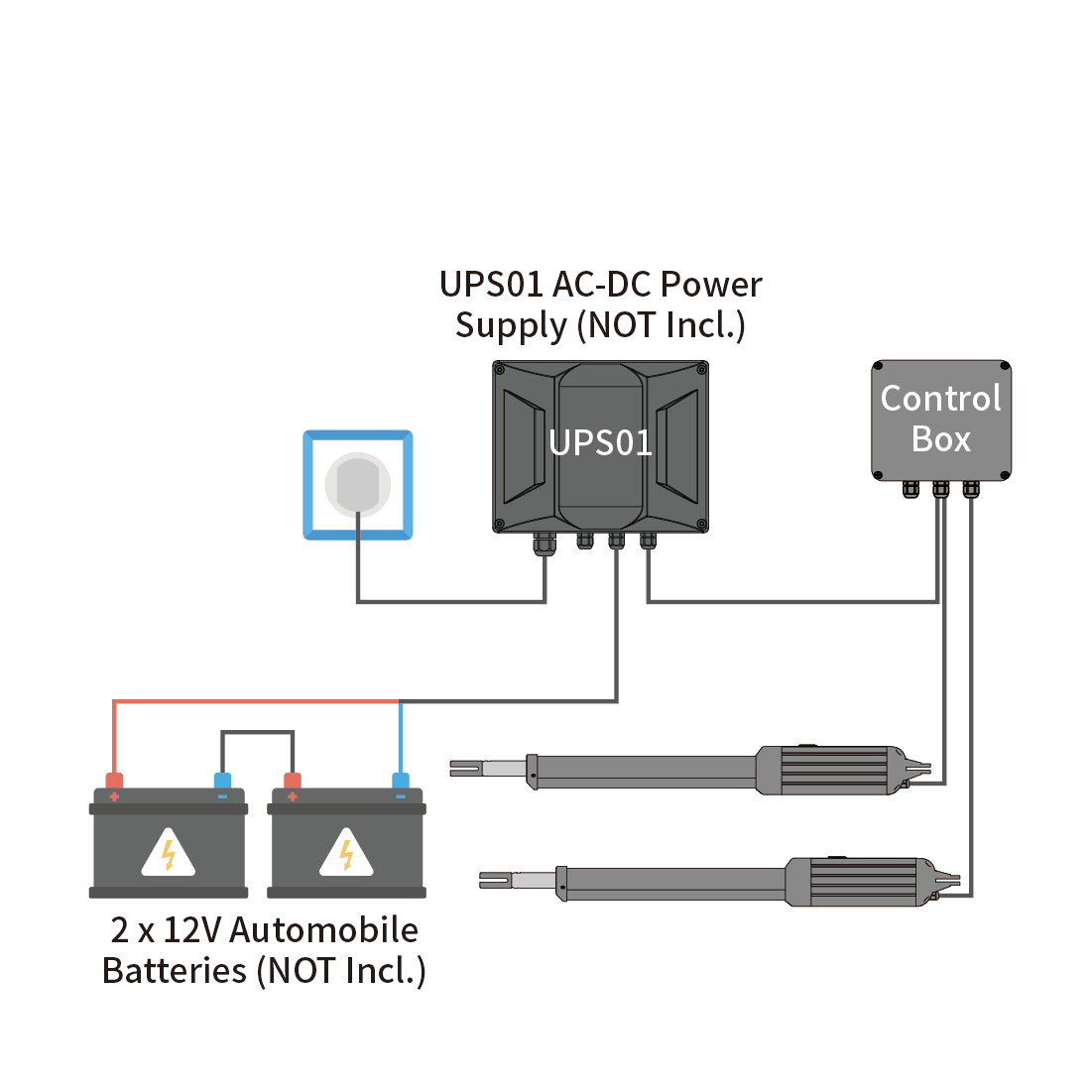

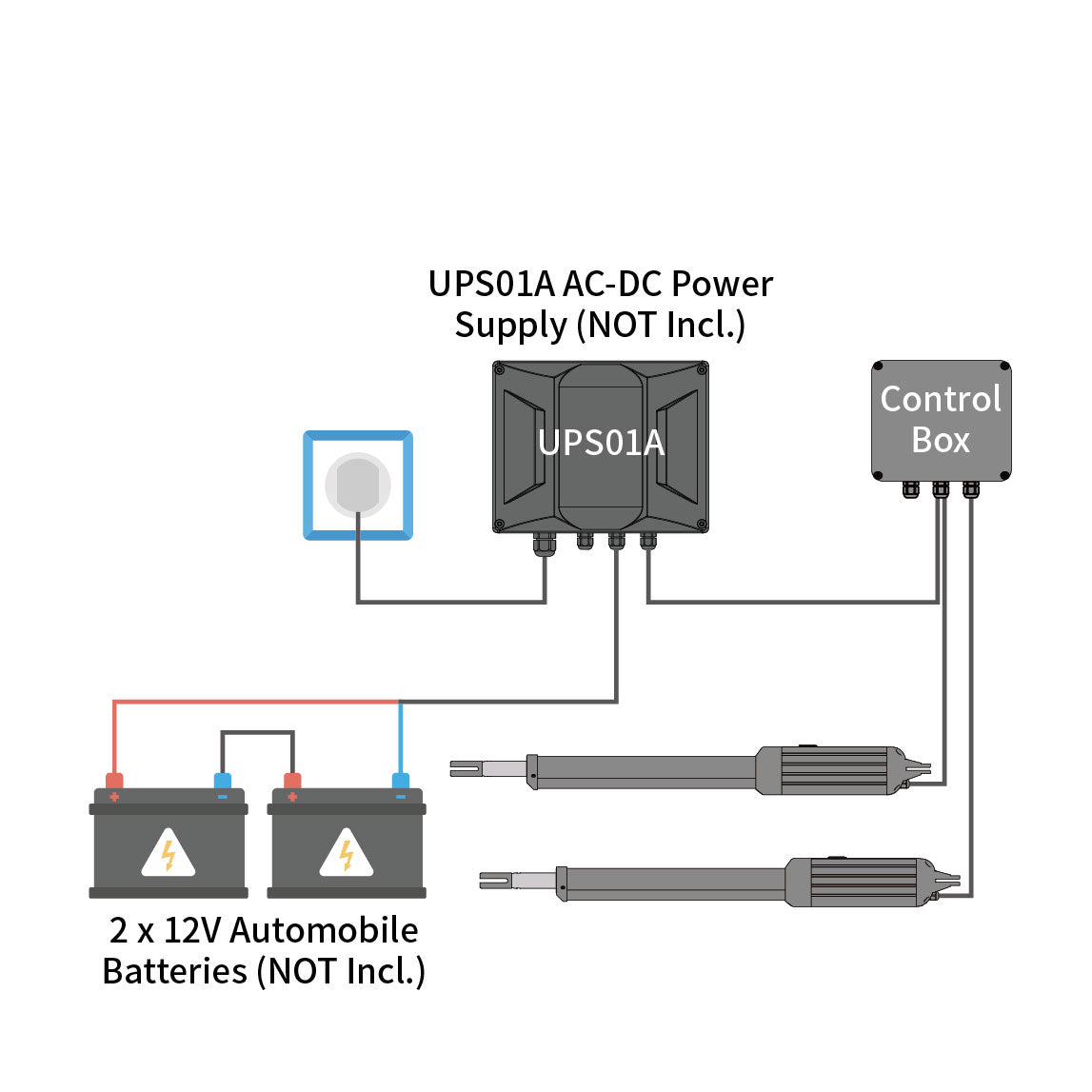

PW802 & PW502 & PW302 Dual Swing Gate Opener Power Mode 2

Power Mode 2 – By AC Electricity and Back-up Batteries

Batteries as back-up power source, use the AC electricity to charge the batteries (UPS01 Uninterrupted Power Supply is NOT included).
Recommended where AC electricity is accessible, but not stable.
For AC power interruptions under 8 hours daily, a minimum 24VDC 5Ah automotive/marine battery is sufficient.
TOPENS UPS01 Uninterrupted Power Supply is sold separately.
2 pcs 12V batteries connected in series for 24V (Battery is NOT included).

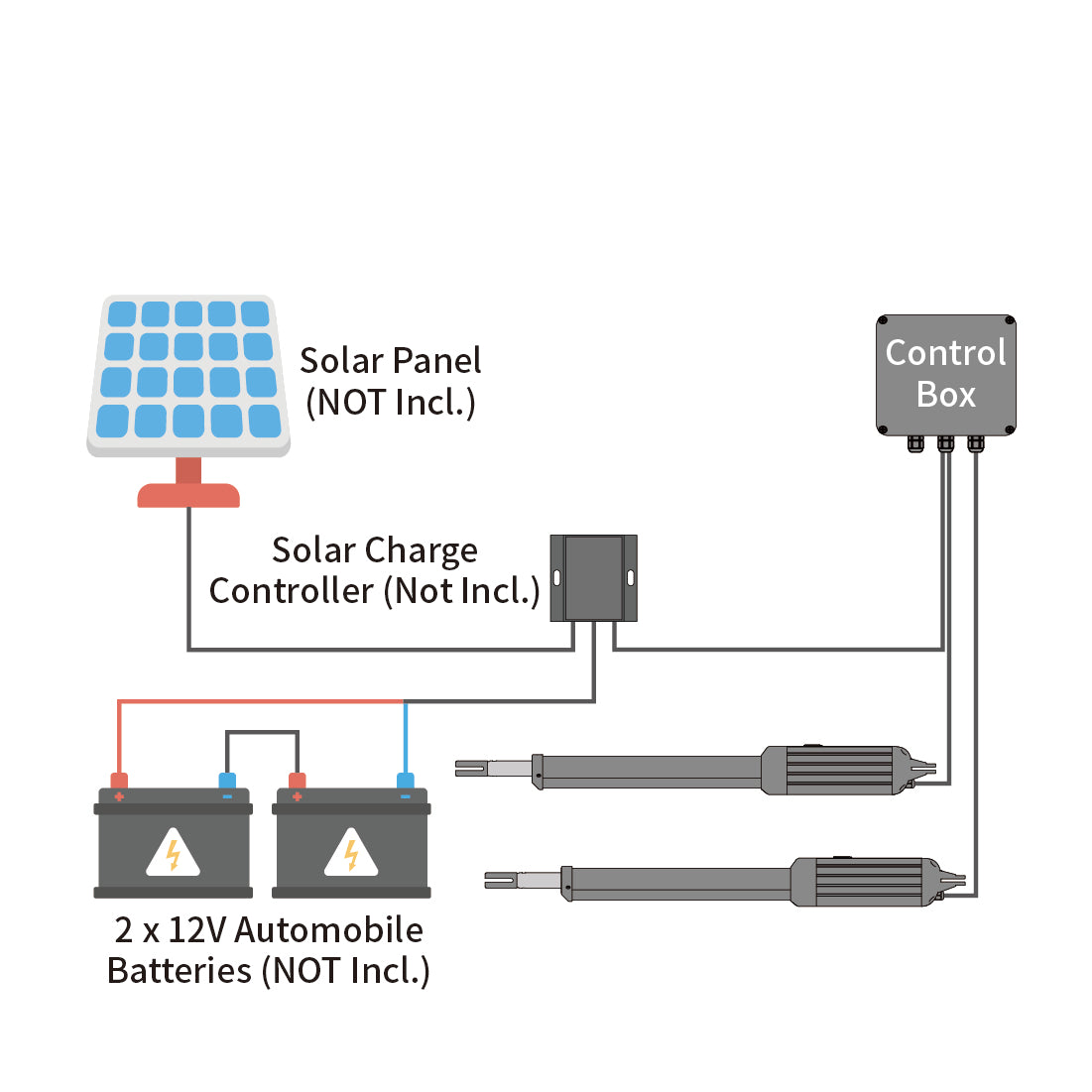

PW802 & PW502 & PW302 Dual Swing Gate Opener Power Mode 3

Power Mode 3 – By Solar Panels and Batteries

Batteries as main power source, use only solar panel and solar charge controller to charge the batteries.
Recommended in remote location such as farm, ranch, pasture, etc.
A minimum 24VDC 12Ah automotive/marine battery is required.
TOPENS TSP30W 30W Solar Panel Charging Kit is sold separately. The kit includes 3 x 10W solar panels and a solar charge controller.

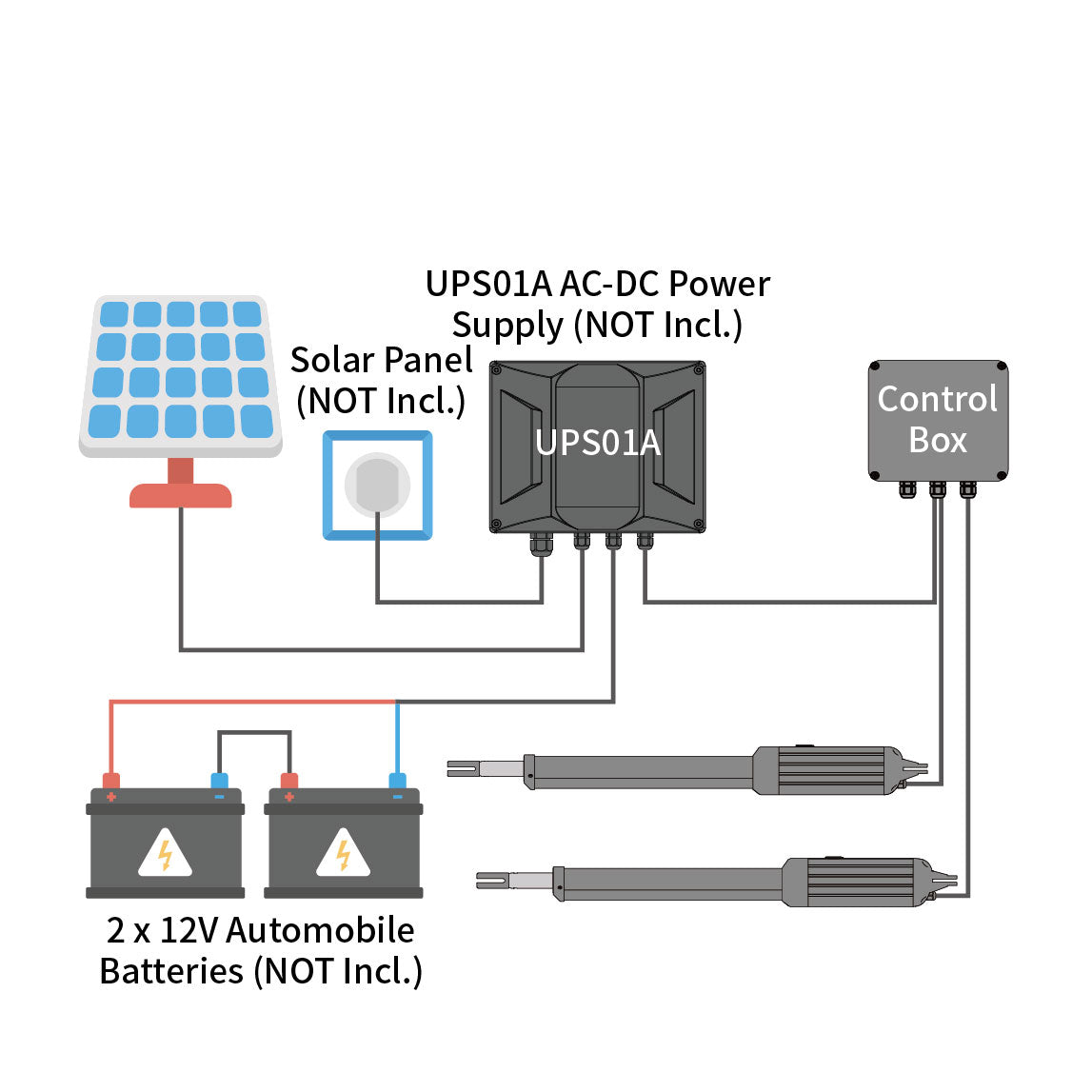

PW802 & PW502 & PW302 Dual Swing Gate Opener Power Mode 4

Power Mode 4 – By AC Electricity, Solar Panels and Back-up Batteries

Batteries as back-up power source, use the AC electricity and solar panel together to charge the batteries (UPS01 converts AC to DC electricity and is also functioned as a solar charge controller).
Recommended where AC electricity is accessible, but not stable.
For AC power interruptions under 8 hours daily, a minimum 24VDC 5Ah automotive/marine battery is sufficient.
TOPENS UPS01 Uninterrupted Power Supply and TSQ20W Solar Panel Kit are sold separately.

Complete Your Gate System

TC148 Waterproof Push Button Switch for Gate Opener

$39.00

ET24 Electric Gate Lock for Swing Gate

$99.00

TEW3 Driveway Vehicle Sensor for Automatic Gate Openers

$199.00

TRF3 Retro Reflective Beam Sensor for Gate Opener

$79.00

TC188 Universal Wireless Gate Opener Keypad

$79.00

TC196 WiFi Remote Control for Automatic Gate Openers

TC196 WiFi Remote Control Works for All TOPENS Gate Openers

TC196 WiFi Remote Control with APP for Automatic Gate Openers

$89.00

M12 Automatic Gate Remote Control Transmitter 2 Pack

$39.00

ERM12 Gate Opener Remote External Receiver

ERM12 Gate Opener Transmitter and Receiver

ERM12 Gate Opener Universal External Receiver and Remote Control Kit

$59.00

TC188 Universal Wireless Gate Opener Keypad

$79.00

TC175P Wired Keypad for Automatic Gate Garage Door Opener

TC175P Wired Keypad for Multiple Applications

TC175P Touch Panel Wired Keypad for Automatic Gate & Garage Door Opener

$75.00

TKP3 Wireless Keypad for Gate Opener

$69.00

TEW3 Driveway Vehicle Sensor for Automatic Gate Openers

$199.00

HLR01 Homelink Receiver for Gate and Garage Door Opener

HLR01 Homelink Receiver for Gate & Garage Door Opener

$49.00

ET24 Electric Gate Lock for Swing Gate

$99.00

TC148 Waterproof Push Button Switch Multiple Applications

TC148 Waterproof Push Button Switch for Gate Opener

$39.00

TC147 Wall Push Button Switch Multiple Applications

TC147 Wall Push Button Switch for Automatic Gate Opener

$19.00

TC173 Wireless Push Button for Automatic Gate Opener

TC173 Wireless Push Button Opener Multiple Applications

TC173 Wireless Push Button Remote Control Transmitter for Gate Opener

$29.00

TRF3 Retro Reflective Beam Sensor for Gate Opener

$79.00

TC102 Photo Eye Infrared Beam Sensor for Automatic Gate Opener

$29.00

JD24VY Flashing Beacon with High Brightness

JD24VY 24V Warning Light Flashing Beacon for Automatic Gates

$25.00

JD110VY 110V Strobe Light Gate Warning Light

$25.00

TSP30W 30 Watt Monocrystalline Solar Panels for Gate Openers

$169.00

TSQ20W 20 Watt Solar Panel for Gate Opener

$129.00

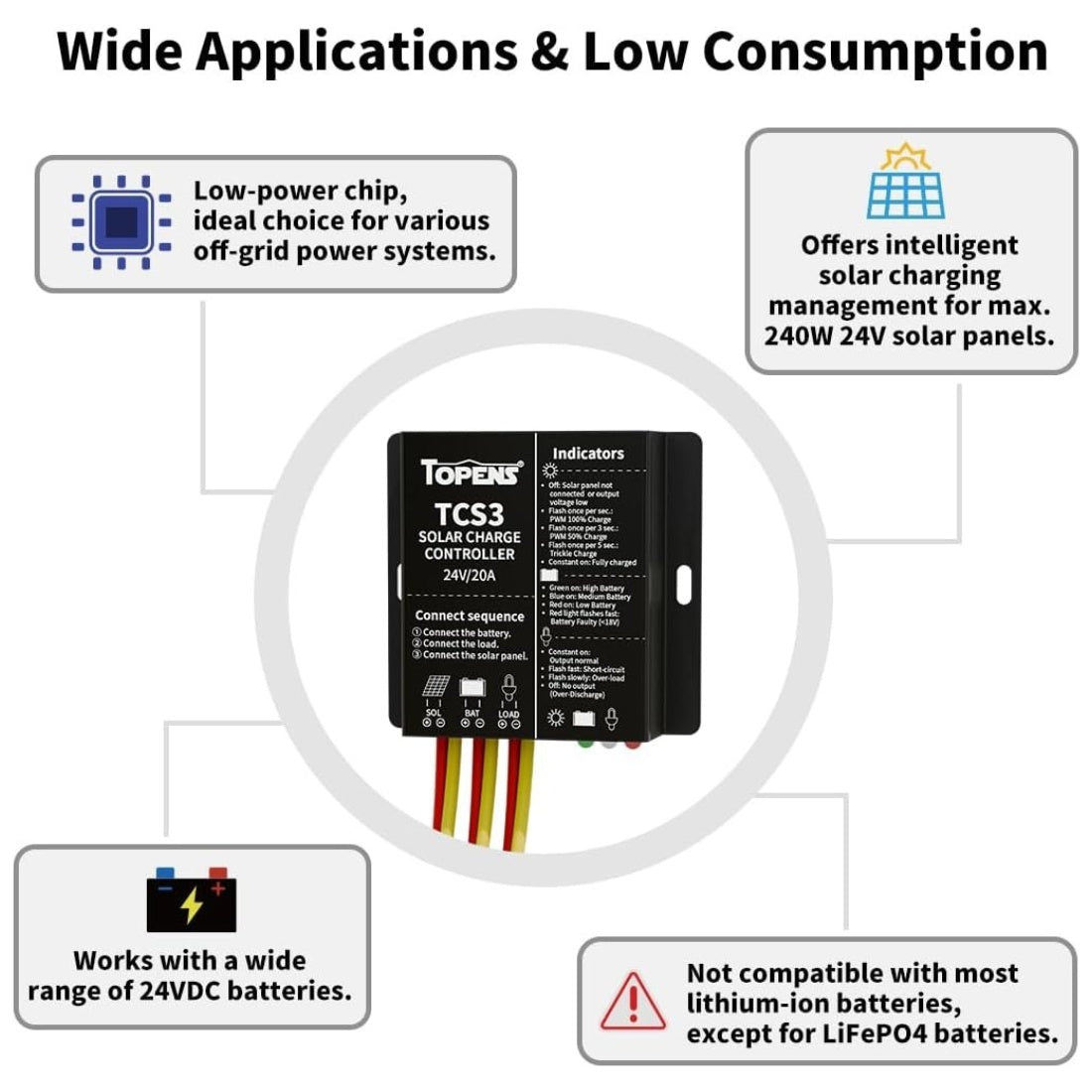

TCS3 Solar Charge Controller Wide Application and Low Consumption

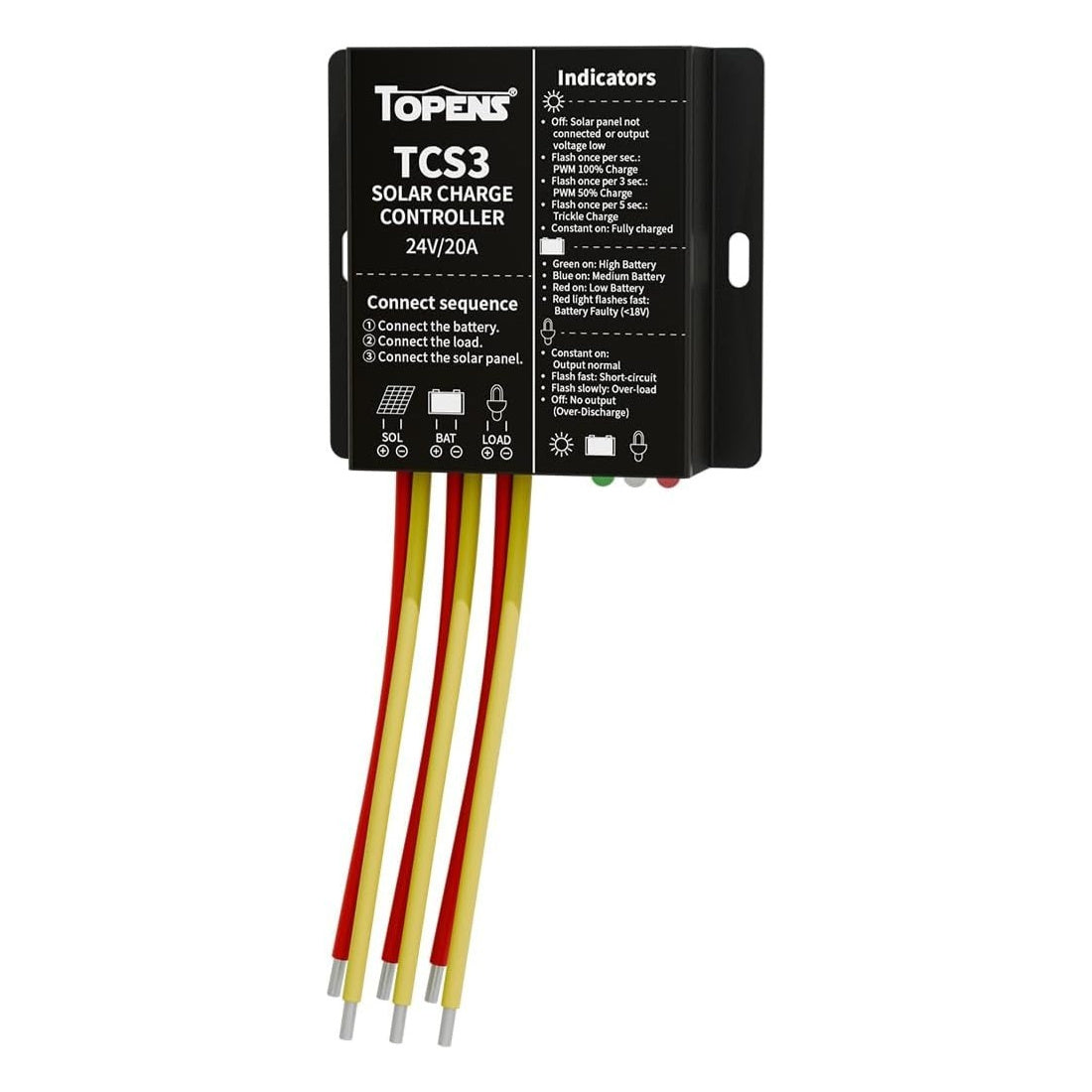

TCS3 Solar Charge Controller for 24V Solar Panels

$49.00

UPS01 100-240VAC to 24VDC Power Supply Transformer

$99.00

DPS180-U AC to DC Power Supply Adapter for 24VDC Devices

DPS180-U Waterproof AC to DC Power Supply Adapter

$79.00

TS24-U AC to DC Adapter Multiple Applications

TS24-U AC to DC adapter for Swing Gate Opener

$29.00

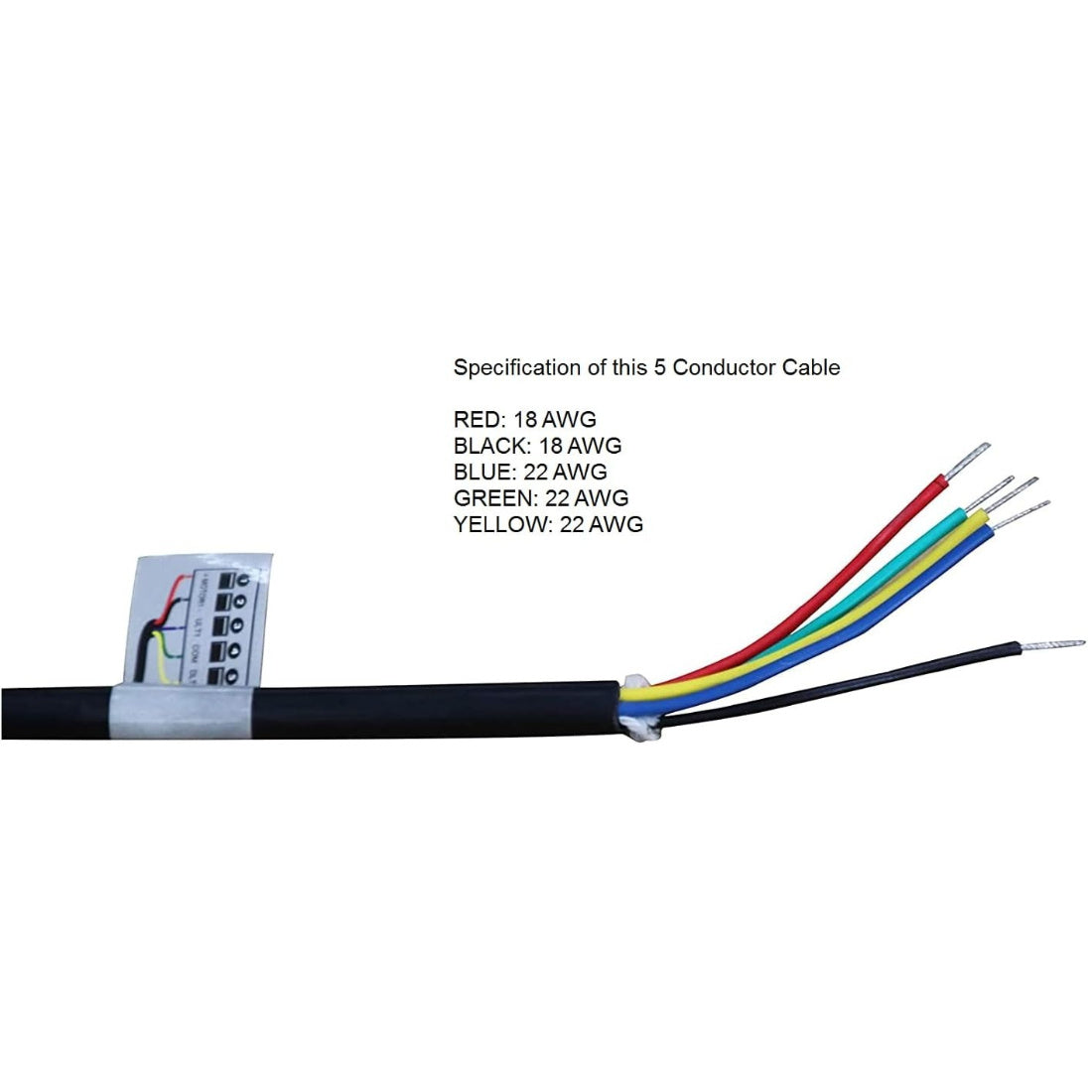

TOPENS 25FT Extension 5 Conductor Cable Specification

TOPENS 25FT Extension 5 Conductor Cable Original Core Wire for Gate Openers Arm Actuator Accessories 25 Feet Black

$39.00

Dimensions of LT08B Roller Chain 20 Feet with 2 Connecting Links for Chain Driven Sliding Gate Opener

LT08B Roller Chain 20 Feet with 2 Connecting Links for Chain Driven Sliding Gate Opener for Replacement and Extension 08B Metric Standard 428#

$79.00

SR02 Heavy Duty Galvanized Steel Gear Rack for Sliding Gate Opener Operator 4 pcs Gear Racks, Total 13 Feet

$139.00

RNH4 Heavy Duty Reinforced Nylon Gear Rack for Sliding Gate Opener Operator 4 pcs Gear Racks, Total 13 Feet

$129.00

RNH2 Heavy Duty Reinforced Nylon Gear Rack for Sliding Gate Opener Operator 2 pcs Gear Racks, Total 6.5 Feet

$89.00

A3JB Arm Actuator of TOPENS Automatic Swing Gate Opener for Replacement

$149.00

A5JB Arm Actuator of TOPENS Automatic Swing Gate Opener for Replacement

$169.00

A8JB Arm Actuator of TOPENS Automatic Swing Gate Opener for Replacement

$199.00

AT12JB Arm Actuator of TOPENS Automatic Swing Gate Opener for Replacement

$219.00

EKPKMJ1B PCB Print Circuit Control Board for A5(S) A8(S) A5131 A8131 AT6131(S) AT12131(S) Swing Gate Opener

$69.00

EKPKMJ2B PCB Print Circuit Control Board for A3 A3S Swing Gate Openers

$69.00

EKPKMJ3B PCB Print Circuit Control Board for PW302 Swing Gate Opener

$69.00

EKPKMJ4B PCB Print Circuit Control Board for AD5(S) AD8(S) PW502 PW802 A5132 A8132 AT6132S AT12132S Swing Gate Openers

$69.00

PKMJ1A PCB Print Circuit Control Board for AT602 AT1202 Swing Gate Openers

$69.00

DKPYMJ1B PCB Print Circuit Control Board for DKR500ST DKC500S Sliding Gate Openers

$69.00

ACPYMJ1A PCB Print Circuit Control Board for RK990T RK1200T CK1200 Sliding Gate Openers

$69.00

ACPYMJ5C PCB Print Circuit Control Board for RK700T CK700 Sliding Gate Opener

$69.00

ACPYMJ2B PCB Print Circuit Control Board for CK2600 RK2600T Sliding Gate Openers

$69.00

PYCGZT Limit Switch Magnet for Automatic Sliding Gate Opener

$29.00

ALS01 Limit Switch For TOPENS Swing Gate Openers

$19.00

MK01 Mounting Hardware for TOPENS Swing Gate Opener

$39.00

Excellent

Thanks

Great swing gate opener with great customer support

Amazing swing gate opener.
But the bracket position is VERY important when installing.
Had some trouble with the gate opener making noise but great customer support help me fix the issue.
Very fast response from customer support.

Dear Sae, thank you so much for your kind review. You really did a great job! We hope that our gate opener can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.

Loving it!

I'd been looking for a way to open 2 barn style doors on the side lean-to of our garage. My brother mentioned a gate opener. I decided to try the PW802 on them, and it works GREAT! No more getting in and out of the car to open and close the doors. Not much is better than a happy wife! A second on is on order for the other side of the garage now.

Dear Tim, thank you so much for your kind review. You really did a great job! We hope that our gate opener can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.

Works awesome.

Easy installation. It took about an hour, hour and a half work Great It's awesome. I love it.

Dear Rocco, thank you so much for your kind review. You really did a great job! We hope that our gate opener can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.

Works great and easy to install

I would definitely recommend this product. It seems to be made of high quality materials and it is easy to install. Customer service answers questions within hours, not days.

Dear Brye, thank you so much for your kind review. You really did a great job! We hope that our gate opener can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.
