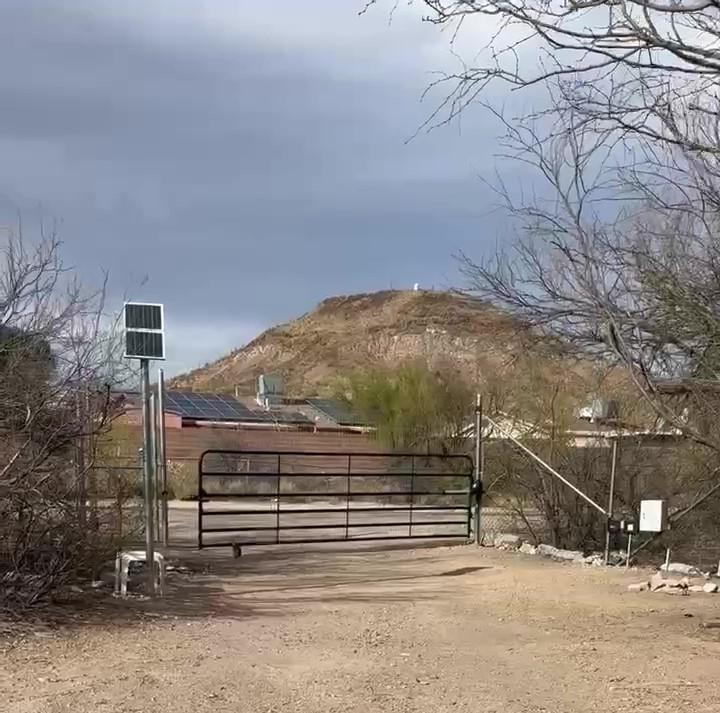

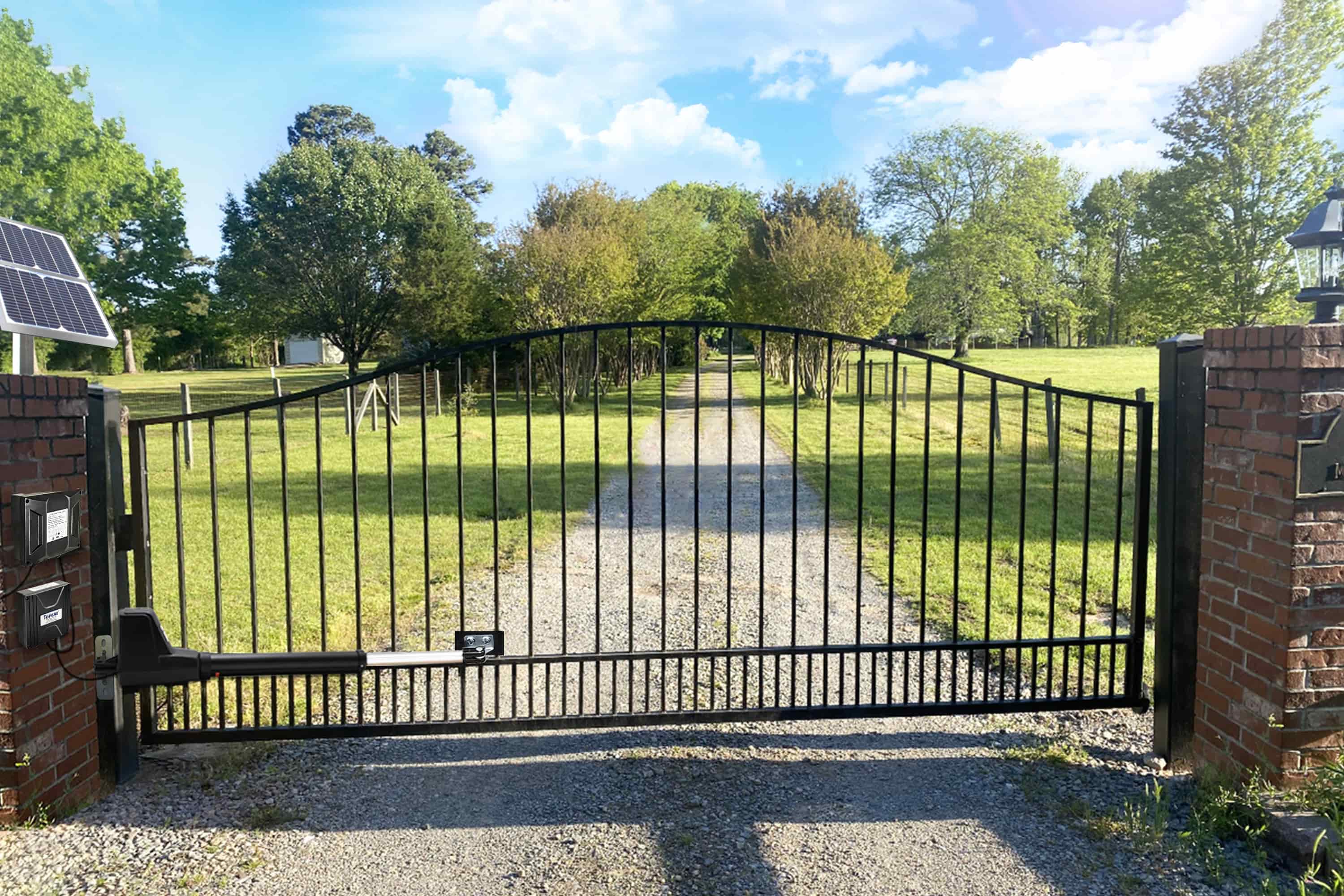

AT6131S Solar Powered Gate Opener on Gate

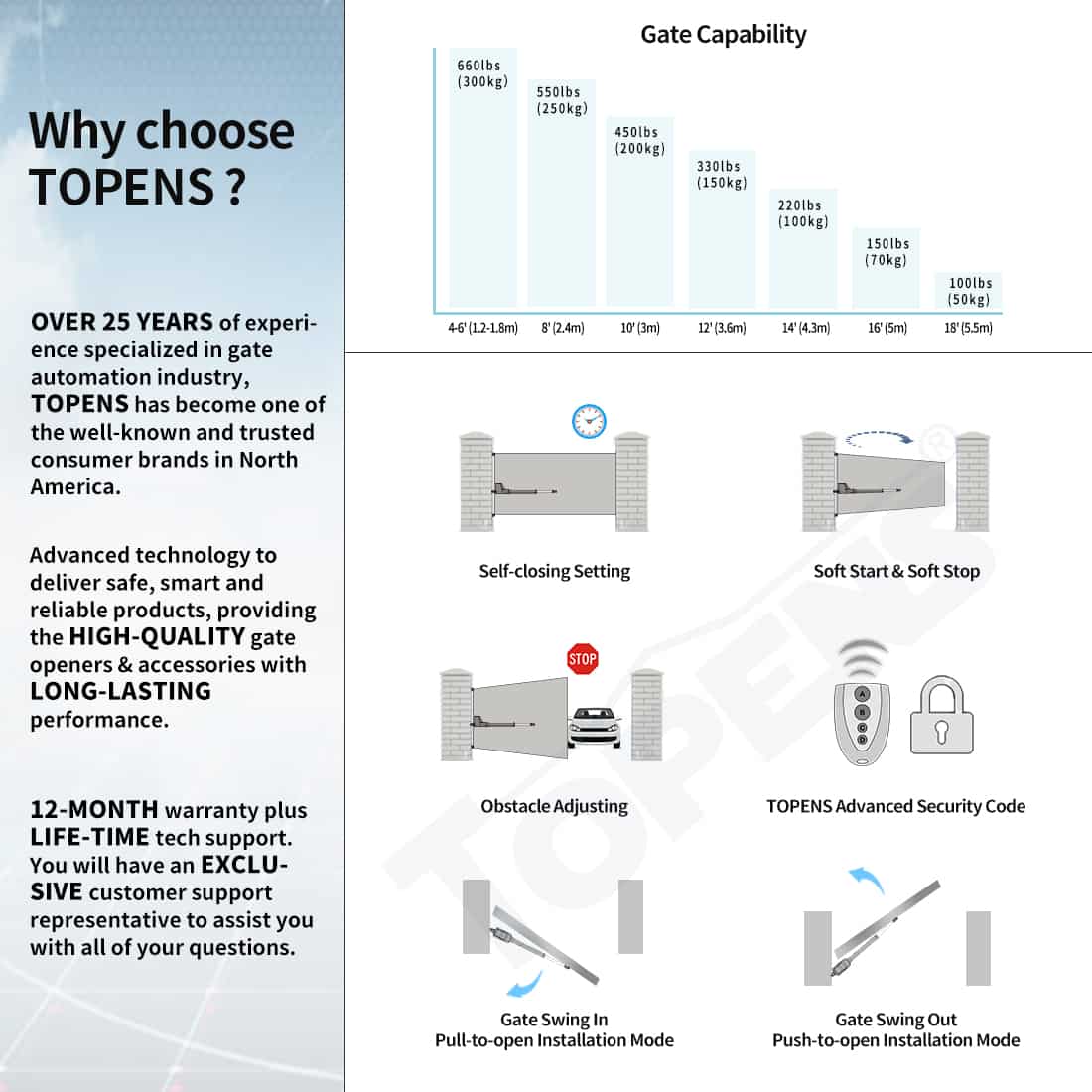

AT6131S Single Swing Solar Gate Opener Gate Capability

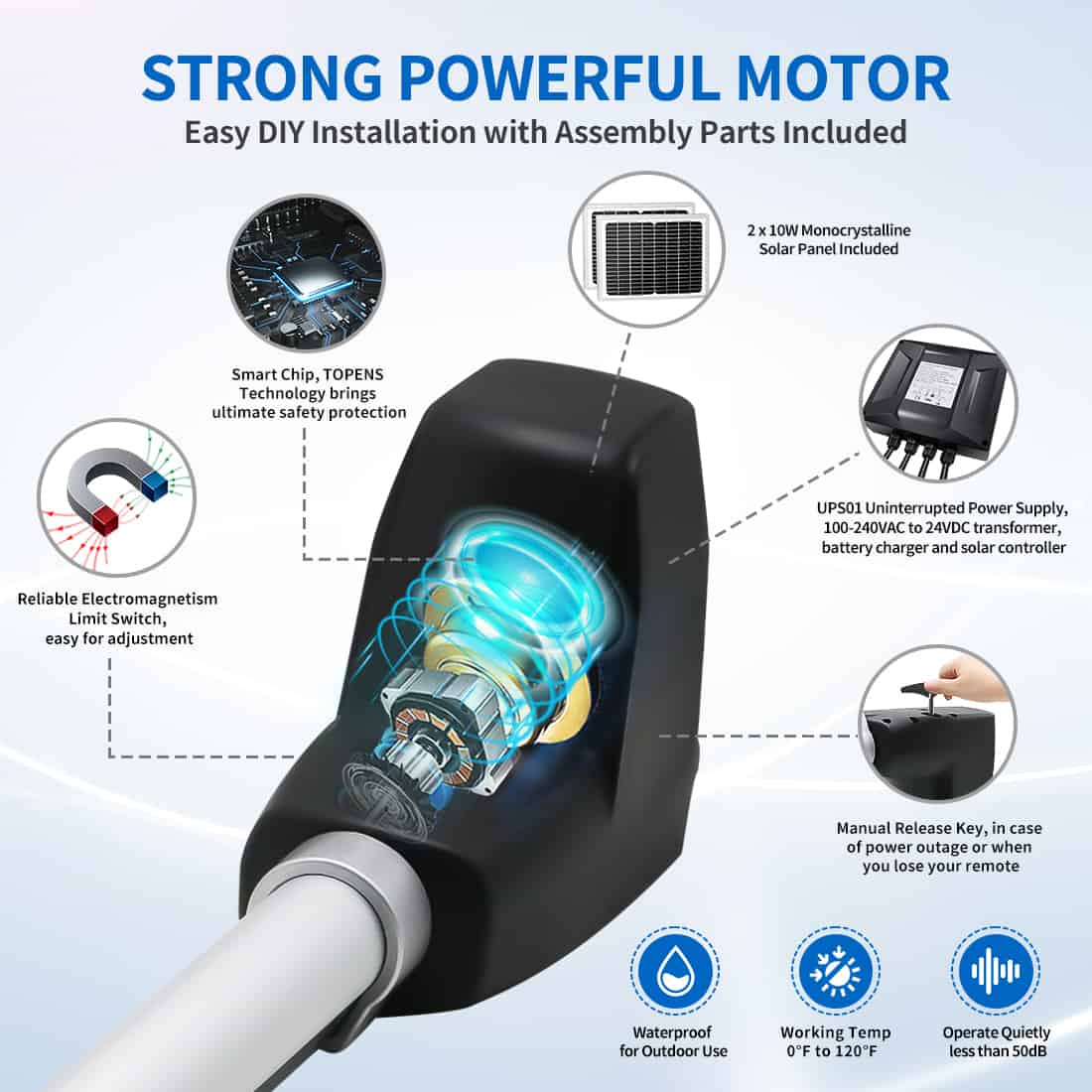

AT6131S Solar Powered Gate Opener with Strong Motor

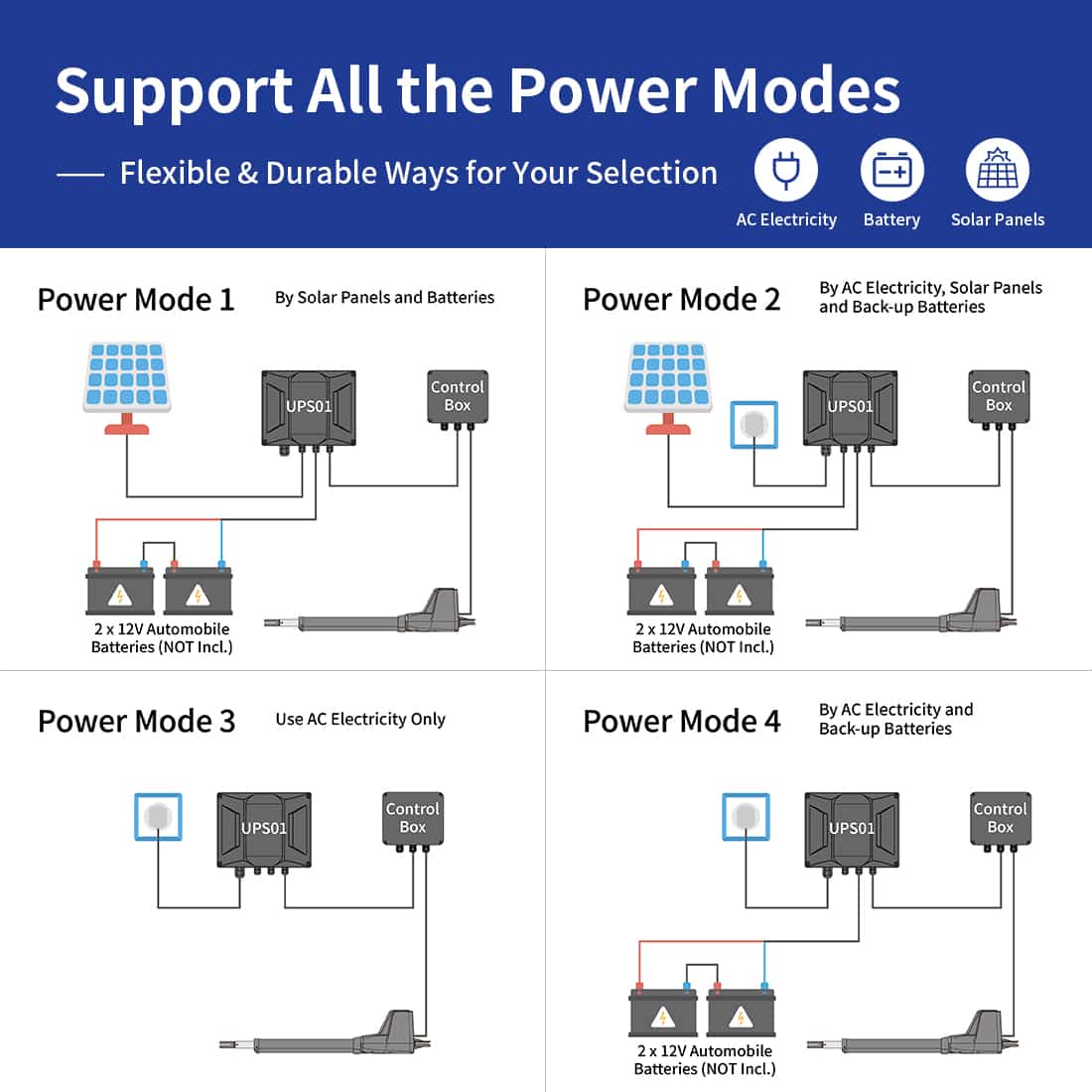

AT6131S Gate Opener with Solar Panel Power Modes

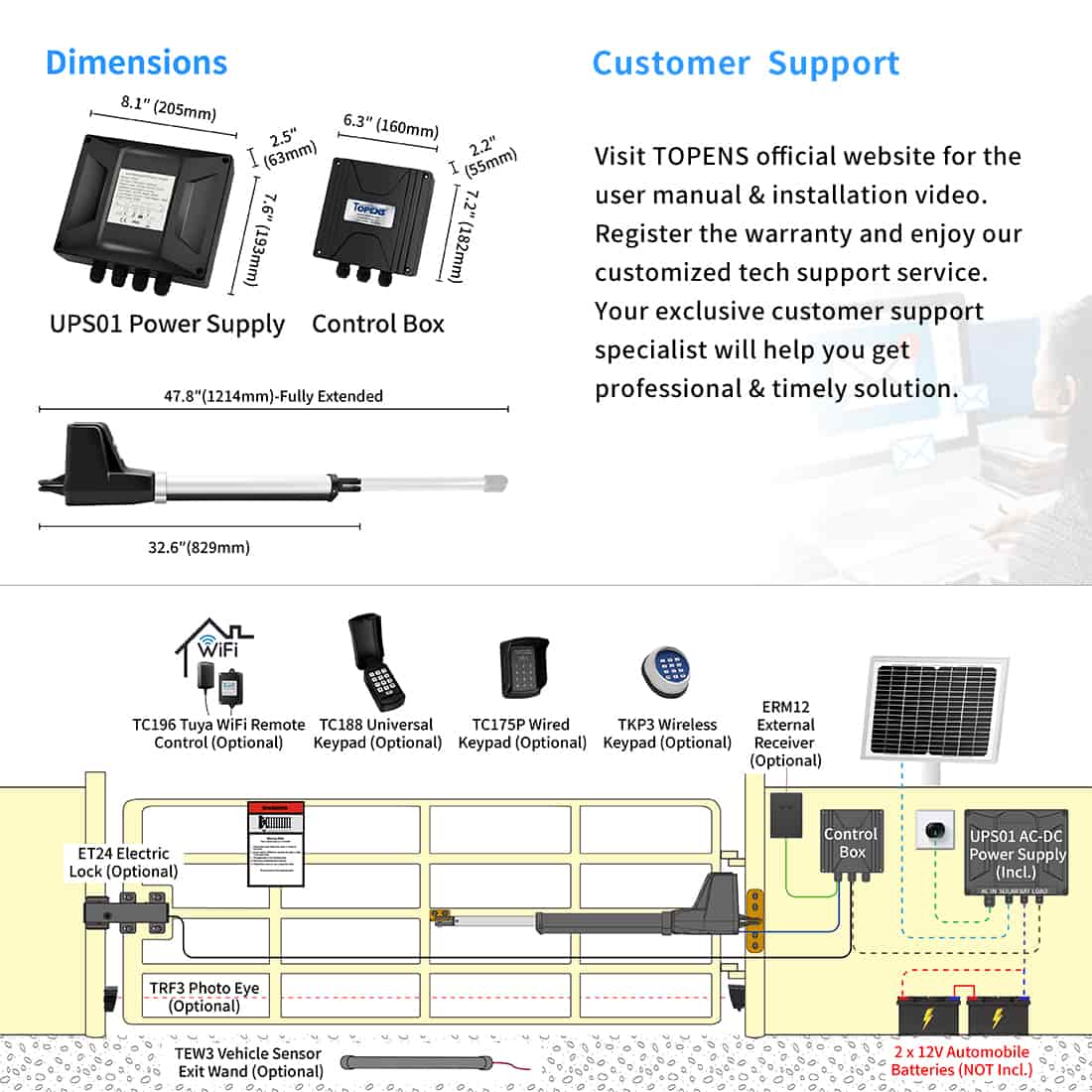

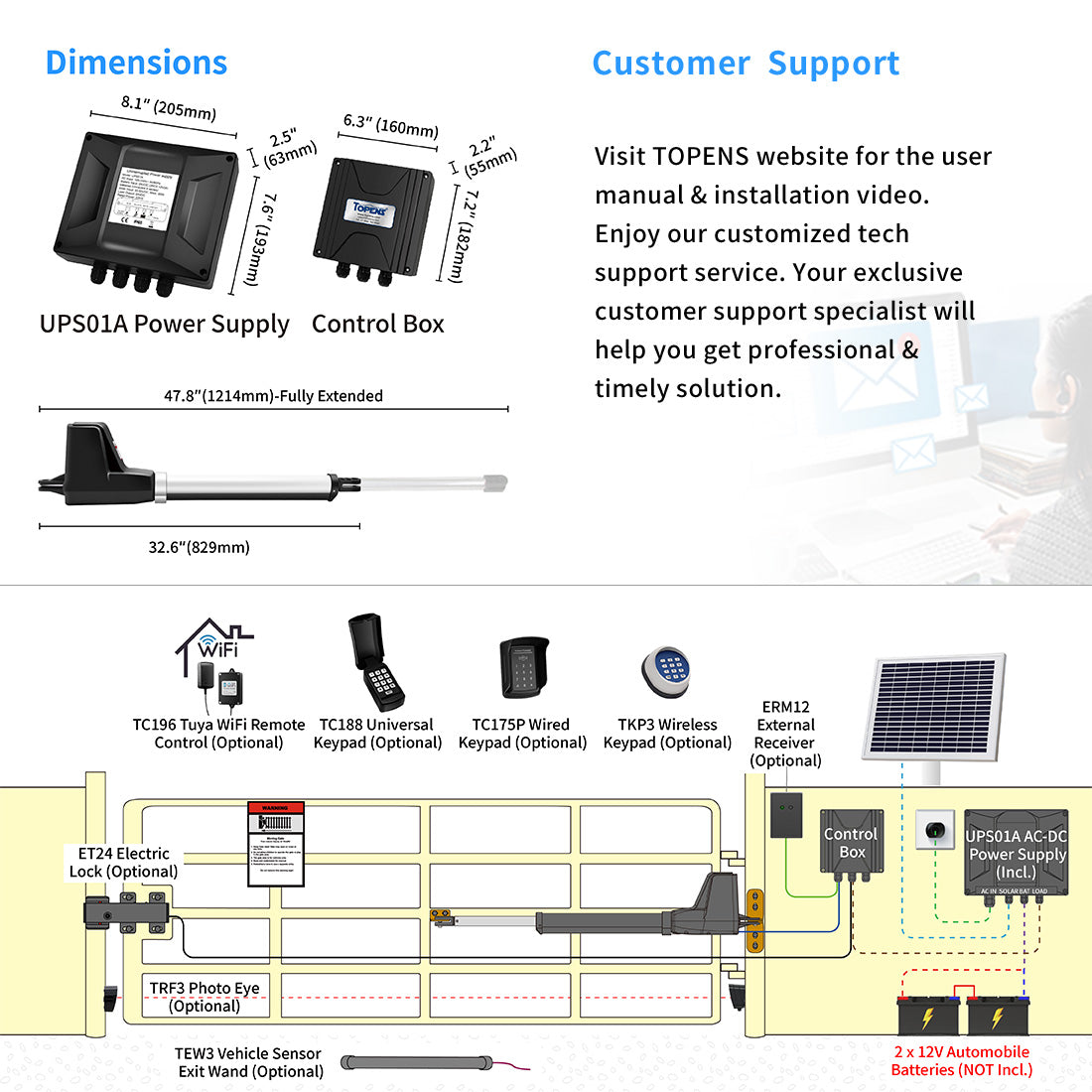

AT6131S Solar Powered Gate Opener Dimension and Installation Overview

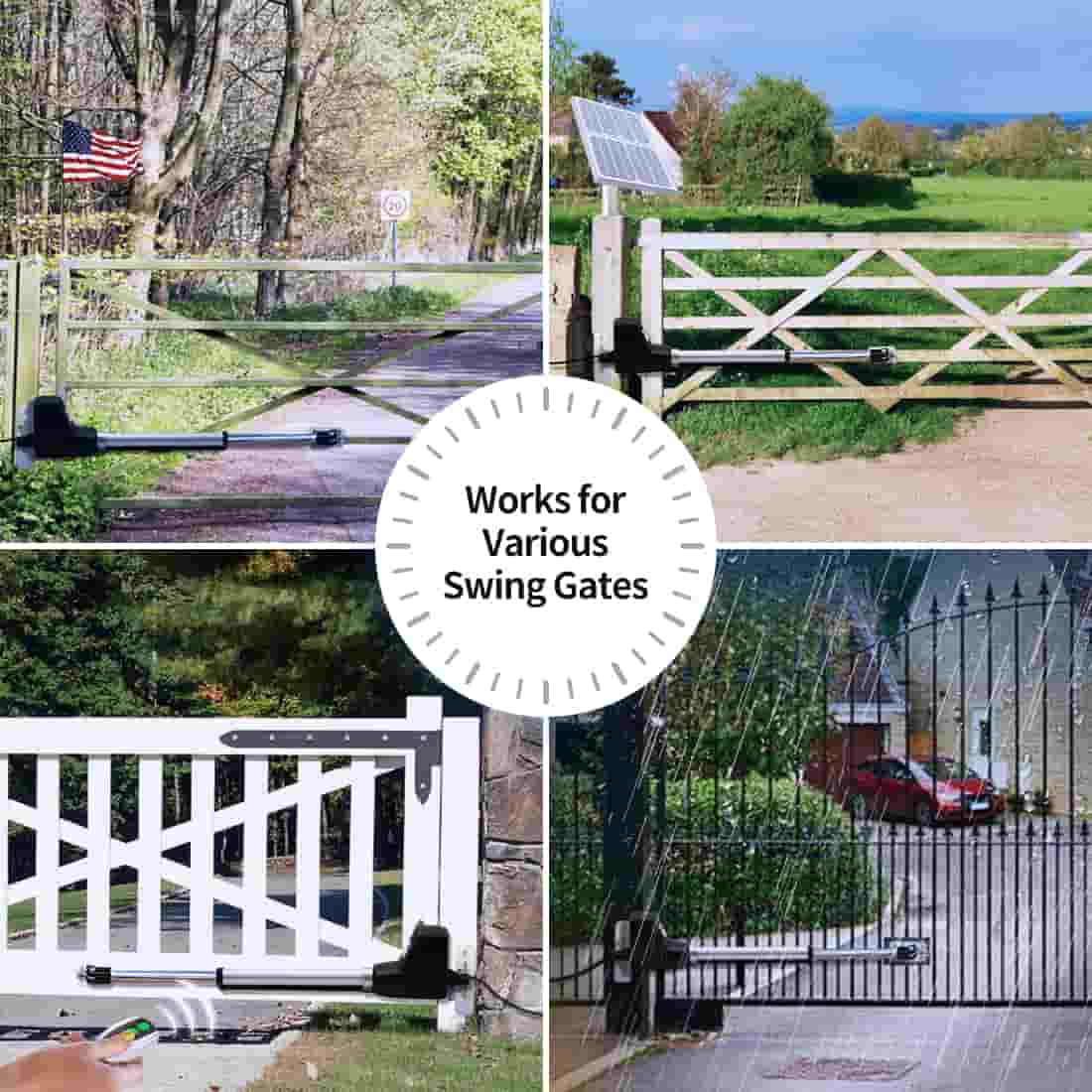

AT6131S Single Swing Solar Gate Opener for Various Swing Gates

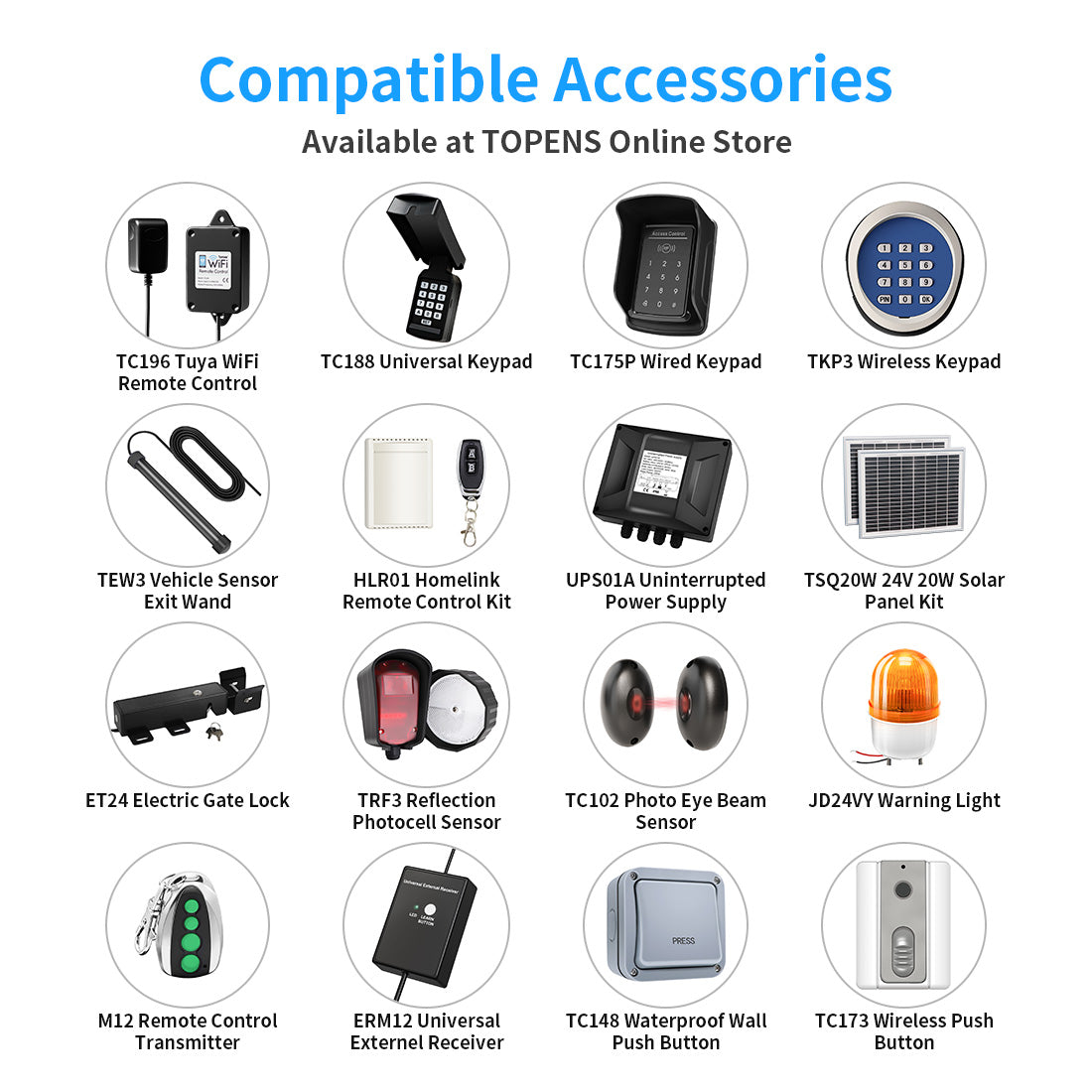

AT6131S Gate Opener with Solar Panel Compatible Accessories
AT6131S Solar Powered Gate Opener Product Compare
Medium Duty50WSolar Panel Incl.Single

TOPENS AT6131S Solar Single Swing Gate Opener

Sale price$439.00 Regular price$499.00
Save $60.00

Tax included. Free Shipping.

  • 25+ Years of Expertise -Trusted leader in the automatic gate opener industry.
  • Lifetime Customer Support -24/7 technical assistance and step-by-step guides for easy installation.
  • Free Shipping -Enjoy fast, free delivery across the continental U.S.
  • Extended Warranty -Includes 1-year warranty, extendable up to 2 or 3 years.
  • Worry-Free Returns -30-day hassle-free return policy on all purchases.
  • Powerful Performance -Equipped with a stable 24VDC 50W motor, the AT6131S easily operates medium-duty single swing gates up to 660 pounds or 18 feet.

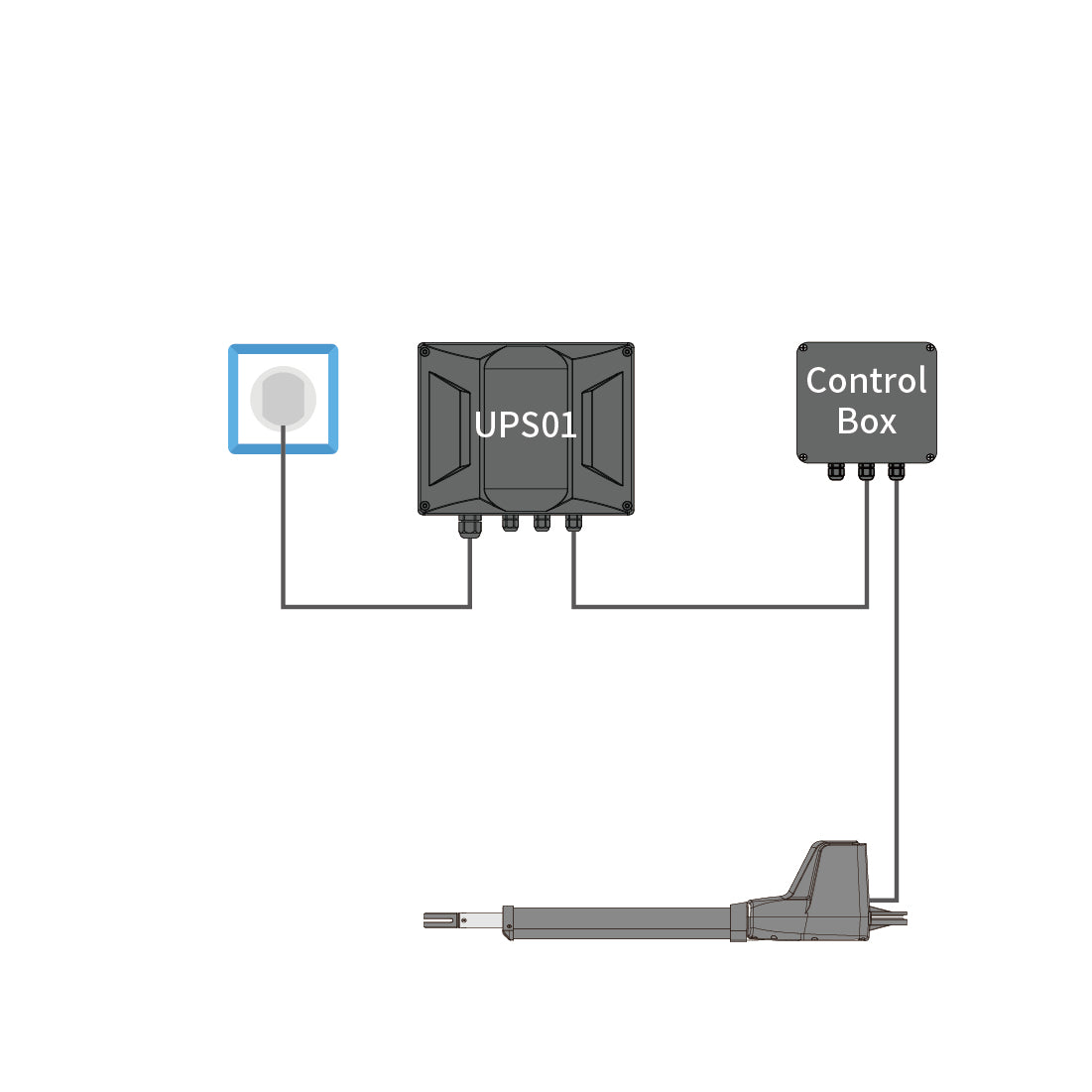

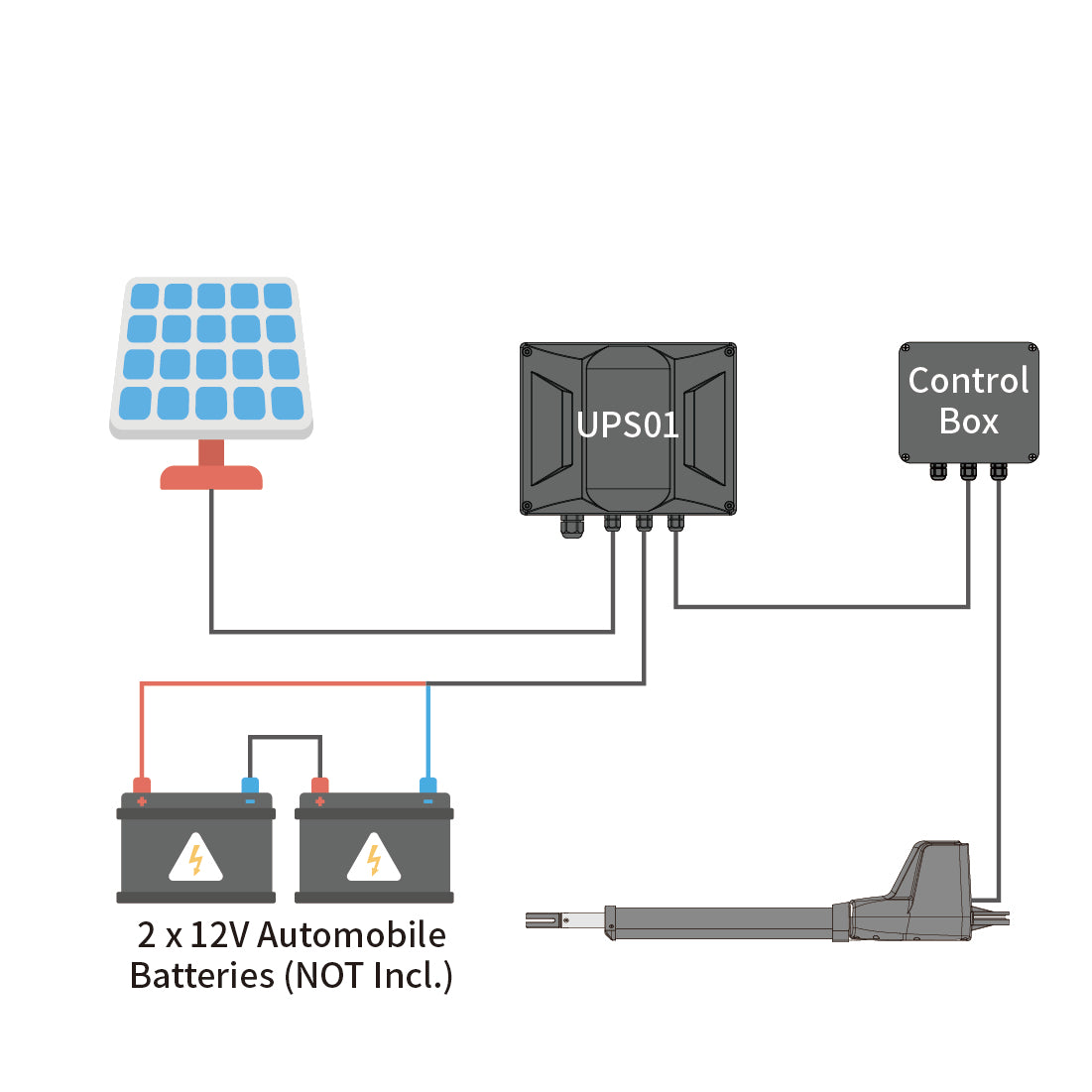

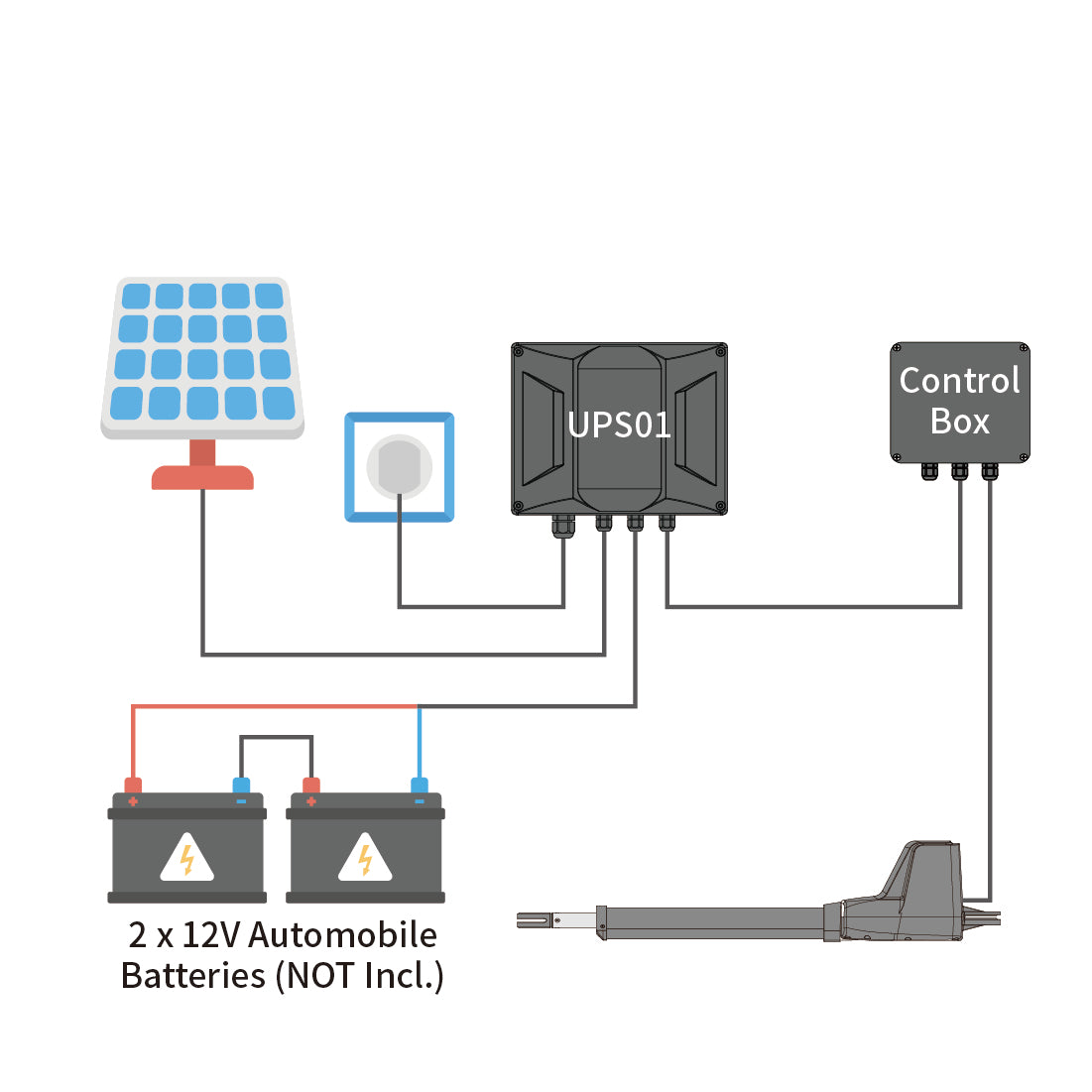

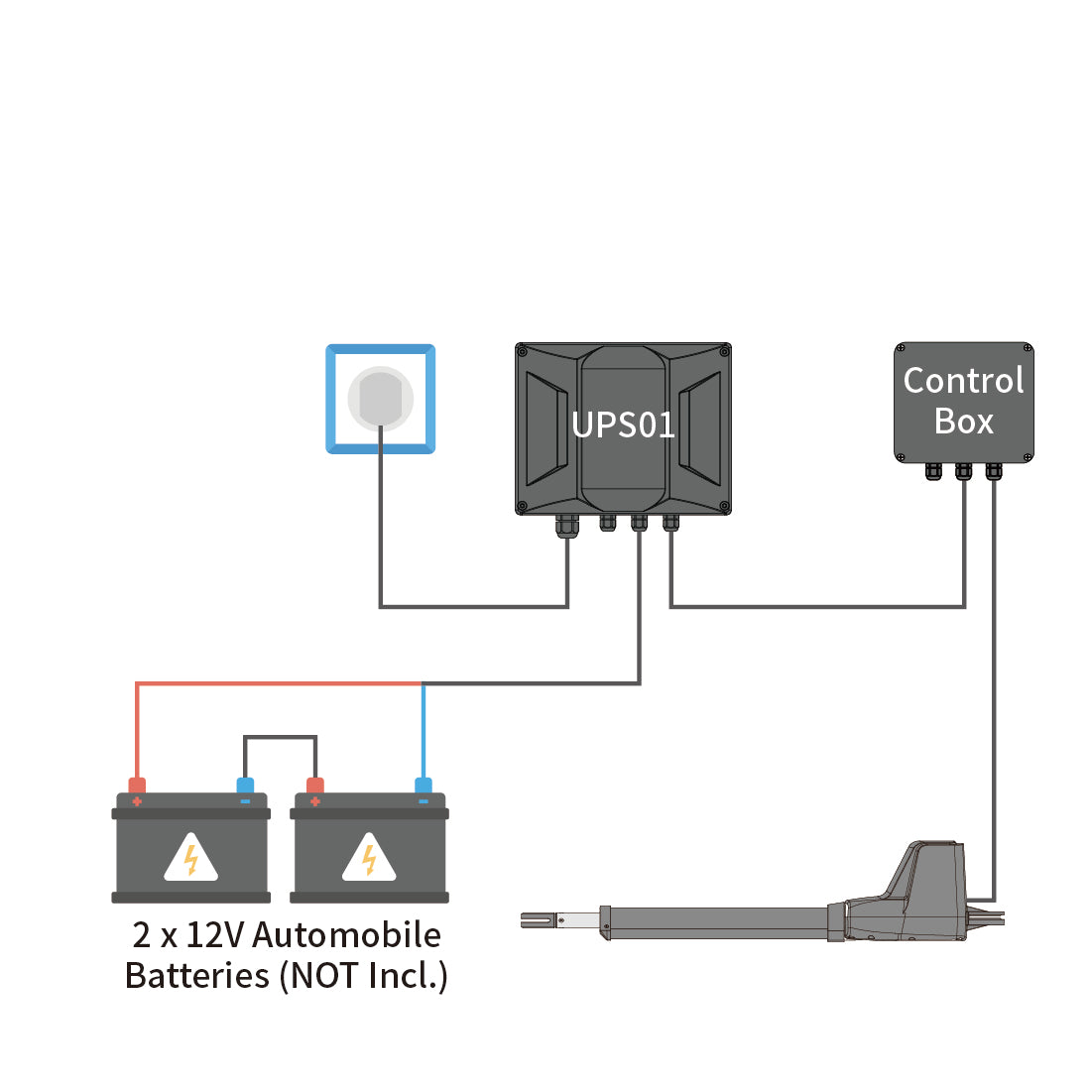

  • Multiple Power Solutions -Power the system with solar panel and battery wherever, whenever there is sunlight. It can also be connected to household power for added flexibility.

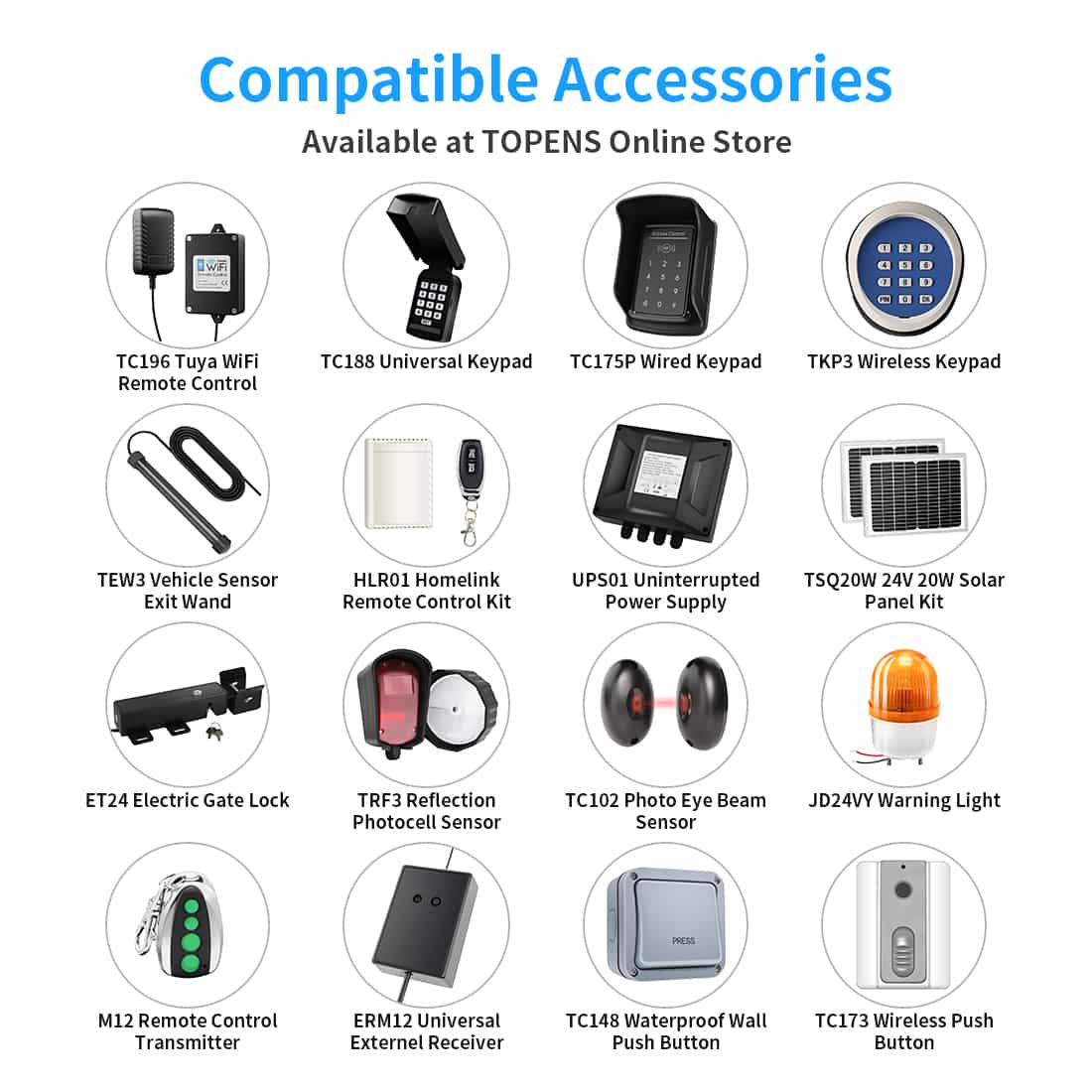

  • Customizable Gate Automation -Compatible with a wide range of TOPENS accessories, making it easy to tailor your gate system.
  • Enhanced Safety & Security -Automatically stops or reverses if the gate is obstructed during operation for added safety. Auto-close ensures your property is always secured after use.
  • Wide Usage -Suitable for various types of swing gates made of steel, wood, vinyl, chain-link, or other styles. Perfect for residential, commercial, courtyard, farm, and ranch applications.
Motor Power: 50W
Warranty:12-Month Warranty
Checkout Securely with
American Express Diners Club Discover Maestro Mastercard PayPal Union Pay Visa
  • Product Model :AT6131S Gate Opener
  • Performance :Medium Duty
  • Compatible Accessories :All the TOPENS Accessories
  • Motor Voltage :24VDC
  • Motor Power :50W
  • Rated Current :2A
  • Gate Opening / Closing Speed :0.6 in/s(16 mm/s)
  • Max. Arm Travel :15.2” (385mm)
  • Gate Opening / Closing Time : Approx. 15 seconds(ideal condition)
  • Type of Limit Switch :Electromagnetism Limit
  • Max. Opening Angle :68° - 112° depends on the installation mode
  • Remote Control Operation Range :65ft (20m)
  • Max. # of Remote Control Supported :8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver (sold separately)
  • Working Temperature :0°F to 120°F (-20℃~ +50℃)
  • Sound Level :< 50 dB
  • Protection Class :IP44 Waterproof

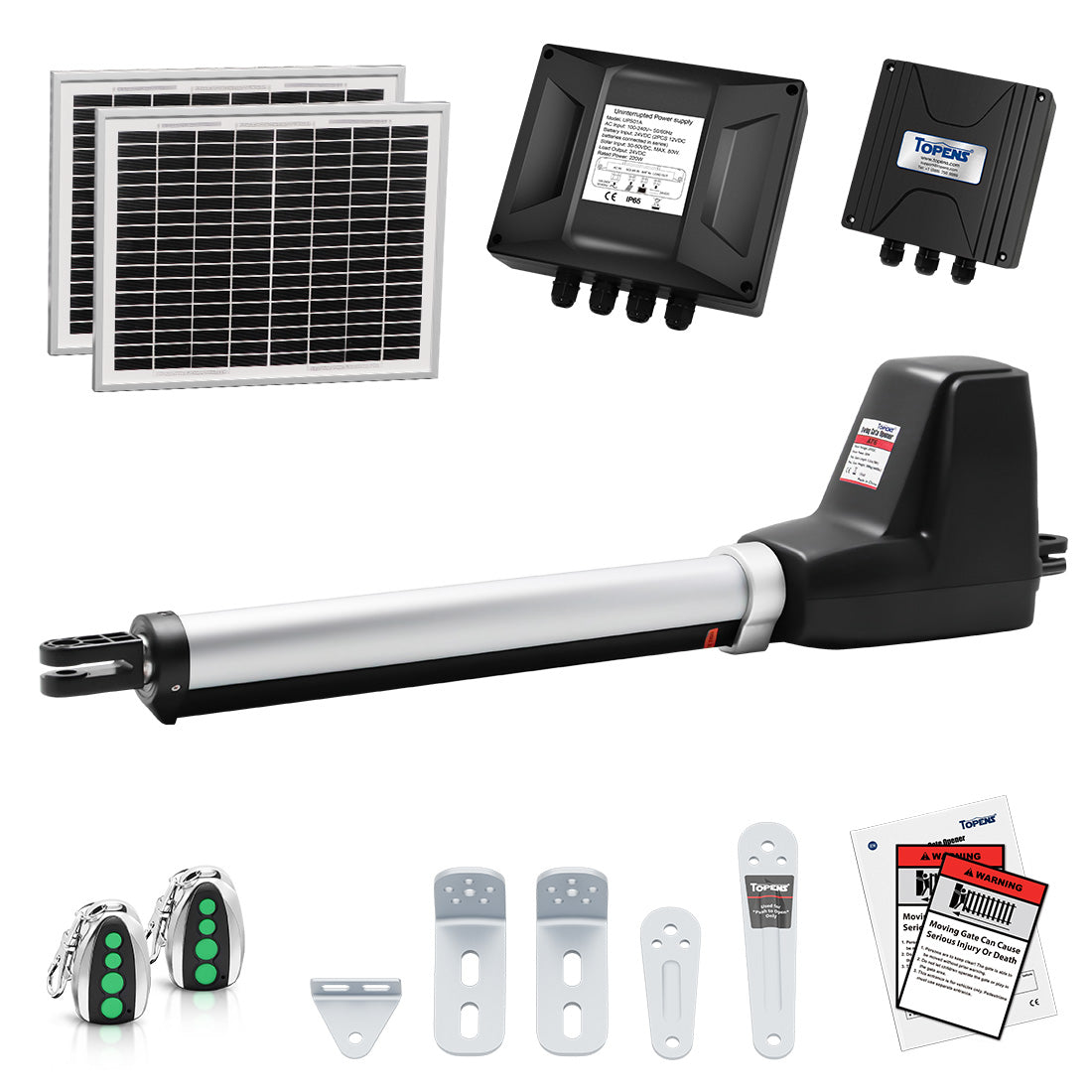

  • 1 x Gate Opener Arm, with a 5 feet 5-Conductor Cable
  • 2 x 10W 24V Solar Panel
  • 1 x Waterproof Control Box
  • 1 x UPS01 Uninterrupted Power Supply (IP65 Waterproof)
  • 2 x M12 Remote Control Transmitter
  • 2 x Emergency Release Key
  • 1 x Pull-to-Open Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)
  • 1 x Push-to-Open Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)
  • 2 x Post Bracket
  • 1 x Gate Bracket
  • 1 x Full Set of Required Installation Hardware
  • 2 x Warning Sign
  • 1 x Installation Manual

Free shipping to the 48 states and Washington, D.C. in mainland USA, with 1-3 business days for processing and 3-6 business days for delivery.

Read full shipping policy HERE

TOPENS offers a 12-month limited warranty for gate openers and accessories purchased directly from our official website or Amazon stores.
Read full warranty policy HERE

24/7 customer support from installation to any questions you may have throughout the life of your product.

Contact us HERE or email us at support@topens.com

30-Day Hassle-Free Returns - Request a return within 30 days of delivery. Orders can also be canceled before shipping for a full refund.

Read full return and refund policy HERE

Customer Reviews

Based on 9 reviews
100%
(9)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Roy Drachman (London, GB)
Gated

So far it works great. The directions were enough for me to get it up and running. Hope it stays that way!

B
Ben
6131S

TOPENS has made a great product. Used mighty mule for years but will only use topens gate openers going forward. Easyish installation, quiet operation. Only negative is it is not compatible with lithium batteries. Must purchase 2 12v car type batteries and put them in series to make 24v. Not a huge problem but lithium would be less bulky and easier to conceal.

T
Tim OQuinn (Tehachapi, US)
Working well

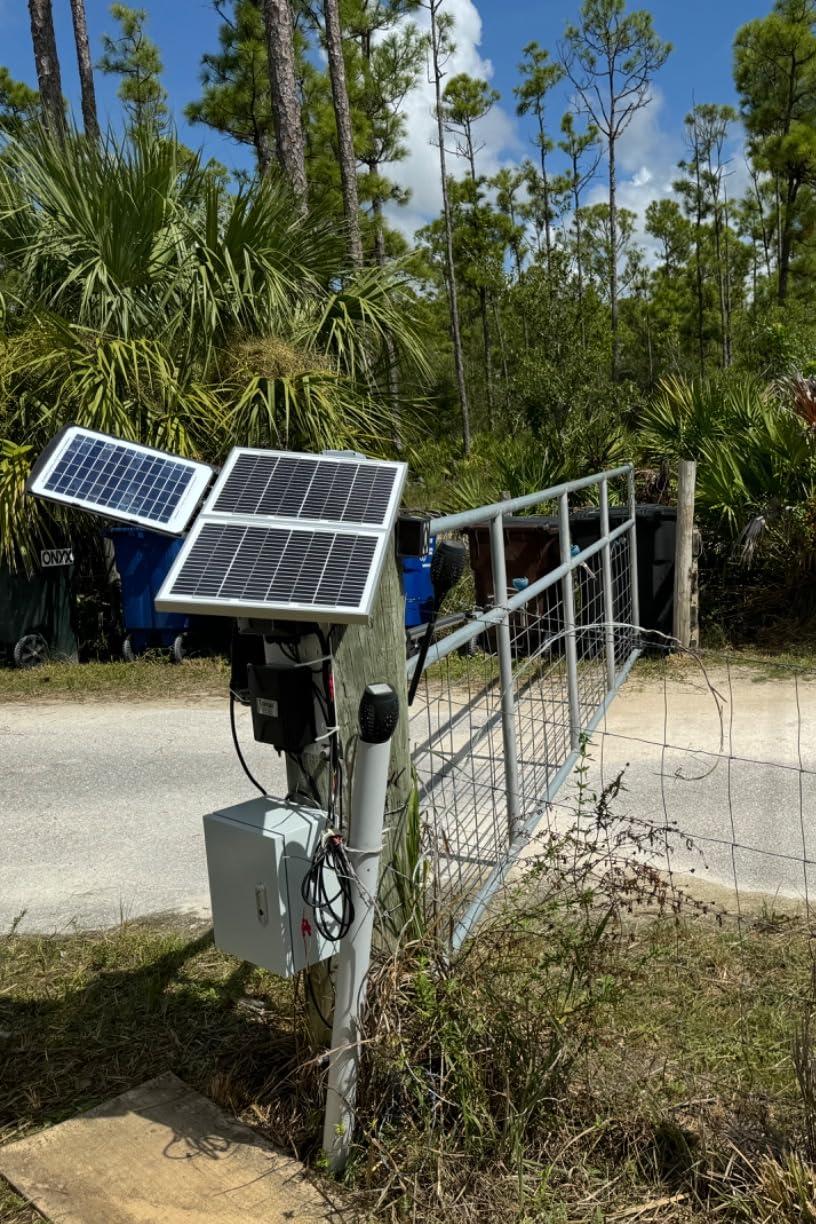

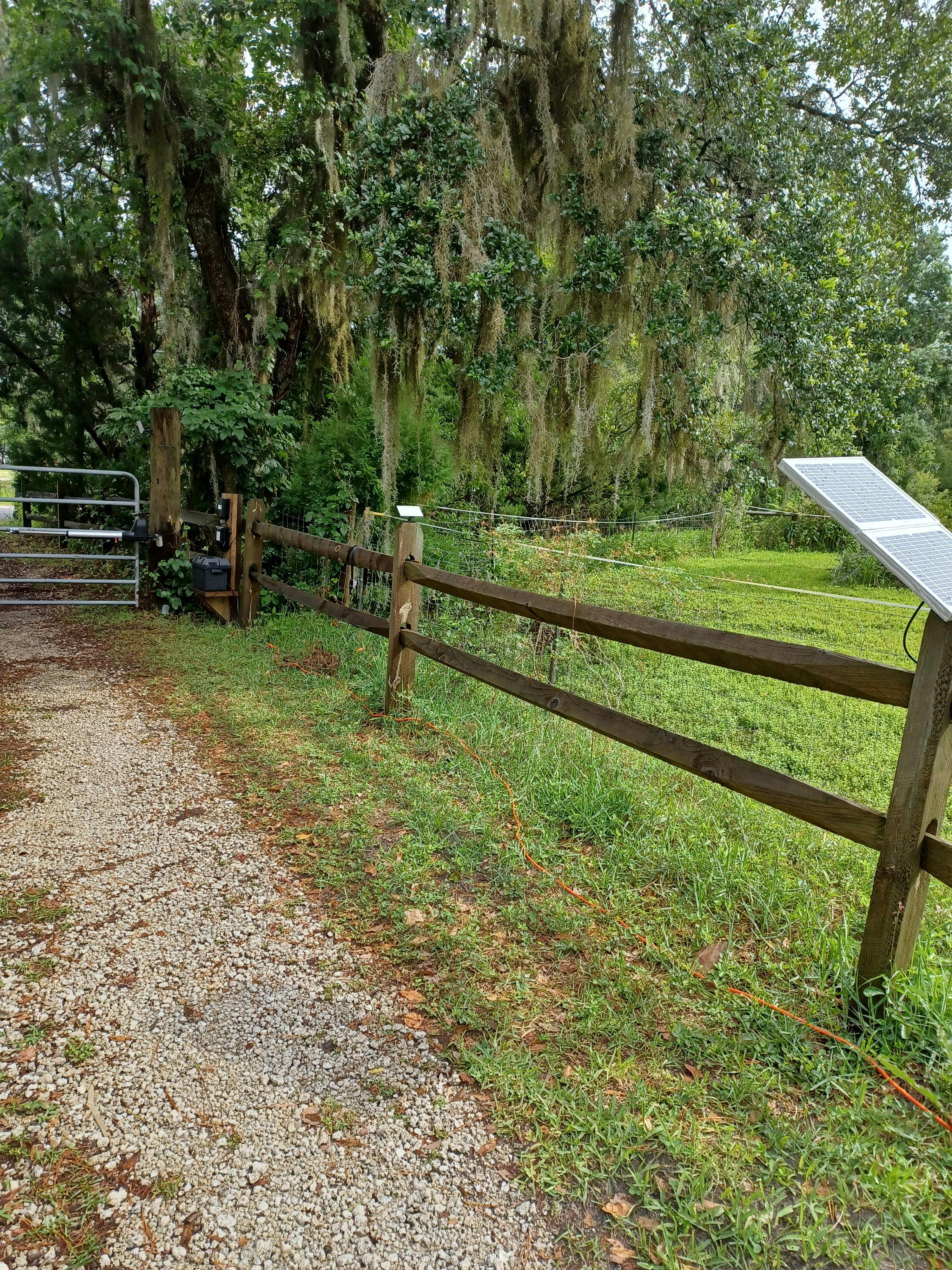

Self-installed opener and it’s working well. Solar/dual lawn-mower sized battery install. Bought the wired
self-close sensor, wired keypad, and extra remotes to go with. Also pick up extra wiring if using wired keypad. Excellent and responsive customer service for a few questions I had. Highly Recommend

Dear Tim, thank you so much for your kind review. You really did a great job! We hope that our gate opener can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.

M
M Smith
Customer service!

Shelly from customer support was great! When I experienced a problem with the gate operator she was very prompt in giving me the troubleshooting steps needed to identify the problem.
She was interested in getting us up and running again and was always available! The problem was resolved throughly.

Dear Smith, thank you so much for your kind review. You and Shelly really did a great job! We hope that our gate opener can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.

V
Virginia Acosta (Caddo Mills, US)
Swing gate opener

Great product, easy install and customer service has been great

Dear Virginia, thank you so much for your kind review. You really did a great job! We hope that our gate opener can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. Our gate opener is perfect for DIY enthusiasts. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.

Extended Warranty

Comes with 12-month warranty basically. We also offer extended warranty plans: 2 years and 3 years options.
