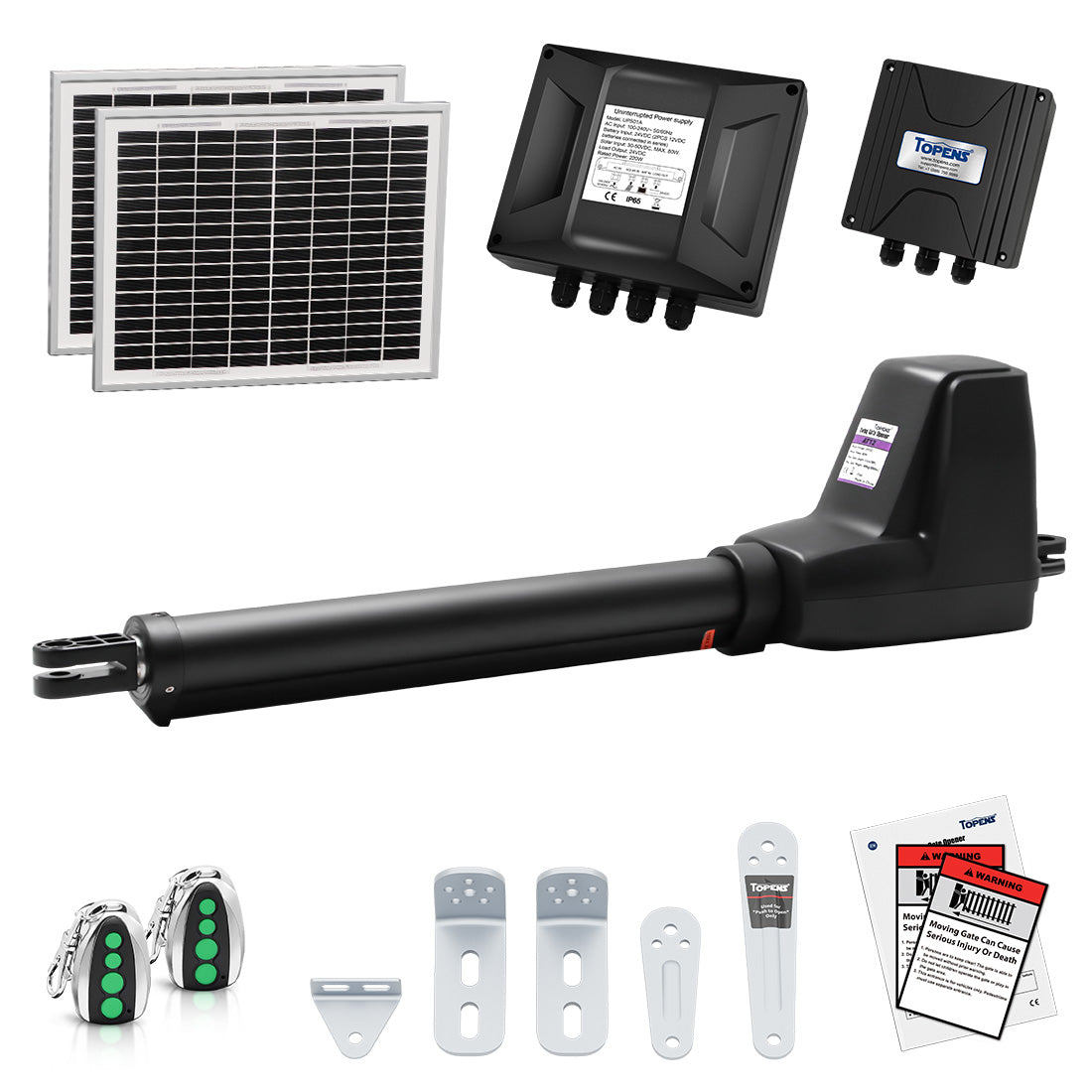

AT12131S Solar Power Gate Opener
AT12131S Solar Powered Gate Opener Kit on Gate

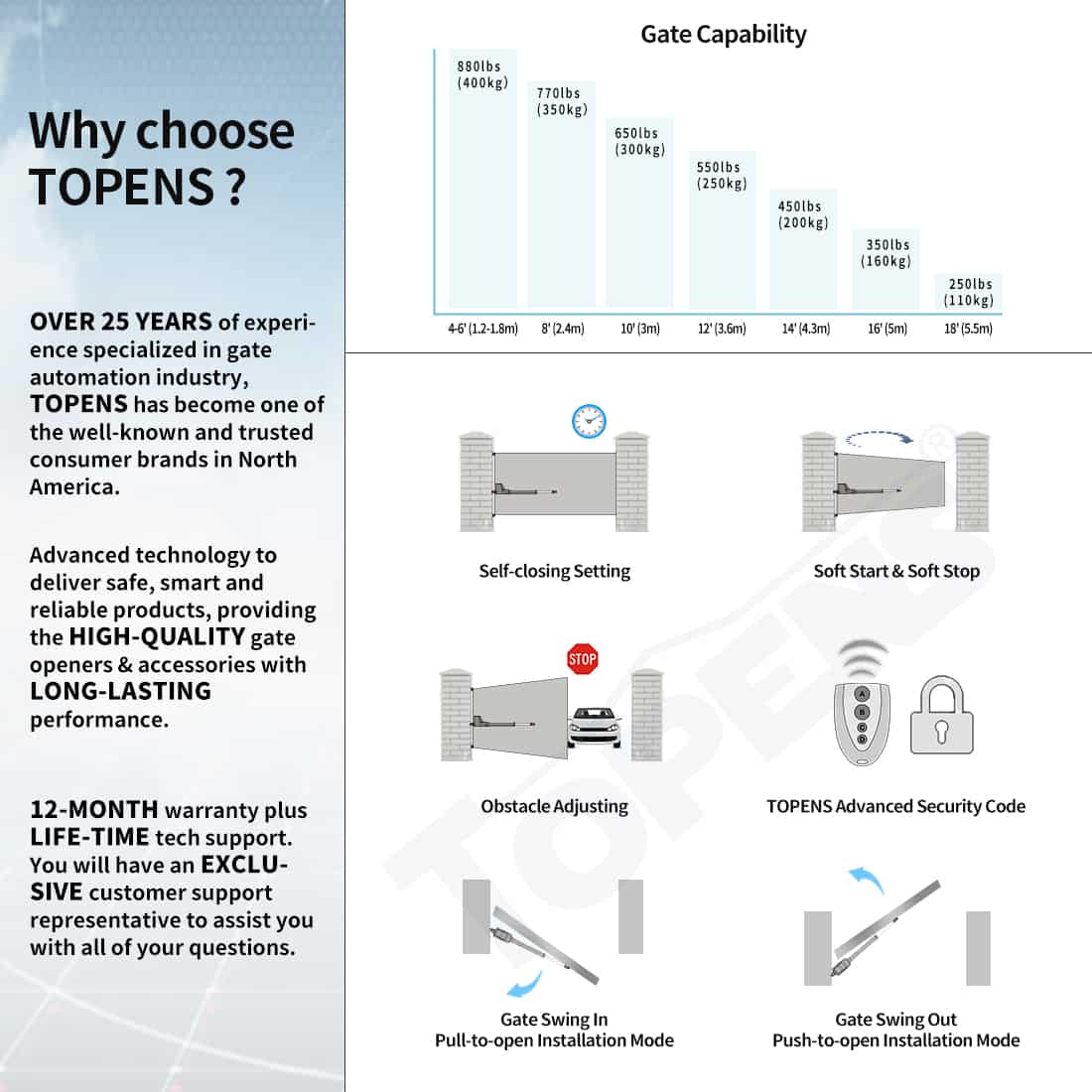

AT12131S Solar Power Gate Opener Gate Capability

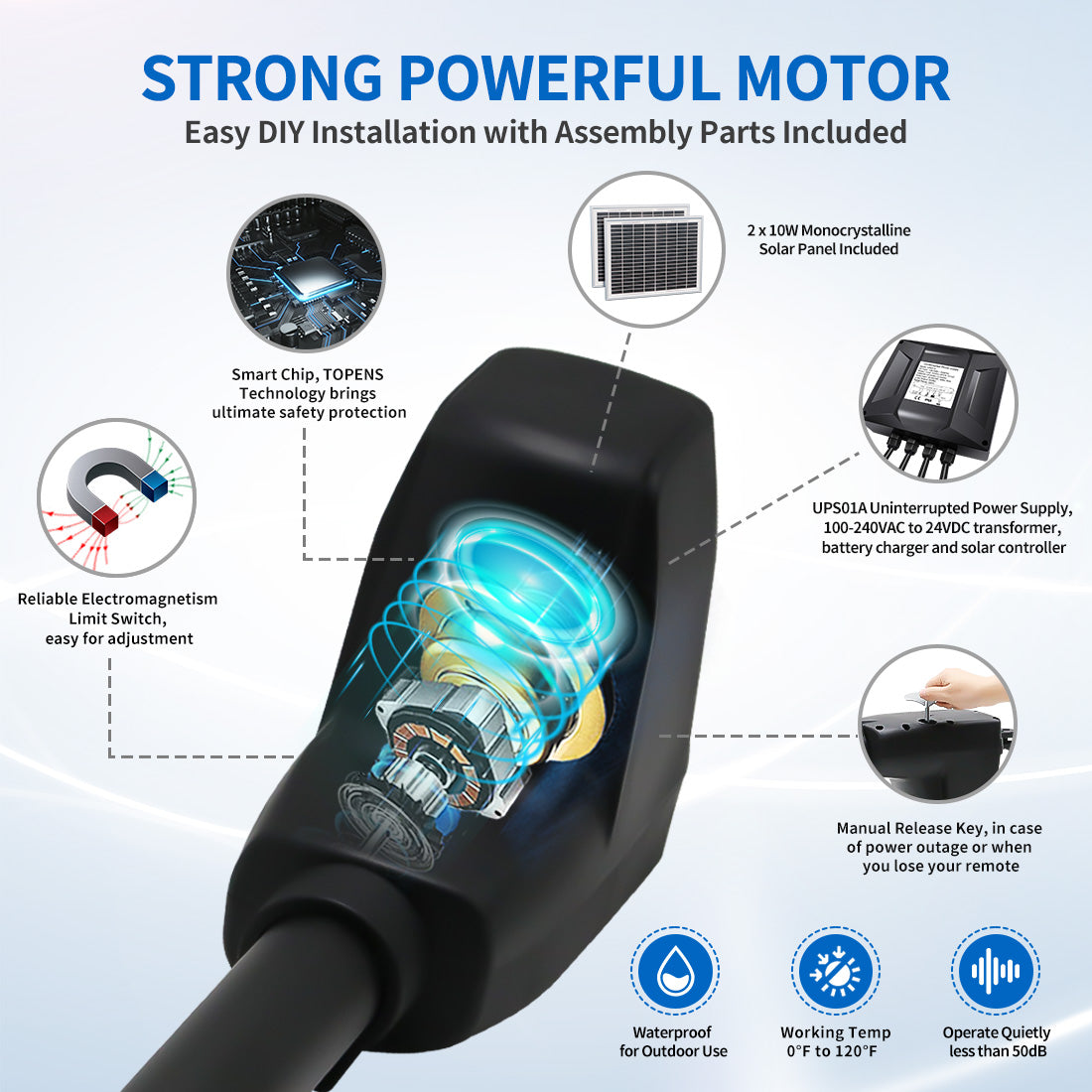

AT12131S Solar Powered Gate Opener Kit with Strong Motor

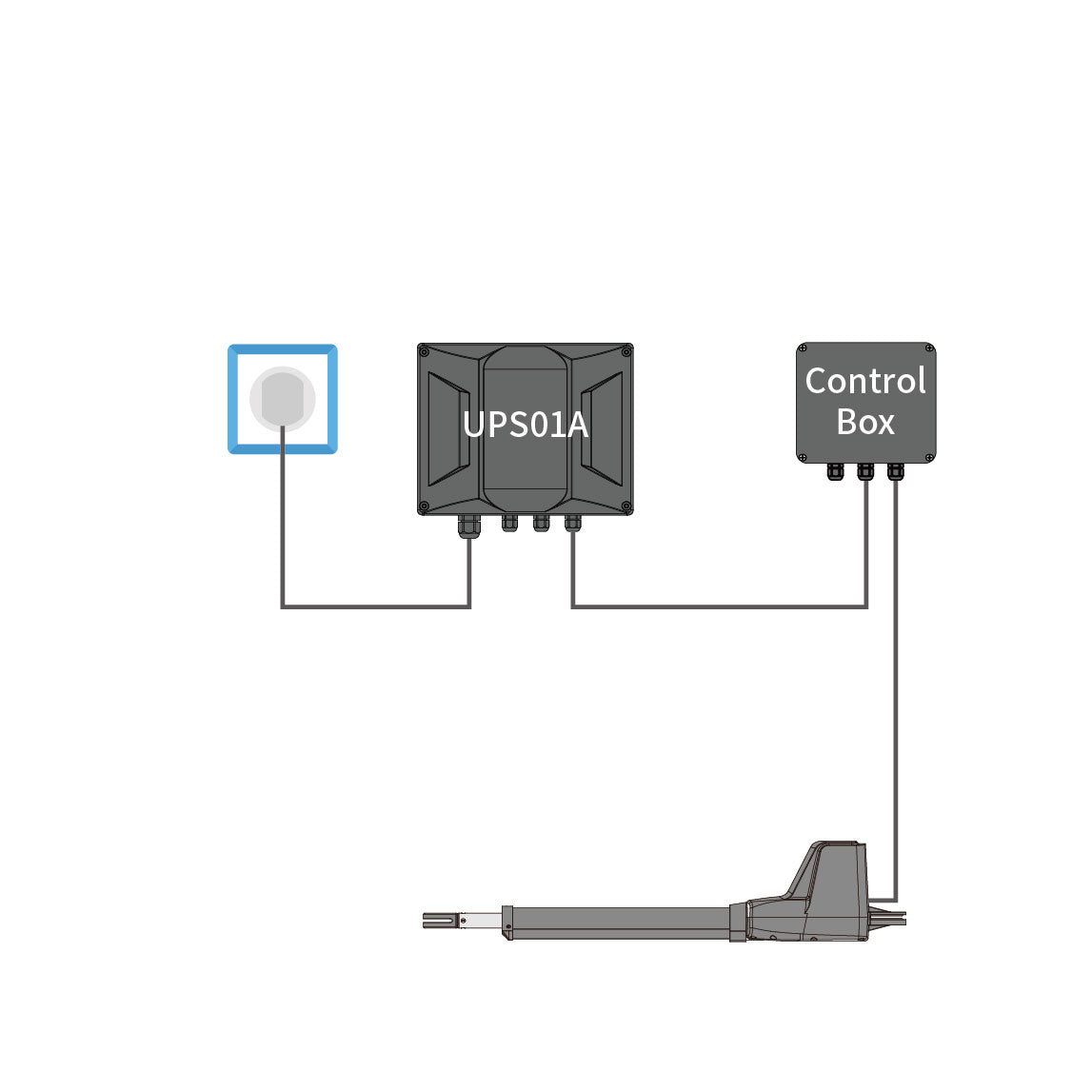

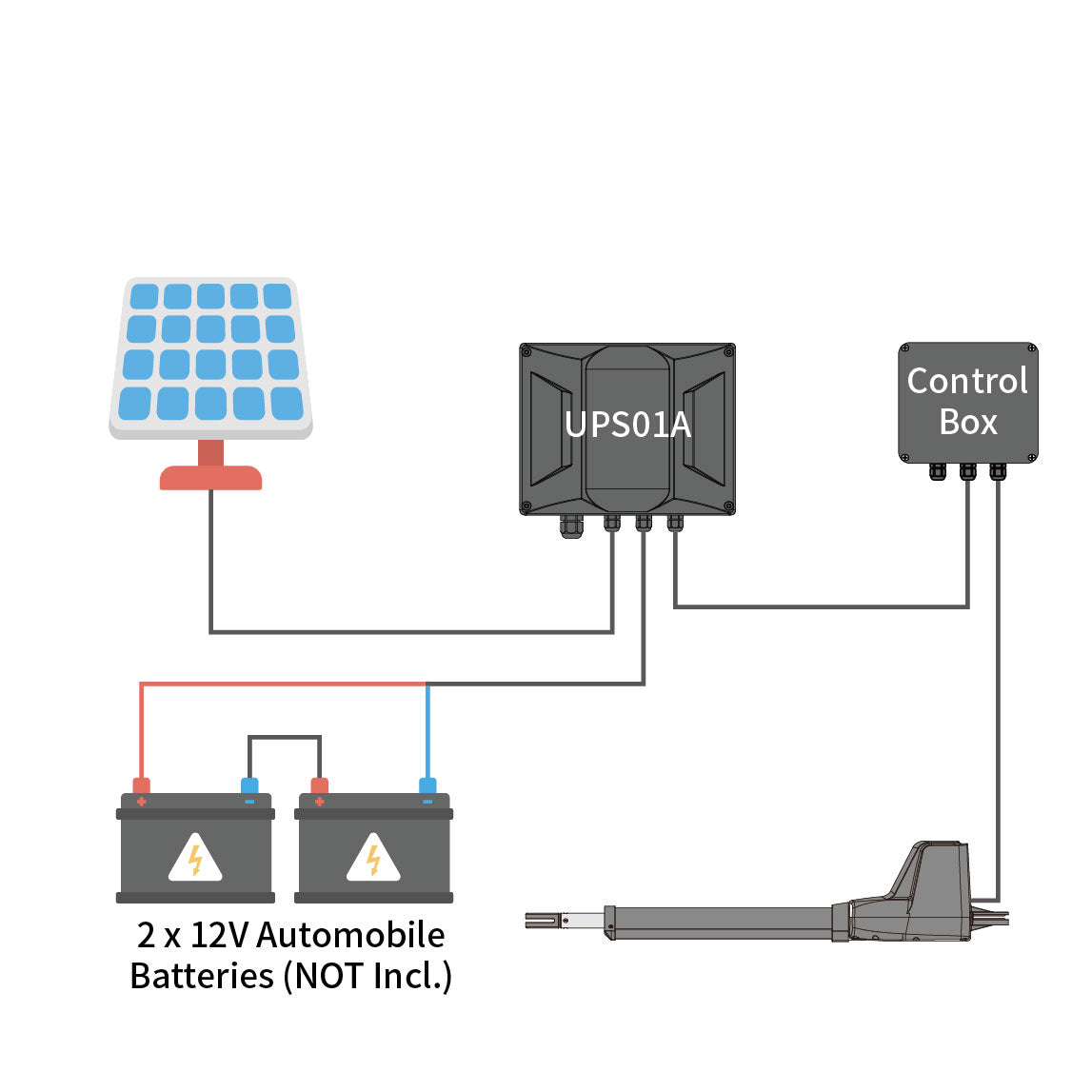

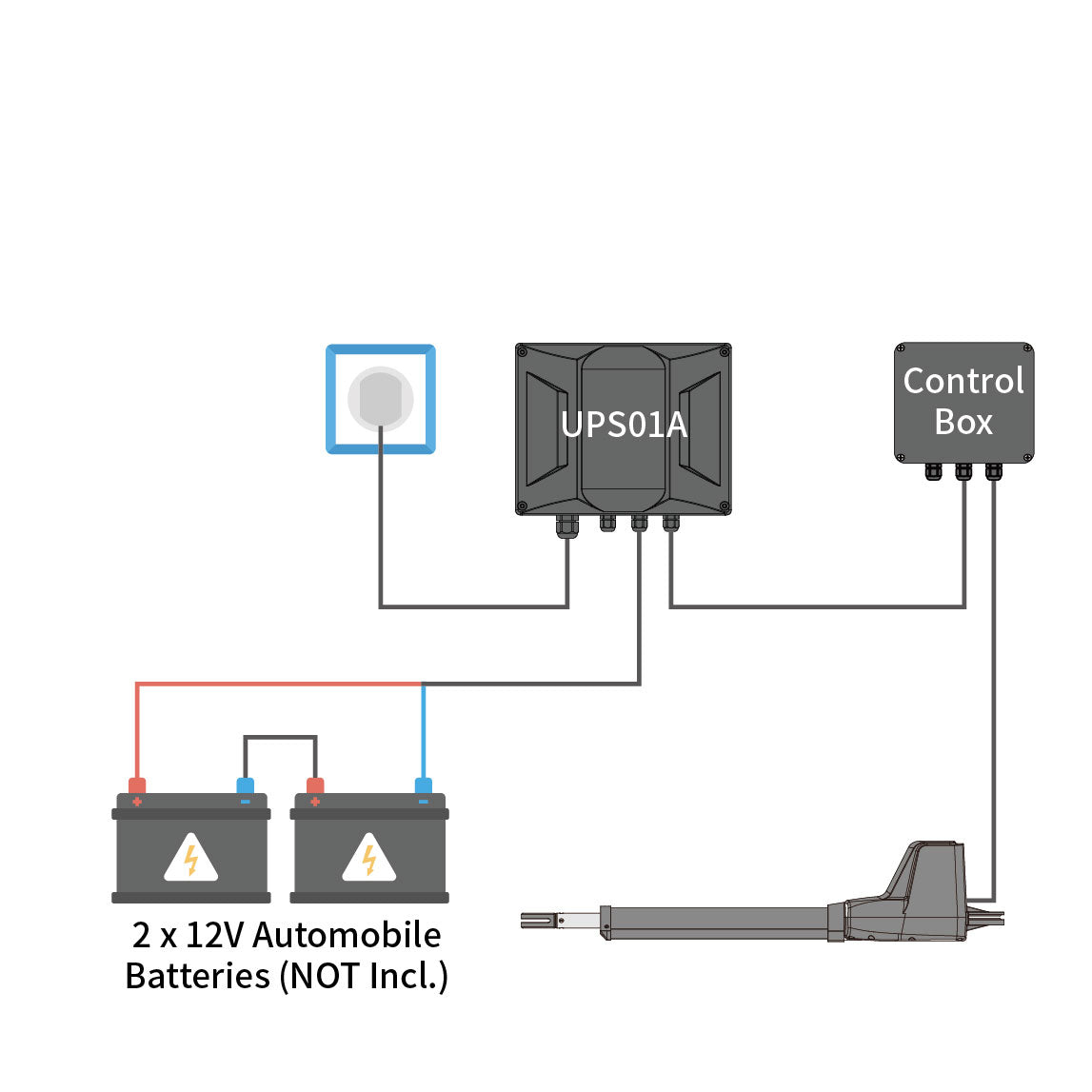

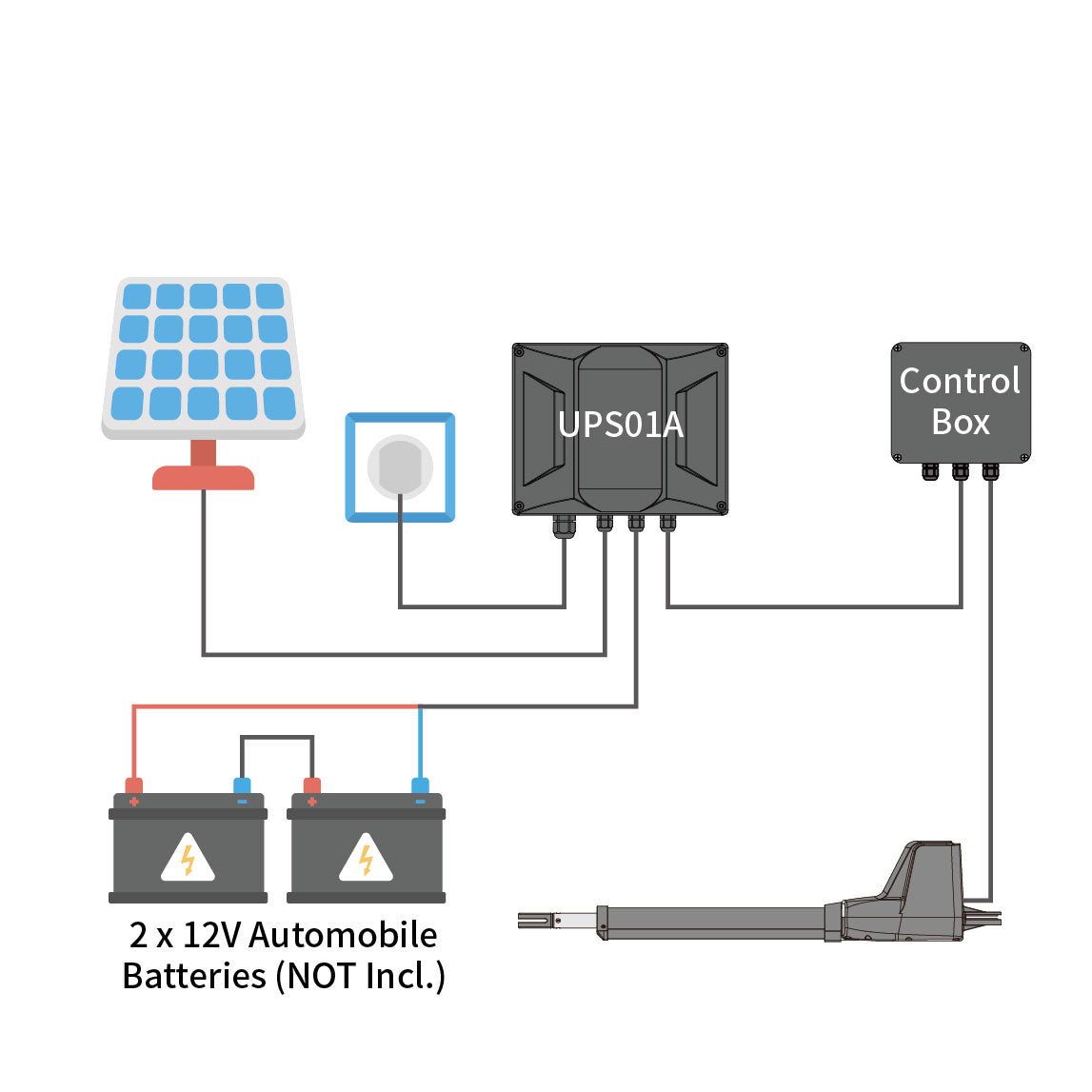

AT12131S Solar Power Gate Opener Power Modes

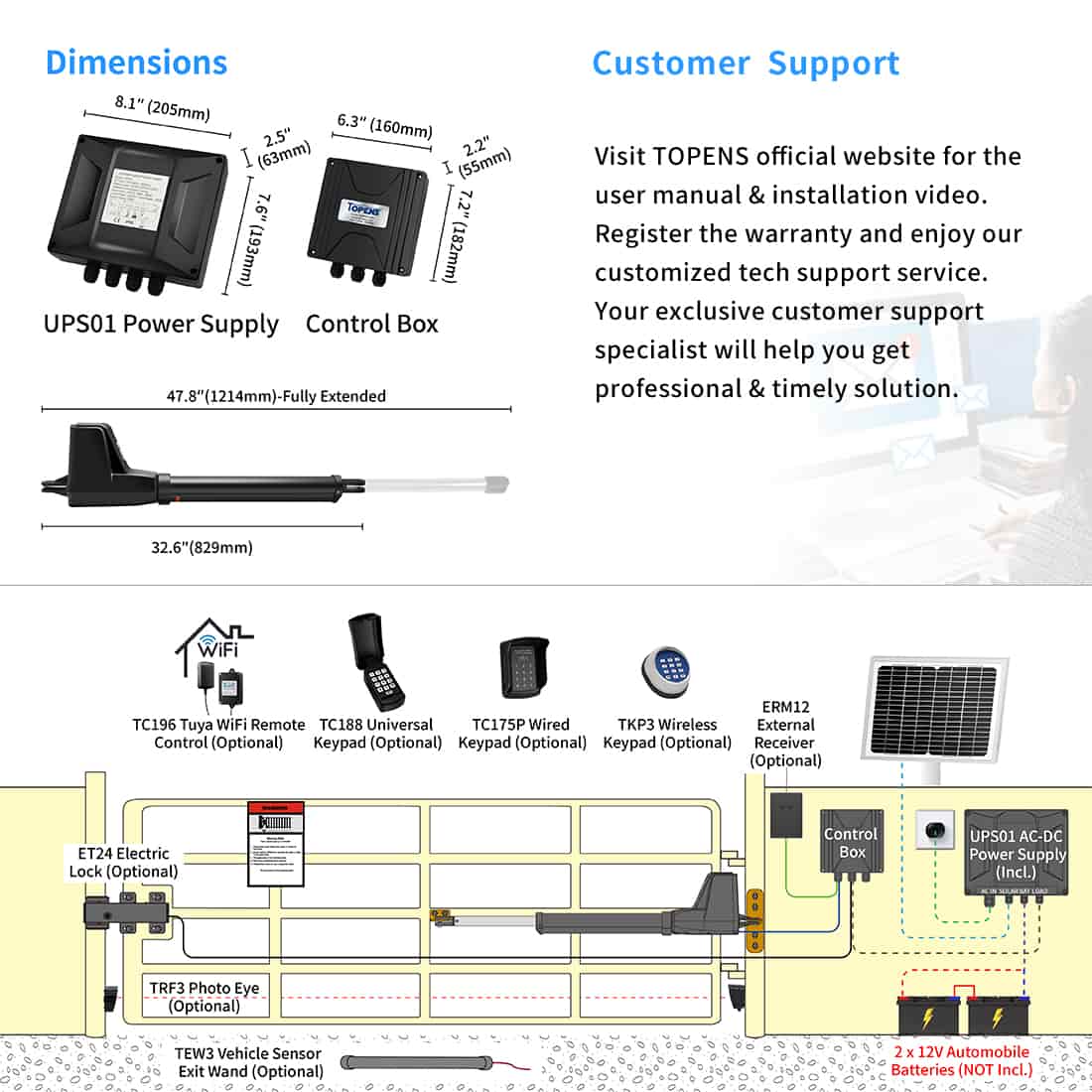

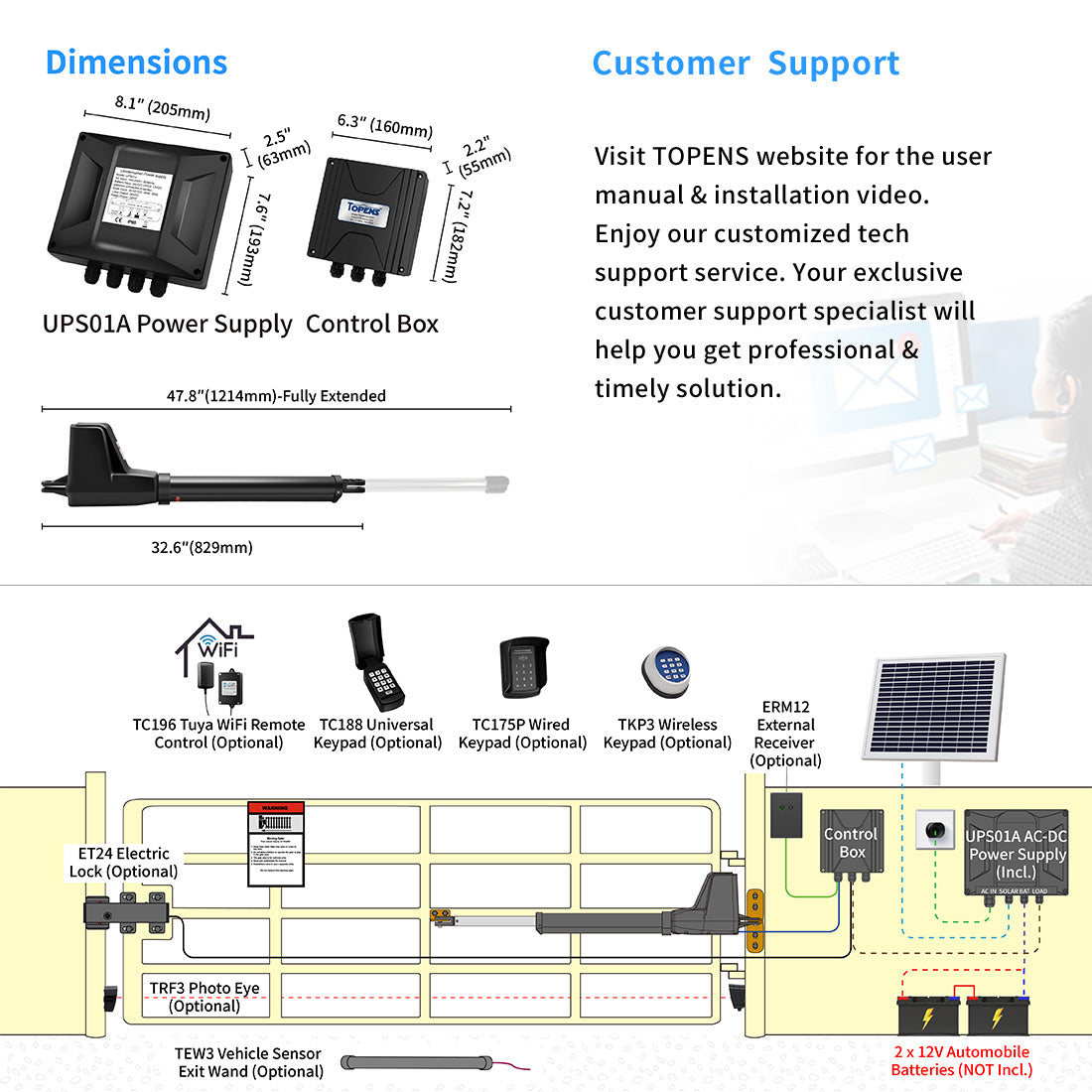

AT12131S Solar Power Gate Opener Dimension and Installation Overview

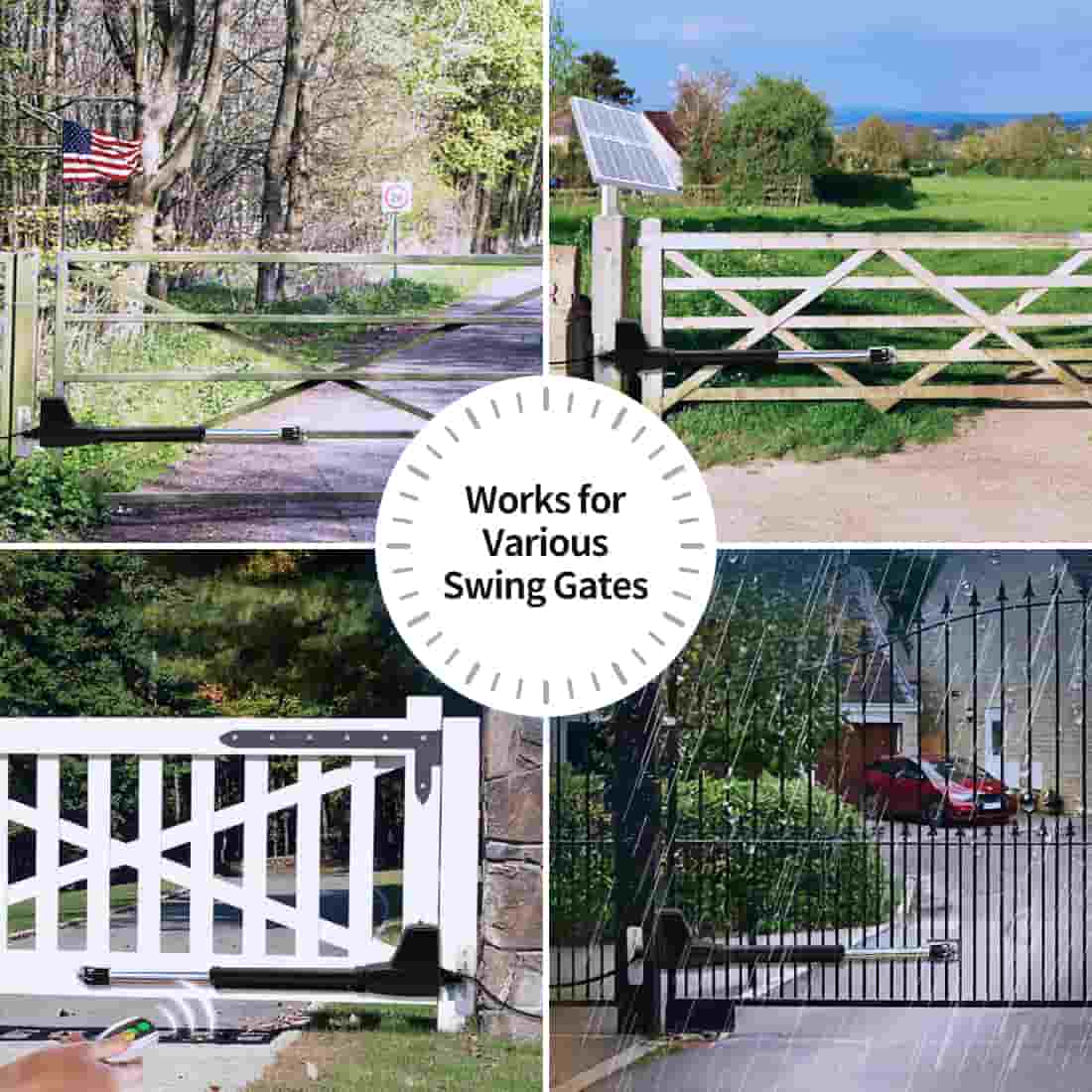

AT12131S Gate Opener Solar for Various Swing Gates

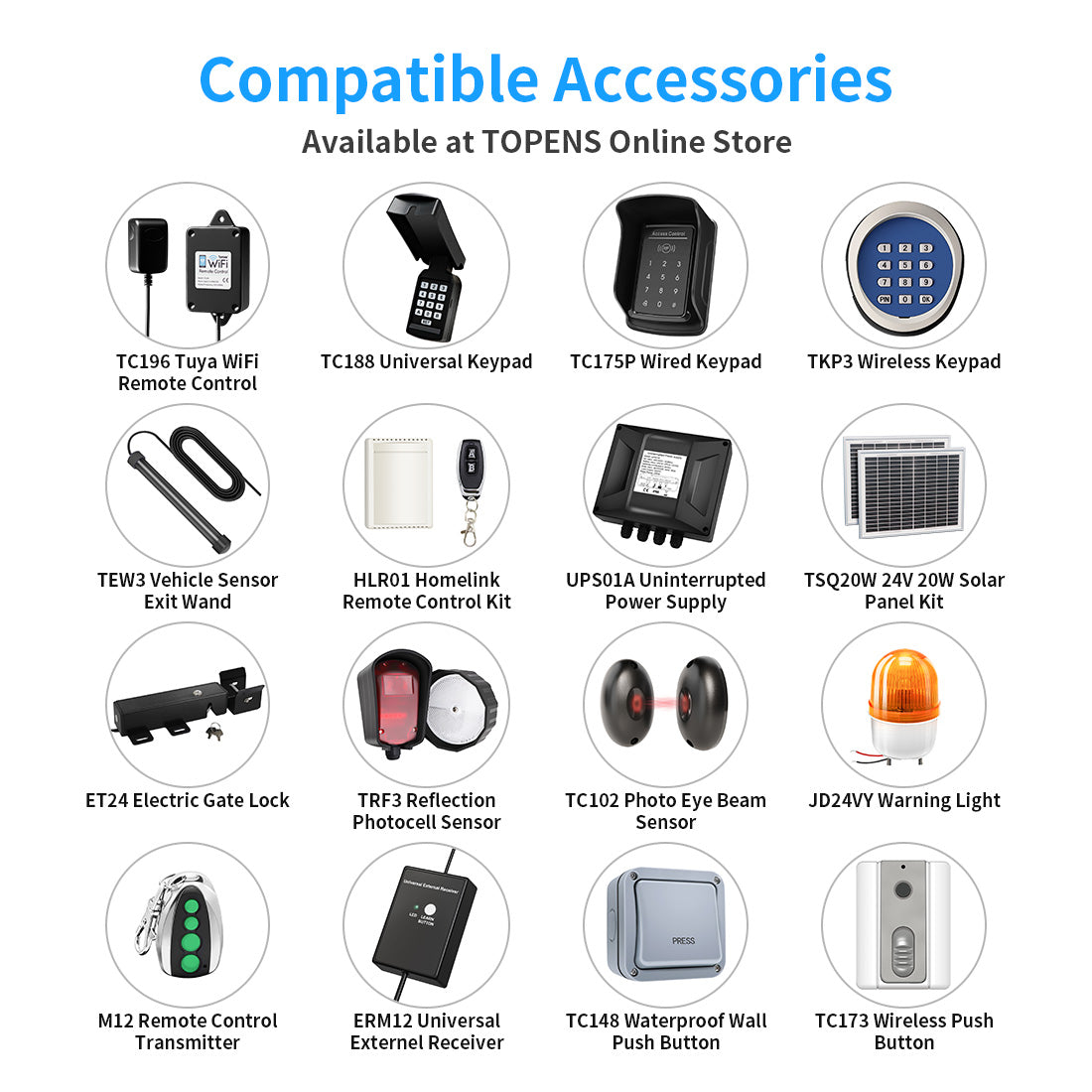

AT12131S Gate Opener Solar Compatible Accessories
AT12131S Solar Powered Gate Opener Kit Product Compare
Heavy Duty80WSolar Panel Incl.Single

TOPENS AT12131S Heavy Duty Solar Single Swing Gate Opener

$469.00 $529.00
Save $60.00

Tax included. Free Shipping.

  • 25+ Years of Expertise -Trusted leader in the automatic gate opener industry.
  • Lifetime Customer Support -24/7 technical assistance and step-by-step guides for easy installation.
  • Free Shipping -Enjoy fast, free delivery across the continental U.S.
  • Extended Warranty -Includes 1-year warranty, extendable up to 2 or 3 years.
  • Worry-Free Returns -30-day hassle-free return policy on all purchases.

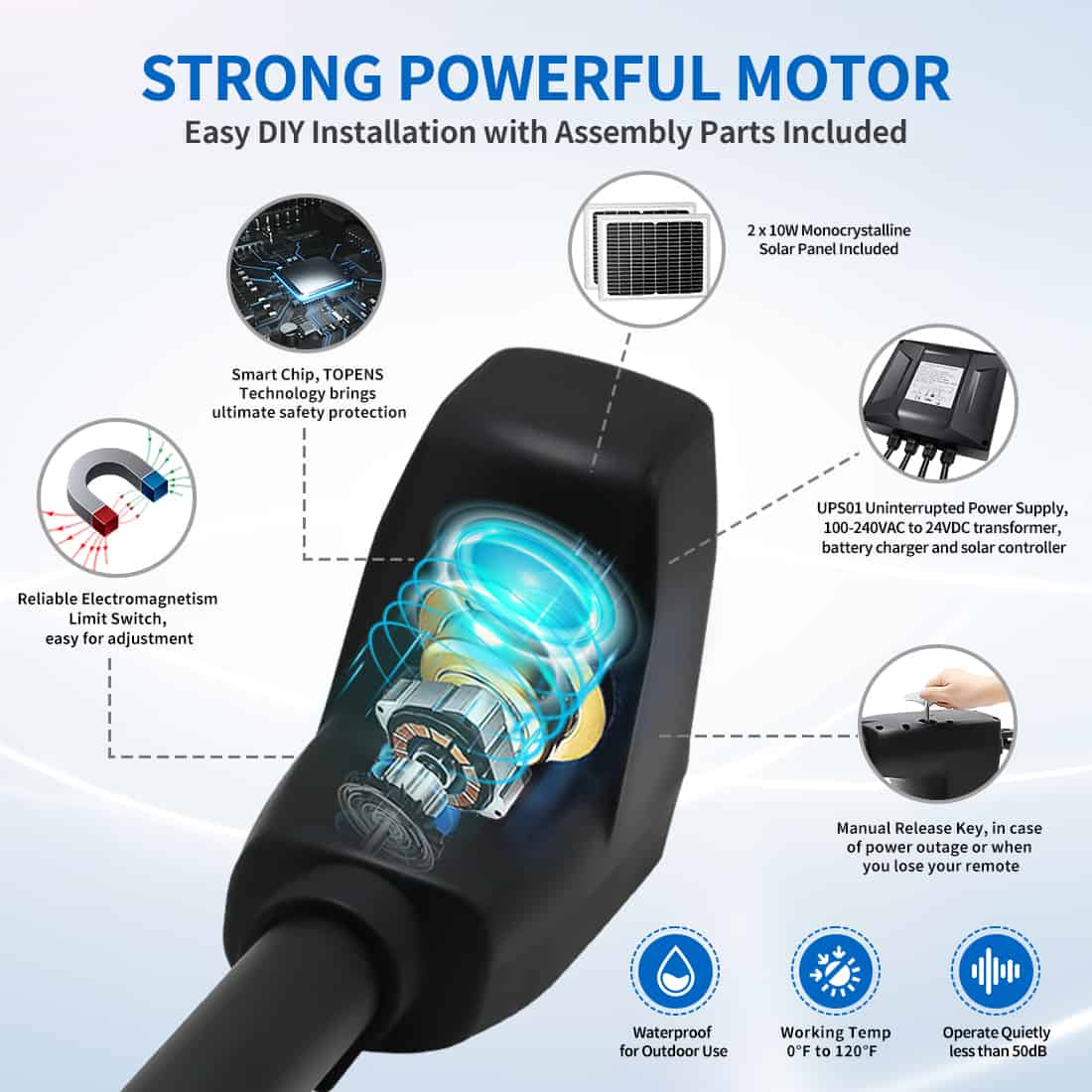

  • Powerful Performance -Equipped with a stable 24VDC 80W motor, the AT12131S easily operates heavy-duty single swing gates up to 880 pounds or 18 feet.
  • Multiple Power Solutions -Power the system with solar panel and battery wherever, whenever there is sunlight. It can also be connected to household power for added flexibility.
  • Customizable Gate Automation -Compatible with a wide range of TOPENS accessories, making it easy to tailor your gate system.
  • Enhanced Safety & Security -Automatically stops or reverses if the gate is obstructed during operation for added safety. Auto-close ensures your property is always secured after use.
  • Wide Usage -Suitable for various types of swing gates made of steel, wood, vinyl, chain-link, or other styles. Perfect for residential, commercial, courtyard, farm, and ranch applications.
Motor Power: 80W
Warranty:12-Month Warranty
Checkout Securely with
American Express Diners Club Discover Maestro Mastercard PayPal Union Pay Visa
  • Product Model :AT12131S Gate Opener
  • Performance :Heavy Duty
  • Compatible Accessories :All the TOPENS Accessories
  • Motor Voltage :24VDC
  • Motor Power :80W
  • Rated Current :3A
  • Gate Opening / Closing Speed :0.6 in/s(16 mm/s)
  • Max. Arm Travel :15.2” (385mm)
  • Gate Opening / Closing Time : Approx. 15 seconds(ideal condition)
  • Type of Limit Switch :Electromagnetism Limit
  • Max. Opening Angle :68° - 112° depends on the installation mode
  • Remote Control Operation Range :65ft (20m)
  • Max. # of Remote Control Supported :8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver (sold separately)
  • Working Temperature :0°F to 120°F (-20℃~ +50℃)
  • Sound Level :< 50 dB
  • Protection Class :IP44 Waterproof
  • Solar Kit Inlcuded :2 x 10W 24V Solar Panel Incl.

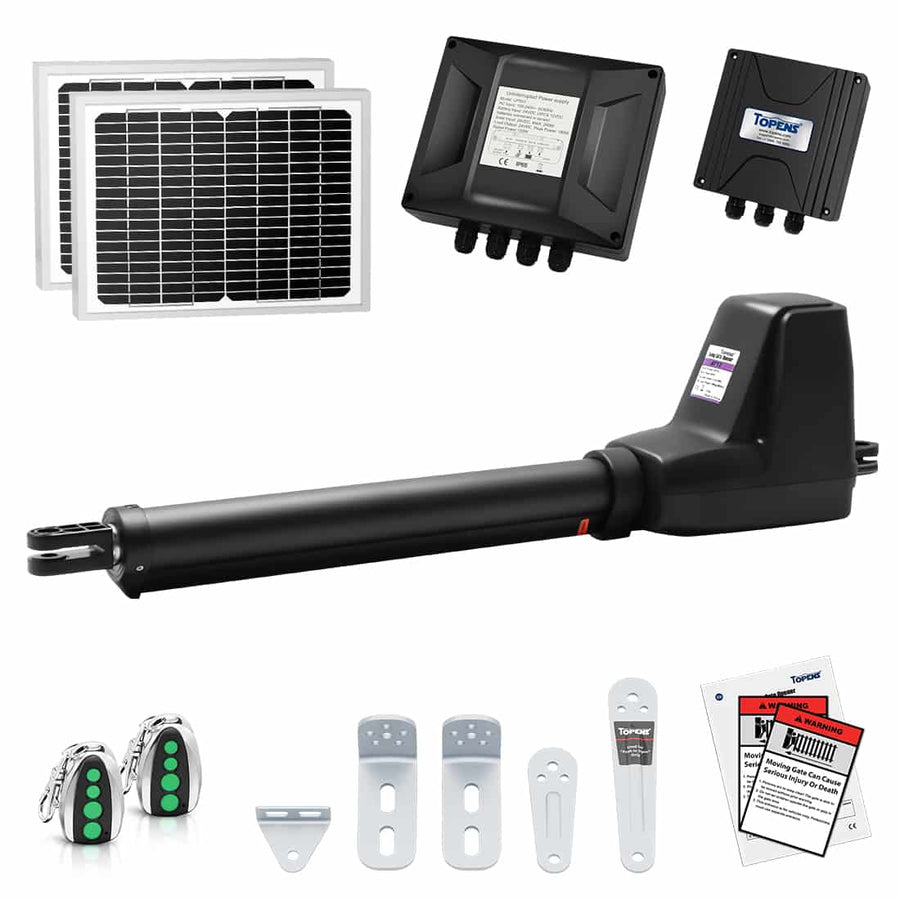

  • 1 x Gate Opener Arm, with a 5 feet 5-Conductor Cable
  • 2 x 10W 24V Solar Panel
  • 1 x Waterproof Control Box
  • 1 x UPS01 Uninterrupted Power Supply (IP65 Waterproof)
  • 2 x M12 Remote Control Transmitter
  • 2 x Emergency Release Key
  • 1 x Pull-to-Open Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)
  • 1 x Push-to-Open Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)
  • 2 x Post Bracket
  • 1 x Gate Bracket
  • 1 x Full Set of Required Installation Hardware
  • 2 x Warning Sign
  • 1 x Installation Manual

Free shipping to the 48 states and Washington, D.C. in mainland USA, with 1-3 business days for processing and 3-6 business days for delivery.

Read full shipping policy HERE

TOPENS offers a 12-month limited warranty for gate openers and accessories purchased directly from our official website or Amazon stores.
Read full warranty policy HERE

24/7 customer support from installation to any questions you may have throughout the life of your product.

Contact us HERE or email us at support@topens.com

30-Day Hassle-Free Returns - Request a return within 30 days of delivery. Orders can also be canceled before shipping for a full refund.

Read full return and refund policy HERE

BUNDLE SALE - BUY MORE SAVE MORE - 8% OFF Bundle any gate opener with at least 3 Accessories

Frequently Bought Together

Total price:
Save 0

Topens - GUARD YOUR HAPPY FAMILY

25+ Years' Experience in Gate Automation Industry

Extended Warranty

Comes with 1-year warranty, extendable to 2-3 years.

Extended Warranty

Comes with 1-year warranty, extendable to 2-3 years.

Lifetime Customer Support

Our support team delivers professional, custom solutions.

Free Shipping

Free shipping in continental U.S.: 3-6 work days.

30-Day Worry-Free Return

Give TOPENS a try with 30-day worry-free return.

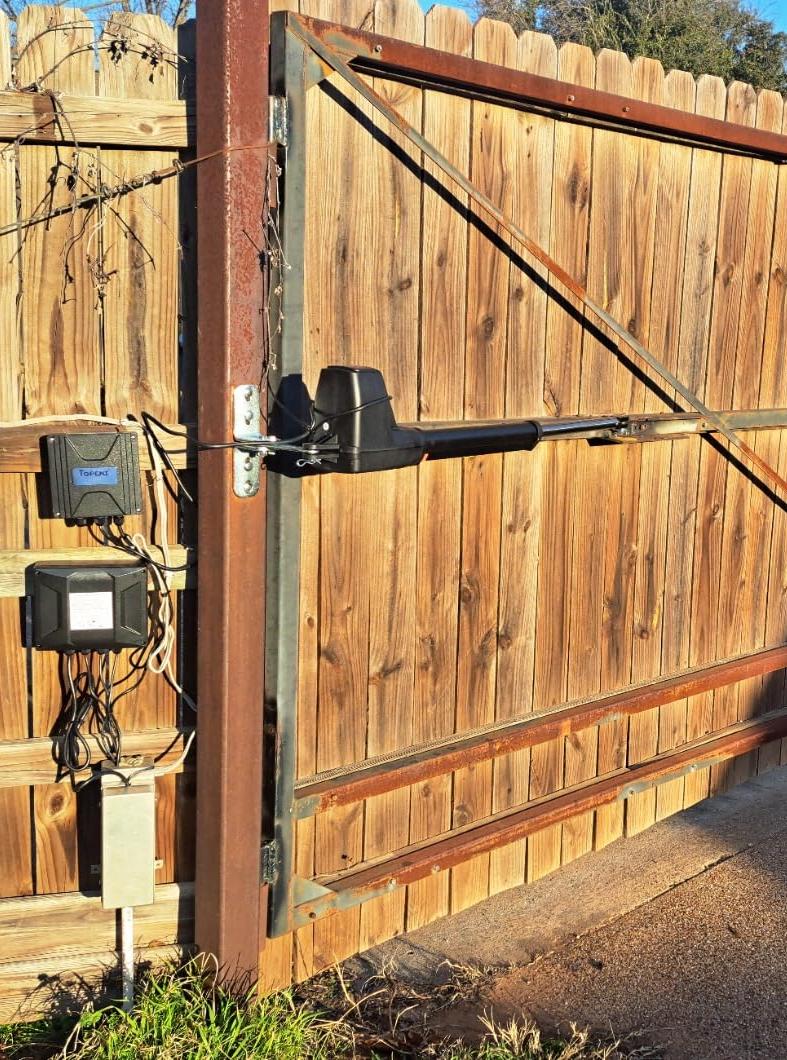

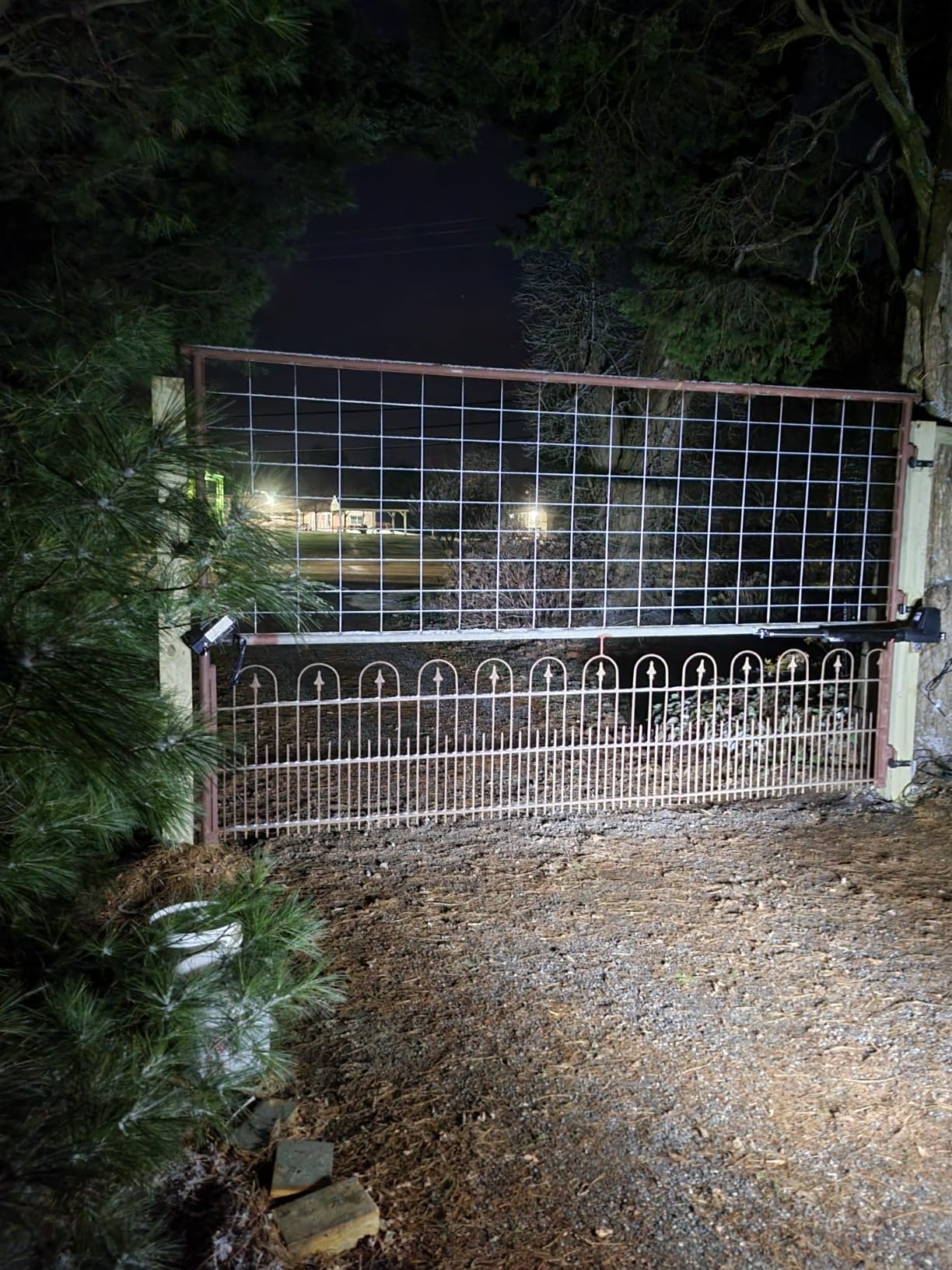

TOPENS in Real Life

AT12131S Heavy Duty Solar Single Swing Gate Opener in real life
AT12131S Heavy Duty Solar Single Swing Gate Opener in real life
AT12131S Heavy Duty Solar Single Swing Gate Opener in real life
AT12131S Heavy Duty Solar Single Swing Gate Opener in real life

Features

Easy DIY Installation-Get started quickly with our step-by-step, easy-to-follow guide.

Easy DIY Installation

Get started quickly with our step-by-step, easy-to-follow guide.
Easy DIY Installation-Get started quickly with our step-by-step, easy-to-follow guide.

Easy DIY Installation

Get started quickly with our step-by-step, easy-to-follow guide.

Smart Control Board-Easily customize your gate's operation to fit your exact needs.

Smart Control Board

Easily customize your gate's operation to fit your exact needs.

Reliable and Quiet-Built to last with a powerful yet quiet motor for daily use.

Reliable and Quiet

Built to last with a powerful yet quiet motor for daily use.

Wide Applications-The ideal solution for homes, courtyards, farms, and large estates.

Wide Applications

The ideal solution for homes, courtyards, farms, and large estates.

Features open swing gate using remote in the car
  • Off-Grid Capable
    Comes with 20W solar panels, simply add batteries to create a self-sustaining power source. Perfect for locations without power lines.
  • Dual Swing Design
    Supports both Pull-to-Open (swing inward) and Push-to-Open (swing outward) configurations. The mounting brackets are included for either setup.
  • Advanced TOPENS Code Technology
    Our system utilizes advanced rolling code technology, preventing code grabbing and ensuring maximum security against unwanted entry.
  • Electromagnetic Limit System
    The electromagnetic limit switch halts the gate at your preset open and close positions, ensuring consistent and automated gate operation every time.
Features car drives through the swing gate
  • Adjustable Obstruction Sensitivity
    Obstruction stall force can be adjusted depending on the gate's weight to ensure the gate reaches both the open and close limits without unnecessary reversing or frequent interruptions.
  • Soft Start and Soft Stop
    The design protects the motor from jolts and stress, ensuring quieter performance and extending the lifespan of your entire gate system.
  • Manual Release for Emergencies
    The dedicated manual release key is included to quickly and safely disengage the motor, ensuring gate access during a power outage or if the remote control is lost.

Installation

English - TOPENS AT6131(S) / AT12131(S) Installation Manual

German - TOPENS AT6131(S) / AT12131(S) Installation Manual

English & Spanish - TOPENS AT6131(S) / AT12131(S) Installation Video

English & German - TOPENS AT6131(S) / AT12131(S) Installation Video

  • Power Drill
  • Tape Measure
  • Wire Strippers
  • C-Clamps - small, medium, and large
  • Level
  • Hacksaw or Heavy Duty Bolt Cutters
  • Phillips Screwdriver
  • Open End Wrenches - 14# & 17# or Adjustable Wrenches

Check the Gate

  • Ensure the gate is plumb, level, and swings freely without obstruction.
  • The mounting post must be a stable structure secured in concrete.
  • Repair or replace any worn or damaged hardware before installation.

Items Not Included but May Needed

  • 24V Battery: Required for solar-powered operation.
  • Connection Cable: May be needed for wired accessory installation.
  • Electric Gate Lock: Recommended in windy areas to prevent gate movement and damage.
  • Photocell Sensor: Adds a critical safety layer by detecting obstructions.

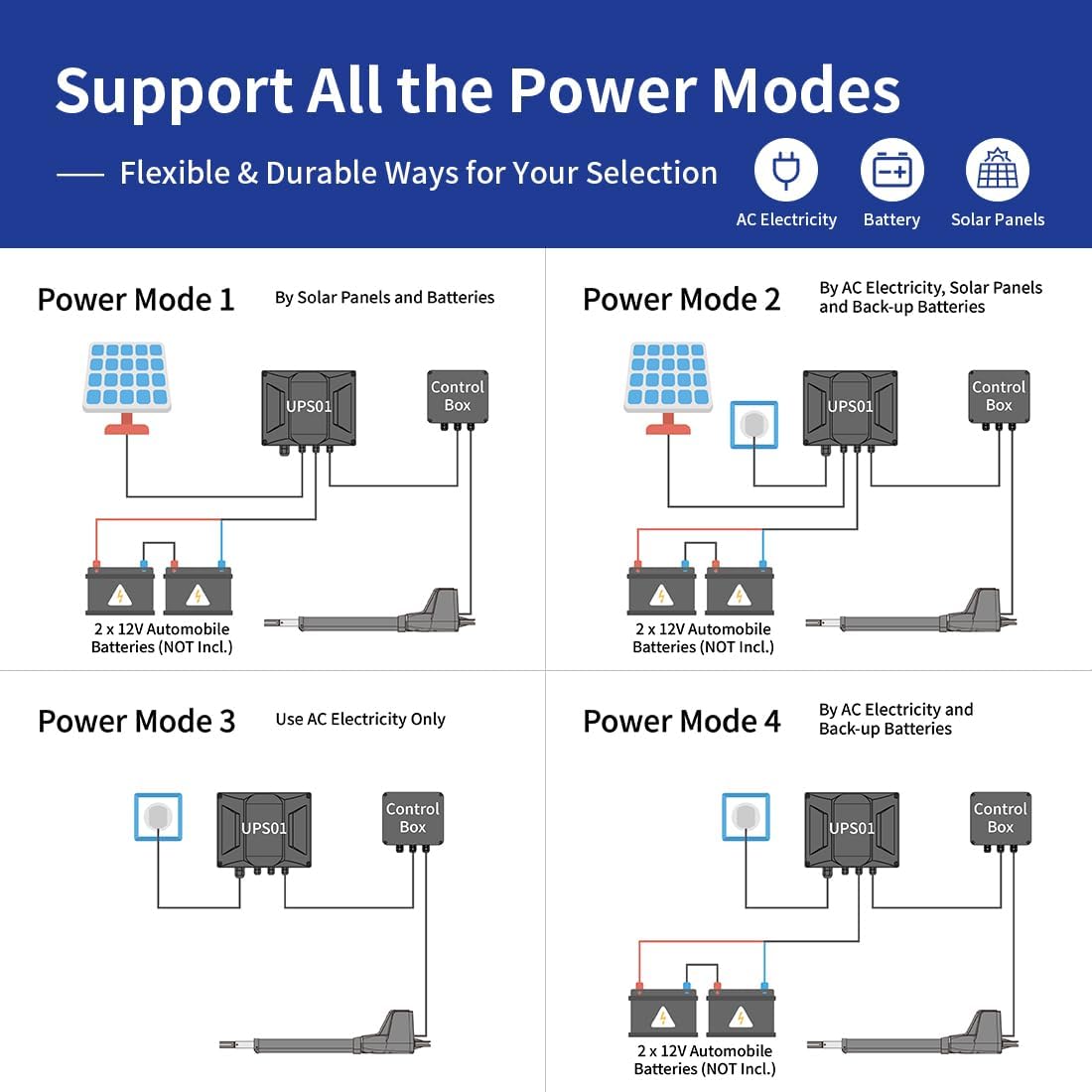

Flexible Power Modes

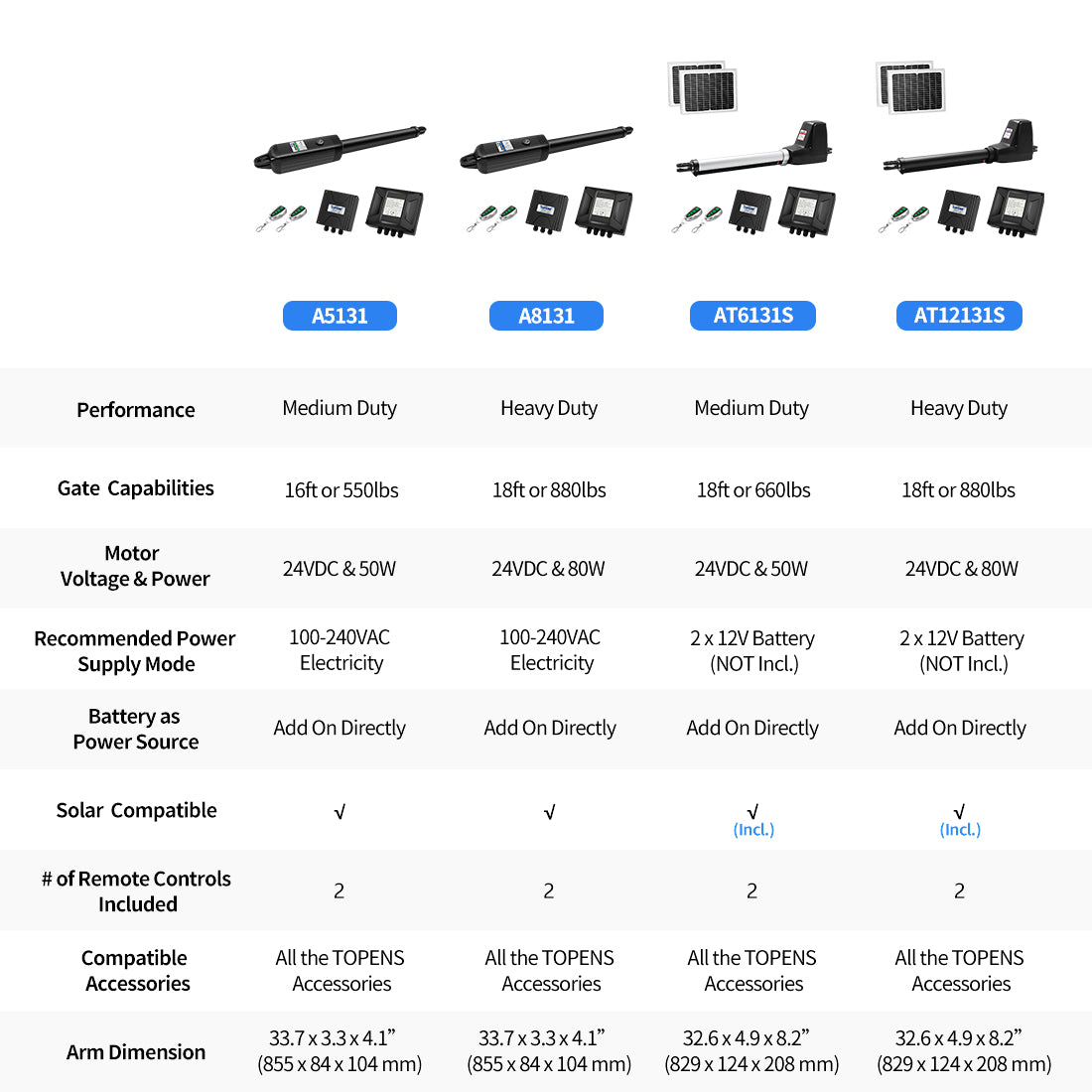

Product Comparison

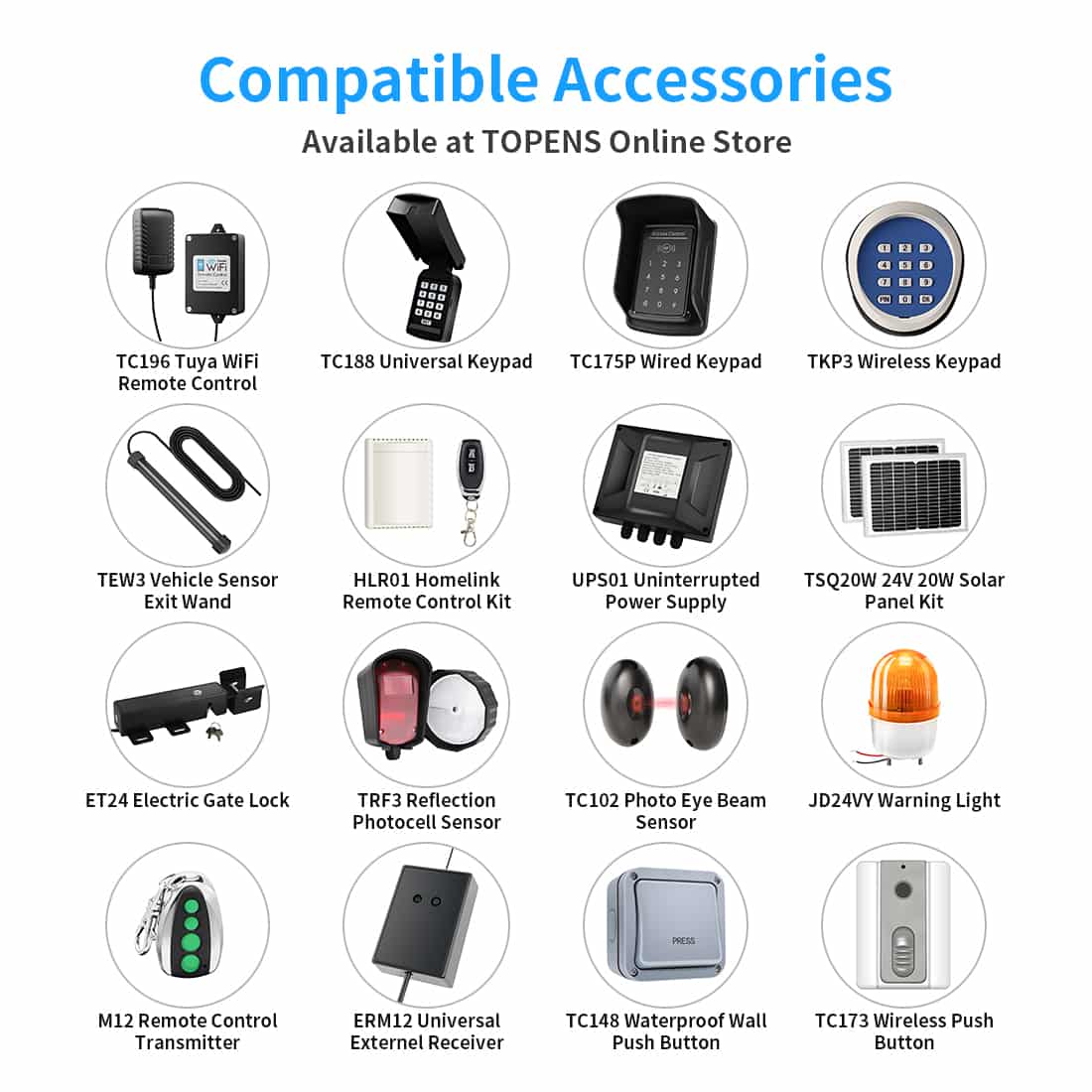

Complete Your Gate System
