TC175P Touch Panel Wired Keypad, Universal Keyless Entry Keypad for Automatic Driveway Gate Opener

Sale price$75.00

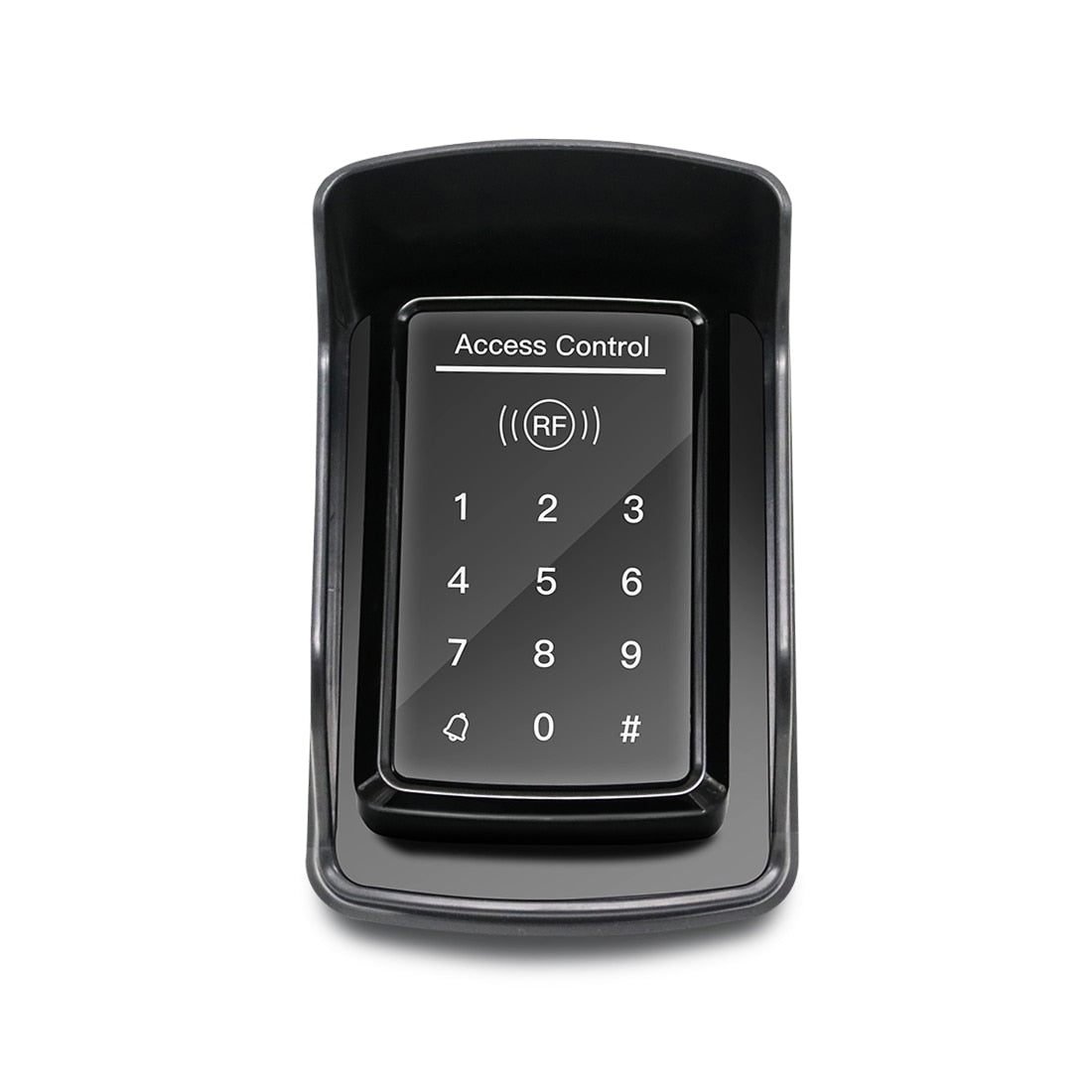

● TOPENS TC175P touch panel wired keypad is a smart access control keypad with contactless RFID transponder technology. Simply enter a short password or tap the card (not incl.) to open the gate without carrying a key. Featuring advanced TOPENS security technology that ensures multiple protection & safety, this keypad greatly improves the experience of keyless operation and brings high convenience for controlled access. Easy DIY installation & programming within minutes.

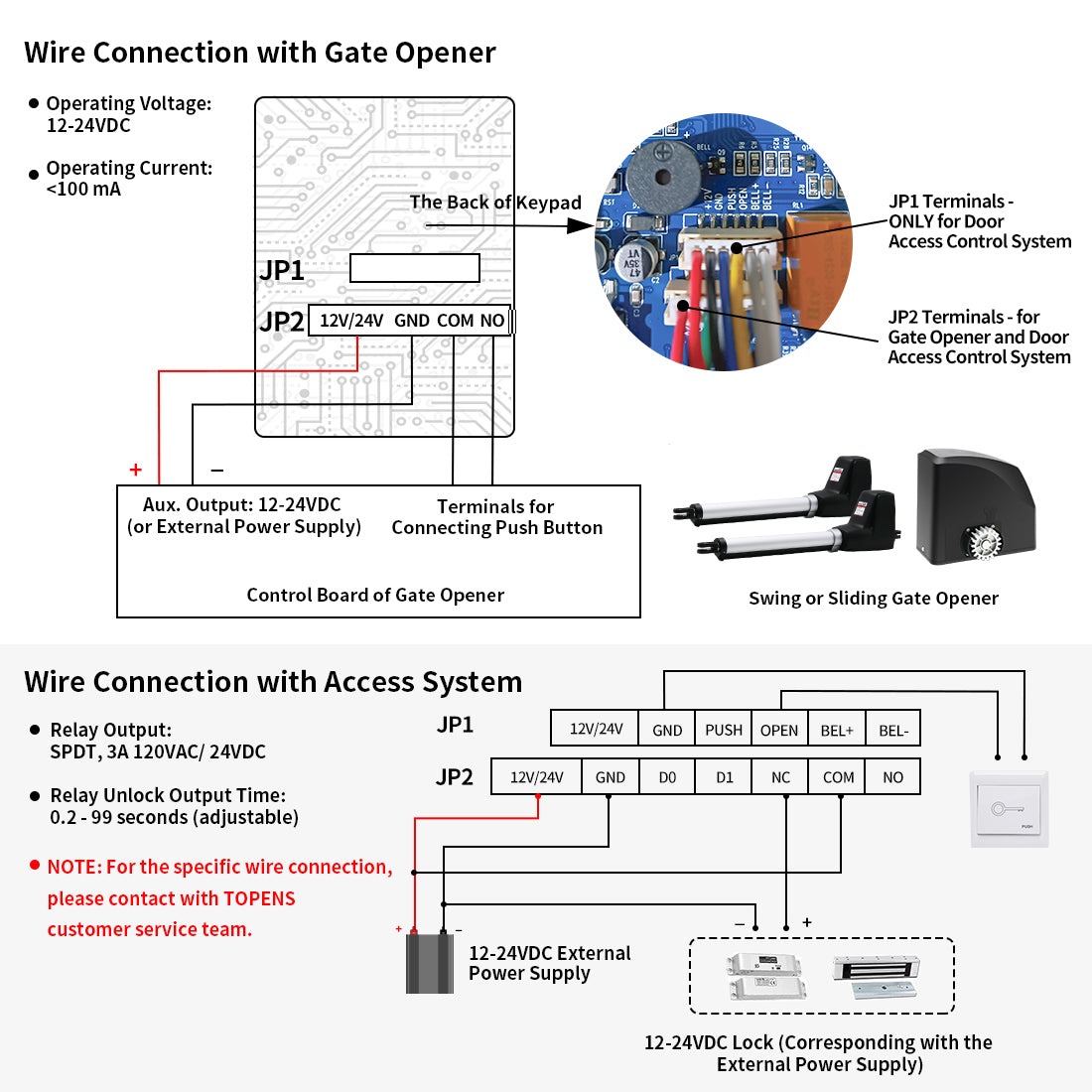

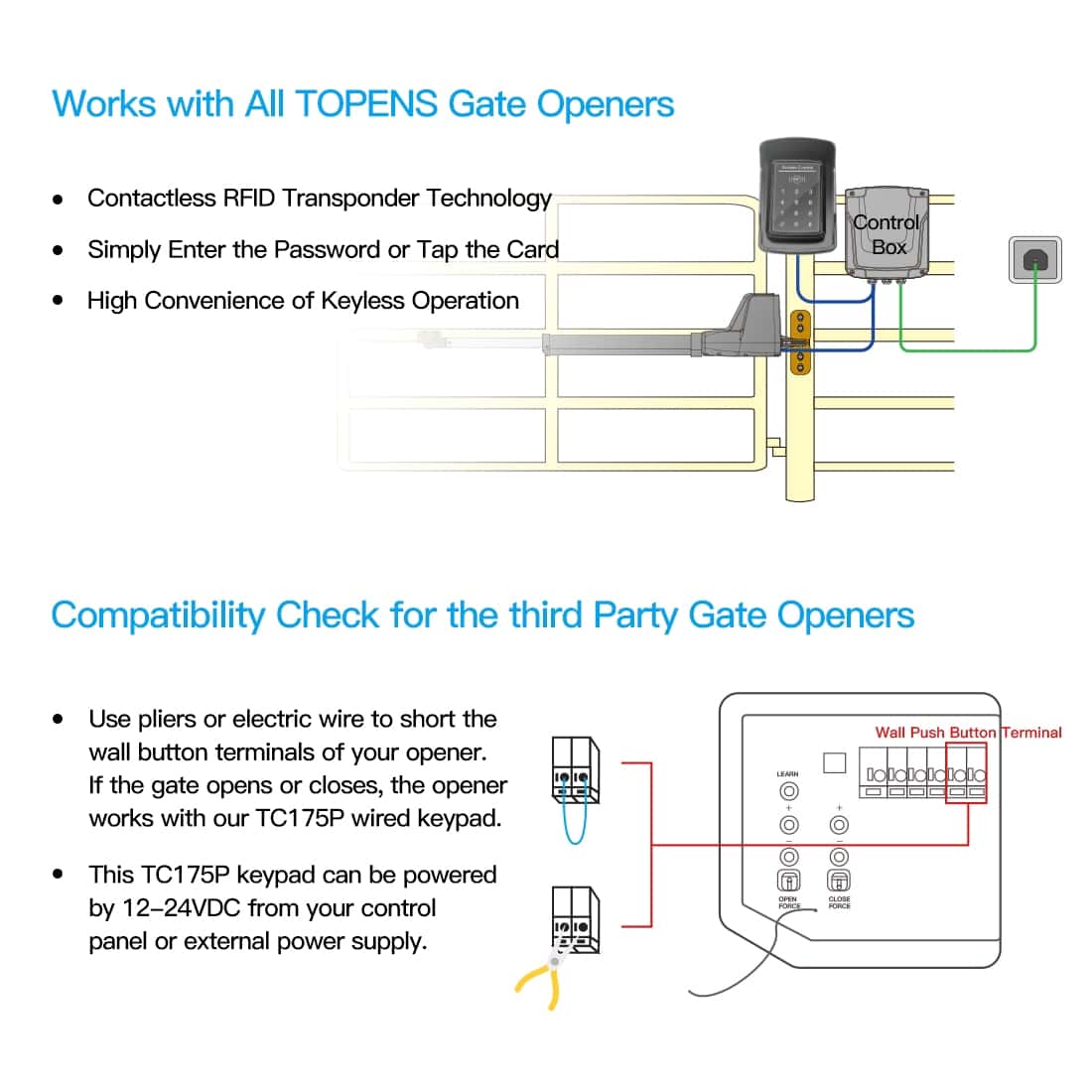

● Works with all TOPENS gate openers, and compatible with most third party swing or sliding gate opener whose control board accepts “Normally Open Dry Contact” signal. It can be powered by the control panel of the access control system or by the external DC 12V-24V power source. Compared with a wireless keypad, TC175P is a perfect solution in locations where frequency interference is occurred or where the control box is installed far away from the gate operator.

● This keyless entry device is designed for the household, courtyard, warehouse, school, office building and other commercial sites. Adopting the dual-point relay output signal, this keypad is suitable to operate the magnetic lock (normally close signal) or electric strike door lock (normally open signal). Additionally, TC175P numeric keypad is strongly recommended to use with the DC 12-24V access control system. Standard Wiegand 26 output, work as an extra card reader.

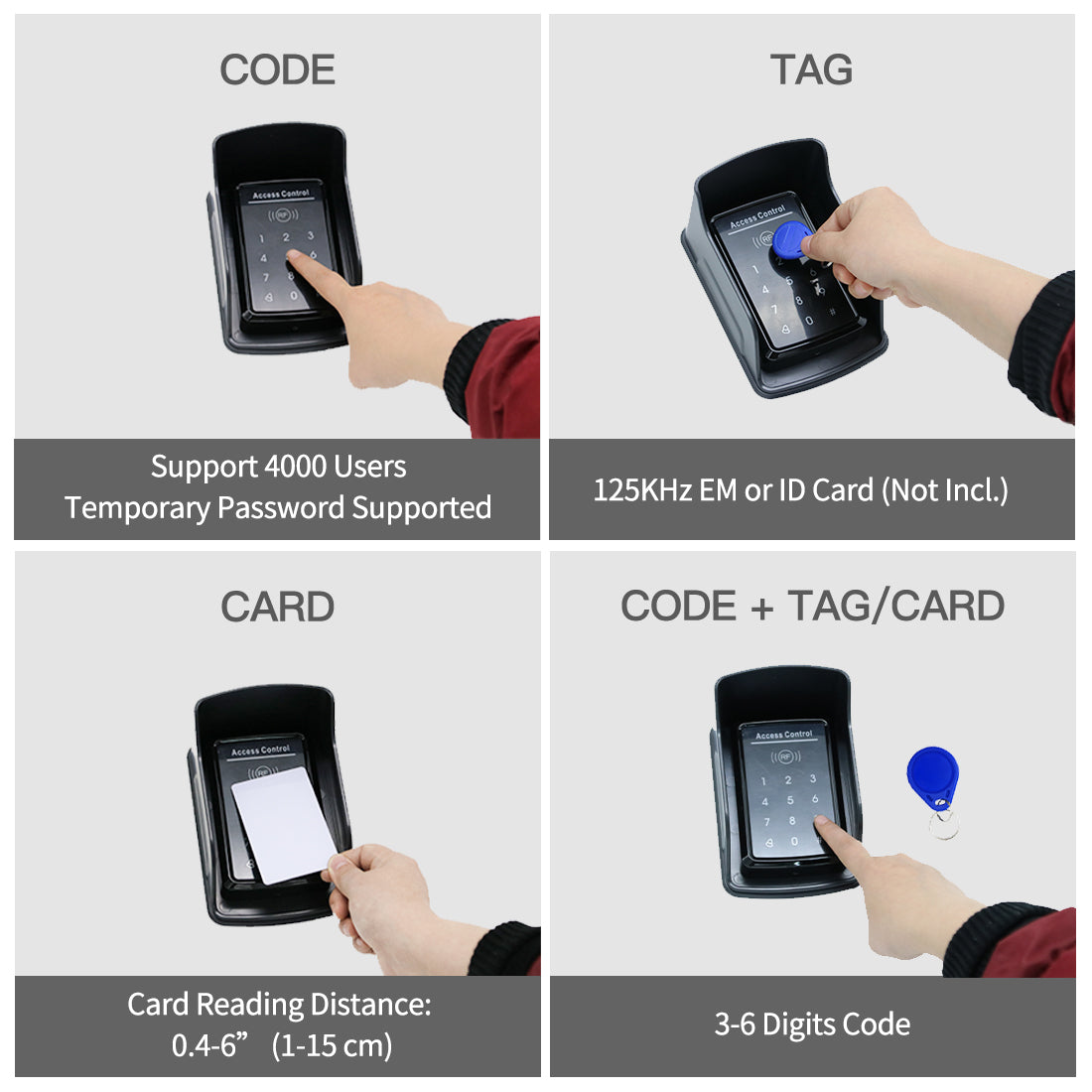

● Support up to 1000 standard users, and this access control keypad can hold up 1000 access codes & cards. Three different open modes are for your selection: (1) only card (2) card or temporary or common access password (3) card + card password. Temporary password is easy to manage and programmed for the guest/deliveryman. 3 to 6 digits access codes are accepted. The RFID card type is 125KHz EM or ID card / tag (not incl.).

● Free shipping within continental U.S. by 3-6 working days delivery. 30-day worry-free return & refund. Contact us anytime for any questions.

Quantity:
In stock

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
S.R.
Nice Design!

The wired keypad is nice looking as well as a nice design; sleek and very attractive. Set up and useability is easy and simple!

P
Patrick
Easy install and operation

Can't begin to explain how happy I was with the ease of installation. Straight forward instructions and quality equipment. My Gate system looks sooo cool. Thank yall!

T
T.S.
Easy to install!

The wired keypad was easy to install and makes a great addition to anybody's gate!

R
Robert
Works well, there's a few details worth noting before you install

I’d prefer in the unit were metal, but it functions very well and the dark fascia makes the white number stand out clearly, which is good. There are a few points worth noting, though.

First there are a potential 13 wires in the back of the unit that appear to need connecting. You almost certainly don’t have to worry about most of these, in my case I only needed to connect four wires but had already run a 13-strand cable! Check what’s needed for your system and configuration as it will make running the cable simpler and probably cheaper.

Also, it’s worth ensuring you minimise the amount of wire that needs to be stored inside the unit as space is limited. If possible, make some room behind in the surface you are mounting on to avoid undue pressure when closing the unit caused by too much cable within the unit itself.

Lastly, because I had fitted the optional electric lock, the approach to wiring shown in the basic gate closer kit was incorrect and the gate wouldn’t open from the pad until I received the correct wiring diagram for my needs. Topens team were extremely helpful in identifying the issue and giving me the correct wiring information, but if you are fitting extras to your system it would be worth checking the required connections with them upfront to avoid any issues.

The unit when wired correctly is very responsive, clear to read, especially at night, and works perfectly.

Dear Robert, thank you so much for your kind review. You really did a great job! We hope that our product can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.

T
Terry Greene
Great system

Very easy to install!

Dear Terry, thank you so much for your kind review. You really did a great job! We hope that our product can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.
