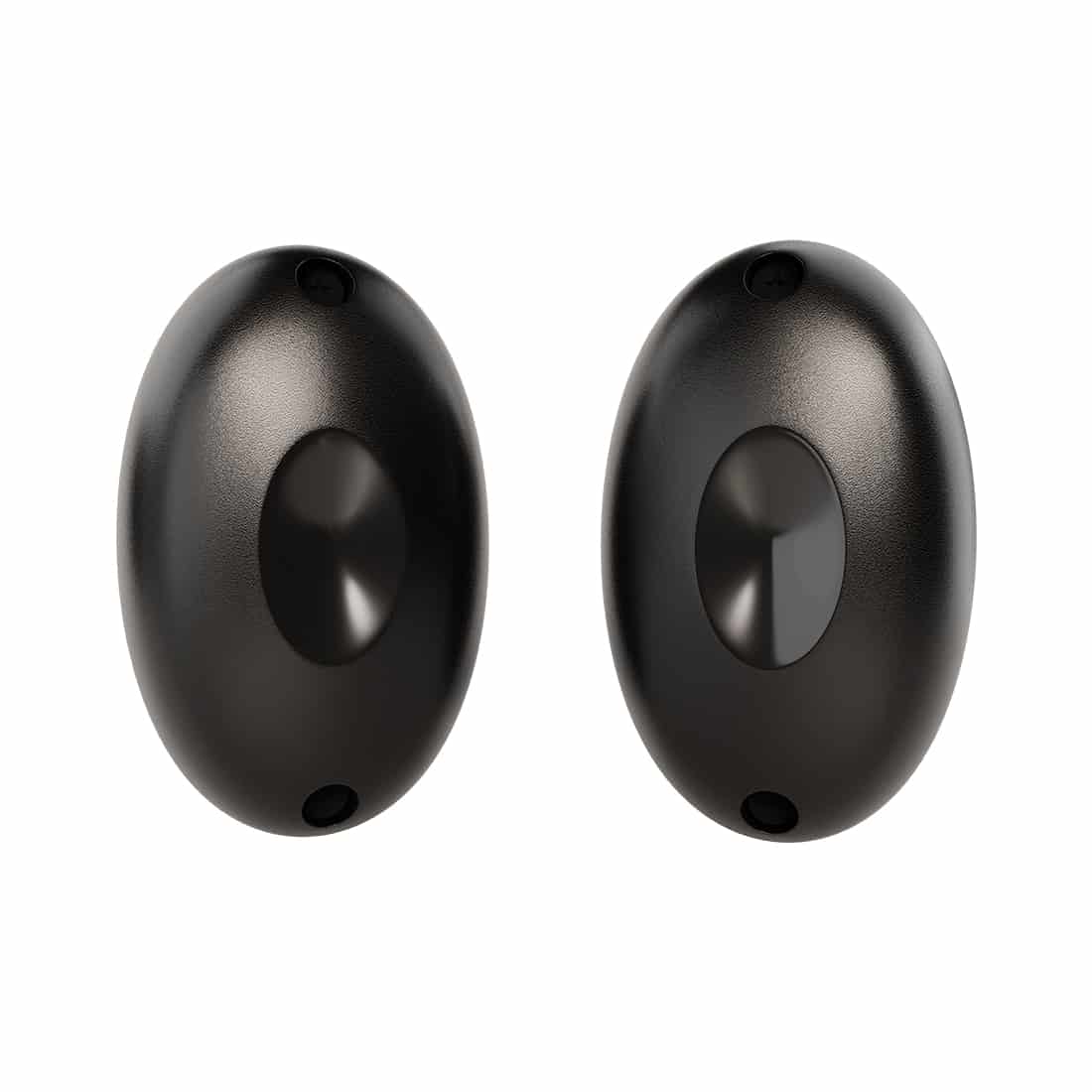

TC102 Photo Eye Infrared Beam Sensor for Automatic Gate Opener

● TOPENS TC102 Photo Eye Beam Sensor is a photoelectric sensor that uses infrared light to detect the presence or absence of objects. It creates a safety barrier that identifies any movement between the emitter and receiver. Once the infrared beam is blocked, it perfectly makes the gate stop or reverse automatically. It is strongly recommended to use the TC102 IR beam sensor with automatic gate opener system to ensure multiple protection & security.

● The infrared photocell sensor consists of two components: an emitter and a receiver. The emitter is designed to generate an infrared light beam. The receiver is used to detect any interruptions. This non-contact sensing technology provides high detection accuracy with a fast response. In addition, the infrared beam sensor is immune to strong light interference, such as sunlight and vehicle headlights. Weather resistant for all seasons of the year.

● Works with all the TOPENS gate openers, and compatible with most third party swing / sliding gate opener or garage door opener whose control board accepts “Normal Open or Normal Close Dry Contact” signal. It can be powered by the control board of the gate opener or by the external 12-24VDC or 12-24VAC power source. Connect both the receiver and the emitter to the gate opener system. It is suggested to mount the photocell sensor at least 8" (20cm) above the ground.

● Free shipping within continental U.S. by 3-6 working days delivery. 30-day worry-free return & refund. Contact us anytime for any questions.
