UPS01A Uninterruptible Power Supply 100-240VAC to 24VDC Low Voltage Transformer

• *Important Note -The UPS01A power supply is able to power all TOPENS swing gate openers by AC electricity except AT1202, AT602, KD702, as well as all other 24VDC gate opener systems.
  When using solar power, ensure the solar panel is rated for 24VDC battery charging. The solar input must be between 30–50VDC with a maximum power of 80W.

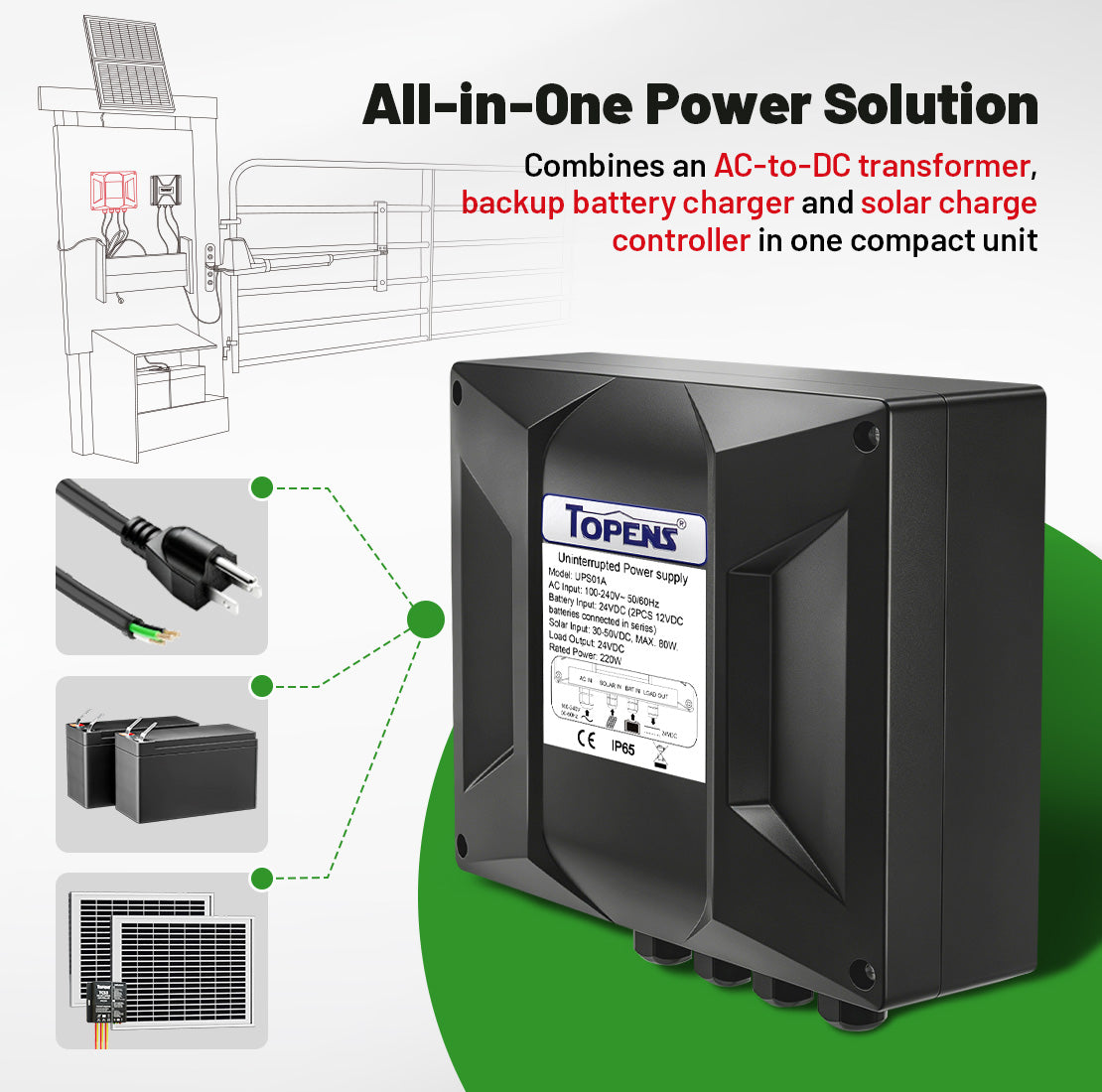

• All-in-One Power Solution -Combines an AC-to-DC transformer, backup battery charger and solar charge controller in one compact unit. Whether powering your 24V device via an AC outlet with backup battery or a solar system, this adapter ensures your equipment stays running even when the grid goes down.

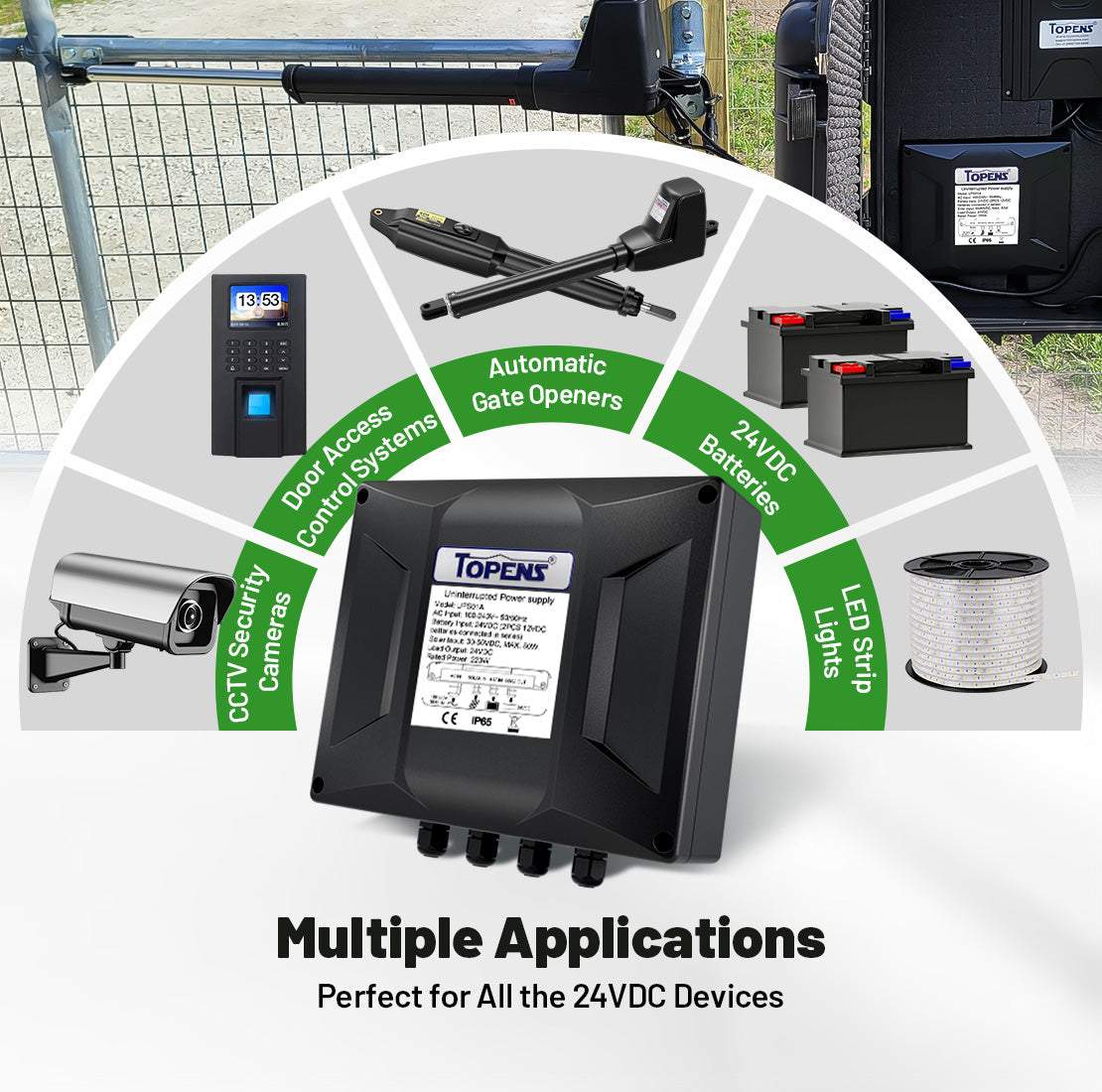

• Wide Compatibility -Engineered for a wide range of 24VDC devices, including automatic gate openers, door access control systems, CCTV security cameras and LED strip lights. Power your devices directly via AC or add an optional 24V battery backup, ideal for residential, commercial, and DIY projects. Supports Lead-Acid, GEL, AGM, and Flooded (Deep Cycle) and LiFePO4 batteries with BMS (not compatible with most other lithium-ion batteries).

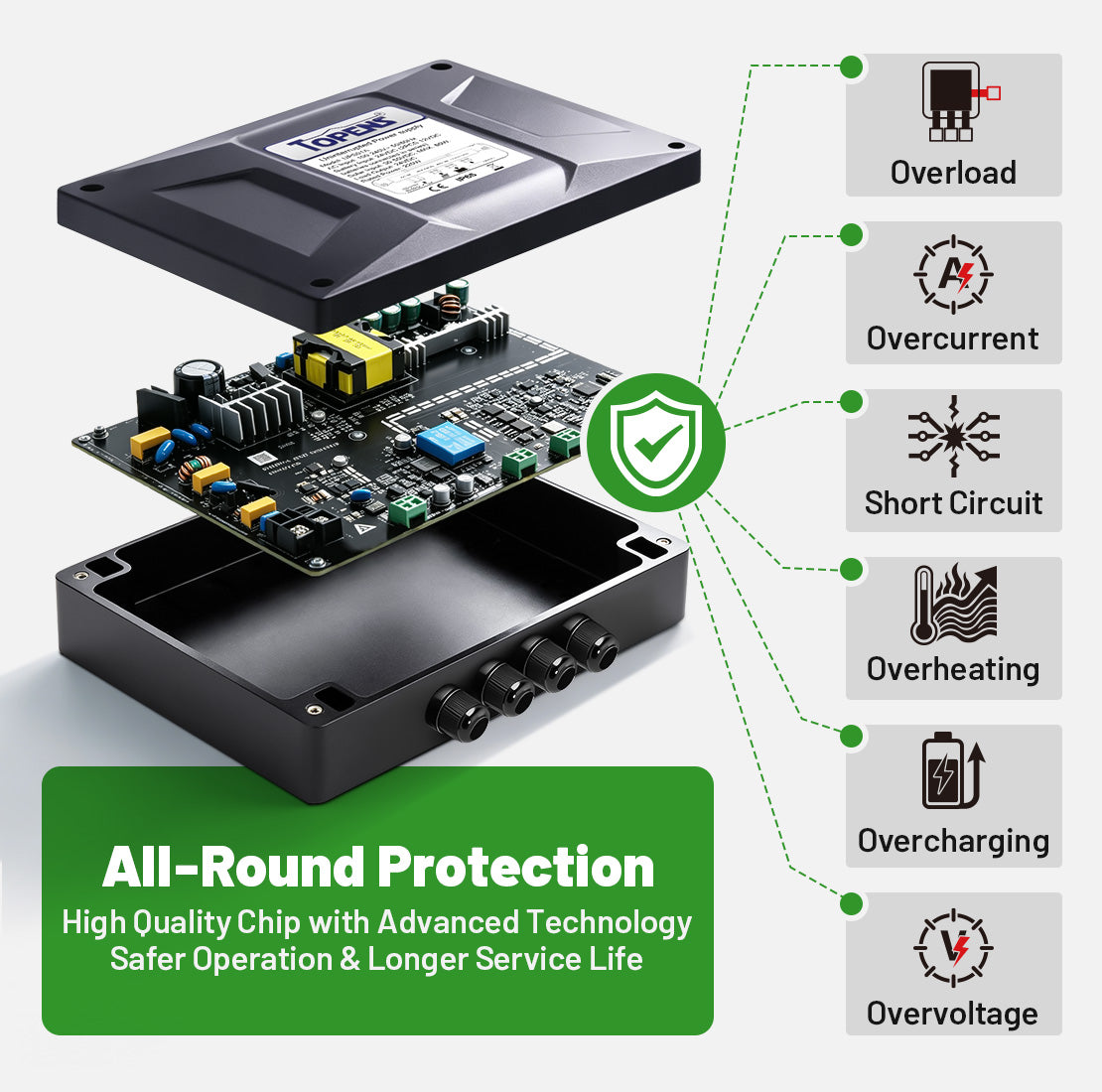

• Smart Solar Charging & Protection -More than a converter, the UPS01A also functions as a solar charge controller, supporting solar panels up to 80W. Automatically charges and maintains 24V batteries while providing protection against overload, overcurrent, short circuit, overheating, overcharging, and overvoltage for safe and reliable operation. LED indicators on the UPS01A control board display system status for easy monitoring.

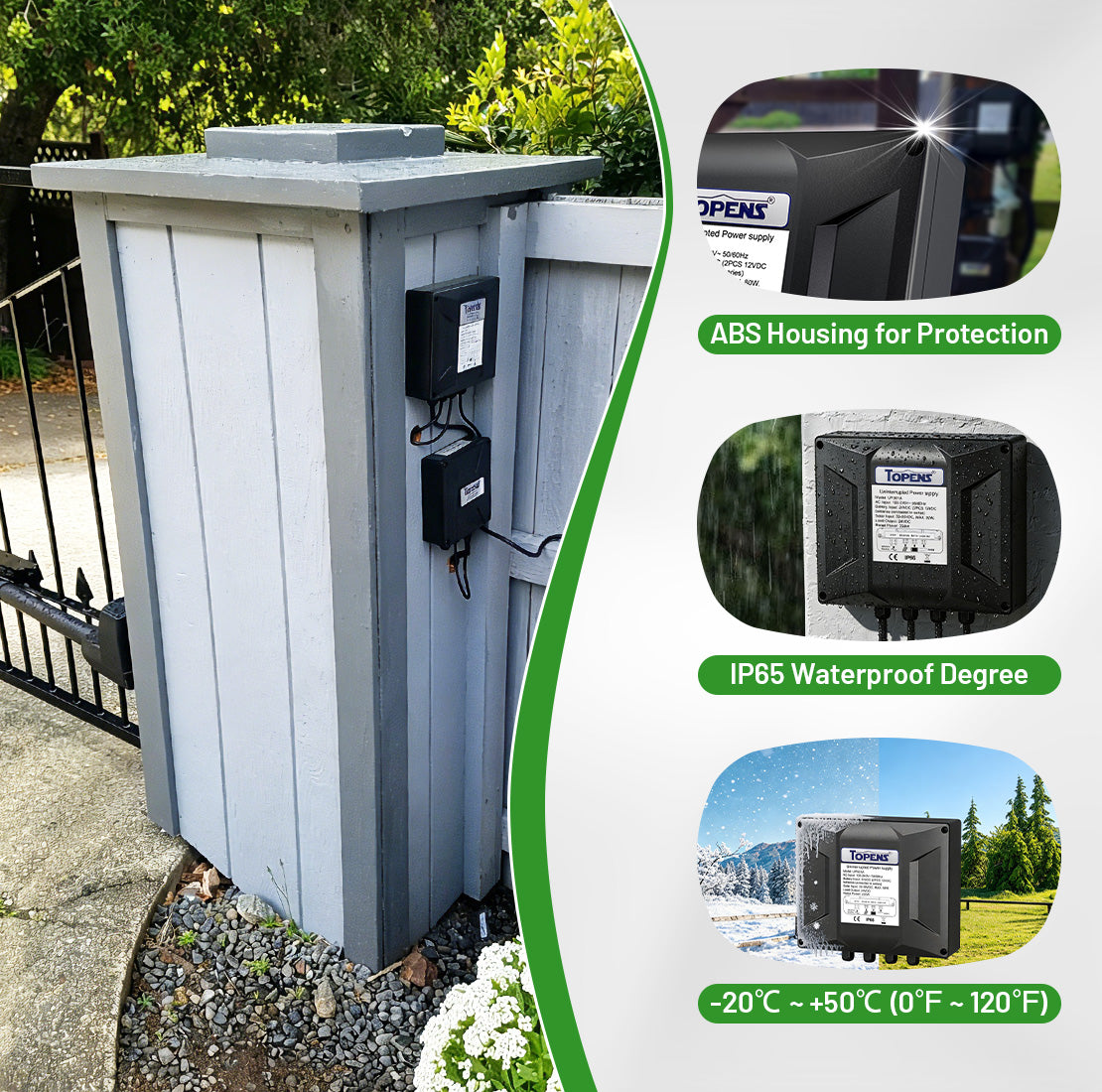

• Durable Outdoor Design -Built for tough environments, IP65 waterproof ABS housing protects against rain, dust, and extreme weather. Easily mounts on gate posts, fences, or exterior walls without extra enclosures. Pre-connected cables ensure quicker and safer installation.

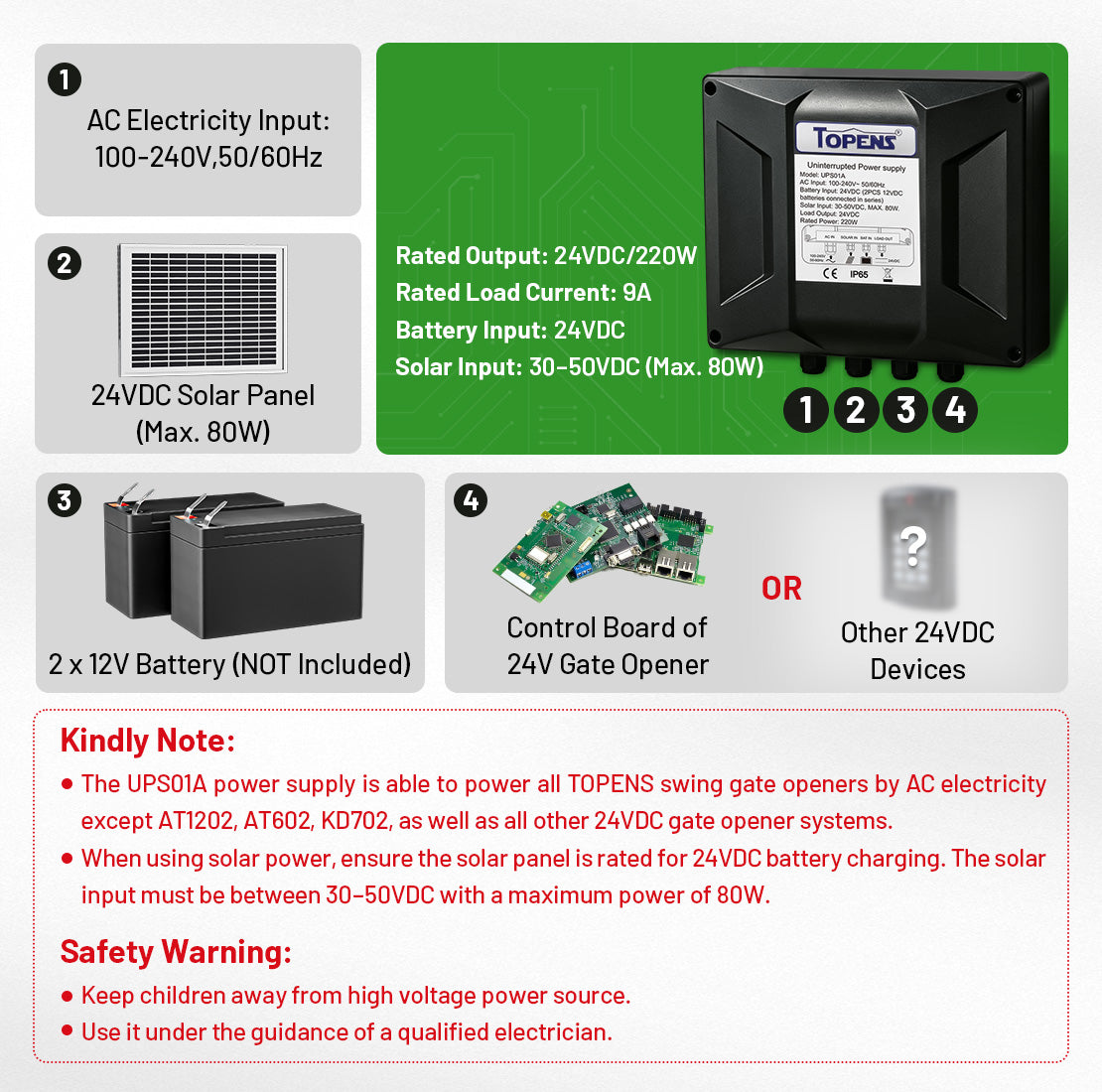

• AC Input :100-240V~50/60Hz
• Battery Input :24VDC (2PCS 12VDC batteries connected in series)
• Solar Input :30 - 50VDC (Max. 80W)
• Rated Output Voltage/Power :24VDC/220W
• Rated Load Current :9A

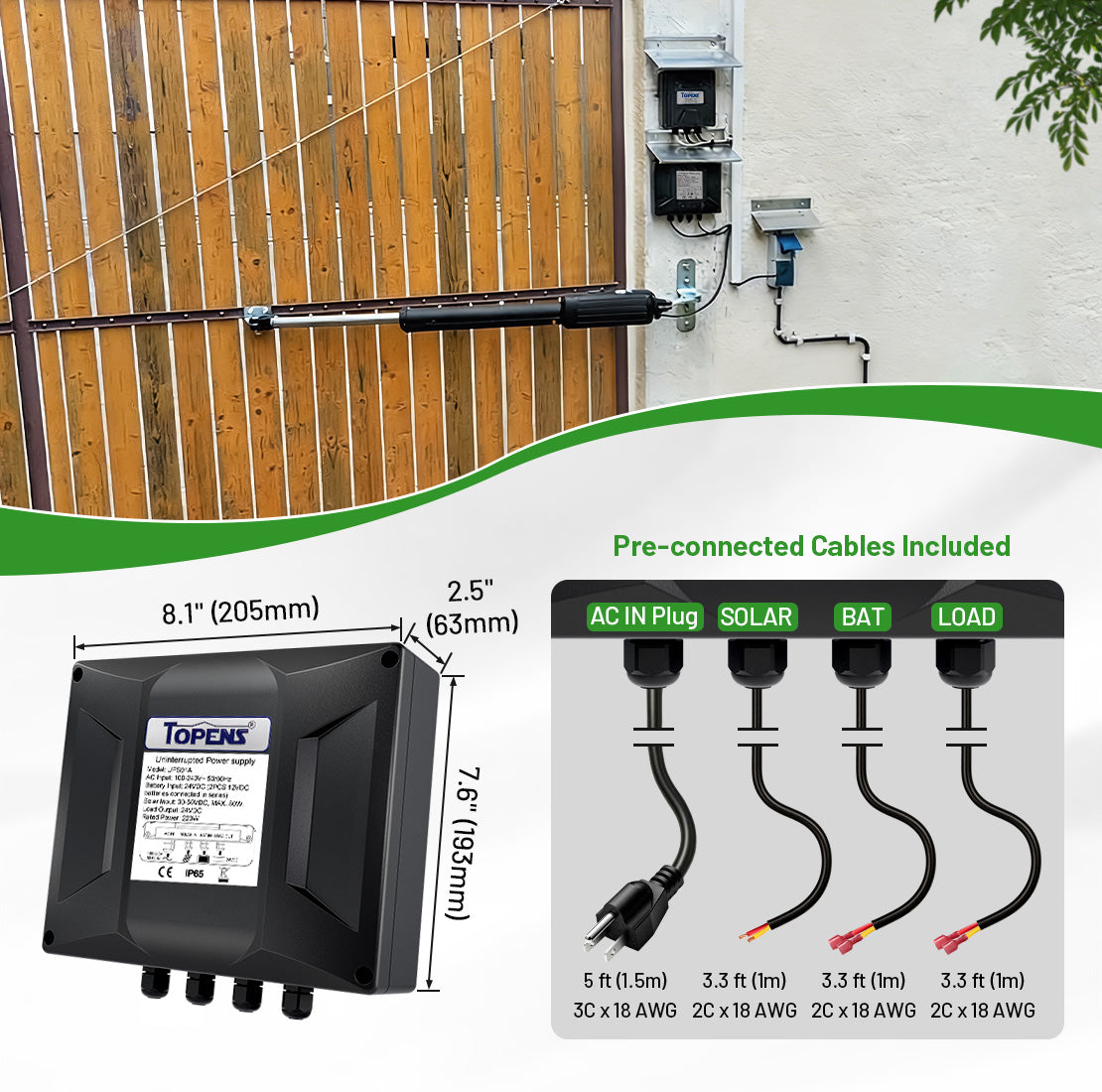

• Dimension :205 x 193 x 63 mm (8.1 x 7.6 x 2.5")
• Protection Class :IP65 - Waterproof and Dustproof
• Working Temperature :0°F to 120°F (-20℃~ +50℃)
• Compatibility :All TOPENS swing gate openers EXCEPT AT1202, AT602, KD702; Other 24VDC gate opener systems.

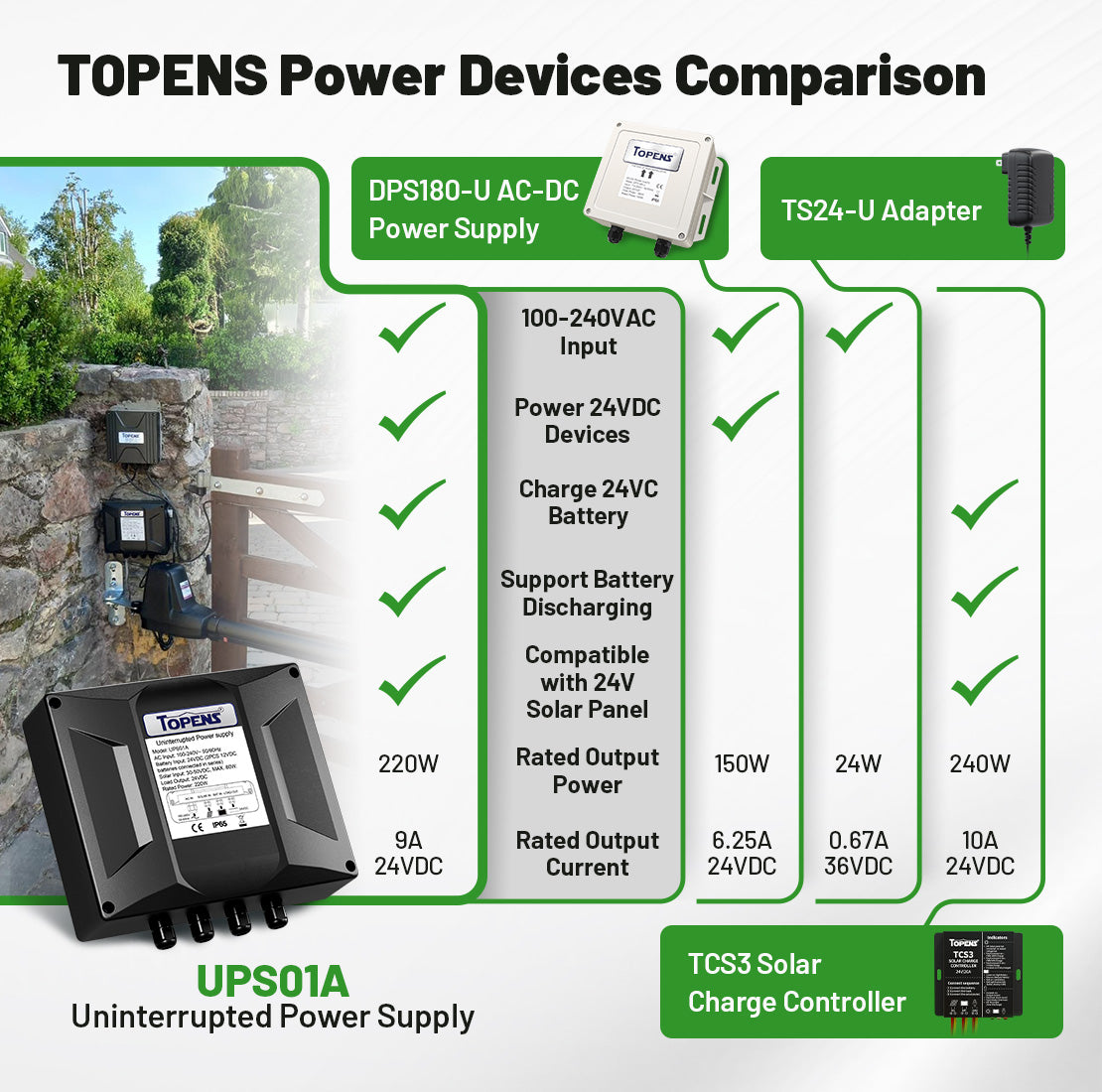

• 100-240VAC Input :Yes
• Power 24VDC Devices :Yes
• Charge 24VDC Battery :Yes
• Support Battery Discharging :Yes
• Compatible with 24V Solar Panel :Yes

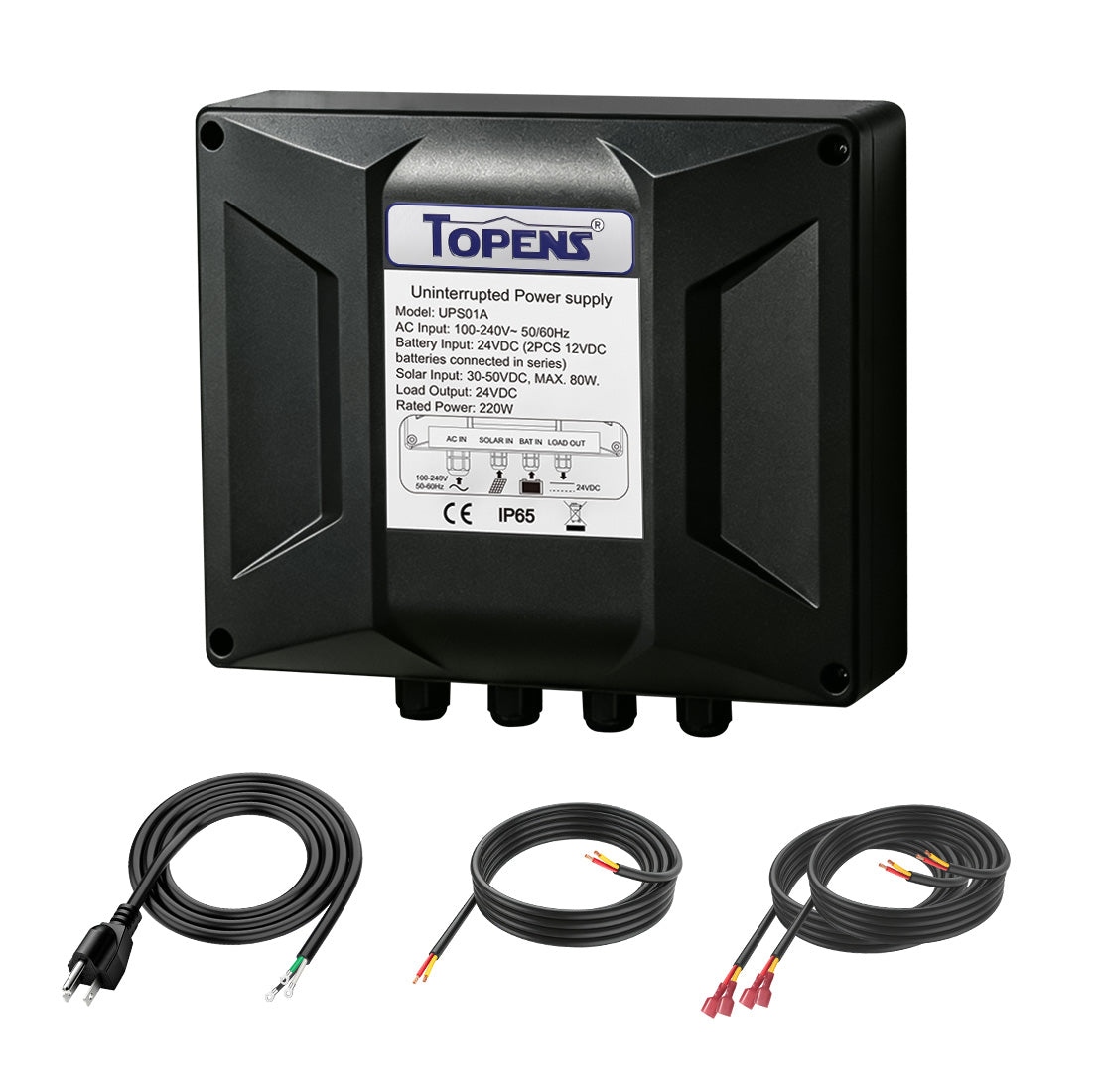

• 1 x UPS01A Uninterrupted Power Supply (IP65 Waterproof)
• 1 x User Manual
• Note: The power supply includes four pre-connected cables: ● AC IN Plug: 5 feet (1.5m), 3C x 18 AWG ● SOLAR Connection Cable: 3.3 feet (1m), 2C x 18 AWG ● BAT Connection Cable: 3.3 feet (1m), 2C x 18 AWG ● LOAD Connection Cable: 3.3 feet (1m), 2C x 18 AWG
