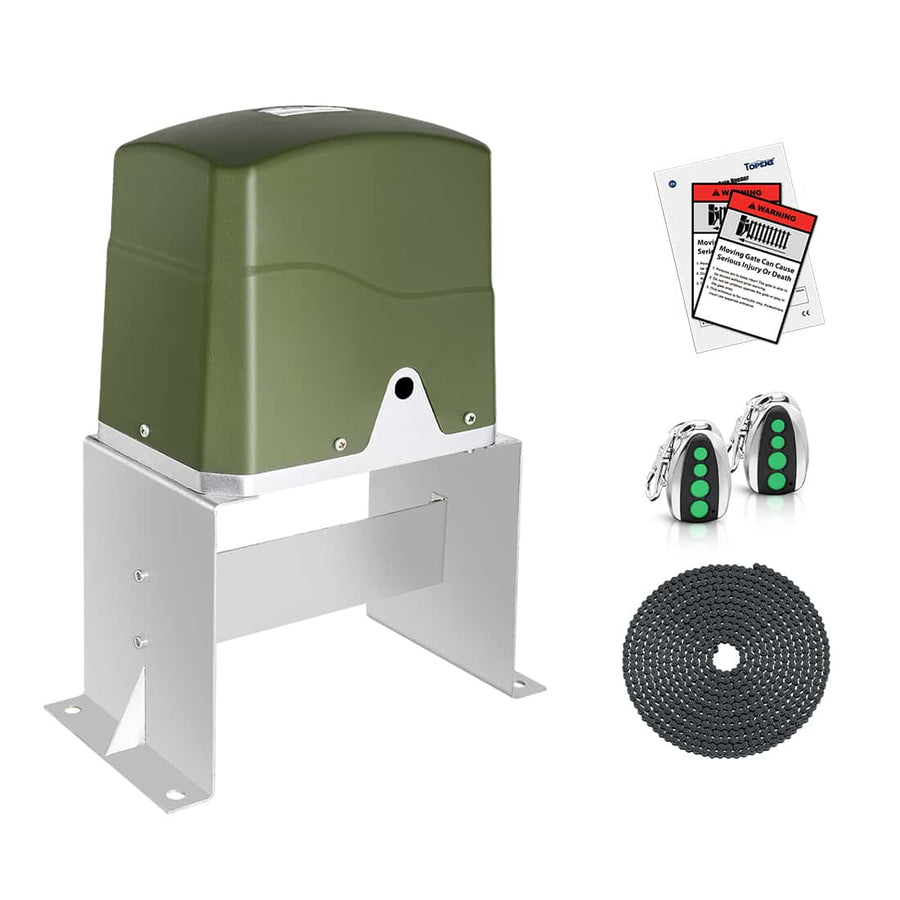

CK700 Sliding Gate Opener - Chain Drive for 1600lbs. Gate
● Designed for heavy duty sliding gate up to max 1600lbs. in weight and max 40ft. in length.

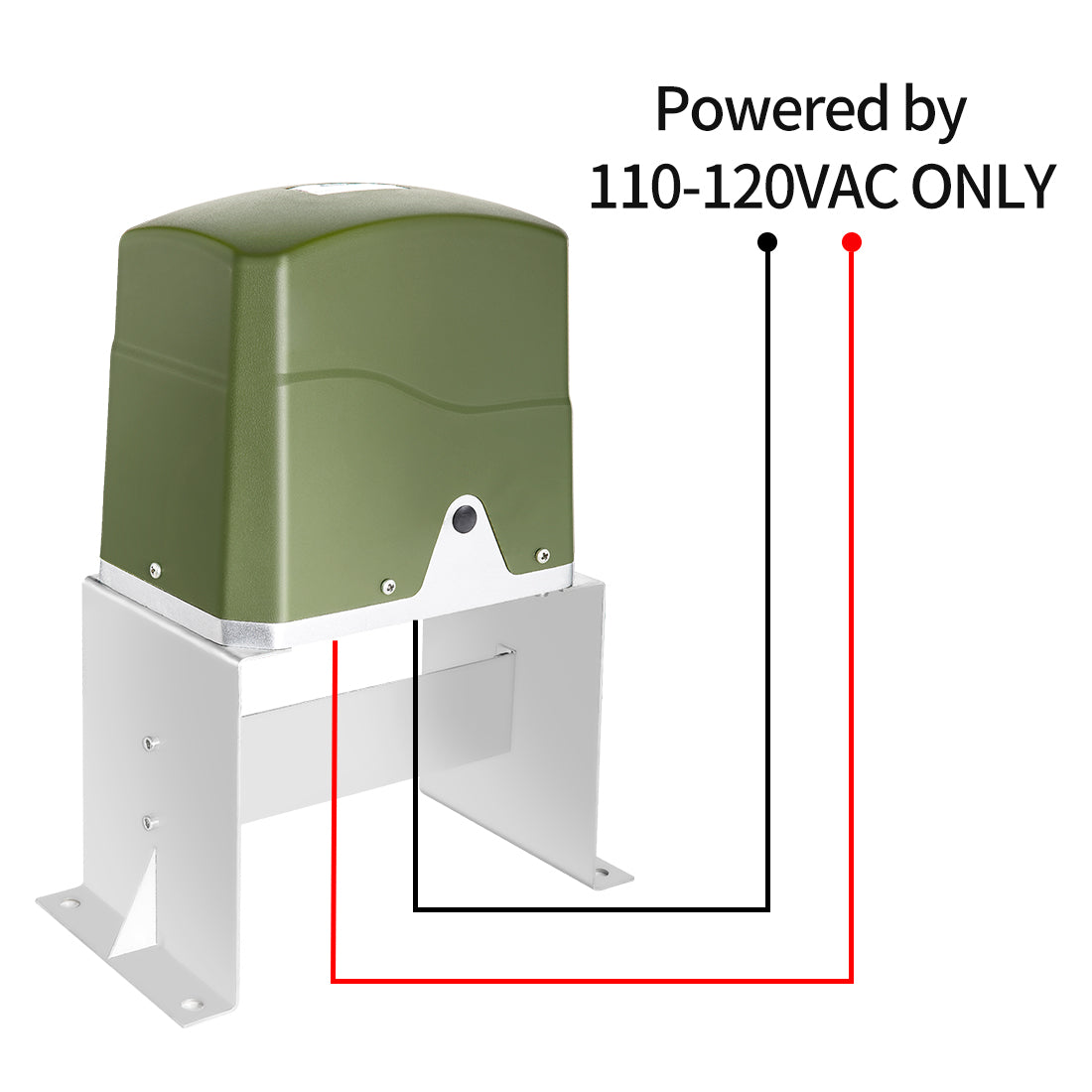

● This gate opener is ONLY powered by 110-120VAC electricity.
● A great variety of accessories to add on. Easy DIY installation with our video on YouTube.
● Free shipping within continental U.S. by 3-6 working days delivery. 30-day worry-free return & refund.
● Get FREE M12 Remote Controls by sharing your experience! Contact us anytime for any questions.
GUARD YOUR HAPPY FAMILY
25 Years' Experience in Gate Automation Industry

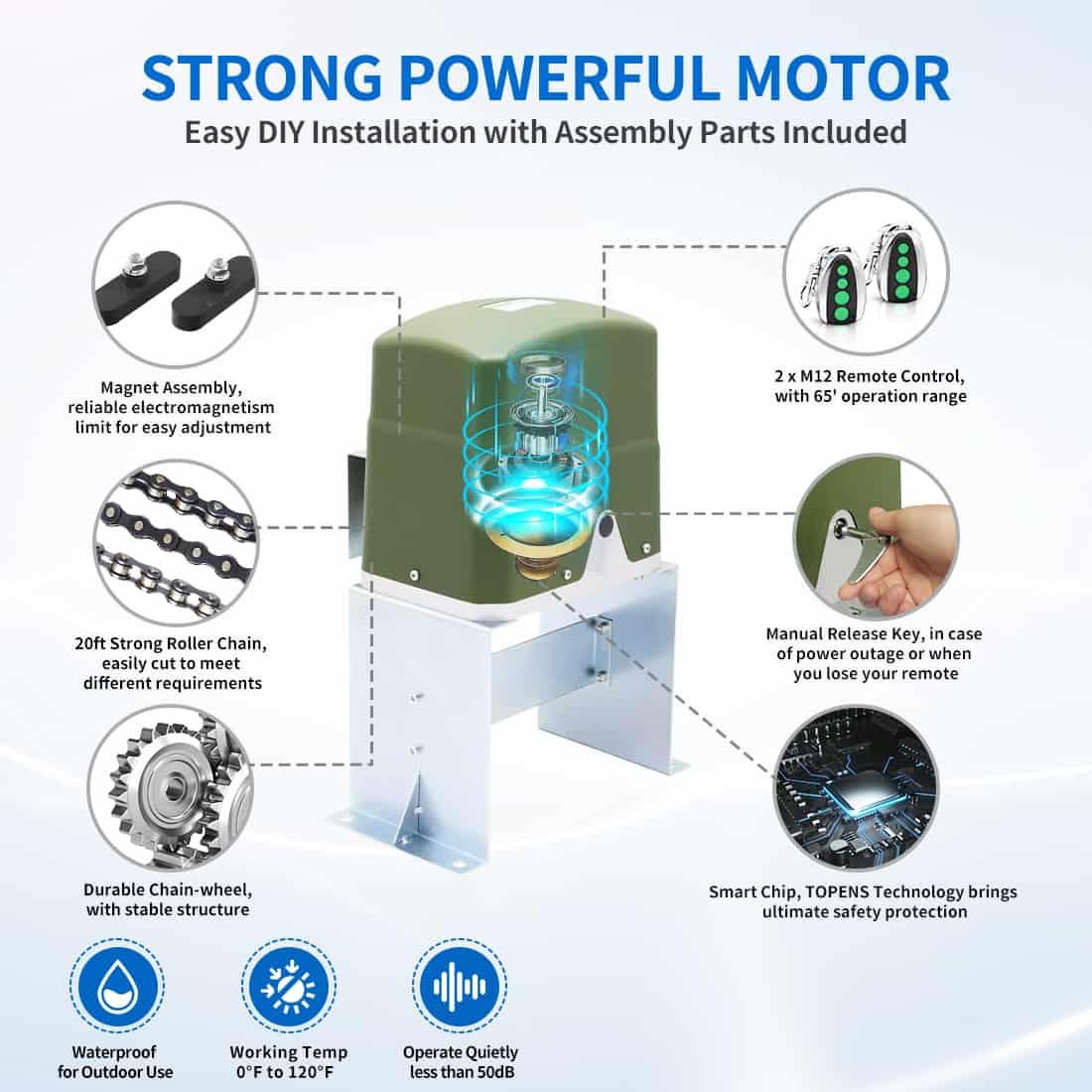

Strong Motor
Smart Control Board
Easy DIY Installation
High Quality
| Product Model | CK700 Gate Opener |
|---|---|
| Gate Capability | 1600lbs. and 40ft. (700kg and 12m) |
| Compatible Accessories | NOT Compatible with Vehicle Sensor Exit Wand |
| Motor Voltage | 120VAC |
| Motor Power | 2/5 HP 300W |
| Drive Mode | Chain drive (20ft. chain included) |
| Gate Moving Speed | 6 in/s (15 cm/s) |
| Gate Opening / Closing Time | Approx. 20-60 seconds depends on the gate length |
| Type of Limit Switch | Electromagnetism Limit |
| Working Temperature | 0°F to 120°F (-20℃~ +50℃) |
| Sound Level | < 50 dB |
| Protection Class | IP44 Waterproof |
Extended Warranty
Comes with 12-month warranty basically. We also offer extended warranty plans: 2 years and 3 years options.
7/24 Customer Support
Our customer support representative will help you get professional, customized and timely solution.
Free Shipping
Free shipping within continental U.S. by 3-6 working days delivery.
30-day Free Trial
Get a free trial of our gate opener, TOPENS provides customers with the 30-day worry-free exchange & return.
OUR BENEFITS
SIMPLY PRESS THE REMOTE CONTROL, THE GATE WILL OPEN AUTOMATICALLY
TOPENS Code Technology
Our advanced TOPENS code technology will prevent unwanted entry, and ensure multiple protection & safety. For the gate safety, only TOPENS authorized remote controls and wireless accessories are allowed to operate the TOPENS Gate Opener.

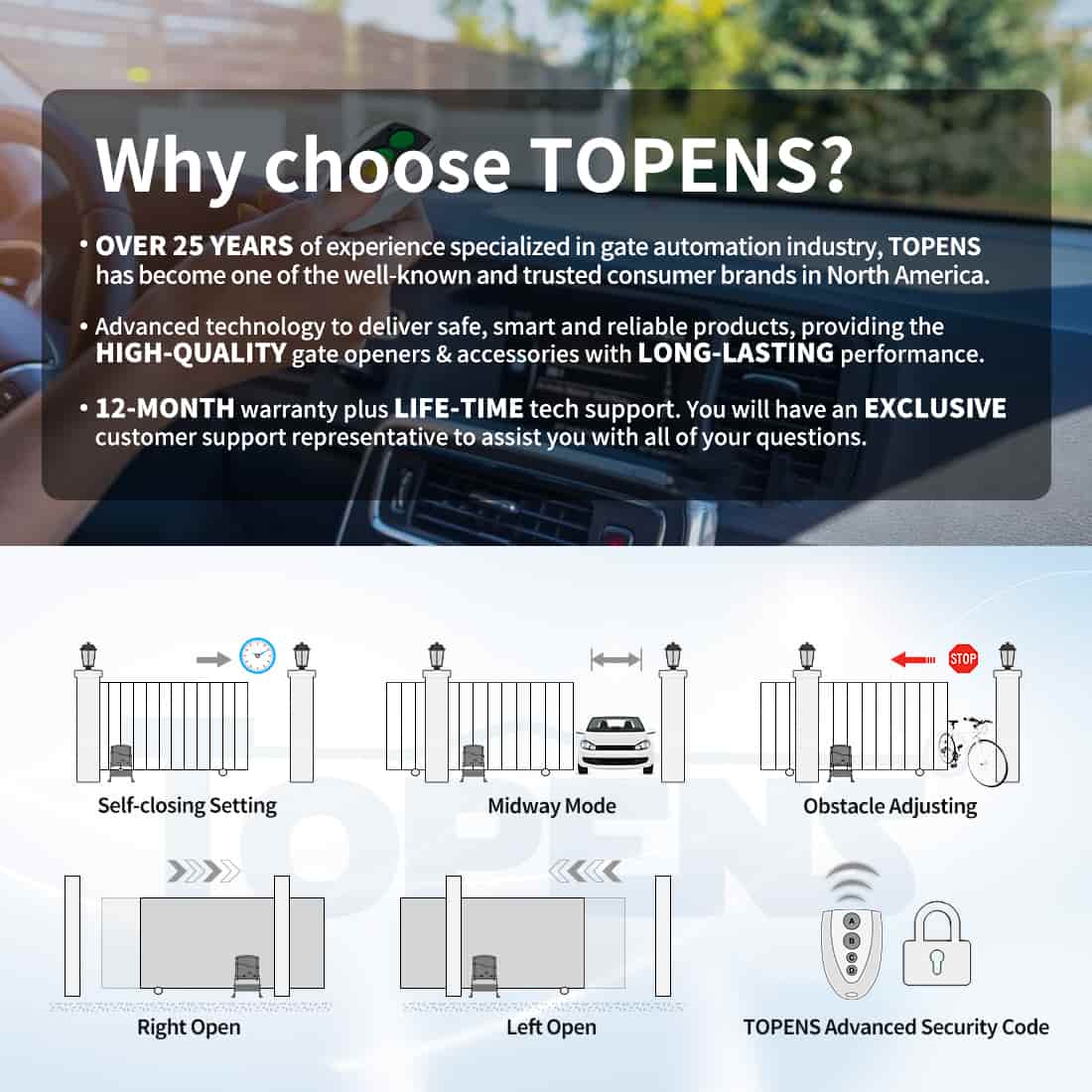

Intelligent Control Board
Safety features can be adjusted easily and quickly on the control board, include photocell sensor function, auto-close time, midway mode, and stall force.
Electromagnetism Limit
Reliable electromagnetism limit switch is easy to adjust. The gate will automatically stop at your desired position with this technology.
Durable Chain Wheel
The reliable chain wheels are made of high-quality material and totally free maintenance for outdoor use.
Various Accessories Compatible
Customize your gate access by adding additional accessories. This sliding gate operator is NOT compatible with vehicle sensor exit wand.
Manual Release Key
Equipped with manual release key in case of power outage or when you lose your remote.
YOU WANT TO KNOW
TOPENS Remote Control
The operation range of the M12 Remote Control is 65ft. (20m). Max. 8 remote controls can pair with one gate opener directly, and up to 250 remotes will be supported with the TOPENS ERM12 External Receiver that is sold separately.
Strong Chain Drive
● The roller chain has gone through strict process for high quality, allowing for the optimum toughness of all component parts, as well as increasing metal fatigue resistance and pre-lubricated for wear resistance.
● The package includes 20ft. roller chain. The length of the chain is adjustable.
● The specification of the chain is #428 (08B). Extra TOPENS 20 Feet Roller Chain is available online.
● Keep the chain from any debris to ensure the smooth operation of the motor. Oil the chain periodically for ultimate performance.
Ultra-quiet Gate Motor
The gate opener operates quietly with low working sound less than 50dB.
Designed for Outdoor Use
The weather-proof design allows the gate operator work well in extreme conditions.
Working Temperature
The gate motor runs properly in excessively heat or cold environment, from 0°F to 120°F (-20℃~ +50℃).

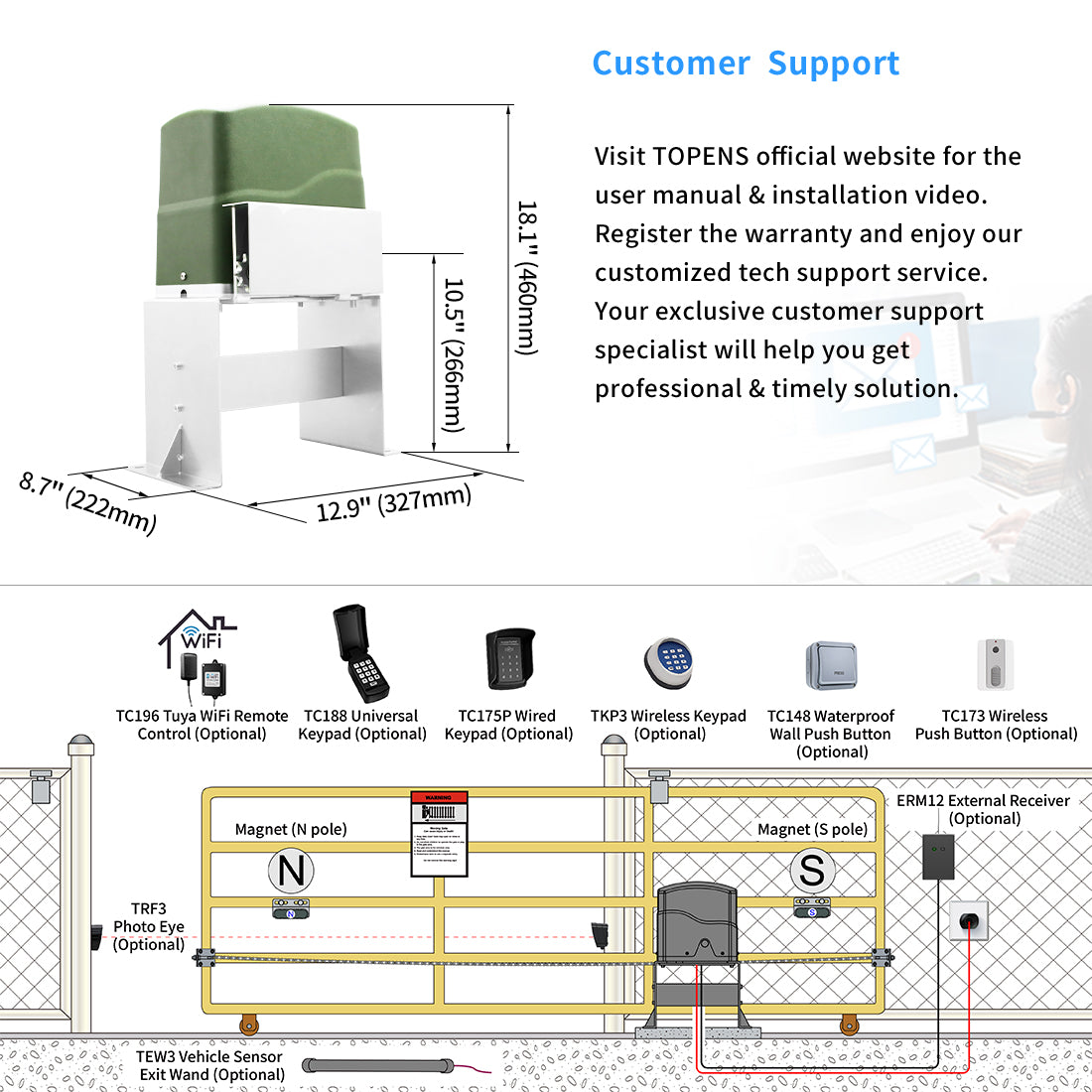

INSTALLATION TIPS
Customer Support

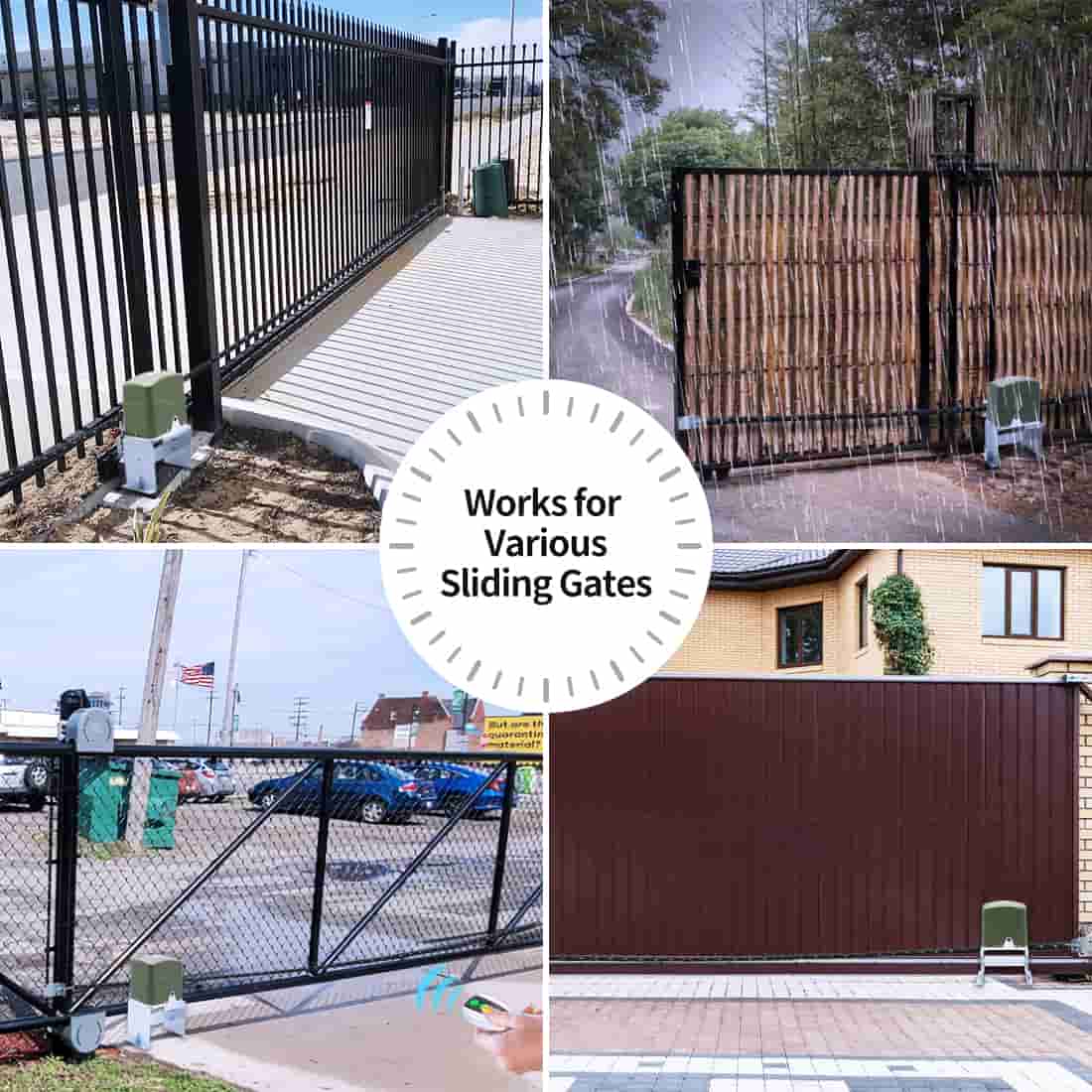

Steel
Wood
Decorative
Plantation
Chain-link
Solid Panel

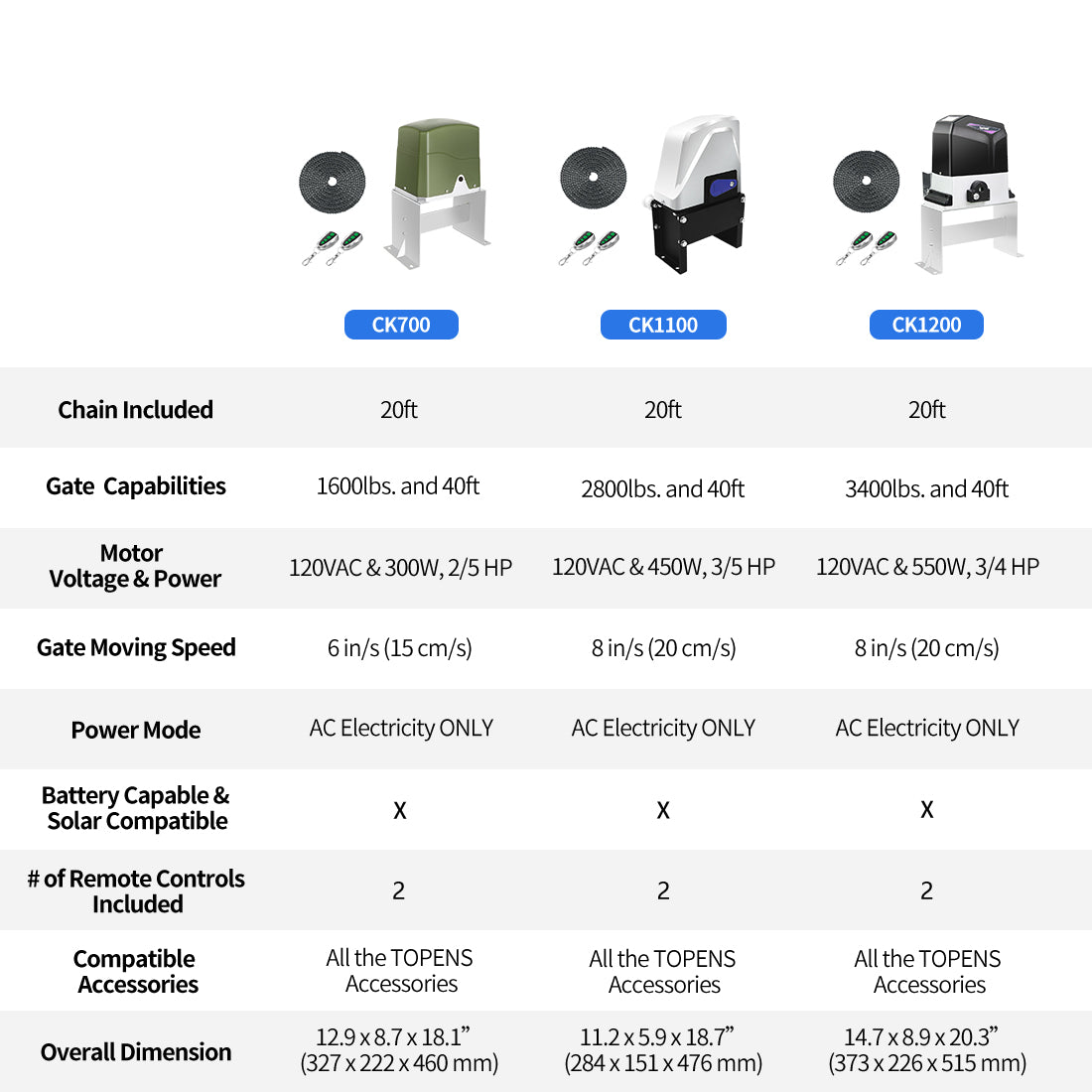

RK500T RACK SLIDING GATE OPENER
RK700T RACK SLIDING GATE OPENER
RK1200T RACK SLIDING GATE OPENER
CK500 CHAIN SLIDING GATE OPENER
CK700 CHAIN SLIDING GATE OPENER
CK1200 CHAIN SLIDING GATE OPENER
Drive Mode
Rack (13ft. Incl.)
Rack (13ft. Incl.)
Rack (13ft. Incl.)
Chain (20ft. Incl.)
Chain (20ft. Incl.)
Chain (20ft. Incl.)
Gate Capabilities
1300lbs. and 40ft.
1600lbs. and 40ft.
3400lbs. and 40ft.
1300lbs. and 40ft.
1600lbs. and 40ft.
3400lbs. and 40ft.
Motor Voltage & Power
120VAC & 300W
120VAC & 300W
120VAC & 550W
120VAC & 300W
120VAC & 300W
120VAC & 550W
Gate Moving Speed
8 in/s (20 cm/s)
6 in/s (15 cm/s)
8 in/s (20 cm/s)
8 in/s (20 cm/s)
6 in/s (15 cm/s)
8 in/s (20 cm/s)
Power Mode
110-120VAC Electricity ONLY
110-120VAC Electricity ONLY
110-120VAC Electricity ONLY
110-120VAC Electricity ONLY
110-120VAC Electricity ONLY
110-120VAC Electricity ONLY
Battery as Power Source
×
×
×
×
×
×
Solar Compatible
×
×
×
×
×
×
Compatible Accessories
NOT Compatible with Vehicle Sensor Exit Wand
NOT Compatible with Vehicle Sensor Exit Wand
All the TOPENS Accessories
NOT Compatible with Vehicle Sensor Exit Wand
NOT Compatible with Vehicle Sensor Exit Wand
All the TOPENS Accessories
