TOPENS A8131 Heavy Duty Single Swing Gate Opener

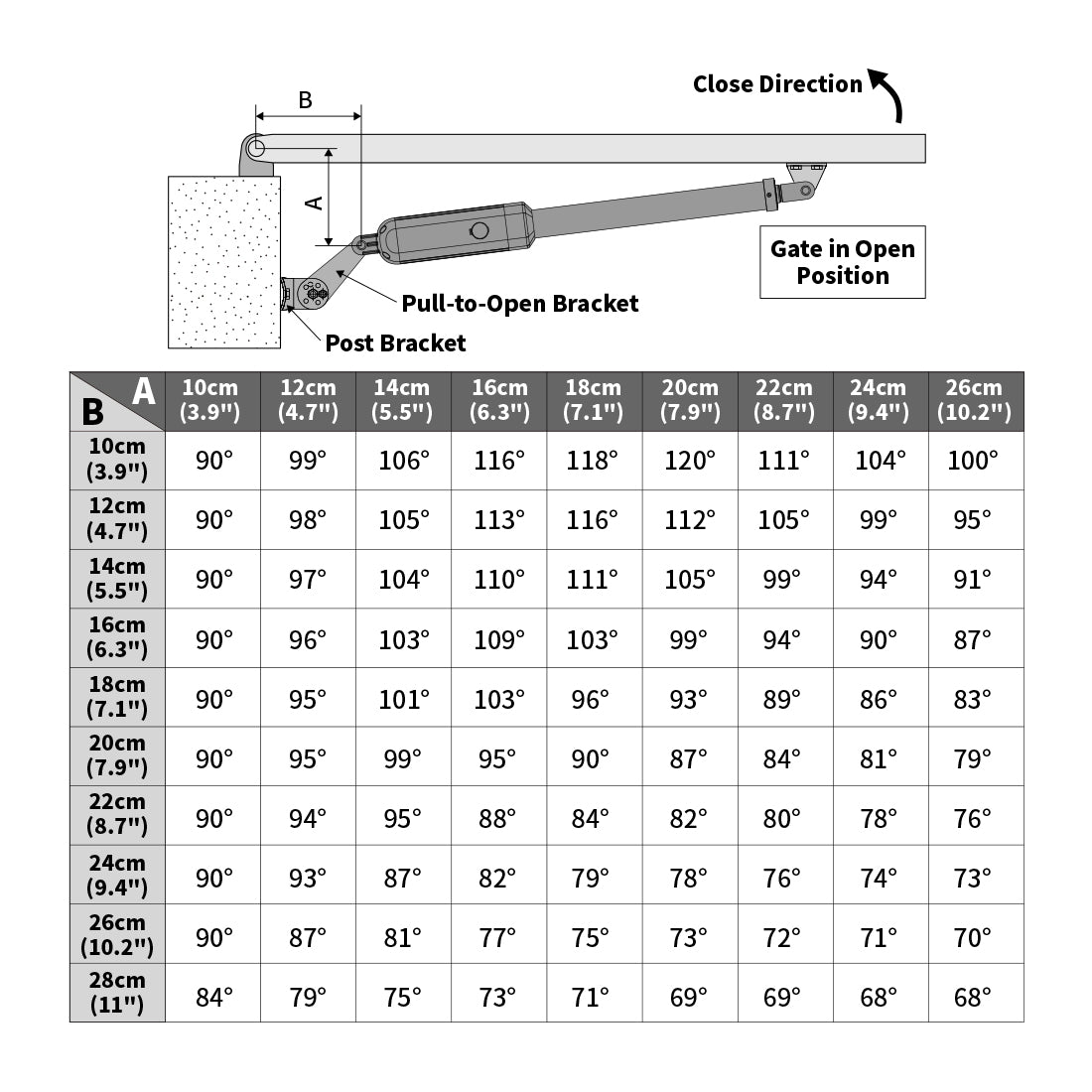

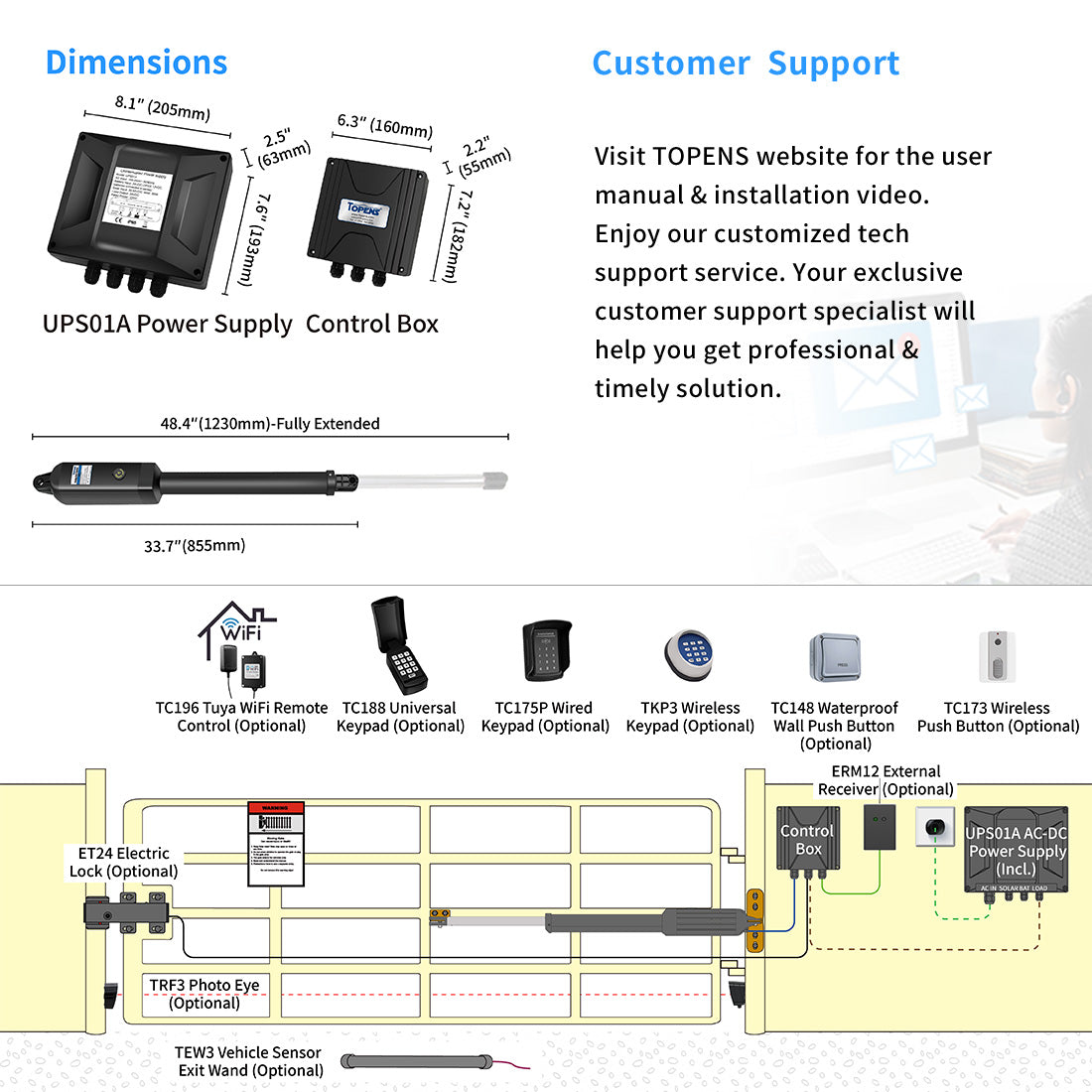

Pull to Open Installation

The gate is allowed to open inwards viewed from inside property with the pull-to-open mode. The related bracket is included.

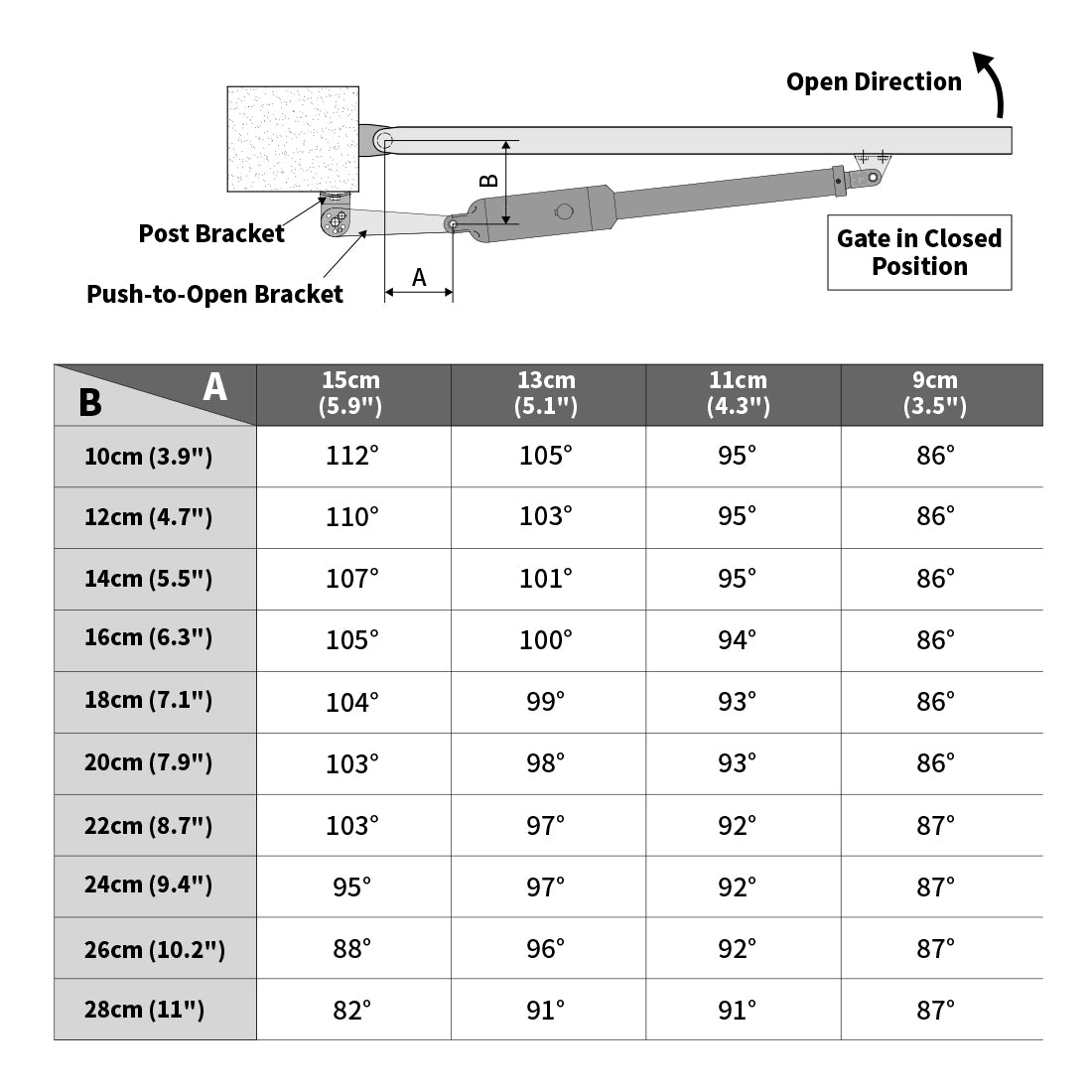

Push to Open Installation

The gate is allowed to open outwards viewed from inside property with the push-to-open mode. The related bracket is included.

Auto Close Timer

This function allows you to automatically close your gate after a certain time. The auto-closing time can be adjusted from 3 to 120 seconds.

Obstruction Sensing

Stops in case of obstruction during gate opening, and reverses in case of obstruction during gate closing.

Warning Light

The warning light flashes when the gate is moving, improving gate safety.
（Sold separately)

Photo Eye Beam Sensor

The beam sensor will make the gate stop or reverse when sensing obstruction.
（Sold separately)

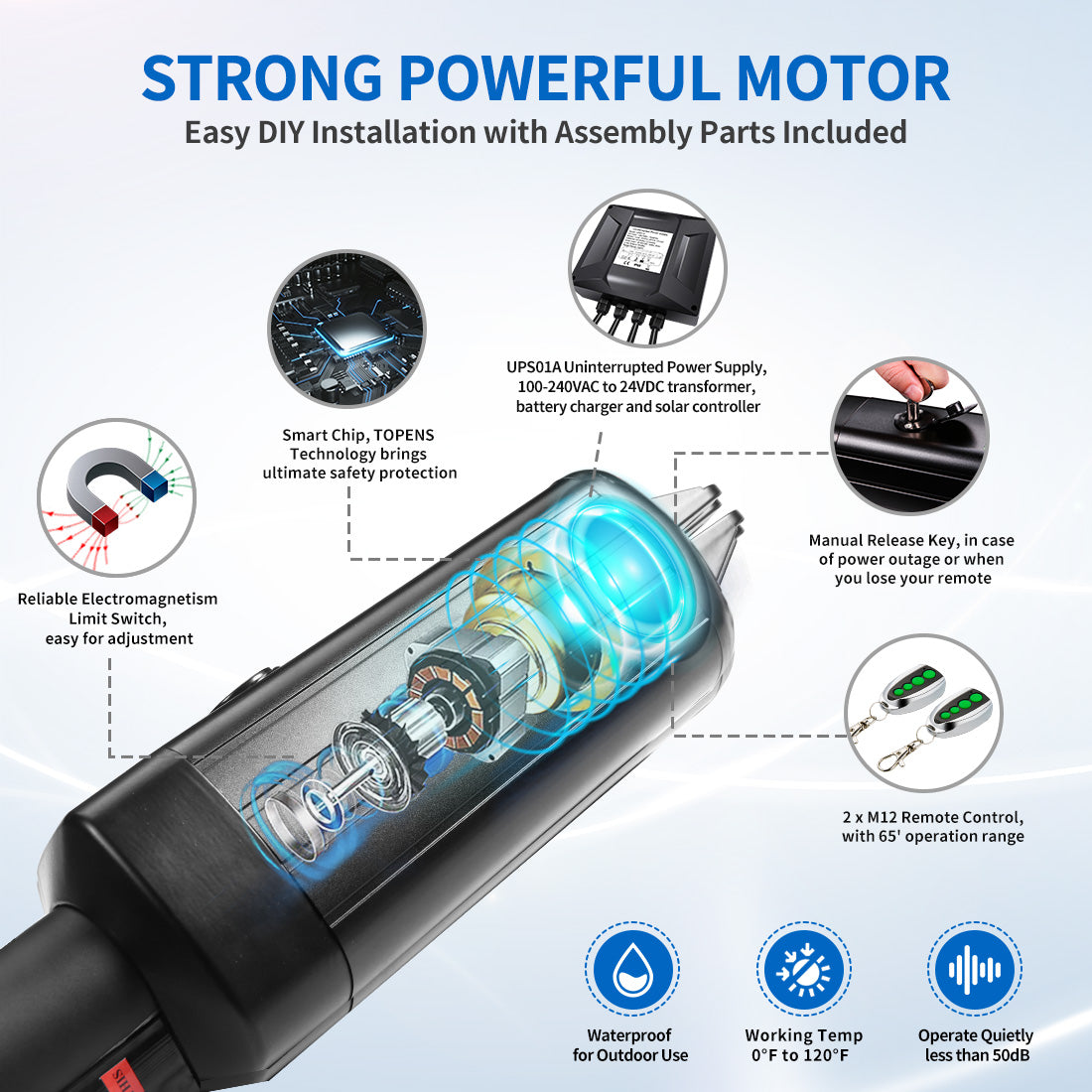

Soft Start and Soft Stop

Soft start and soft stop greatly protect the motor for long-term use.

Gate Opening Time & Speed

Under ideal condition, the gate opening / closing time is approx. 15 seconds per 90°.

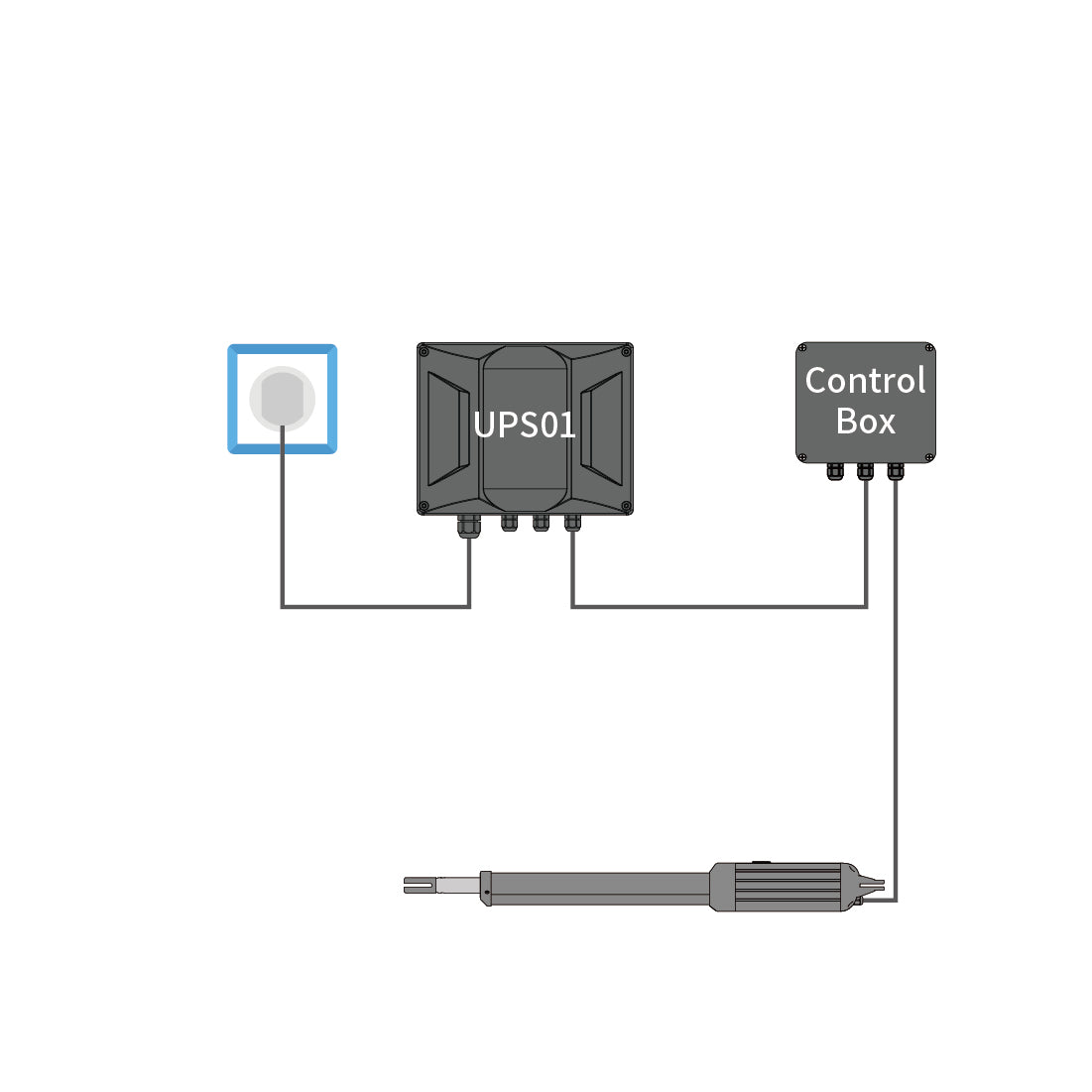

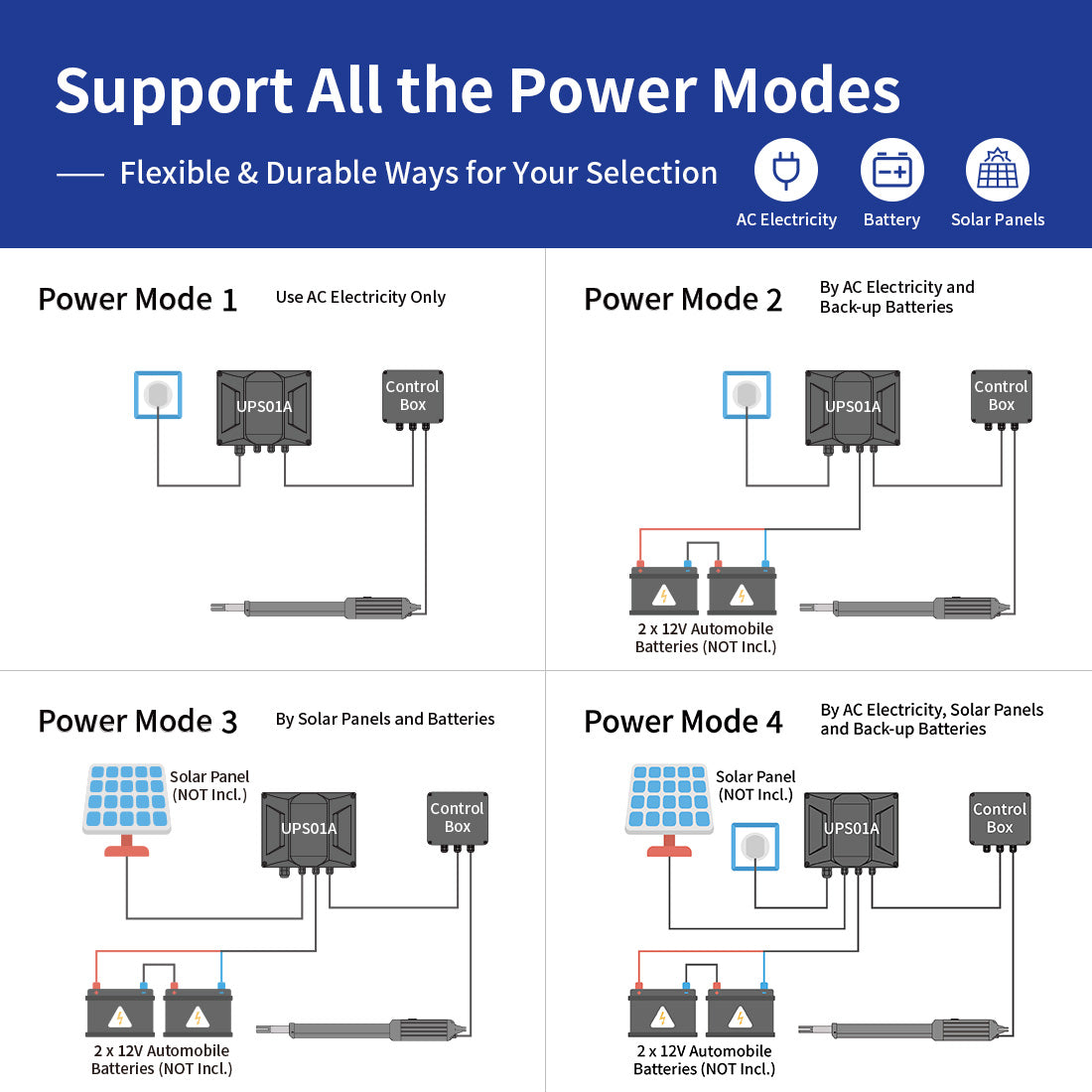

Power Mode 1 (Default Mode) – Use AC Electricity Only

● Recommended where AC electricity is accessible and stable.
● Use the AC electricity to power the system.
● The UPS01 Uninterrupted Power Supply is plugged into an 100-240VAC 50Hz/60Hz outlet and delivers 24VDC to power the system directly.
● Release the clutch and open the gate manually in case of power outage.

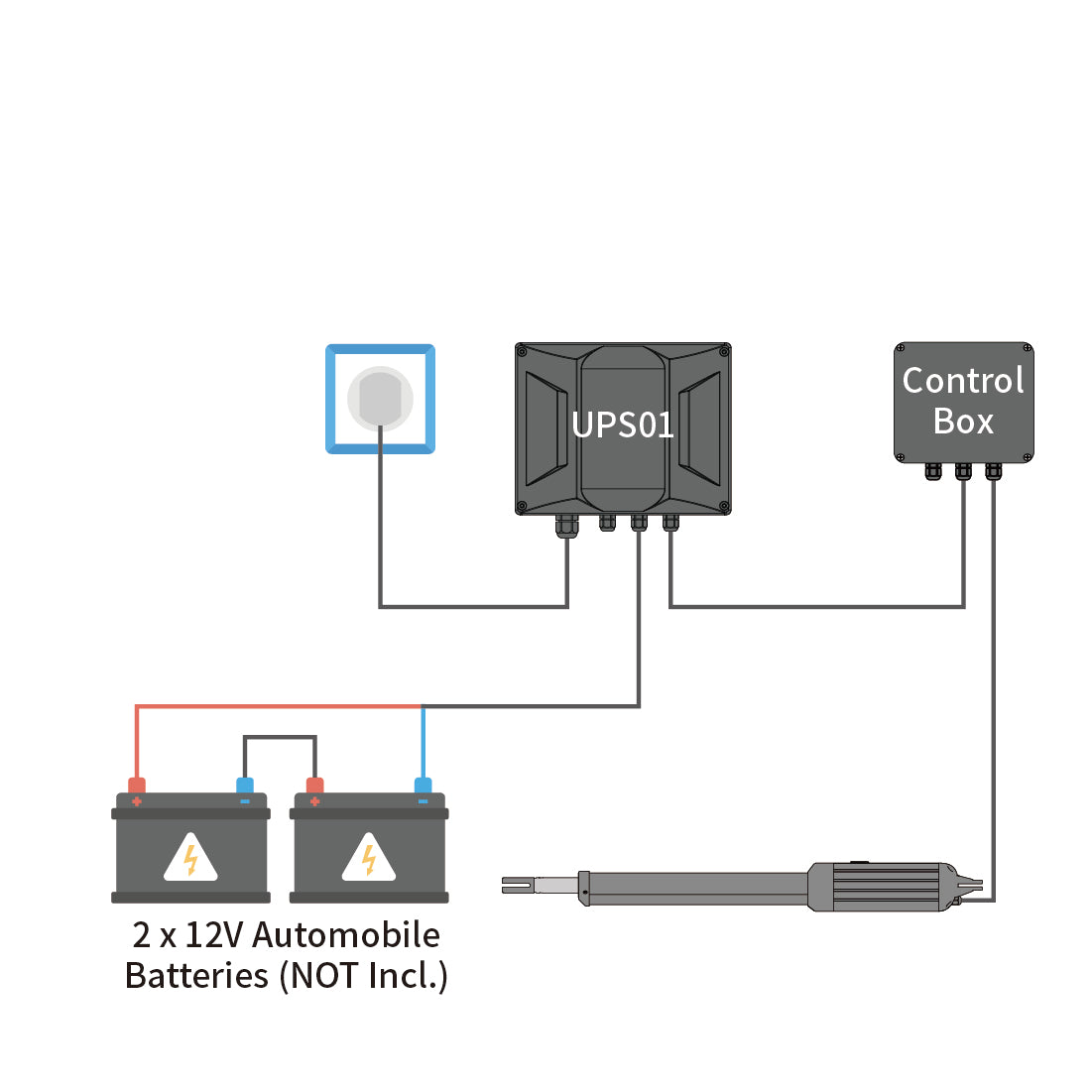

Power Mode 2 – By AC Electricity and Back-up Batteries

● Recommended where AC electricity is accessible, but not stable.
● Batteries as back-up power source, use the AC electricity to charge the batteries.
● Requires additional 24V 12Ah Automotive / Marine type battery (NOT incl.).
● 2 pcs 12V batteries connected in series for 24V (Battery is NOT included).

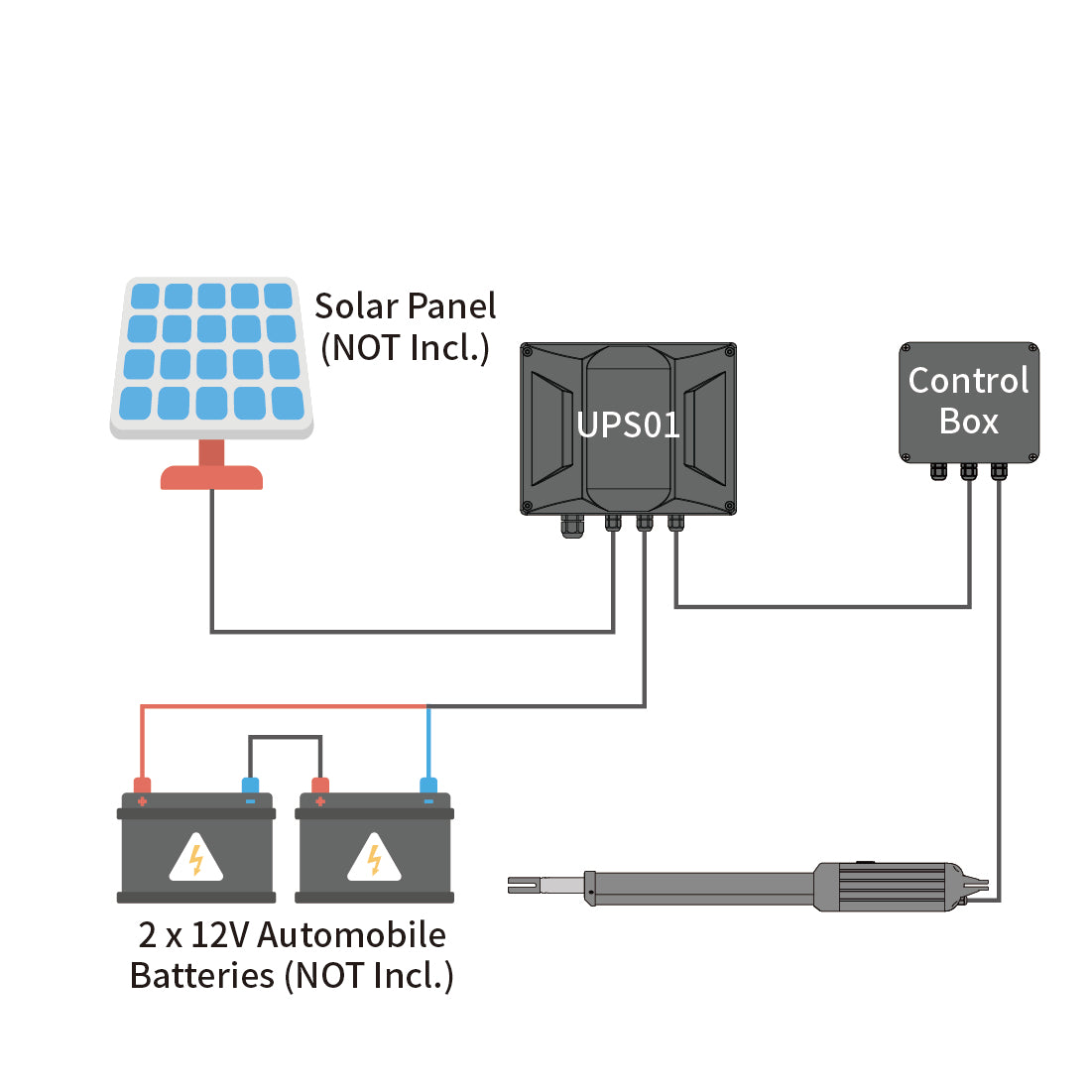

Power Mode 3 – By Solar Panels and Batteries

● Recommended in remote location such as farm, ranch, pasture, etc.
● Batteries as main power source, use only solar panel to charge the batteries (UPS01 is functioned as a solar charge controller).
● Requires additional 24V 12Ah Automotive / Marine type battery. TOPENS TSQ20W 20-Watt 24V Solar Panel Kit is available online.

Power Mode 4 – By AC Electricity, Solar Panels and Back-up Batteries

● Recommended where AC electricity is accessible, but not stable.
● Batteries as back-up power source, use the AC electricity and solar panel together to charge the batteries (UPS01 converts AC to DC electricity and is also functioned as a solar charge controller).
● The battery and TSQ20W Solar Panel Kit are sold separately.

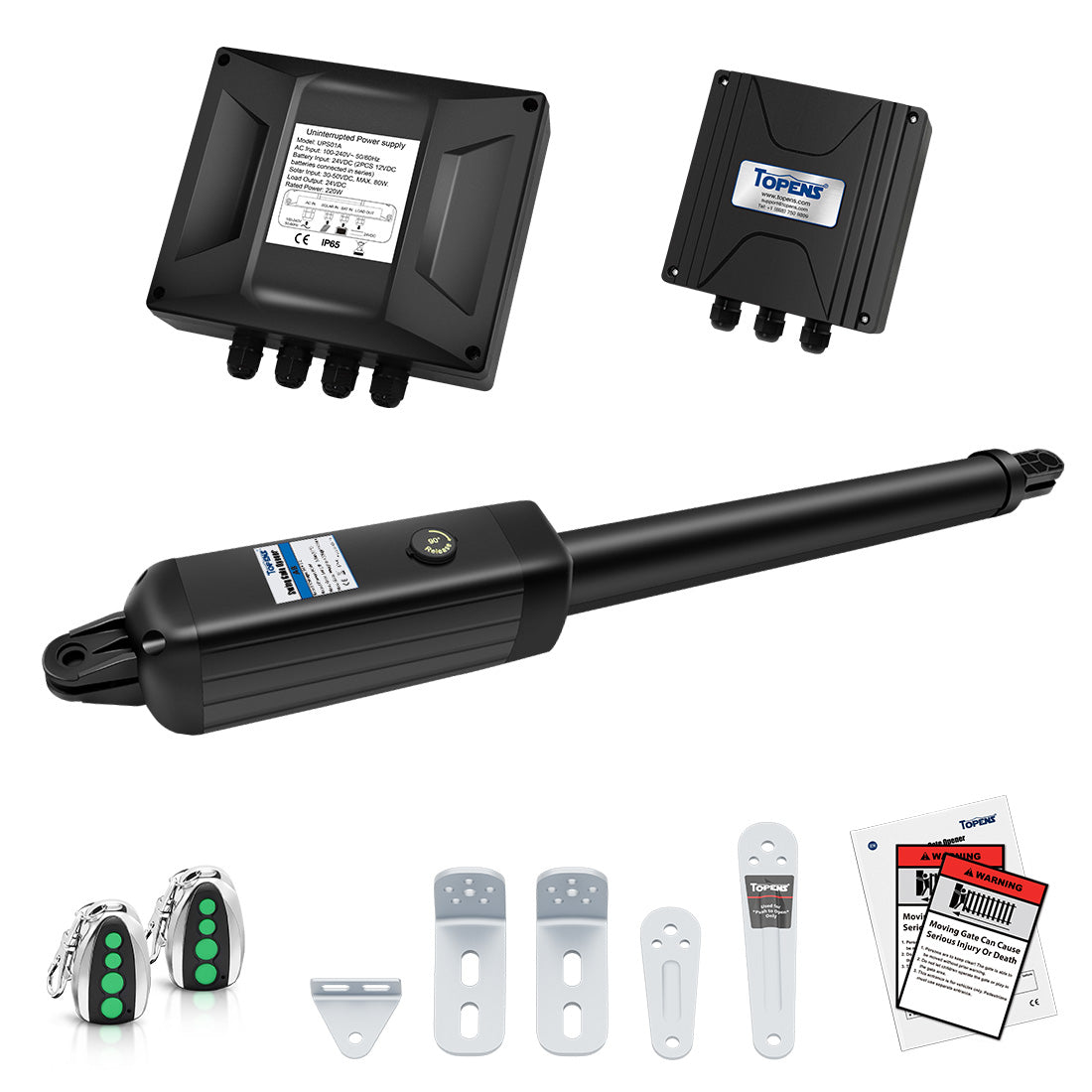

1 x Gate Opener Actuator (Arm), with a 5 feet 5-Conductor Cable

1 x Waterproof Control Box

1 x UPS01 Uninterrupted Power Supply (IP65 Waterproof)

2 x M12 Remote Control Transmitter

1 x Emergency Release Key

1 x Pull-to-Open Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)

1 x Push-to-Open Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)

2 x Post Bracket, 1 x Gate Bracket

1 x Full Set of Required Installation Hardware

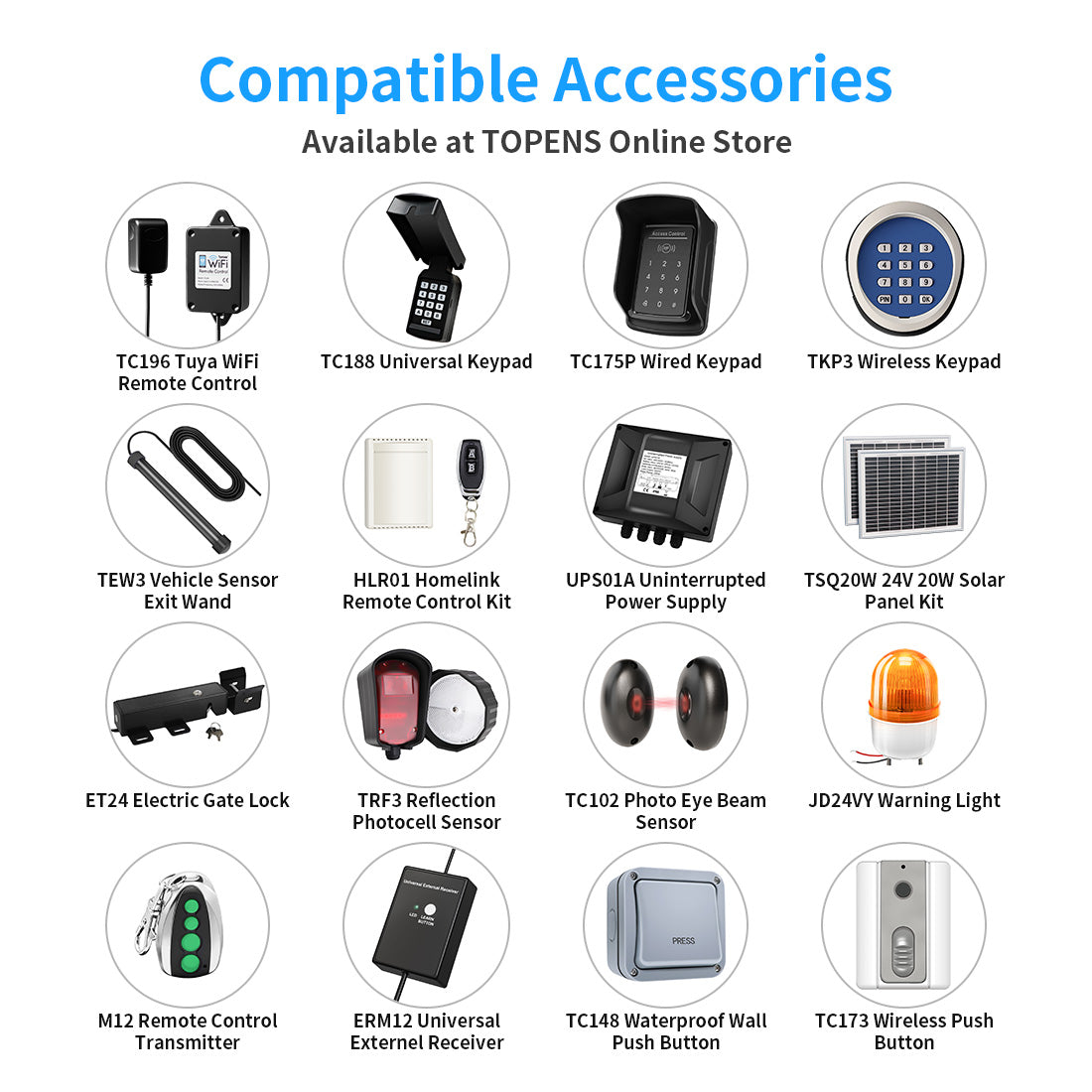

TC186-R WiFi Smartphone Remote Control with Camera

Monitors the gate status, and controls the gate opener with your cellphone

M12 Remote Control

Up to 8 remotes can be programmed to the gate opener directly

ERM12 External Receiver

Allows up to 250 remotes to be programed with the gate opener

ET24 Electric Gate Lock

Locks and unlocks the gate automatically

TC188 Universal Keypad

Open the gate with a user defined password, use this keypad wirelessly, or wire it to the gate opener according to your needs

TC175P Wired Keypad

Open the gate with a user defined password / ID card

TKP3 Wireless Keypad

Open the gate with a user defined password

TEW3 Vehicle Sensor Exit Wand

Opens the gate automatically when senses an approaching car

HLR01 Homelink Remote Control Kit

Links the gate opener with your car's HomeLink system

TC148 Waterproof Wall Push Button

Open and close the gate simply by pressing the wired button, fully waterproof

TC147 Wall Push Button

Open and close the gate simply by pressing the wired button, not waterproof

TC173 Wireless Push Button

Open and close the gate simply by pressing the wireless button

TRF3 Reflection Photocell Sensor

Prevents the gate from closing when obstructed, adds security with simple wire connection

TC102 Photo Eye Beam Sensor

Prevents the gate from closing when obstructed, adds security

JD24VY 24VDC Warning Light

Flashing when the gate is moving, improving your gate safety

TSQ20W 24V 20W Solar Panel Kit

Converts your gate opener to solar, including 2 x 10W solar panels

TSP30W 30W Solar Panel Charging Kit

Converts your gate opener to solar, including 3 x 10W solar panels and a solar charge controller

UPS01 Uninterrupted Power Supply

Directly offers power, efficiently charges battery, and securely regulates solar charging current

25FT Extension 5-Conductor Cable

Extension 5 core conductor cable for the arm (actuator)
