AT12131 Swing Arm Gate Motor
AT12131 Single Swing Automatic Gate Opener on Gate
AT12131 Single Swing Automatic Gate Opener Gate Capability

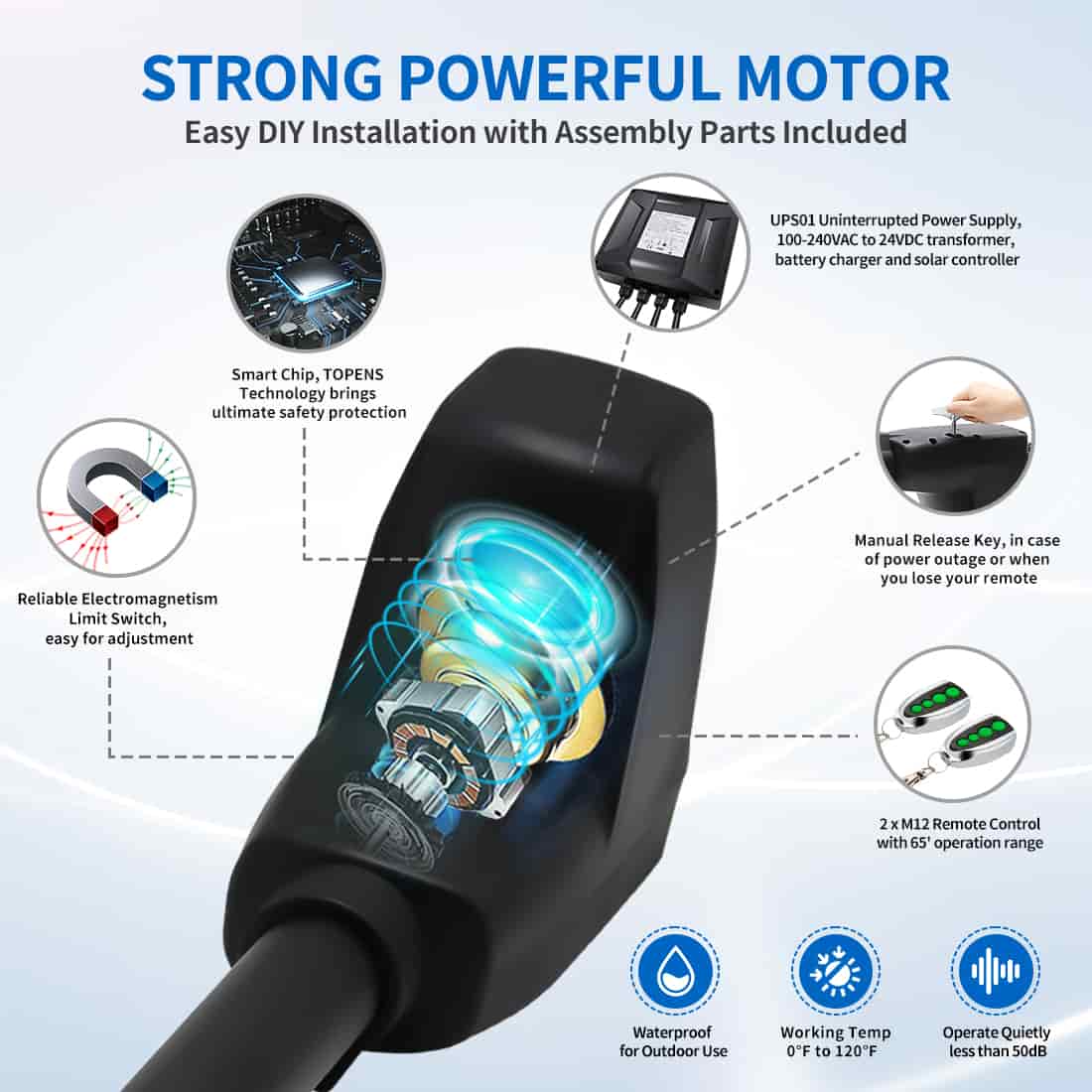

AT12131 Swing Arm Gate Motor with Strong Motor

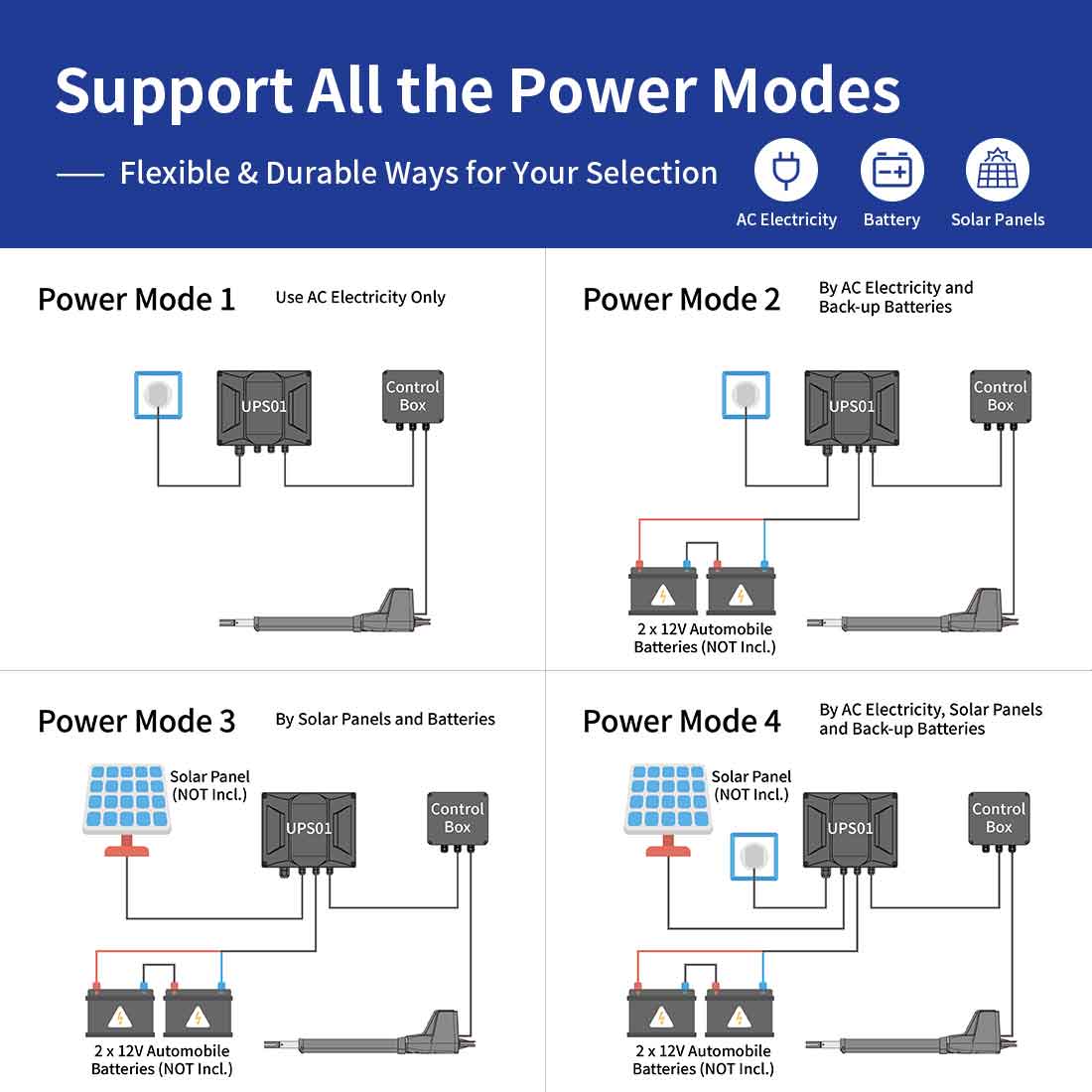

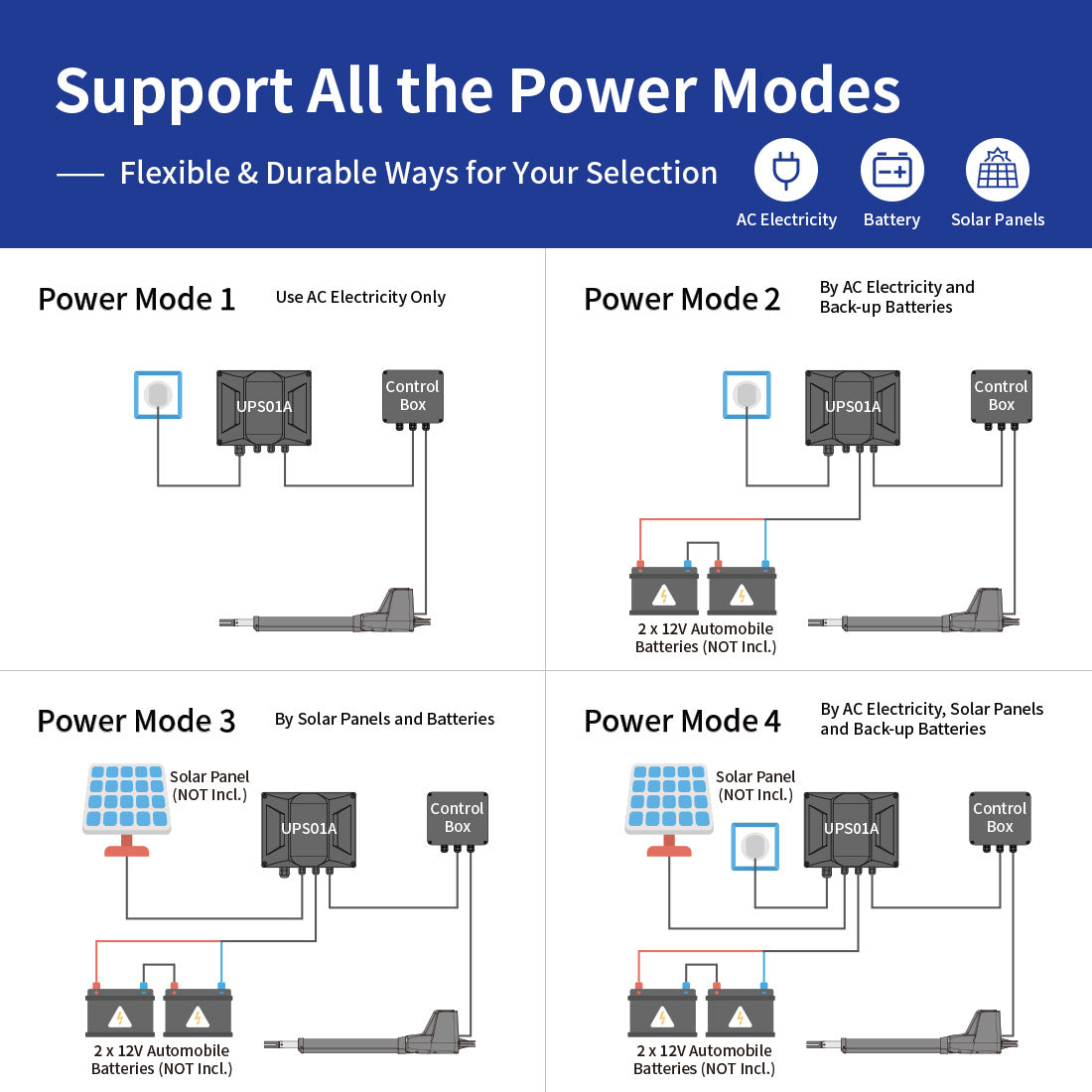

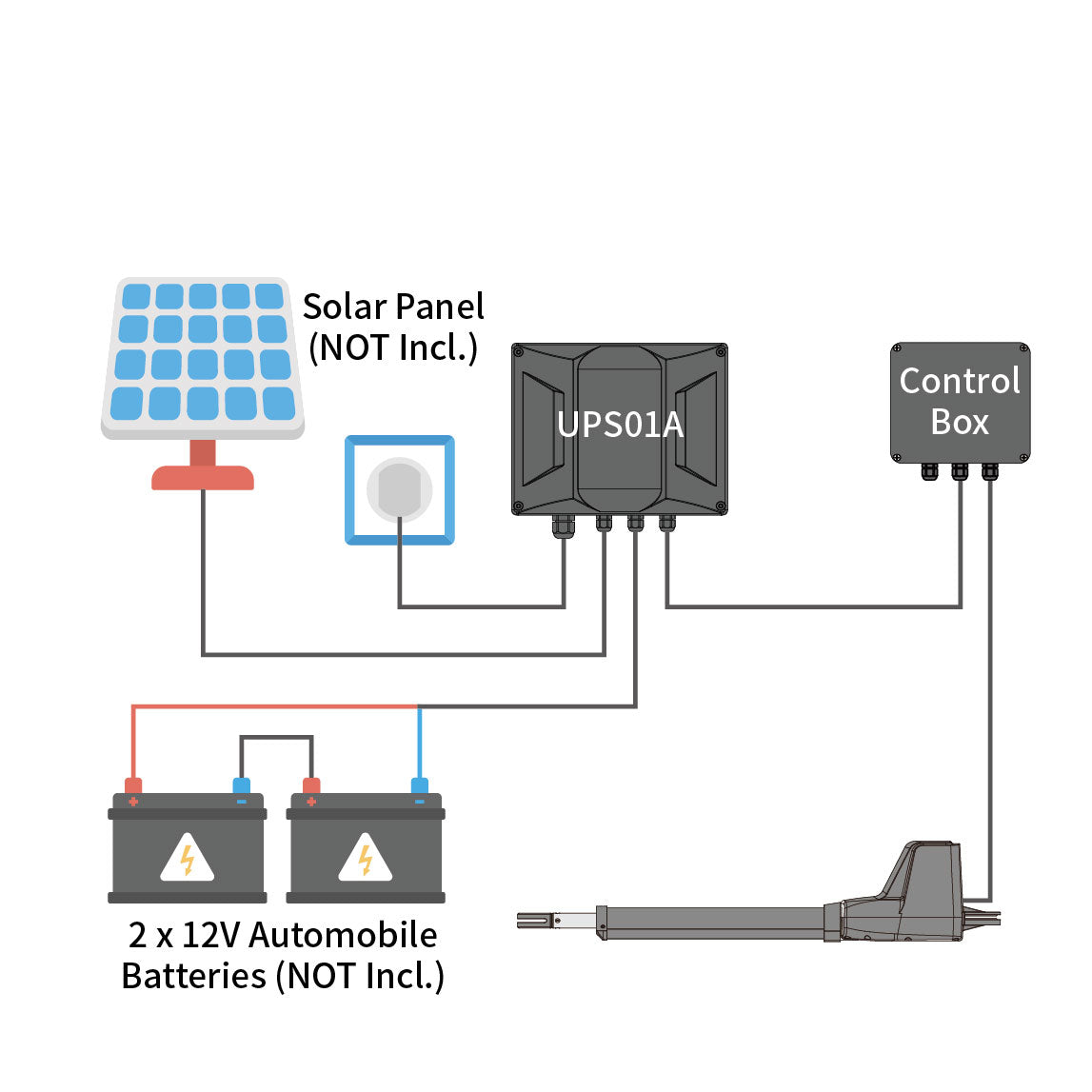

AT12131 Single Swing Automatic Gate Opener Power Modes

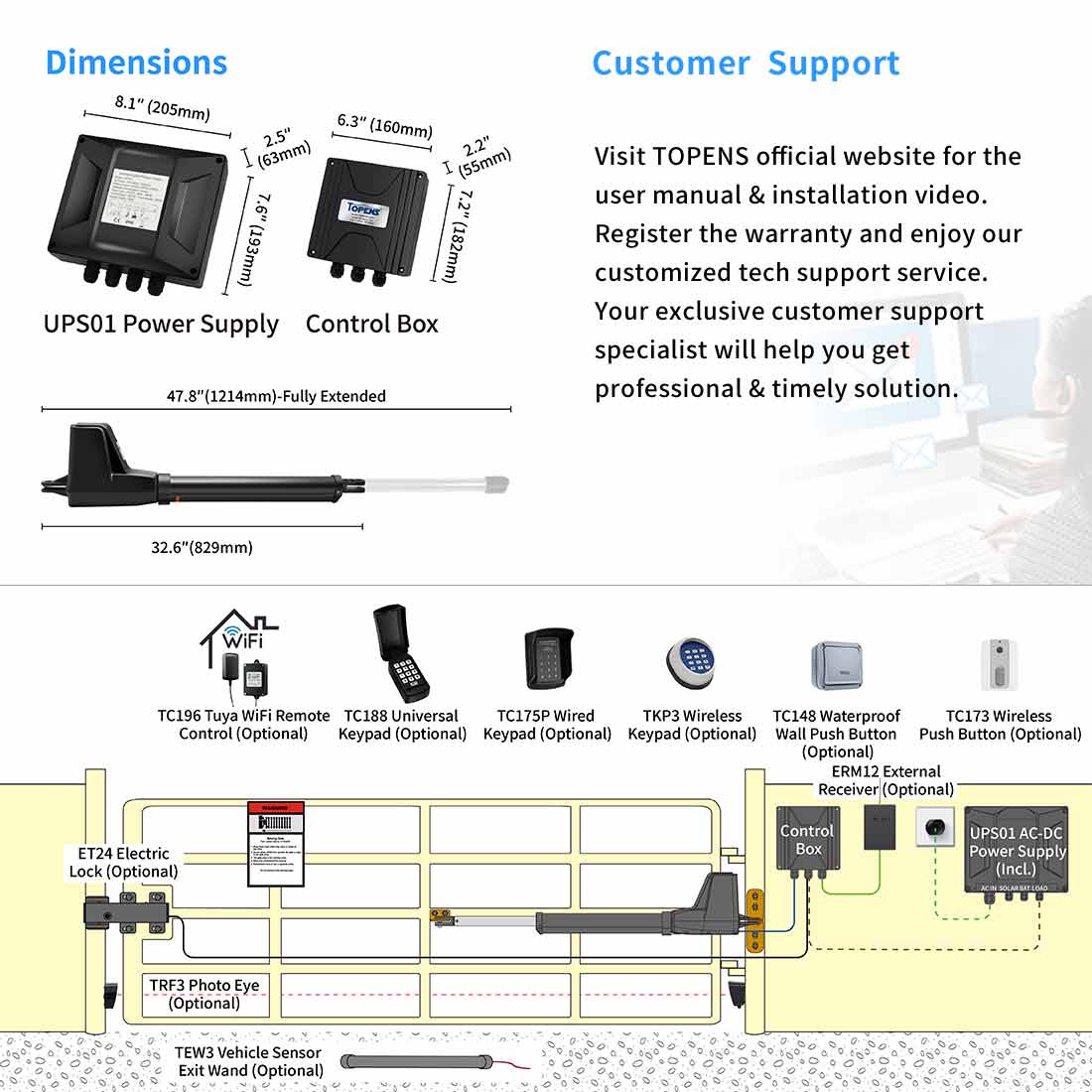

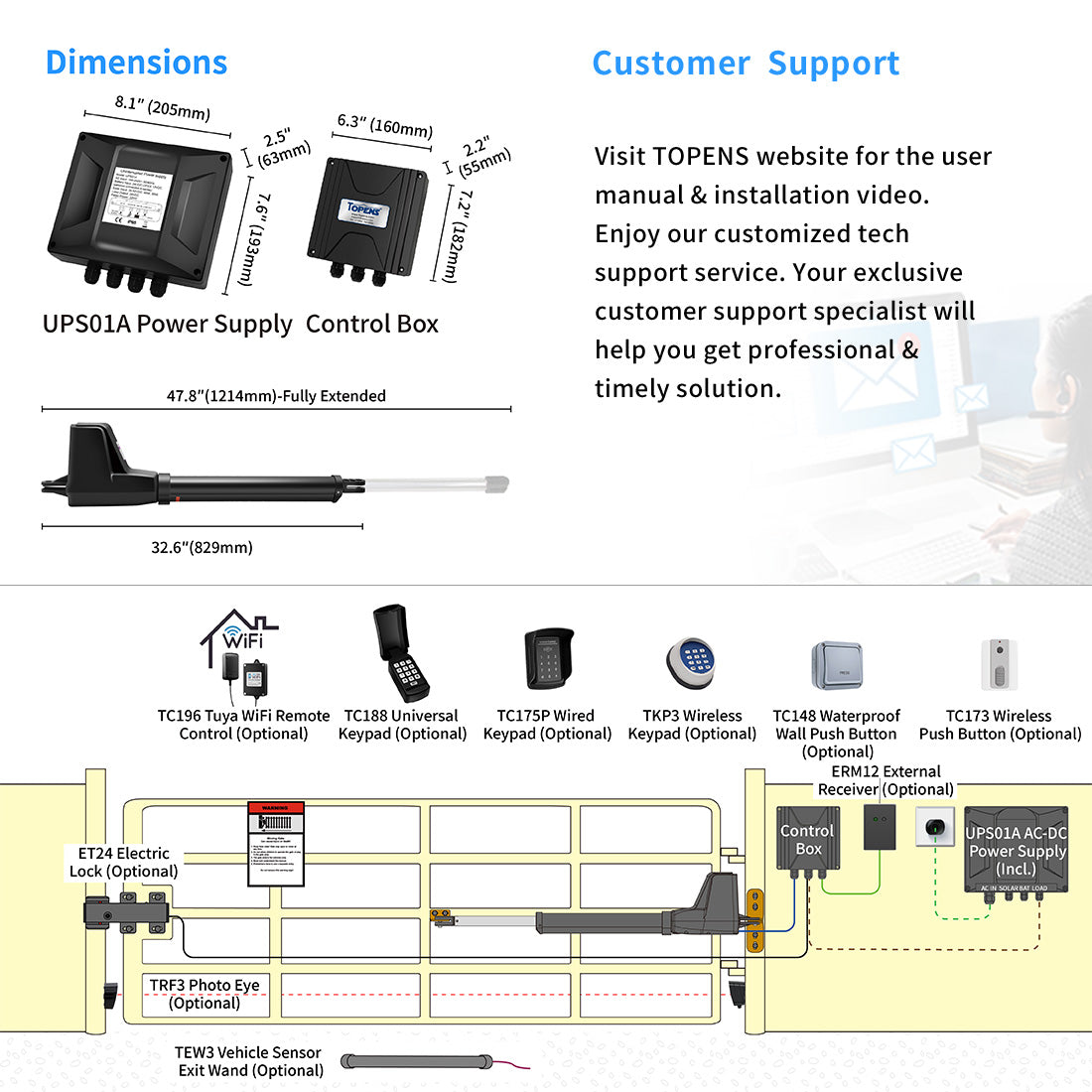

AT12131 Swing Arm Gate Motor Dimension and Installation Overview

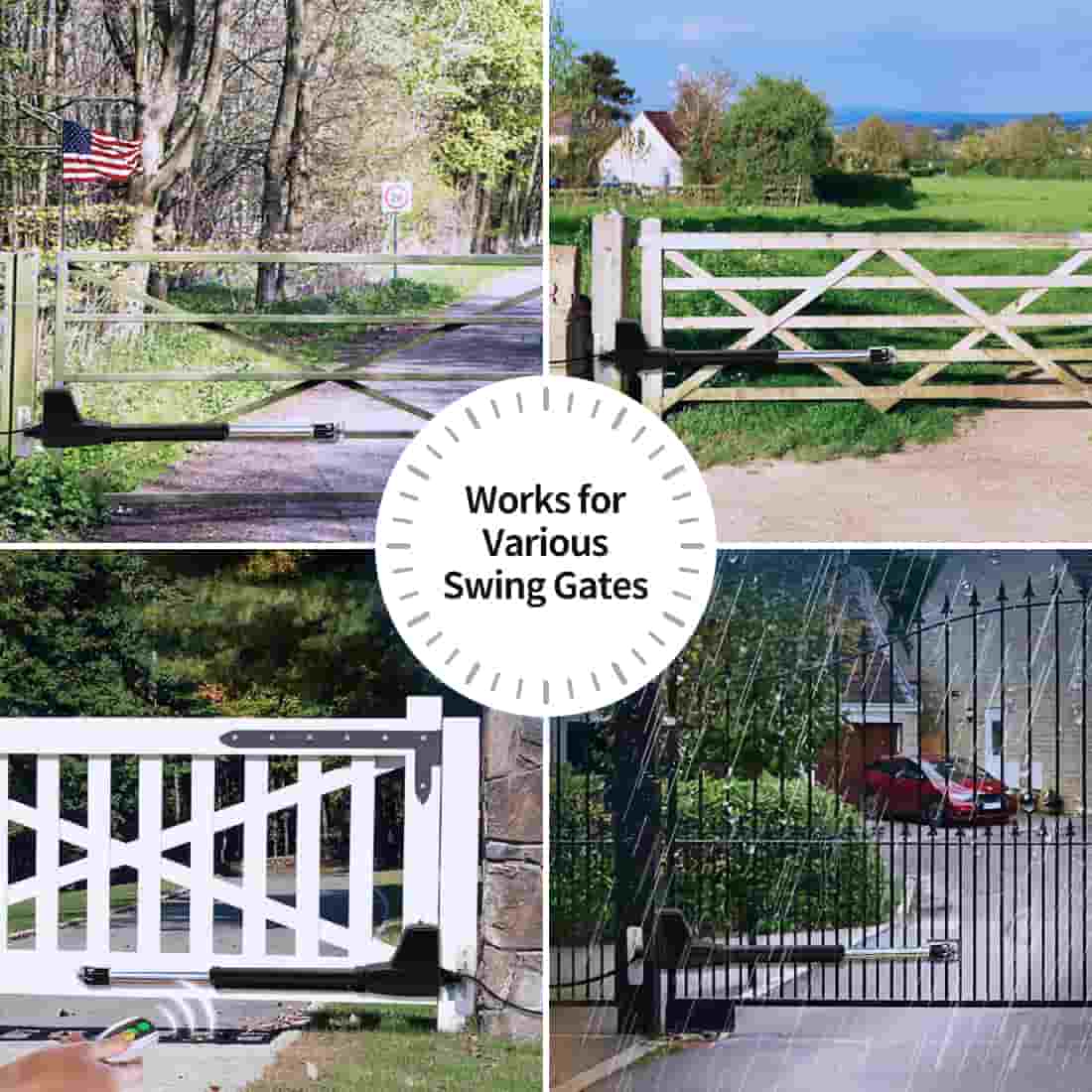

AT12131 Single Swing Automatic Gate Opener for Various Swing Gates

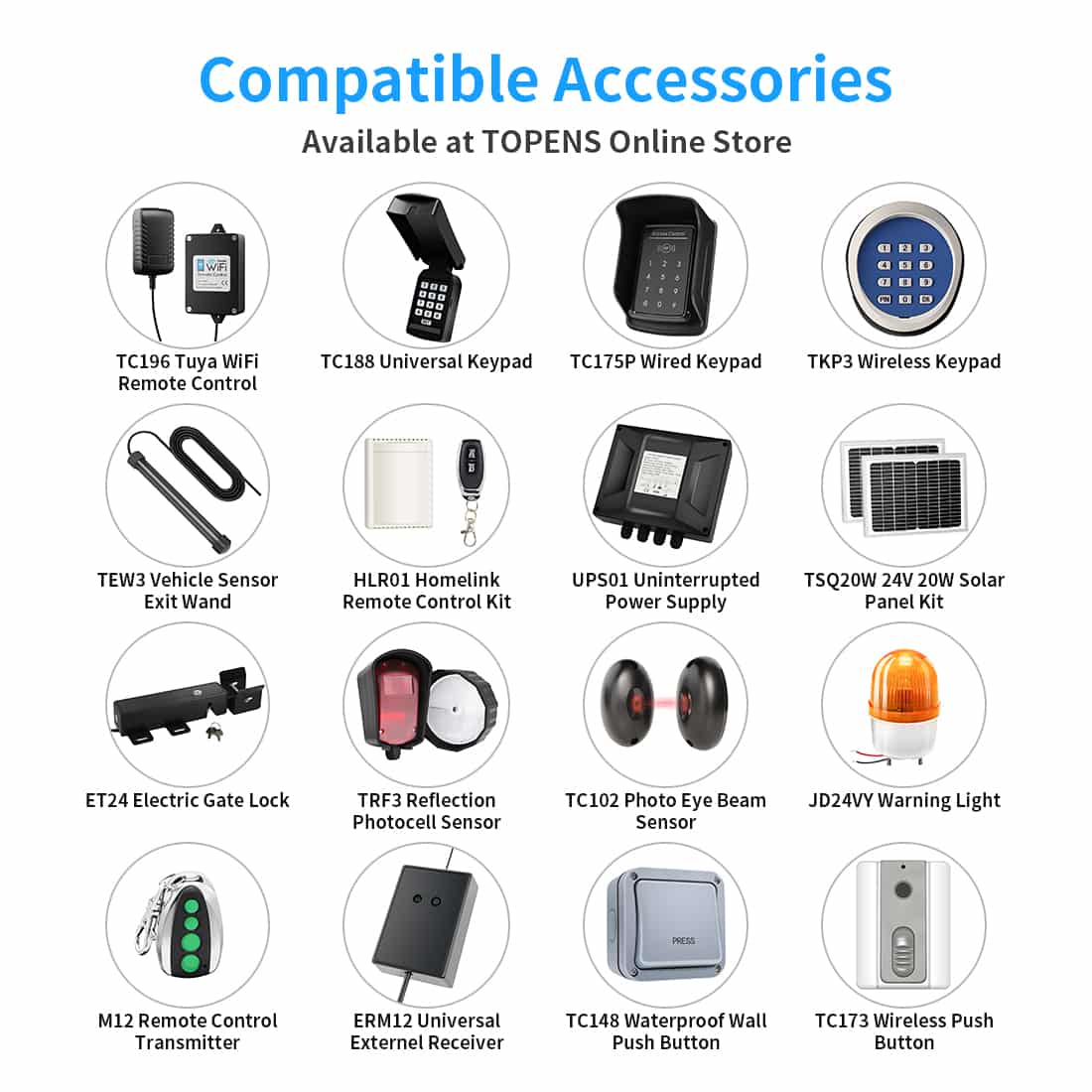

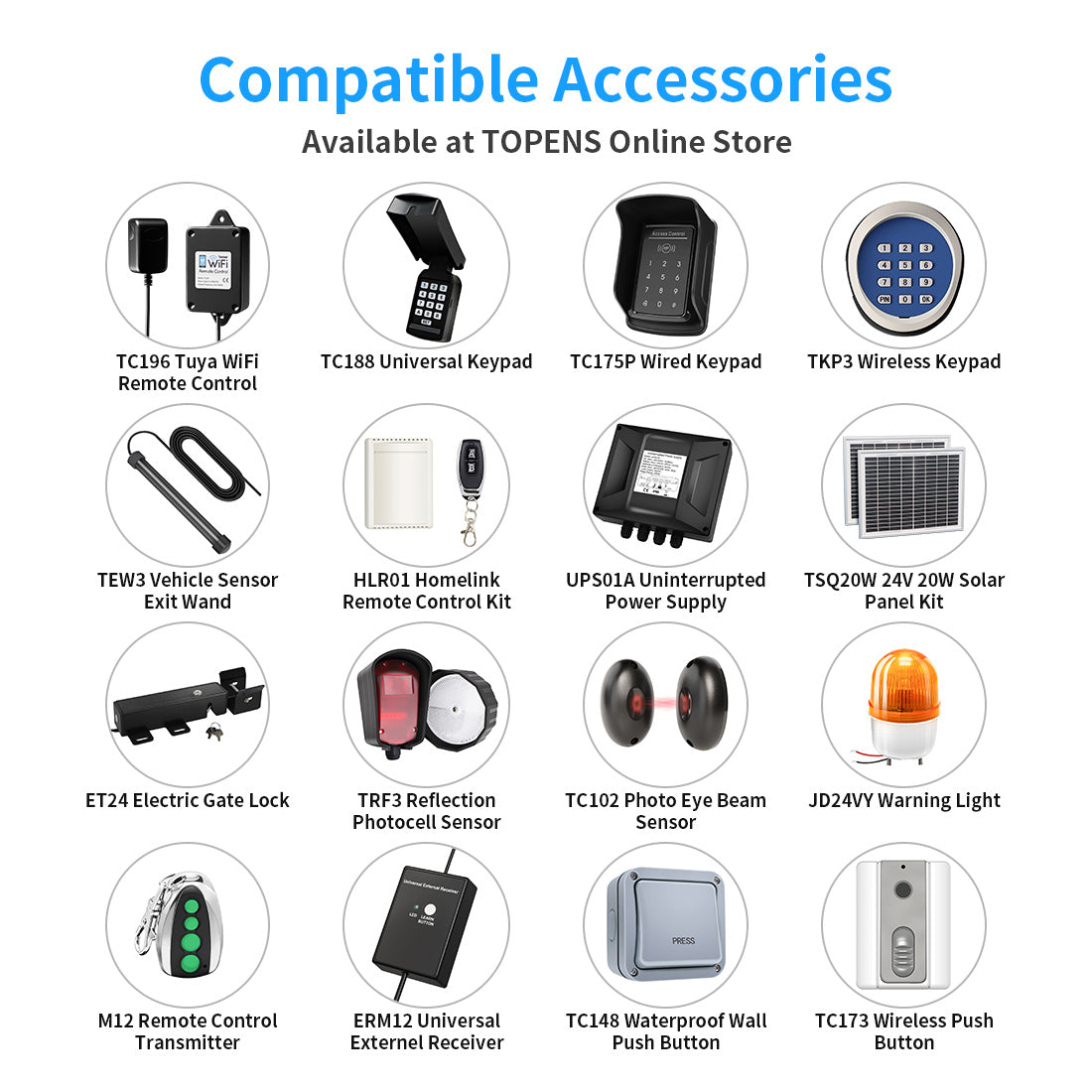

AT12131 Swing Arm Gate Motor Compatible Accessories

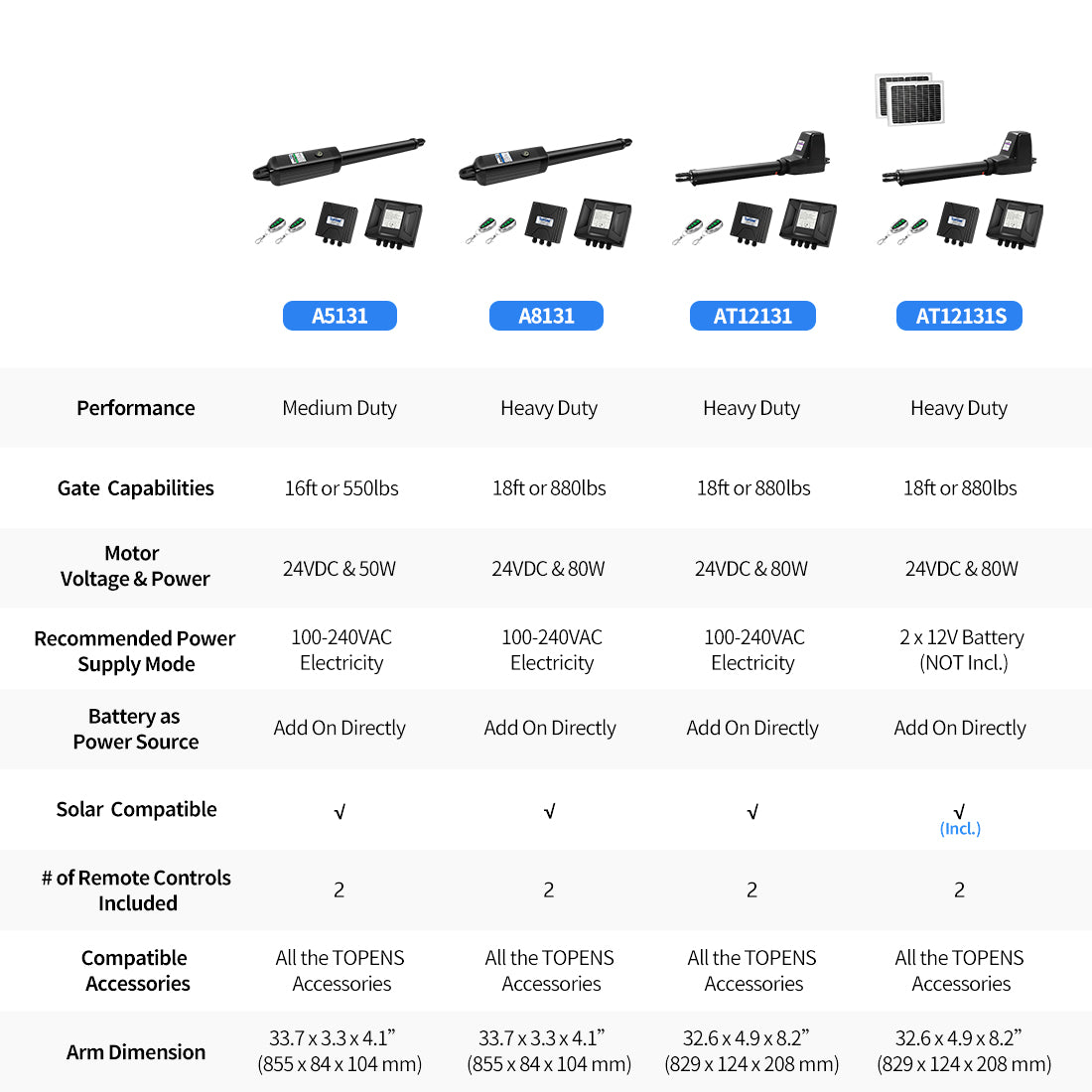

AT12131 Swing Arm Gate Motor Product Compare
Heavy Duty80WSingle

TOPENS AT12131 Heavy Duty Single Swing Gate Opener

Sale price$389.00 Regular price$439.00
Save $50.00

Tax included. Free Shipping.

  • 25+ Years of Expertise -Trusted leader in the automatic gate opener industry.
  • Lifetime Customer Support -24/7 technical assistance and step-by-step guides for easy installation.
  • Free Shipping -Enjoy fast, free delivery across the continental U.S.
  • Extended Warranty -Includes 1-year warranty, extendable up to 2 or 3 years.
  • Worry-Free Returns -30-day hassle-free return policy on all purchases.
  • Powerful Performance -Equipped with a stable 24VDC 80W motor, the AT12131 easily operates heavy-duty single swing gates up to 880 pounds or 18 feet.

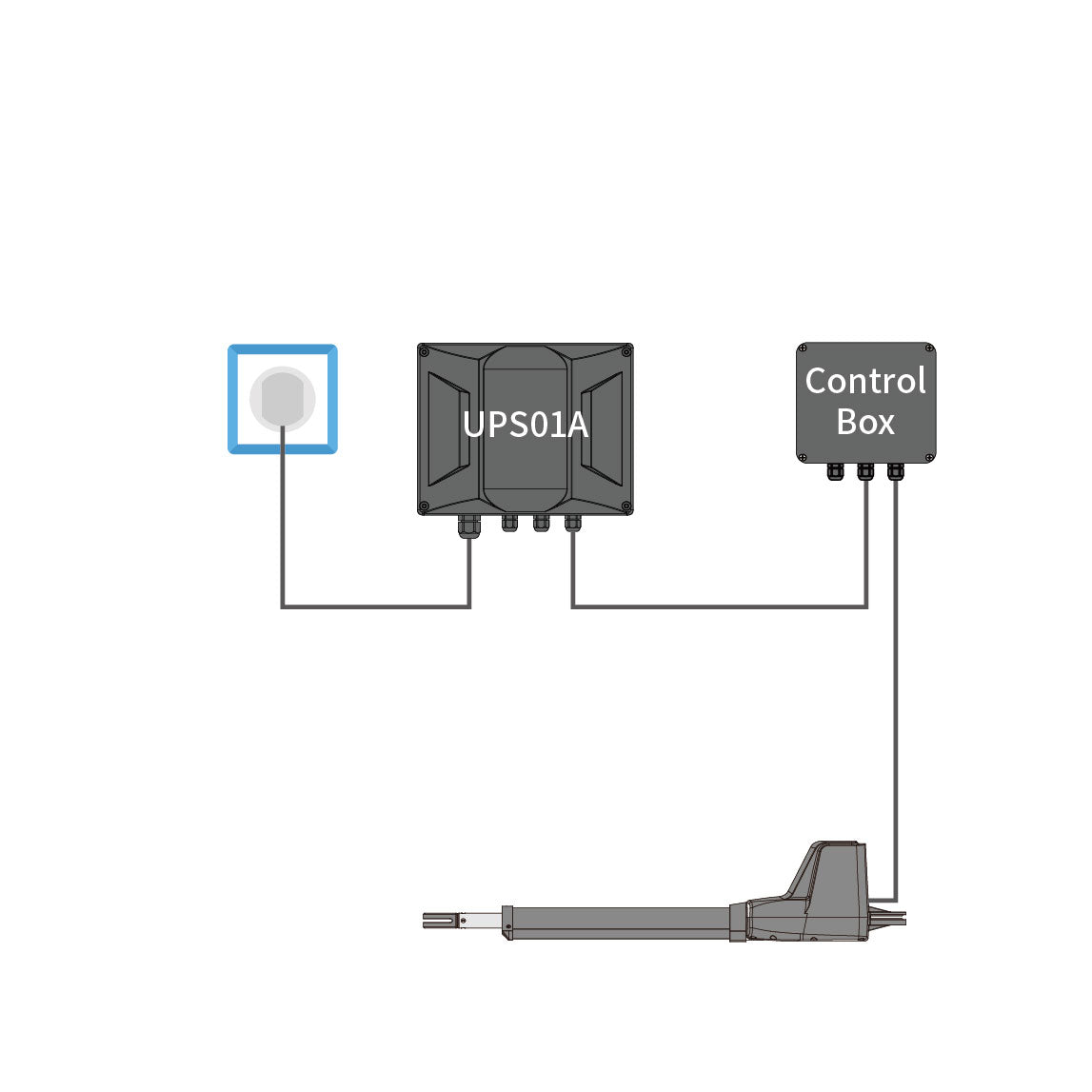

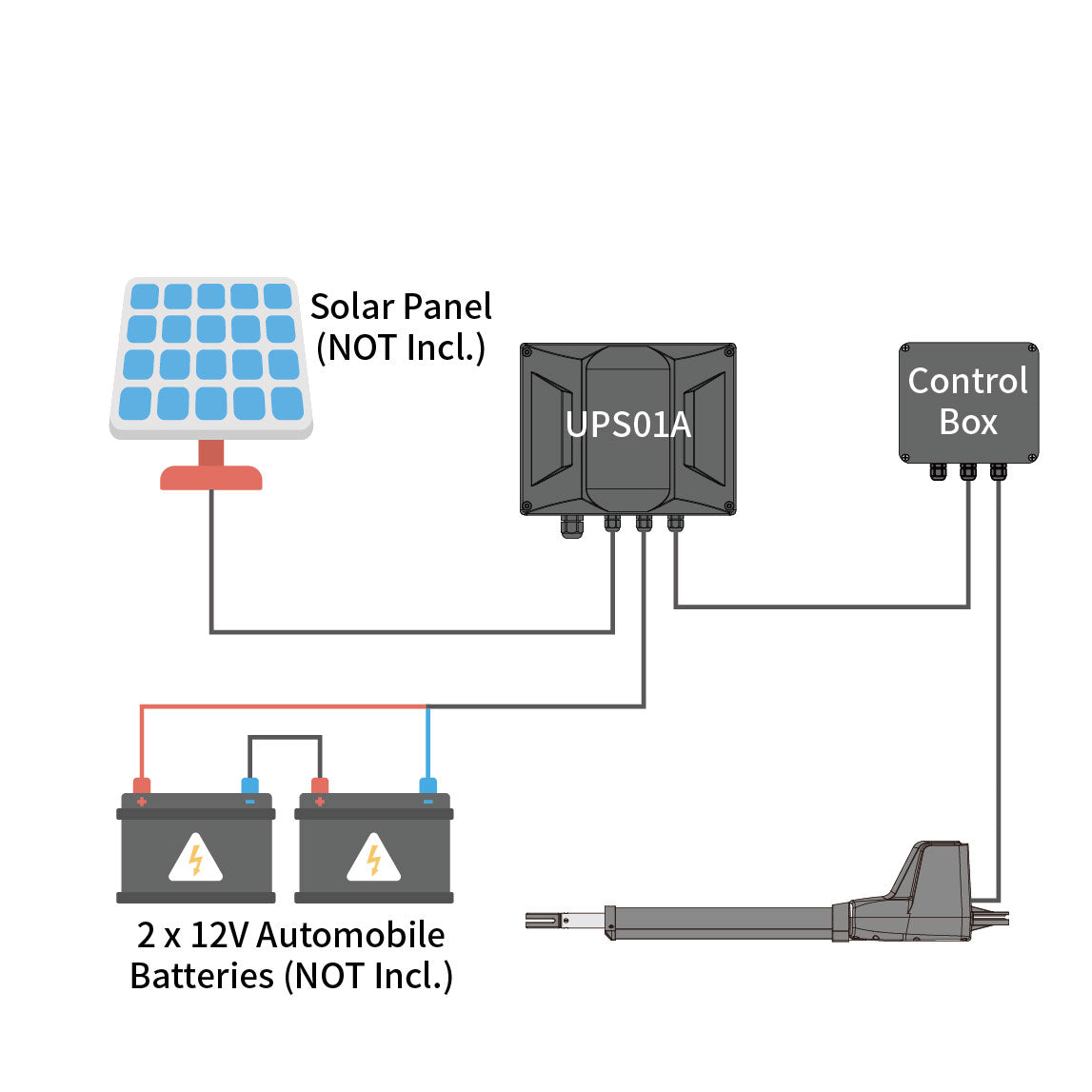

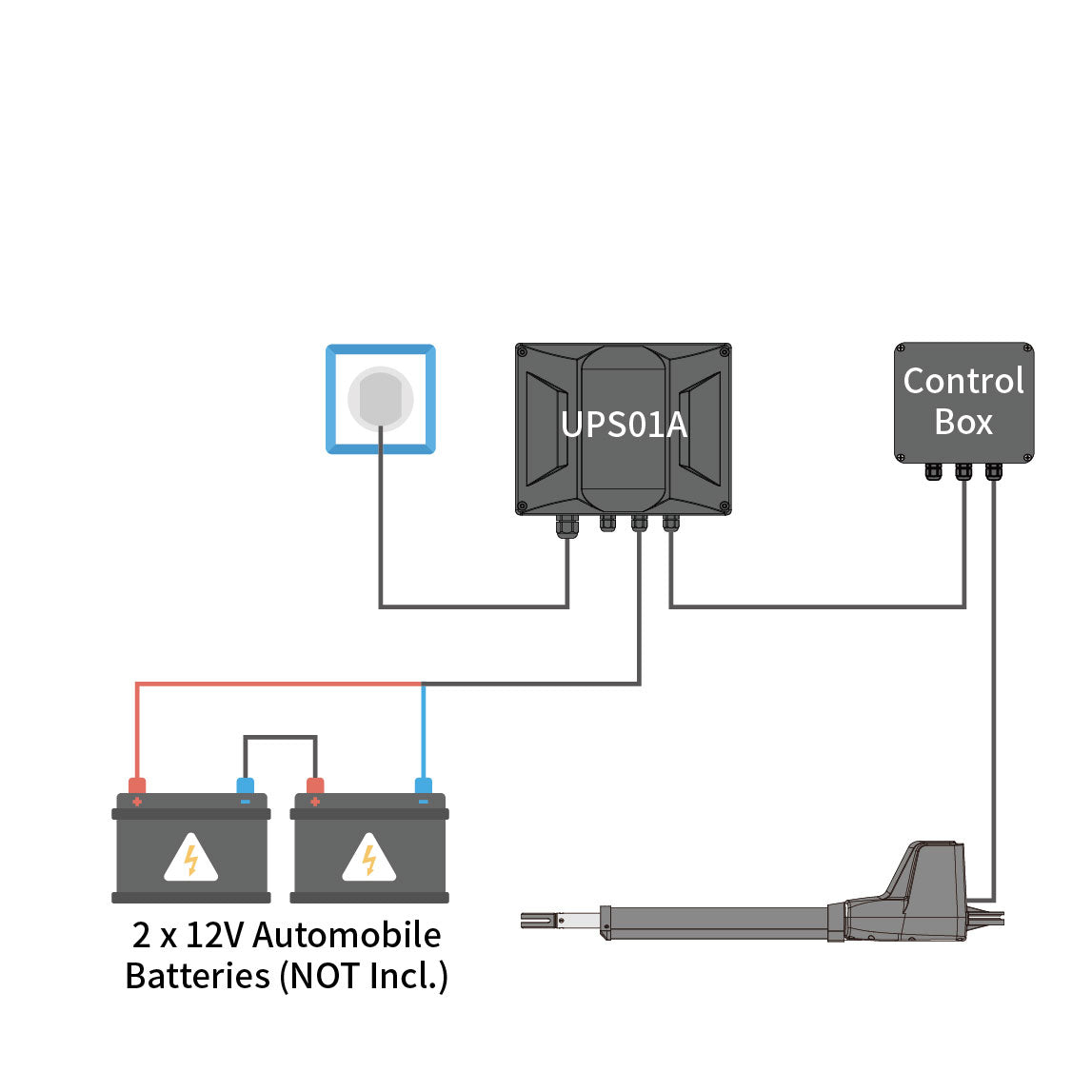

  • Multiple Power Solutions -Simply connect to household power, add batteries as a backup or pair with 24V solar panels as the primary power source for eco-friendly operation.
  • Customizable Gate Automation -Compatible with a wide range of TOPENS accessories, making it easy to tailor your gate system.
  • Enhanced Safety & Security -The gate reverses on the first obstruction and stops on the second for added safety. Auto-close ensures your property is always secured after use.
  • Wide Usage -Suitable for various types of swing gates made of steel, wood, vinyl, chain-link, or other styles. Perfect for residential, commercial, courtyard, farm, and ranch applications.
Motor Power: 80W
Warranty:12-Month Warranty
Checkout Securely with
American Express Diners Club Discover Maestro Mastercard PayPal Union Pay Visa
  • Product Model :AT12131 Gate Opener
  • Performance :Heavy Duty
  • Compatible Accessories :All the TOPENS Accessories
  • Motor Voltage :24VDC
  • Motor Power :80W
  • Rated Current :3A
  • Gate Opening / Closing Speed :0.6 in/s(16 mm/s)
  • Max. Arm Travel :15.2” (385mm)
  • Gate Opening / Closing Time : Approx. 15 seconds(ideal condition)
  • Type of Limit Switch :Electromagnetism Limit
  • Max. Opening Angle :68° - 112° depends on the installation mode
  • Remote Control Operation Range :65ft
  • Max. # of Remote Control Supported :8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver (sold separately)
  • Working Temperature :0°F to 120°F (-20℃~ +50℃)
  • Sound Level :< 50 dB
  • Protection Class :IP44 Waterproof

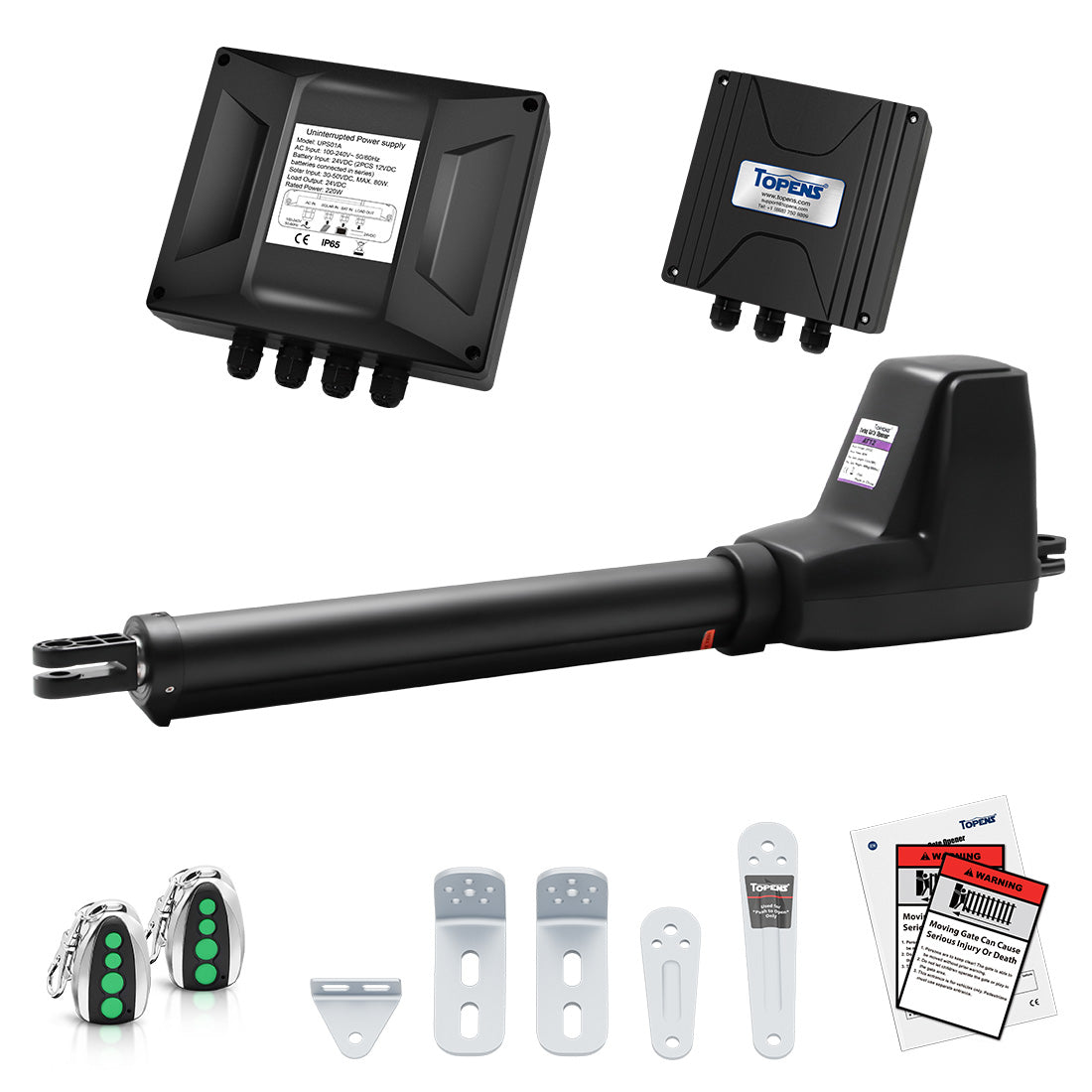

  • 1 x Gate Opener Arm, with a 5 feet 5-Conductor Cable
  • 1 x Waterproof Control Box
  • 1 x UPS01 Uninterrupted Power Supply (IP65 Waterproof)
  • 2 x M12 Remote Control Transmitter
  • 2 x Emergency Release Key
  • 1 x Pull-to-Open Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)
  • 1 x Push-to-Open Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)
  • 2 x Post Bracket
  • 1 x Gate Bracket
  • 1 x Full Set of Required Installation Hardware
  • 2 x Warning Sign
  • 1 x Installation Manual

Free shipping to the 48 states and Washington, D.C. in mainland USA, with 1-3 business days for processing and 3-6 business days for delivery.

Read full shipping policy HERE

TOPENS offers a 12-month limited warranty for gate openers and accessories purchased directly from our official website or Amazon stores.
Read full warranty policy HERE

24/7 customer support from installation to any questions you may have throughout the life of your product.

Contact us HERE or email us at support@topens.com

30-Day Hassle-Free Returns - Request a return within 30 days of delivery. Orders can also be canceled before shipping for a full refund.

Read full return and refund policy HERE

Customer Reviews

Based on 16 reviews
100%
(16)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jeff Kuhar (Pittsburgh, US)
Not installed yet

Waiting for better weather to install. Kinda rough with snow and 10 degree temps!

E
Evelyn Coello (Houston, US)

TOPENS AT12131 Heavy Duty Single Swing Gate Opener

D
Duvan Luong (Palo Alto, US)
totally pleased with this TOPENS AT12131 Single Swing Gate Opener kit

I was looking for a gate opener. Quotes from local contractors around $5000. This is too expensive for me.
A search on Google resulted in this TOPENS AT12131 Single Swing Gate Opener as the best overall gate opener. Further research help me to get more information so i decided to try this TOPENS AT12131 Single Swing Gate Opener kits.
The TOPENS AT12131 Single Swing Gate Opener kits came very quick, 3 days after ordered from AMAZON (order number 114-8038782-0265017).
As the price for this TOPENS AT12131 Single Swing Gate Opener only about 1/10 of the previously quotes. I was very skeptical at first. But as I followed the installation instructions. The job was completed very fast, w/o any difficulties. The opener has been working very well since installation about 2 weeks ago.
Communications/questions about the opener were replied very quick (2 thumbs up for NANCY).
Strongly recommended - for 1/10 of the cost - you can have a quality gate opener - what do you get to loose.

M
Matthew Cowley (Burnley, GB)

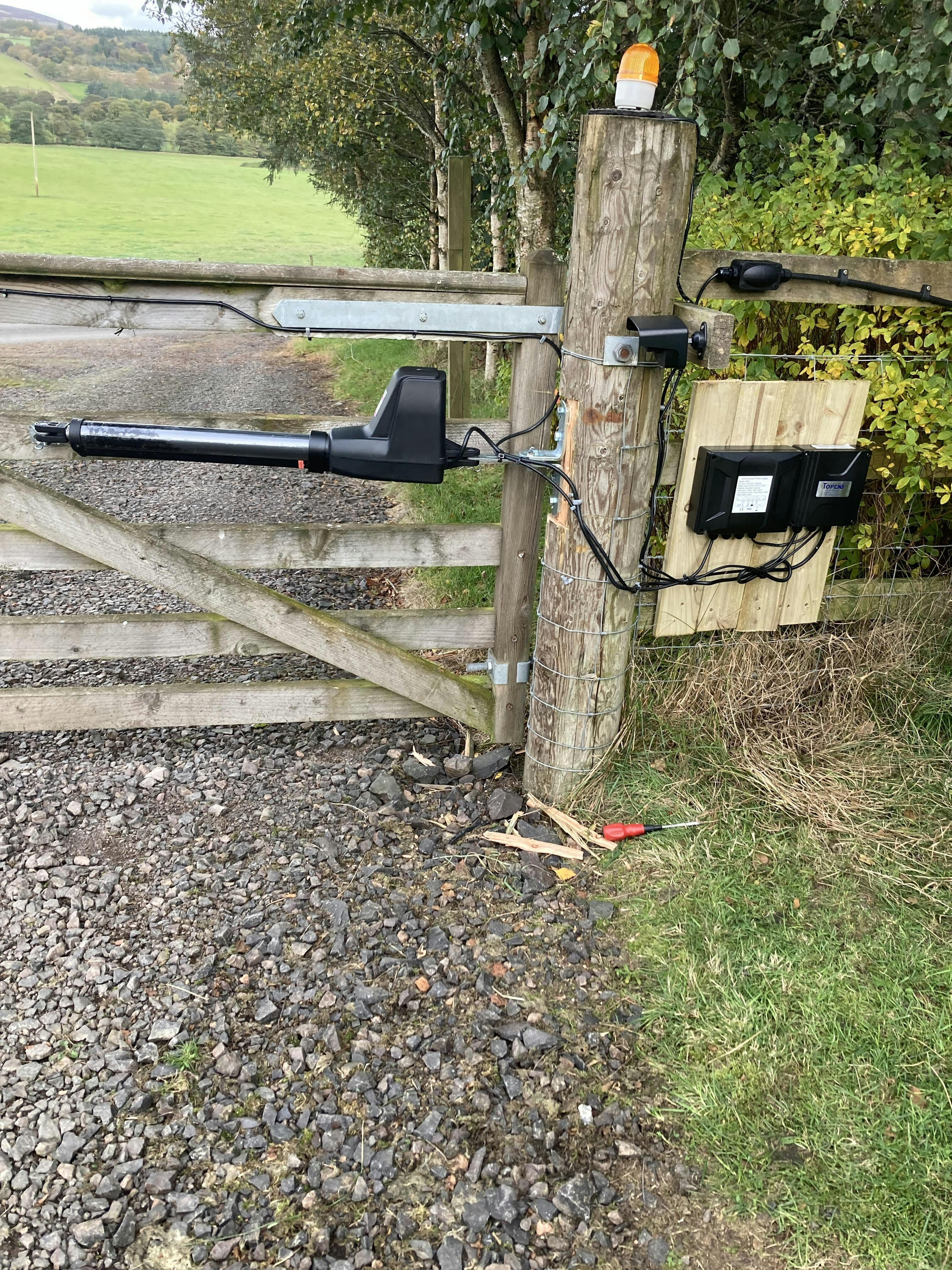

Electric gate opening kit

Brilliant bit of kit
Easy to install

Dear Matthew, thank you so much for your kind review. You really did a great job! We hope that our gate opener can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.

C
Chris Galley (Cirencester, GB)
Excellent customer service (and a great product)

I bought the gate opener with keypad and lock. It was straightforward to install and works well, very happy with the product. I had one issue and needed customer support who were very responsive (replies in under a day) and replaced a faulty part by return - would certainly buy from them again.

Dear Customer, thank you so much for your kind review. You really did a great job! We hope that our gate opener can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.

Extended Warranty

Comes with 12-month warranty basically. We also offer extended warranty plans: 2 years and 3 years options.
