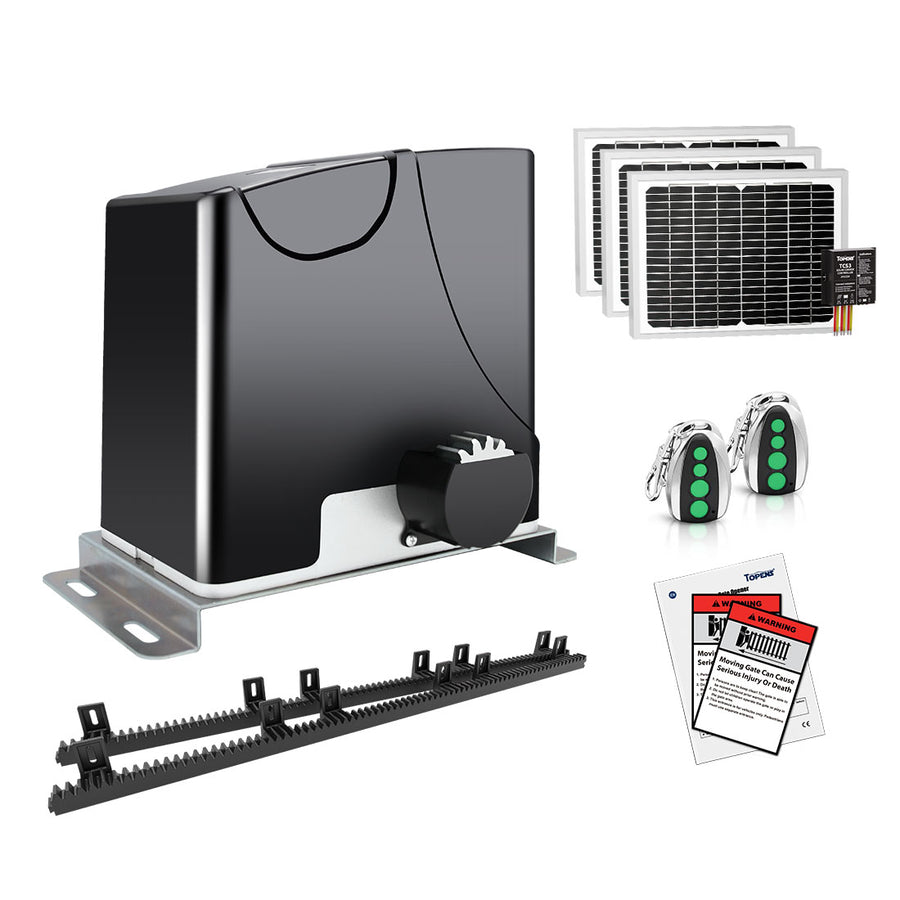

DK1000S Residential Slide Gate Opener Kit

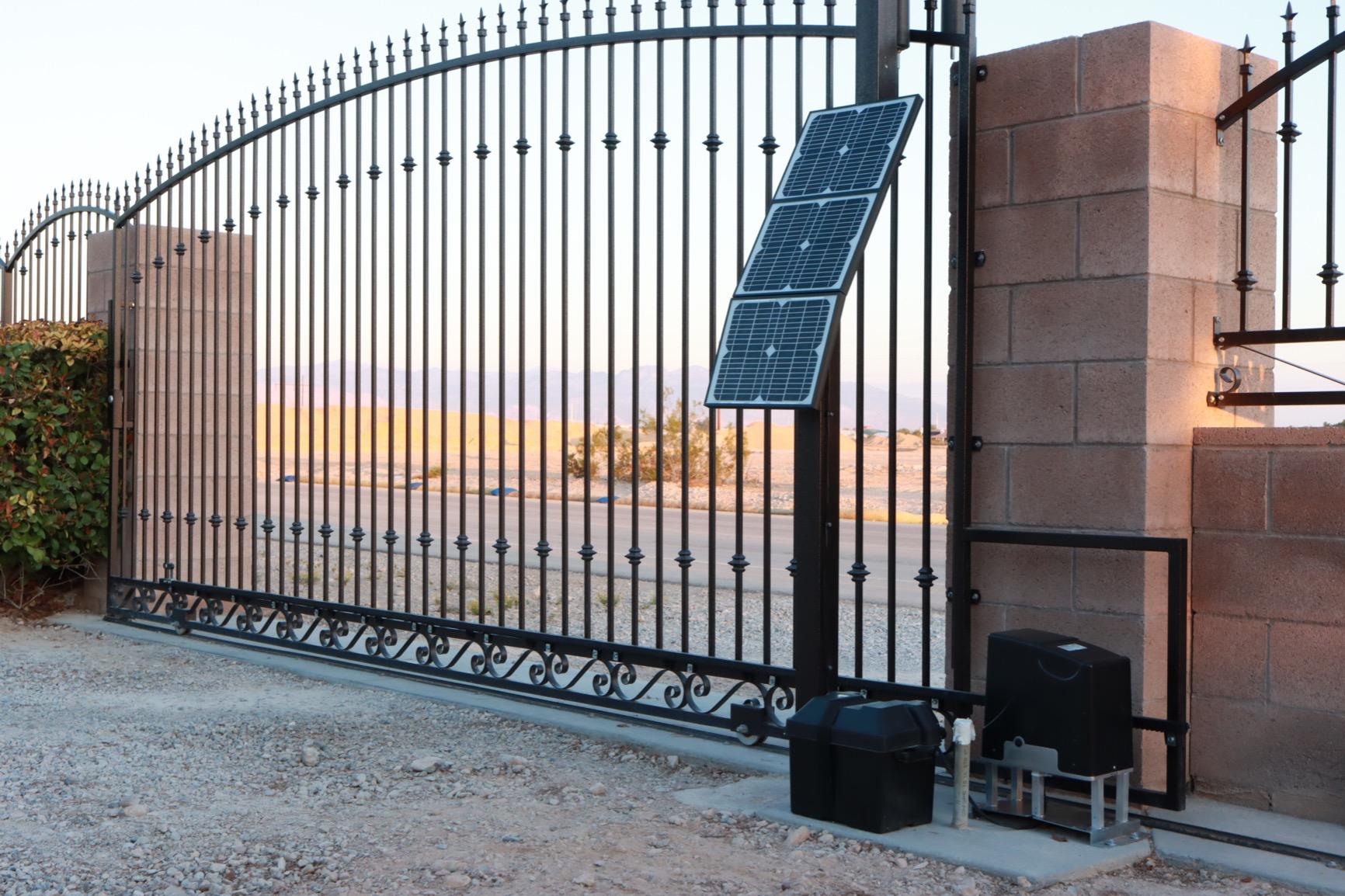

DK1000S Residential Slide Gate Opener on Gate

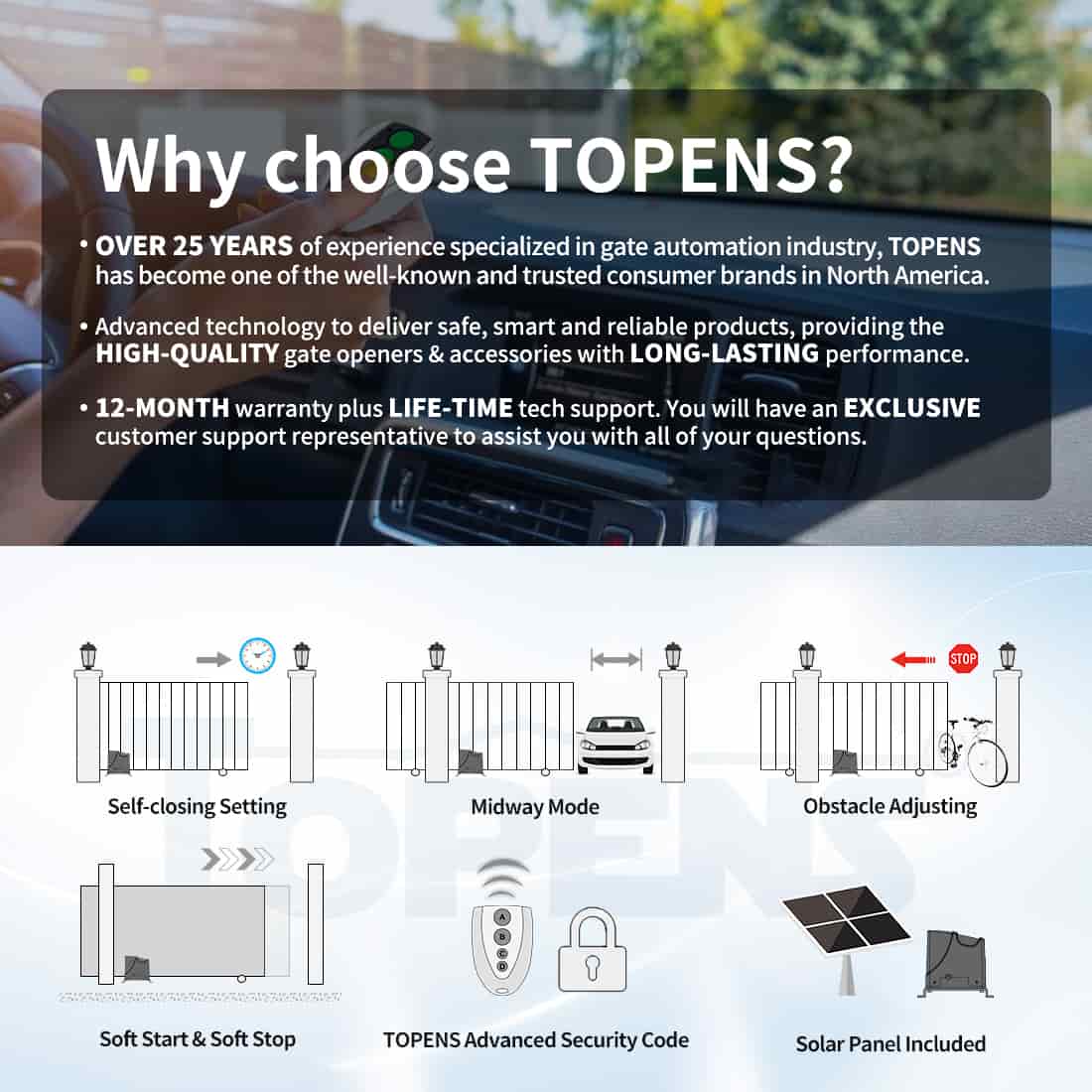

DK1000S Residential Slide Gate Opener Smart Features

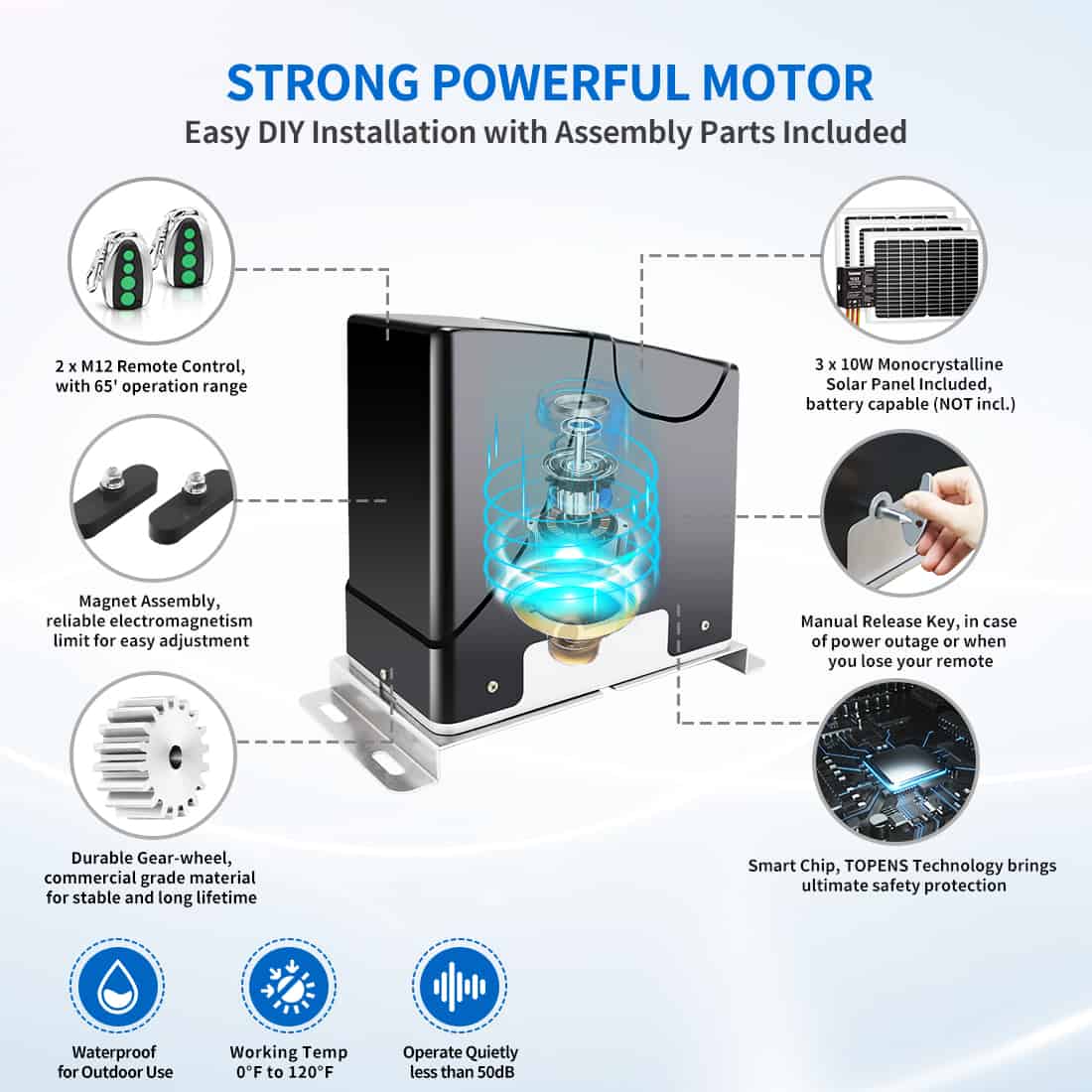

DK1000S Residential Slide Gate Opener with Strong Motor
DK1000S Slide Gate Opener Kit Power Modes

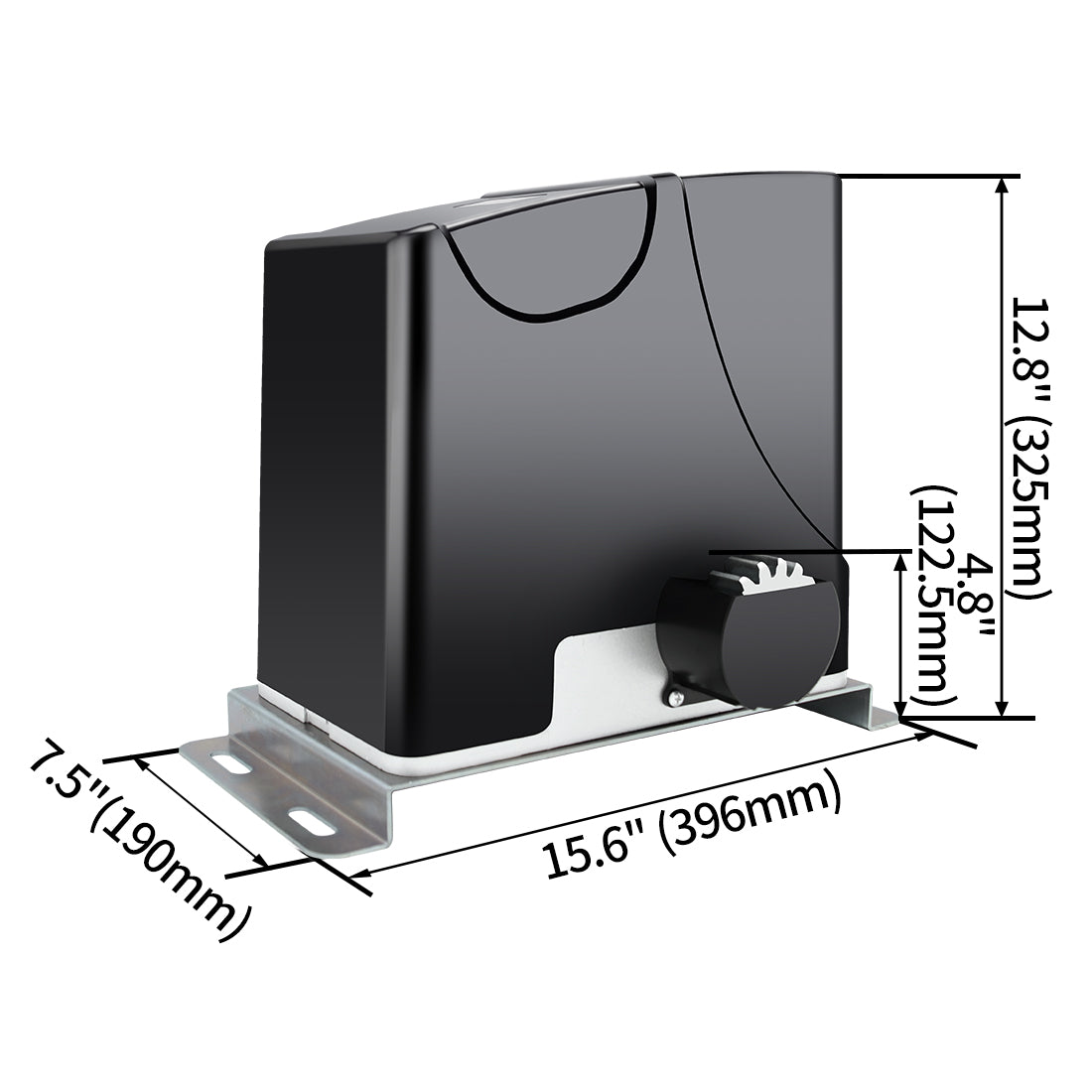

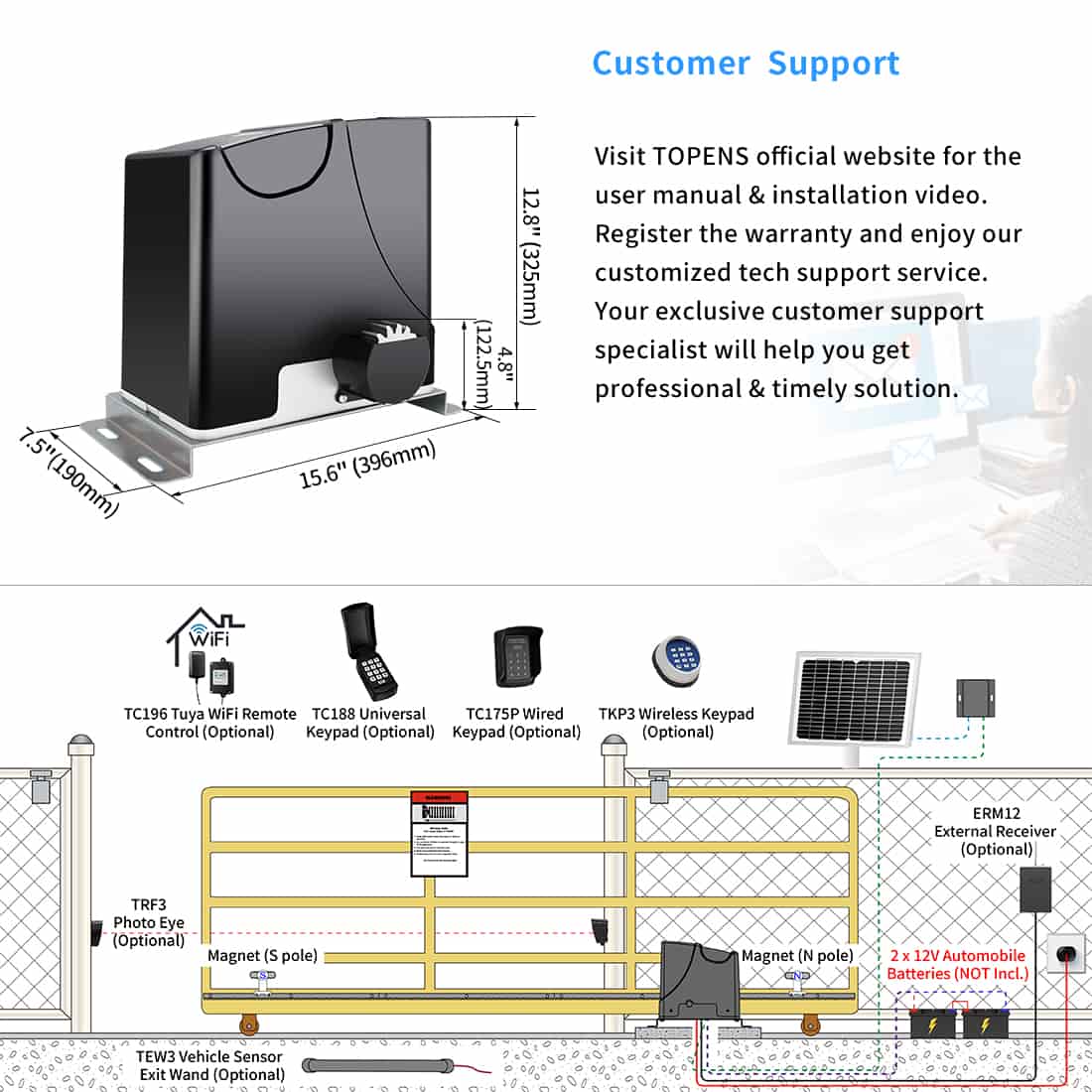

DK1000S Slide Gate Opener Kit Dimension and Installation Overview

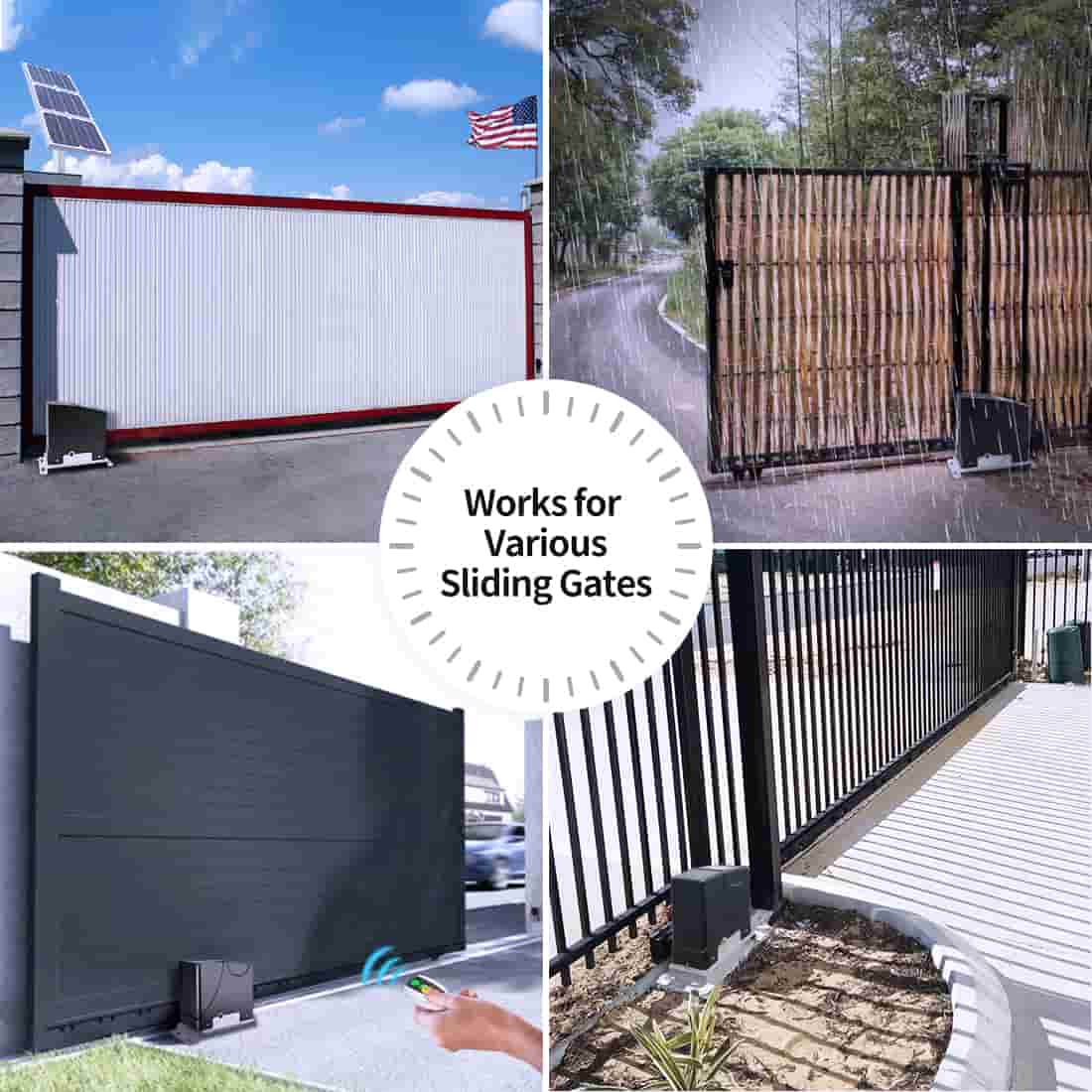

DK1000S Slide Gate Opener Kit for Various Sliding Gates

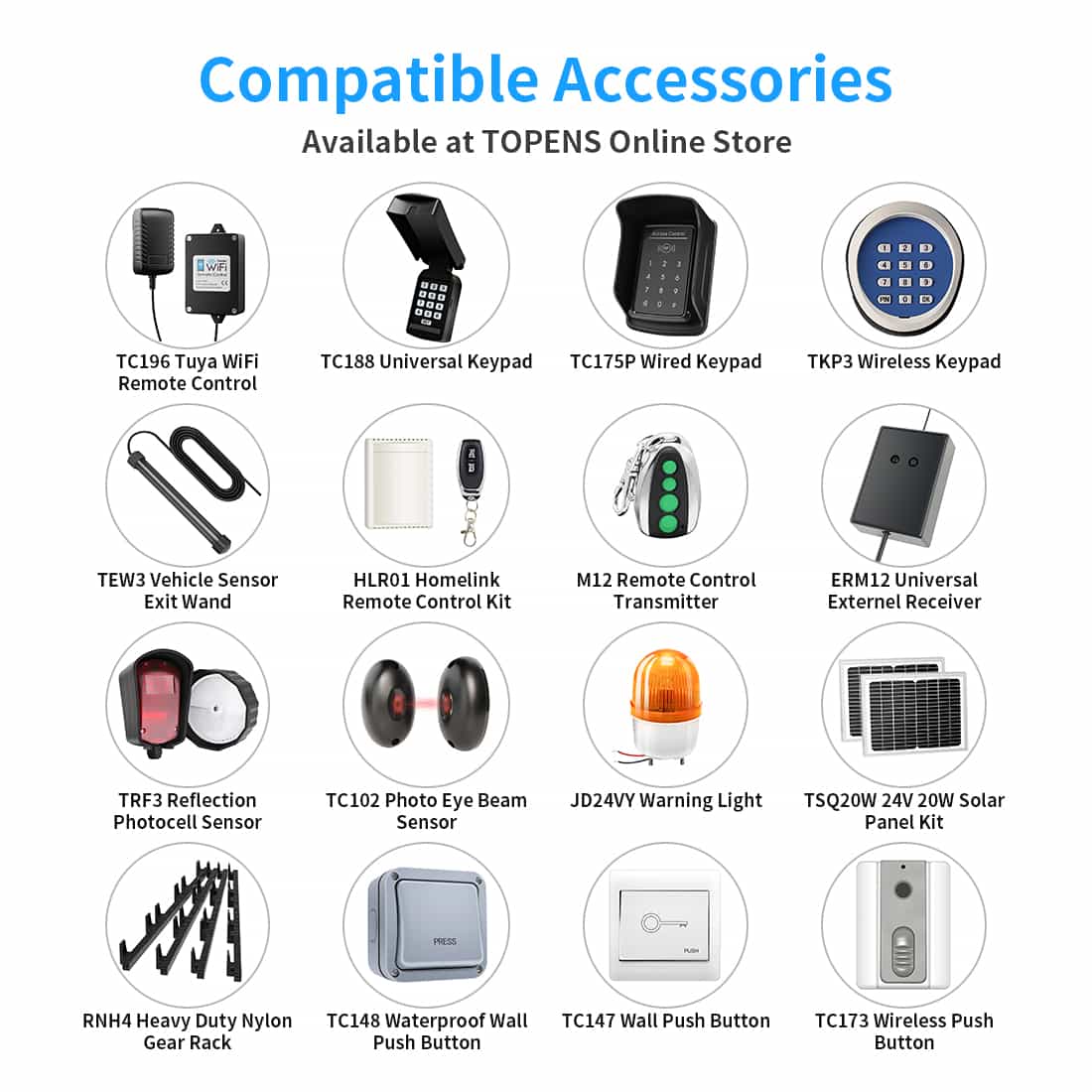

DK1000S Slide Gate Opener Compatible Accessories

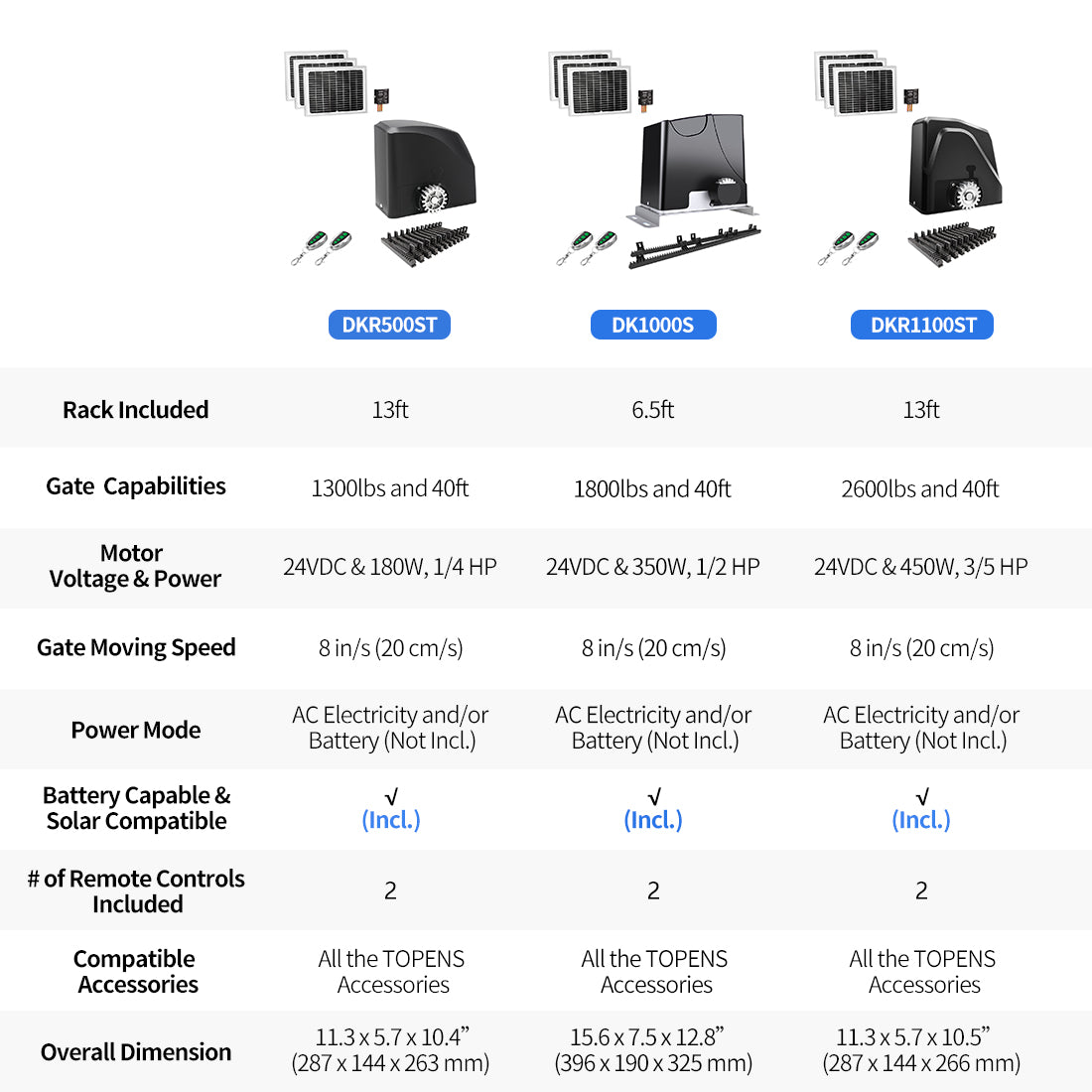

Slide Gate Opener Kit Product Compare
Rack Not Incl.350WMax 1800lbs./40ft. Solar Panel Incl.

TOPENS DK1000S Solar Sliding Gate Opener

Sale price$599.00 Regular price$699.00
Save $100.00

Tax included. Free Shipping.

  • 25+ Years of Expertise -Trusted leader in the automatic gate opener industry.
  • Lifetime Customer Support -24/7 technical assistance and step-by-step guides for easy installation.
  • Free Shipping -Enjoy fast, free delivery across the continental U.S.
  • Extended Warranty -Includes 1-year warranty, extendable up to 2 or 3 years.
  • Worry-Free Returns -30-day hassle-free return policy on all purchases.
  • Powerful Performance -Equipped with a STRONG 1/2 HP (350W) 24VDC motor, DK1000S solar gate opener smoothly drives the heavy-duty sliding gate up to max 1800lbs. in weight and max 40ft. in length.
  • Multiple Power Solutions -Power the system with solar panel and battery wherever, whenever there is sunlight. It can also be connected to household power for added flexibility.
  • Quick & Secure -Unique midway mode enables partial gate opening for fast pass-through, while the auto-close function keeps your property safe after every use.
  • Customizable Gate Automation -Compatible with a wide range of TOPENS accessories, making it easy to tailor your gate system.
  • Wide Usage -Suitable for various types of sliding gates made of steel, wood, vinyl, chain-link, or other styles. Perfect for residential, commercial, courtyard, farm, and ranch applications.
Warranty:12-Month Warranty
Checkout Securely with
American Express Diners Club Discover Maestro Mastercard PayPal Union Pay Visa
  • Product Model :DK1000S Gate Opener
  • Performance :Heavy Duty
  • Compatible Accessories :All the TOPENS Accessories
  • Motor Voltage :24VDC
  • Motor Power :1/2 HP (350W)
  • Drive Mode :Rack (NOT included)
  • Power Mode :Battery and/or 110-120VAC electricity
  • Battery and Solar Compatible :Compatible and 30W solar panels included
  • Max. Gate Weight & Length :1800lbs. and 40ft.
  • Gate Opening / Closing Speed :8 in/s (20 cm/s)
  • Gate Opening / Closing Time :Approx. 20-60 seconds depends on the gate length
  • Type of Limit Switch :Electromagnetism Limit
  • Remote Control Operation Range :65ft (20m)
  • Max. # of Remote Control Supported :8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver (sold separately)
  • Working Temperature :0°F to 120°F (-20℃~ +50℃)
  • Sound Level :< 50 dB
  • Protection Class :IP44 Waterproof
  • 1 x Gate Opener
  • 3 x 10W 24V Solar Panel
  • 1 x Solar Charge Controller
  • 2 x M12 Remote Control Transmitter
  • 2 x Emergency Release Key
  • 1 x 5ft. 3-Conductor Power Supply Cord
  • 1 x Base Plate
  • 1 x Full Set of Required Installation Hardware
  • 1 x Magnet Assembly (N pole & S pole)
  • 2 x Warning Sign
  • 1 x Installation Manual

Free shipping to the 48 states and Washington, D.C. in mainland USA, with 1-3 business days for processing and 3-6 business days for delivery.

Read full shipping policy HERE

TOPENS offers a 12-month limited warranty for gate openers and accessories purchased directly from our official website or Amazon stores.
Read full warranty policy HERE

24/7 customer support from installation to any questions you may have throughout the life of your product.

Contact us HERE or email us at support@topens.com

30-Day Hassle-Free Returns - Request a return within 30 days of delivery. Orders can also be canceled before shipping for a full refund.

Read full return and refund policy HERE

BUNDLE SALE - BUY MORE SAVE MORE - 8% OFF Bundle any gate opener with at least 3 Accessories

Frequently Bought Together

Total price:
Save 0

Topens - GUARD YOUR HAPPY FAMILY

25+ Years' Experience in Gate Automation Industry

Extended Warranty

Comes with 1-year warranty, extendable to 2-3 years.

Extended Warranty

Comes with 1-year warranty, extendable to 2-3 years.

Lifetime Customer Support

Our support team delivers professional, custom solutions.

Free Shipping

Free shipping in continental U.S.: 3-6 work days.

30-Day Worry-Free Return

Give TOPENS a try with 30-day worry-free return.

Features

Easy DIY Installation-Get started quickly with our step-by-step, easy-to-follow guide.

Easy DIY Installation

Get started quickly with our step-by-step, easy-to-follow guide.

Easy DIY Installation-Get started quickly with our step-by-step, easy-to-follow guide.

Easy DIY Installation

Get started quickly with our step-by-step, easy-to-follow guide.

Smart Control Board-Easily customize your gate's operation to fit your exact needs.

Smart Control Board

Easily customize your gate's operation to fit your exact needs.

Reliable and Quiet-Built to last with a powerful yet quiet motor for daily use.

Reliable and Quiet

Built to last with a powerful yet quiet motor for daily use.

Wide Applications-The ideal solution for homes, courtyards, farms, and large estates.

Wide Applications

The ideal solution for homes, courtyards, farms, and large estates.

open sliding gate using remote in the car
  • Off-Grid Capable
    Comes with 30W solar panel charging kit, simply add batteries to create a self-sustaining power source. Perfect for locations without power lines.
  • Advanced TOPENS Code Technology
    Our system utilizes advanced rolling code technology, preventing code grabbing and ensuring maximum security against unwanted entry.
  • Electromagnetic Limit System
    The electromagnetic limit switch halts the gate at your preset open and close positions, ensuring consistent and automated gate operation every time.
  • Dual Open Direction Design
    The gate opener can be easily set on the control board to work with your gate, whether it opens to the left or right.
car drives through the sliding gate
  • Auto-Reverse & Stop
    Stops or reverses the gate upon contact with an obstruction during opening and closing cycles  to prevent damage and ensure safety.
  • Adjustable Obstruction Sensitivity
    Obstruction stall force can be adjusted depending on the gate's weight to ensure the gate reaches both the open and close limits without unnecessary reversing or frequent interruptions.
  • Soft Start and Soft Stop
    The design protects the motor from jolts and stress, ensuring quieter performance and extending the lifespan of your entire gate system.
  • Manual Release for Emergencies
    The dedicated manual release key is included to quickly and safely disengage the motor, ensuring gate access during a power outage or if the remote control is lost.

Installation

  • Power Drill
  • Tape Measure
  • Open End Wrenches - 14# & 17# or Adjustable Wrenches
  • Wire Strippers
  • Level
  • Phillips Screwdriver
  • Slotted Screwdriver

Check the Gate

  • Ensure that the gate is plumb, level, and slides smoothly in both directions without binding or dragging on the ground.
  • Confirm that the gate track is straight, horizontal, and firmly affixed, with positive stops installed at each end.
  • Make sure the gate wheels and guide rollers rotate freely and are clean of dirt or grime.
  • Ensure that the fence posts are securely set in concrete.
  • Repair or replace any worn or damaged hardware before installation.

Items Not Included but May Needed

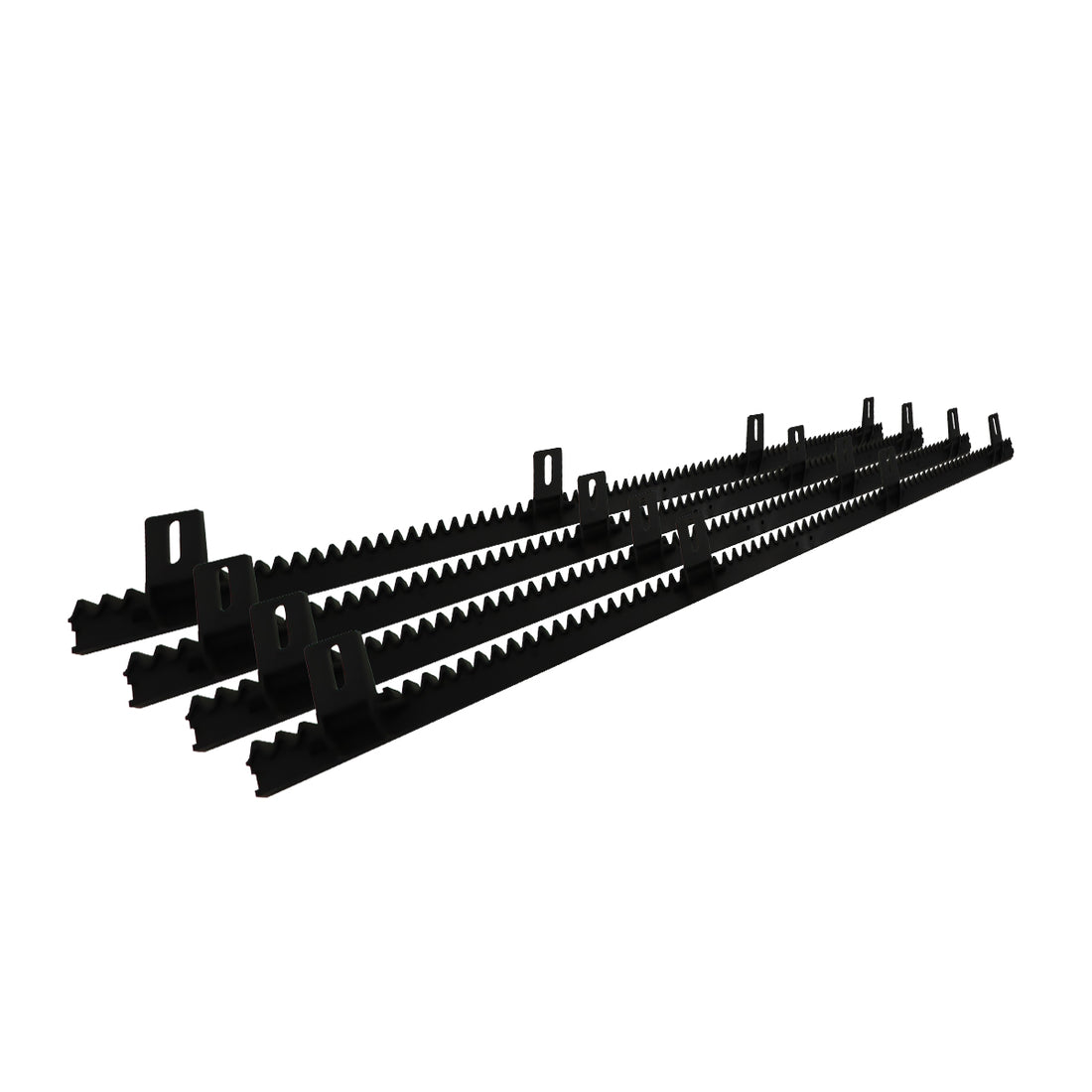

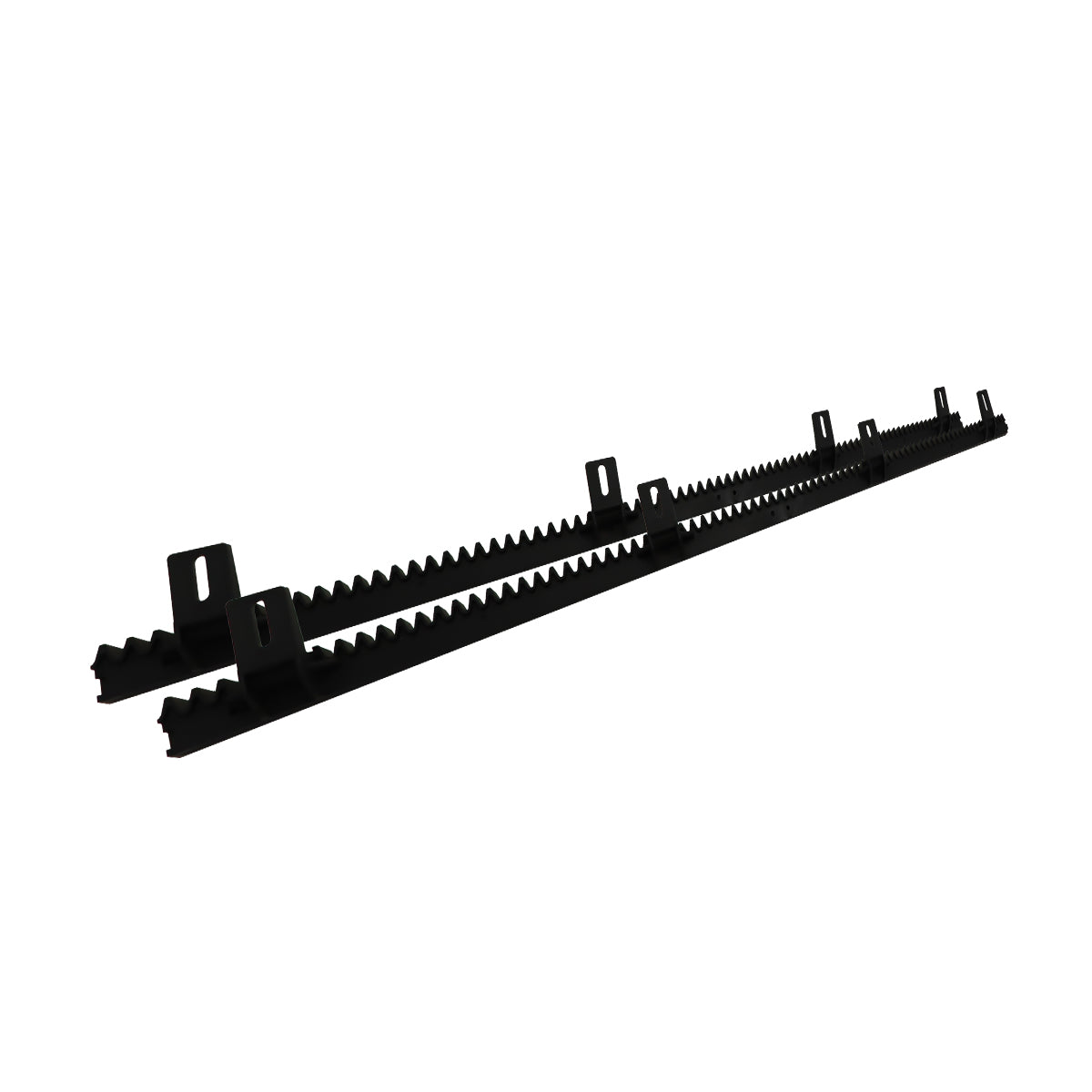

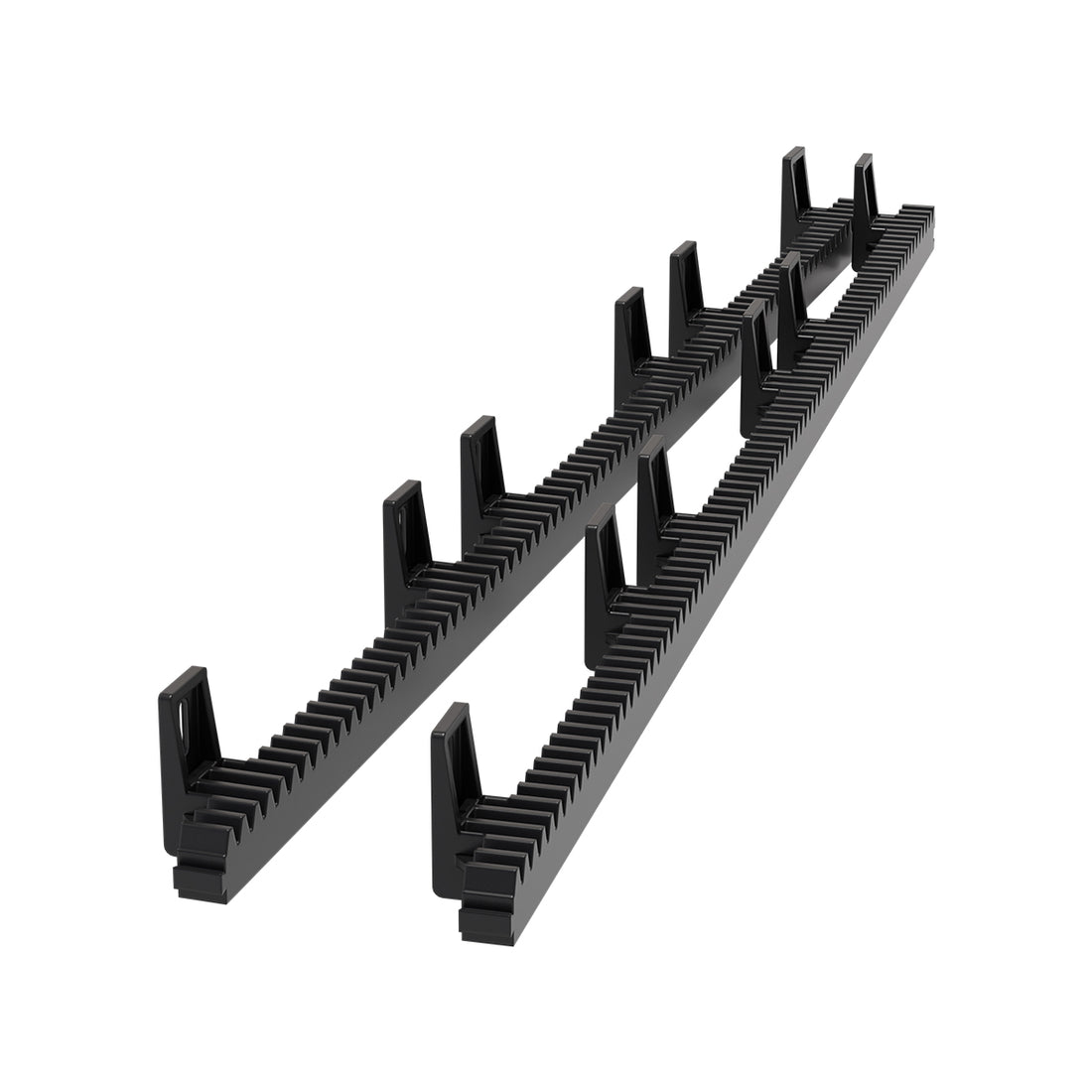

  • Gear Rack: The gear rack is required but NOT included.
  • 24V Battery: Required for solar-powered operation.
  • Connection Cable: May be needed for wired accessory installation.
  • Surge Protector: Use a 5A surge protector with the power cord for safety.
  • Photocell Sensor: Adds a critical safety layer by detecting obstructions.

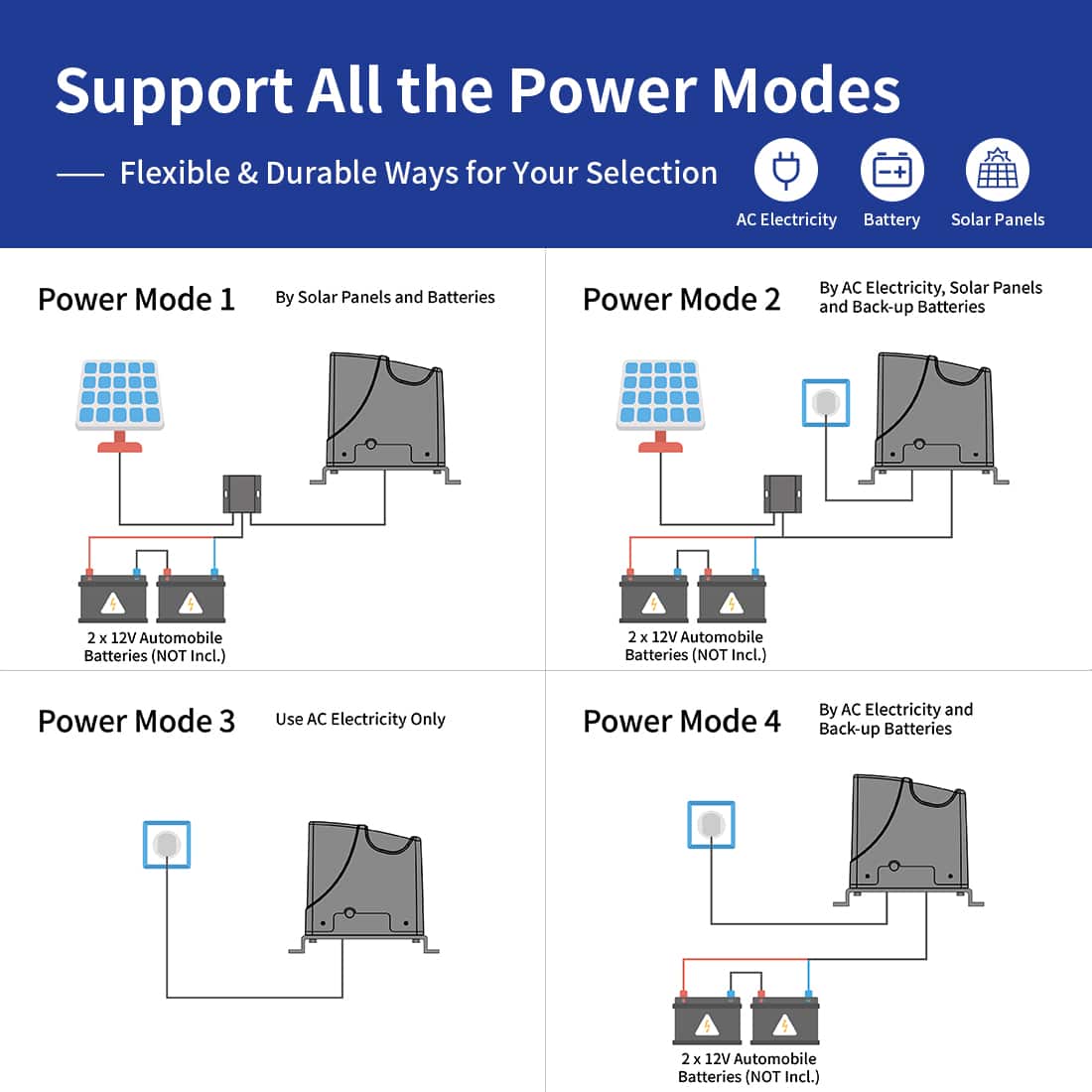

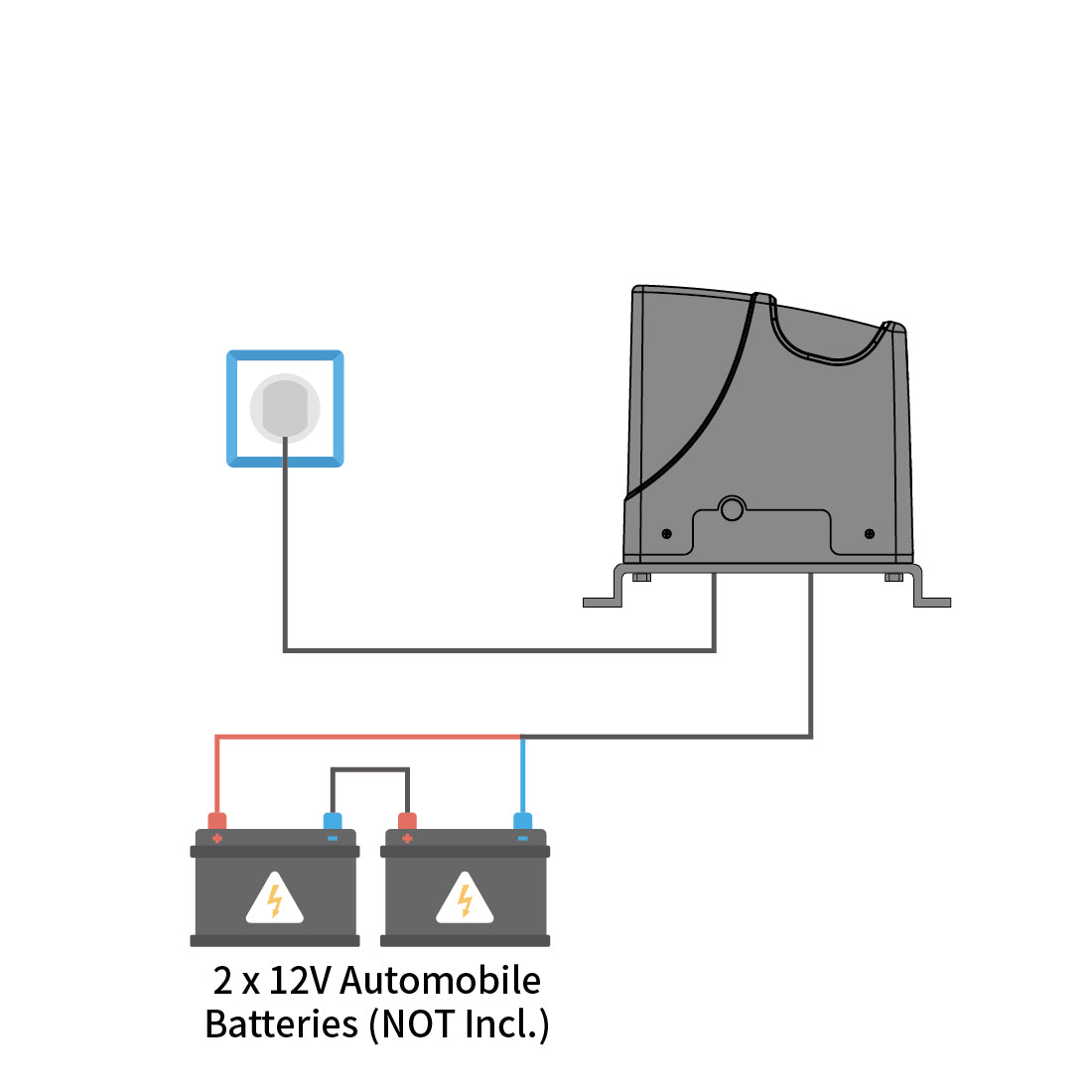

Flexible Power Modes

Product Comparison

Complete Your Gate System

TC188 Universal Wireless Gate Opener Keypad
TC188 Universal Wireless Gate Opener Keypad
Sale price$79.00
TC148 Waterproof Push Button Switch for Gate Opener
TEW3 Driveway Vehicle Sensor
TRF3 Retro Reflective Beam Sensor for Gate Opener
Explore TOPENS accessories
11 / 3

Customer Reviews

Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
A
Anthony Guam (Hagåtña, GU)
Fabulous Gate Opener for my home in Guam!

I ordered this gate opener and had it drop shipped to Guam since they would not ship it directly to me. I hired a contractor to installed the rails, gate opener and solar array. I'm extremely happy with the results and highly recommend the Topens gate opener. Works like a charm!

T
Tim Hamilton (Palm Springs, US)
Great Gate

I installed the gate with the rest directions. Programming is minimal and very straight forward.

I bought marine batteries, a little conduit, and a decent battery box, but the rest was provided.

After a few weeks it stopped working and I had an overcharge light on the controller. I live in the desert, so maybe too much sun?

Tech support was responsive and nice. I took my meter out and they had me measure voltages and confirm wiring was right. I still had the warning.

I drained the batteries a bit and reinstalled them, all worked great, for a bit. But the error returned. Tech support sent over tons of articles on things to check, which was overwhelming, given that some was for undercharging.

I decided to just bite the bullet and run power to the unit. All the information that was being sent buried me and wasn’t always relevant to my issue. That’s a nice thing about this motor, it’s versatile on its power sources.

I’ve since bought extra accessories and am connecting the batteries I bought as backup power.

Given the gate company wanted $4000 to install a motor, and I did it for less that $900, I’m very happy.

Since I put the unit on AC, it’s working great. I definitely recommend this motor.

J
J.T. (Lucerne Valley, US)
Fantastic customer service

Customer support is top notch! Motor is strong. I will be returning for future purchases.

Dear Jenn, thank you so much for your kind review. You really did a great job! We hope that our gate opener can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.

J
John Brashear
Awesome Item and Customer Service

I purchased a solar gate opener in 2022 and the unit has worked as promised and Zack (Customer Service) has been awesome to deal with!

Dear John, thank you so much for your kind review. You and Zach really did a great job! We hope that our gate opener can bring great convenience to your life. As we are a growing brand, your positive review will encourage us to go further and become better. Customer satisfaction is our top priority and all our products enjoy life-time tech support. If you have any questions, please feel free to contact us. All your concerns will be answered within 24 hours.
