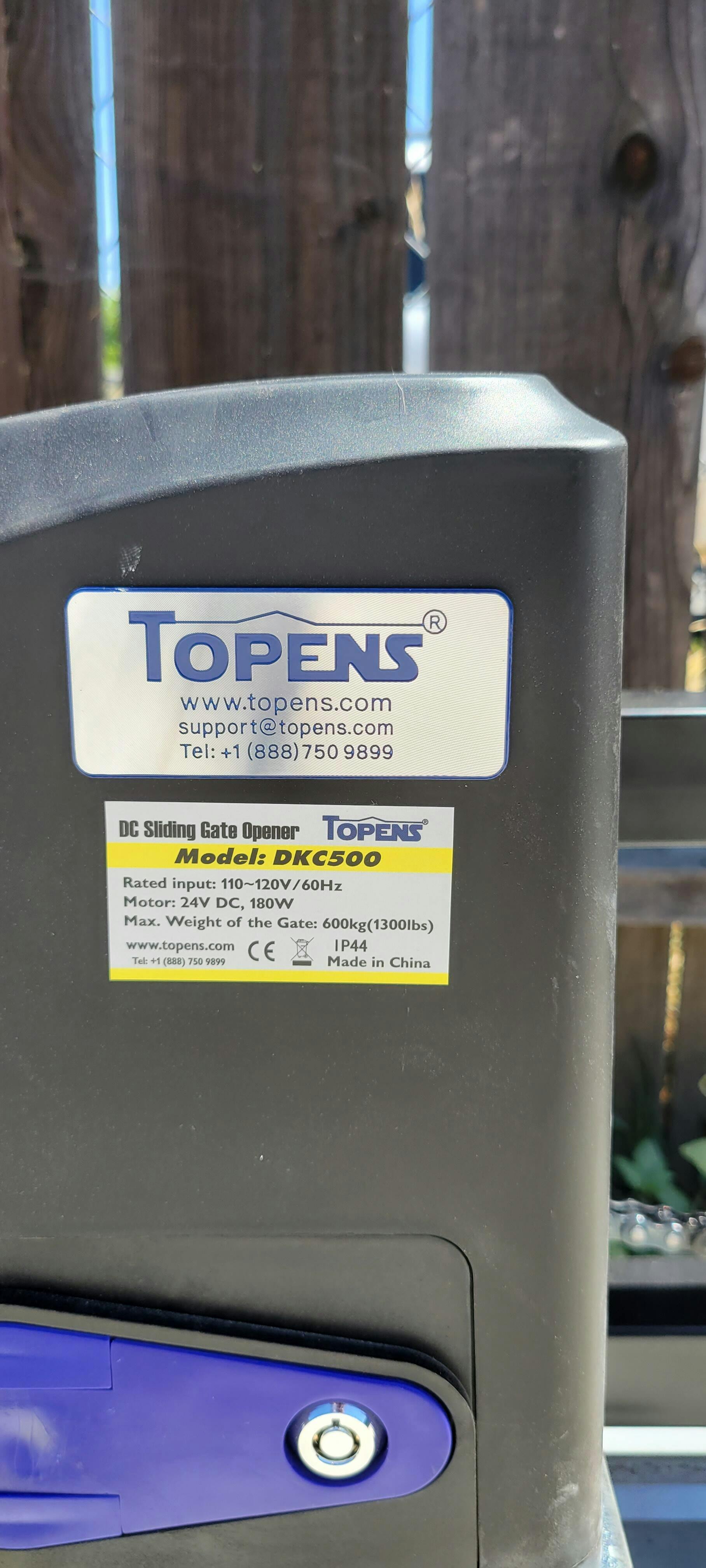

DKC500S Solar Sliding Gate Opener - Chain Drive for 1300lbs. Gate

Left Open Setting

The gate is allowed to open toward left  from the view inside of property.

Right Open Setting

The gate is allowed to open toward right from the view inside of property.

Auto Close Timer

This function allows you to automatically close your gate after a certain time.

Midway Mode

Our unique feature “midway mode” allows the gate to open only a few feet for the coming vehicles.

Obstruction Sensing

Stops in case of obstruction during gate opening, and reverses in case of obstruction during gate closing.

Warning Light

The warning light flashes when the gate is moving, improving gate safety.
（Sold separately)

Photo Eye Beam Sensor

The beam sensor will make the gate stop or reverse when sensing obstruction.
（Sold separately)

Soft Start and Soft Stop

Soft start and soft stop greatly protect the motor for long-term use.

Gate Opening Time & Speed

The gate moving speed is 8 in/s (20 cm/s). The gate opening / closing time is approx. 20-60 seconds depends on the gate length.

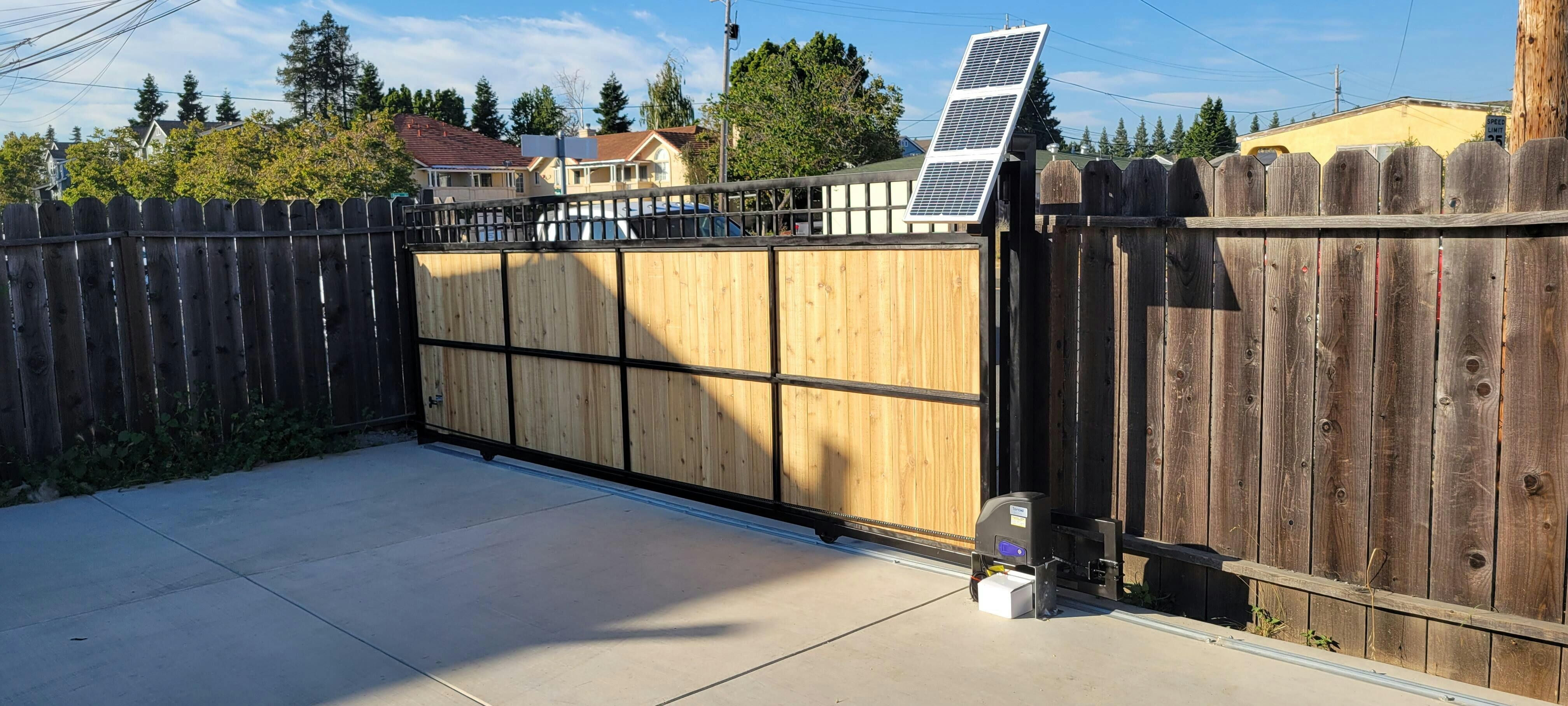

Power Mode 1 (Recommended Mode) – By Solar Panels and Batteries

● Recommended in remote location such as farm, ranch, pasture, etc.
● Batteries as main power source, use only solar panel & solar charge controller to charge the batteries

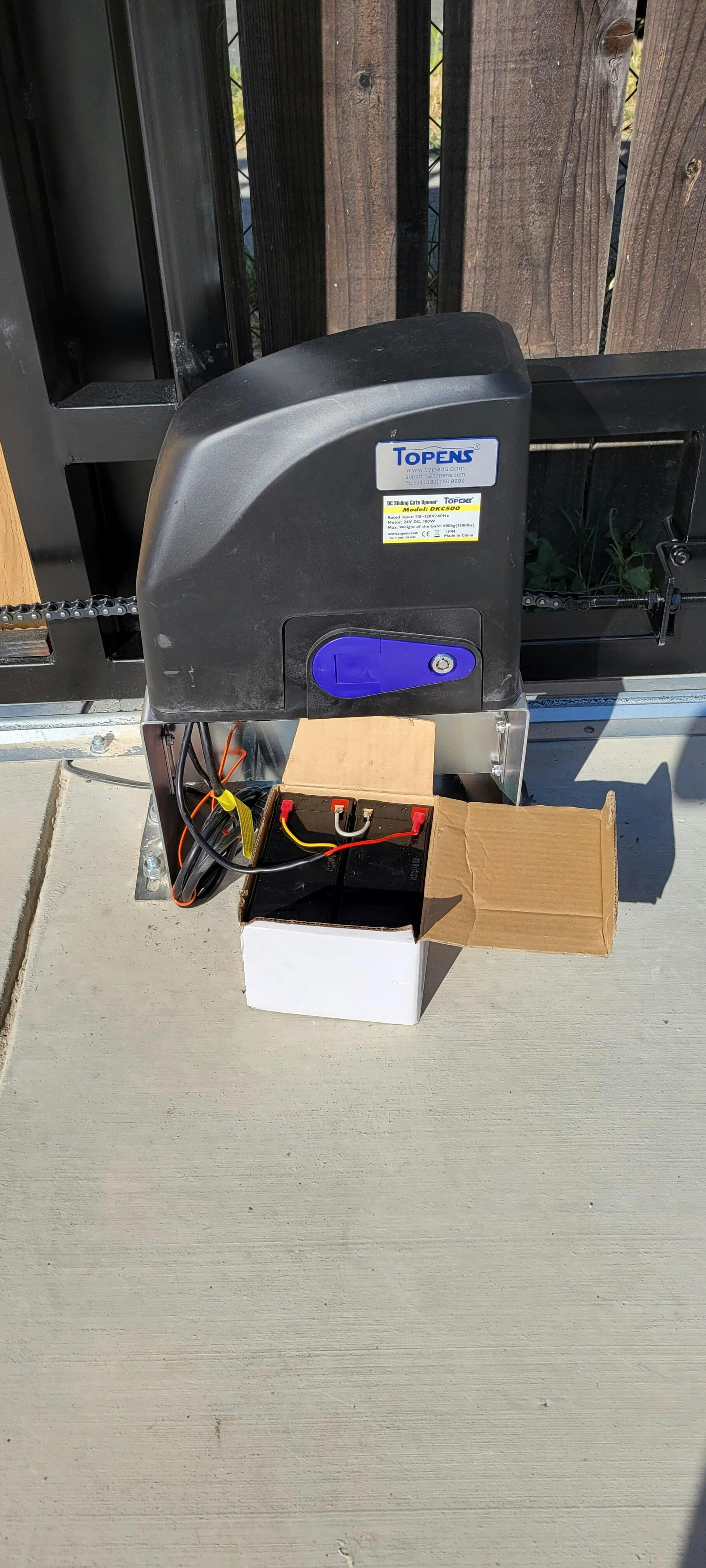

 ● Requires additional 24V 12Ah Automotive / Marine type battery (Battery is NOT included).
● 2 pcs 12V batteries connected in series for 24V.

Power Mode 2 – By AC Electricity, Solar Panels and Back-up Batteries

● Recommended where AC electricity is accessible, but not stable.
● By 110-120VAC electricity and back-up batteries, use the AC electricity, solar panel & solar charge controller together to charge the batteries.
● The power supply cord should be at least 3C × 18AWG (3 × 0.75 mm2).
● Connect the live wire, neutral wire and earth wire to the “L”, “N” and “PE” terminal respectively.

Power Mode 3 – Use AC Electricity Only

● Recommended where AC electricity is accessible and stable.
● Use only the 110-120VAC electricity to power the system.
● Use the manual release and open the gate by hand in case of power outage.

Power Mode 4 – By AC Electricity and Back-up Batteries

● Recommended where AC electricity is accessible, but not stable.
● Use the 110-120VAC electricity and the back-up batteries to power the system.

1 x Gate Opener, 1 x Base Plate

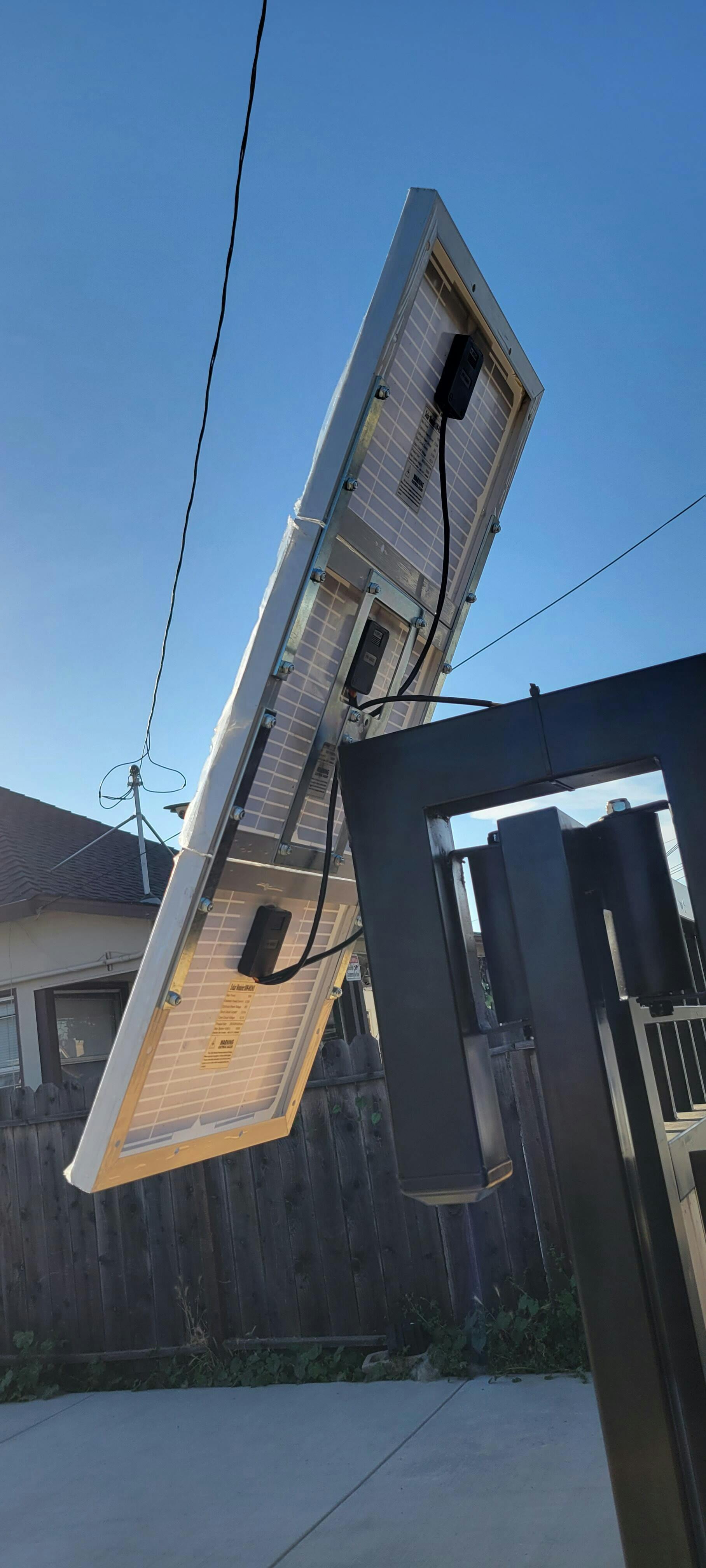

3 x 10W 24V Solar Panel

1 x Solar Controller

1 x 20 ft. Roller Chain

2 x M12 Remote Control Transmitter

2 x Emergency Release Key

1 x Magnet Assembly (N pole & S pole)

1 x Full Set of Required Installation Hardware

TC186-R WiFi Smartphone Remote Control with Camera

Monitors the gate status, and controls the gate opener with your cellphone

M12 Remote Control

Up to 8 remotes can be programmed to the gate opener directly

ERM12 External Receiver

Allows up to 250 remotes to be programed with the gate opener

TC188 Universal Keypad

Open the gate with a user defined password, use this keypad wirelessly, or wire it to the gate opener according to your needs

TC175P Wired Keypad

Open the gate with a user defined password / ID card

TKP3 Wireless Keypad

Open the gate with a user defined password

TEW3 Vehicle Sensor Exit Wand

Opens the gate automatically when senses an approaching car

HLR01 Homelink Remote Control Kit

Links the gate opener with your car's HomeLink system

TC148 Waterproof Wall Push Button

Open and close the gate simply by pressing the wired button, fully waterproof

TC147 Wall Push Button

Open and close the gate simply by pressing the wired button, not waterproof

TC173 Wireless Push Button

Open and close the gate simply by pressing the wireless button

TRF3 Reflection Photocell Sensor

Prevents the gate from closing when obstructed, adds security with simple wire connection

TC102 Photo Eye Beam Sensor

Prevents the gate from closing when obstructed, adds security

JD24VY 24VDC Warning Light

Flashing when the gate is moving, improving your gate safety

TSQ20W 24V 20W Solar Panel Kit

Converts your gate opener to solar, including 2 x 10W solar panels

TSP30W 30W Solar Panel Charging Kit

Converts your gate opener to solar, including 3 x 10W solar panels and a solar charge controller

TCS3 Solar Charge Controller

Intelligent management of charging, provides protections for batteries

LT08B 20 Feet Roller Chain

Extension 20 feet roller chain for the chain drive sliding gate opener
