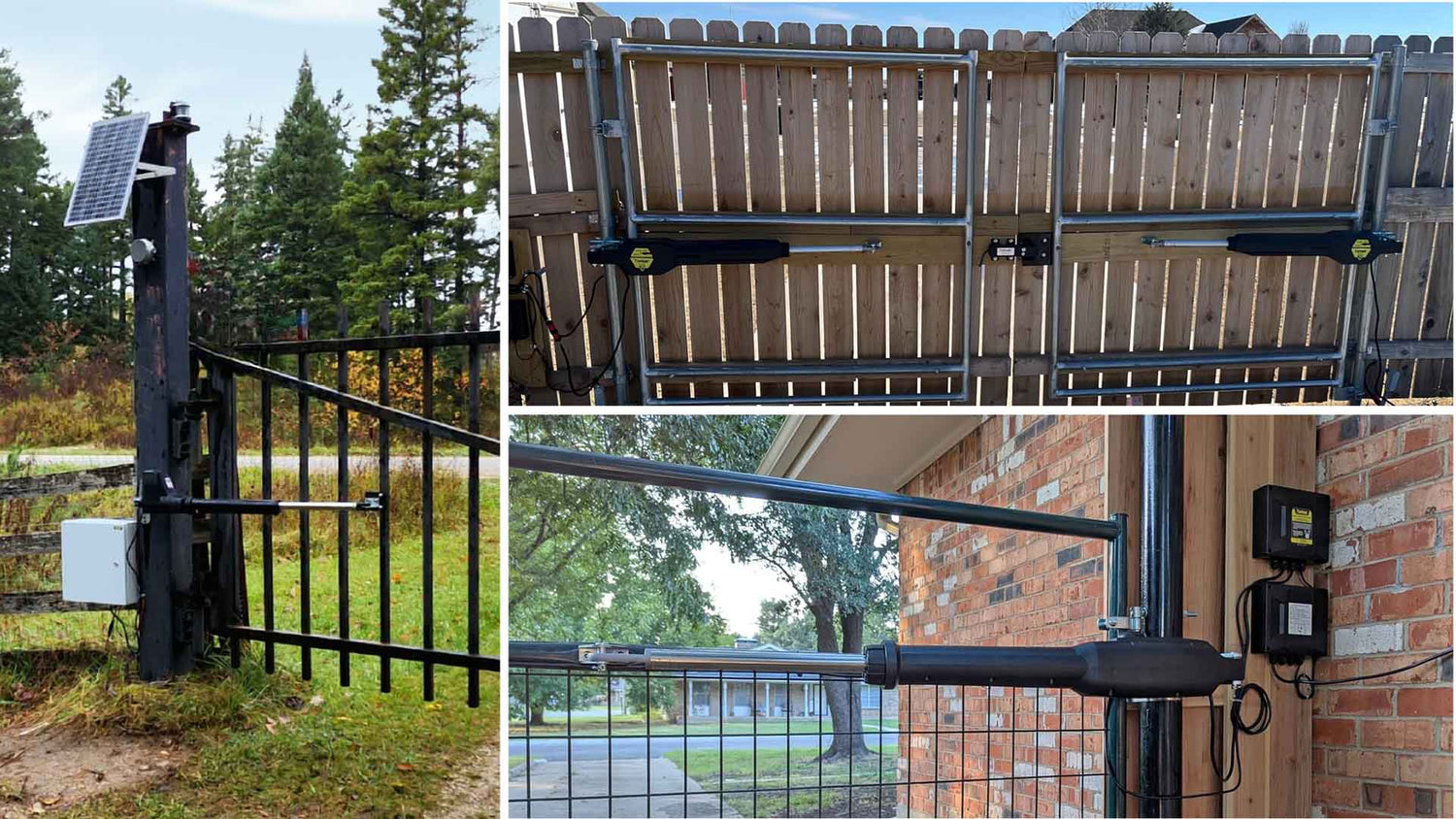

TOPENS offers a comprehensive range of automatic swing gate openers designed to accommodate various gate sizes, installation environments, and power requirements. While these models share many similarities, they differ in key features. This guide compares power options, motor arms, control boards, opening angles, and smart capabilities to help you choose the most suitable system for your installation.
1. Default Power Supply Options
TOPENS swing gate openers support flexible power solutions, including AC power, battery, and solar power (depending on the model).
Models ending with “S” include a solar kit.
A. AC-Powered Models (Solar / Battery Optional)
A5131 / A8131 / AT6131 / AT12131 / XD551 / XD851 / A5132 / A8132 / JY9132 / XD552 / XD852
- Include UPS01(A) uninterrupted power supply
- Operate directly on AC power
- Support a 24V battery as the main or backup power source
- Compatible with solar panels (not included)
- UPS01(A) charges the battery and regulates solar charging current
Best for: Properties with stable AC power that may require battery backup or future solar integration.
PW302 / PW502 / PW802
- Powered by 100–240VAC using the included DPS180-U power supply
- Optional 24V battery and solar panel (not included) are supported
Important: The DPS180-U cannot be connected directly to batteries or solar panels. If battery charging or solar support is required, replace the DPS180-U with the UPS01(A) adapter, which provides both battery charging and solar regulation.
Best for: Installations using AC power only.
AT602 / AT1202 / KD702
- Direct AC-powered systems with built-in transformers
- Optional 24V battery and solar panel (not included) for backup power
Best for: Sites with reliable grid power and minimal need for solar integration.
B. AC + Solar Power Systems
AT6131S / AT12131S / XD551S / XD851S / AT6132S / AT12132S / XD552S / XD852S
- Include UPS01(A) and solar panels
- 20W panels: AT6131S, AT12131S, AT6132S, AT12132S
- 30W panels: XD551S, XD851S, XD552S, XD852S
- A 24V battery (not included) can serve as the main power source
- Solar panels charge the battery
- The system can also operate directly on AC power
Best for: Locations with strong sunlight or limited AC access.
A3S / A5S / A8S / AD5S / AD8S
- Include TS24-U adapter, TCS3 solar charge controller, and 20W solar panels
- A 24V battery (not included) is required as the main power source
- The battery can be charged by solar panels and / or the adapter
- AC power cannot operate the system directly
Optional: If stable AC power is available, an optional UPS01(A) power supply can be installed to enable direct AC operation.
Note: The TS24-U adapter only charges the battery through the control board and cannot power the system directly.
Best for: Off-grid or fully solar-powered installations.
2. Motor Arms & Gate Capacity
Motor power determines the maximum supported gate length and weight (per gate).
| Arm Type | Motor Power | Models | Performance |
Gate Capacity (Per Gate) |
| A3 Arm | 30W | A3S / PW302 / KD702 | Light Duty | Max. 12 ft / 100 lbs or 4 ft / 300 lbs |
| A5 Arm | 50W | A5131 / A5S / A5132 / PW502 / AD5S | Medium Duty | Max. 16 ft / 100 lbs or 4 ft / 550 lbs |
| A8 Arm | 80W | A8131 / A8(S) / A8132 / PW802 / AD8S | Heavy Duty | Max. 18 ft / 250 lbs or 4 ft / 880 lbs |
| AT6 Arm | 50W | AT6131(S) / AT6132S / AT602 | Medium Duty | Max. 18 ft / 100 lbs or 4 ft / 660 lbs |
| AT12 Arm | 80W | AT12131(S) / AT12132S / AT1202 | Heavy Duty | Max. 18 ft / 250 lbs or 4 ft / 880 lbs |
| XD5 Arm | 50W | XD551(S) / XD552(S) | Medium Duty | Max. 18 ft / 110 lbs or 4 ft / 660 lbs |
| XD8 Arm | 80W | XD851(S) / XD852(S) | Heavy Duty | Max. 18 ft / 220 lbs or 4 ft / 880 lbs |
| JY9 Arm | 100W | JY9132 | Super Heavy Duty | Max. 20 ft / 220 lbs or 5 ft / 1300 lbs |
(Swing Rating of XD852 Smart Gate Opener)
Note: The maximum gate weight decreases as gate length increases. For example, the XD852 can support a gate weighing up to 880 lbs for a 4 ft length, or up to 220 lbs for an 18 ft length. Refer to the user manual for complete specifications.
Key Differences:
- “A” series - Compact design, ideal for tight post spacing
- “AT” series - Different exterior design with similar performance
- “XD” series and JY9132 - Upgraded models
- Higher wattage motors support larger and heavier gates
Choosing the appropriate motor ensures smooth operation and longer service life.
3. Control Board Types
Energy-Saving Control Board
A5131 / A8131 / AT6131(S) /AT12131(S) / XD551(S) / XD851(S) / A3S / A5S / A8(S) / A5132 / A8132 / AT6132S / AT12132S / JY9132 / XD552(S) / XD852(S) / PW302 / PW502 / PW802 / AD5S / AD8S
- Low standby power consumption
- Stable and efficient performance
- Ideal for solar- or battery-powered systems
Standard Control Board
AT602 / AT1202 / KD702
- Include digital display
- Slightly higher power consumption
4. Maximum Opening Angle
The maximum opening angle depends on installation configurations and bracket positioning.
| Series | Opening Angle |
| “A” series | 68° - 120° |
| “AT” series | 68° - 112° |
| “XD” series | 65° - 113° |
| JY9132 | 69° - 120° |
Proper installation plays a key role in achieving the maximum opening range.
5. Smart Features
Standard Models
A5131 / A8131 / AT6131(S) / AT12131(S) / A3S / A5S / A8(S) / A5132 / A8132 / AT6132S / AT12132S / JY9132 / PW302 / PW502 / PW802 / AD5S / AD8S / AT602 / AT1202 / KD702
- Include handheld remote controls
- Simple and reliable operation
- No built-in Wi-Fi or app control
Optional: The TC196 WiFi remote control can be added for smartphone operation.
Ideal for: Users who prefer simple and reliable remote control.
Smart Models
XD551(S) / XD851(S) / XD552(S) / XD852(S)
- Control and monitor the gate through the TOPENS app
- Remote access sharing for family or visitors
- Scheduled opening and closing
- Compatible with Amazon Alexa and Google Assistant
- Voice control supported
Best for: Users seeking remote access, scheduling, and smart home integration.
6. Recommendation Guide
| Models | Power Type | Smart Control | Best For |
| A3S / A5S / A8S / AD5S / AD8S | Solar Only | Supported by TC196 (NOT Incl.) | Off-grid locations without AC power (farms, rural properties, remote driveways) |
| PW302 / PW502 / PW802 | AC | Supported by TC196 (NOT Incl.) | Locations with stable AC power |
| A5131 / A8131 / AT6131 / AT12131 / A5132 / A8132 / JY9132 / AT602 / AT1202 / KD702 | AC | Supported by TC196 (NOT Incl.) | Areas with stable or occasionally unstable AC power |
| AT6131S / AT12131S / AT6132S / AT12132S | AC+Solar | Supported by TC196 (NOT Incl.) | Remote or semi-remote locations with limited AC but strong sunlight |
| XD551 / XD851 / XD552 / XD852 | AC | Supported | Smart homes with AC accessible |
| XD551S / XD851S / XD552S / XD852S | AC+Solar | Supported | Smart homes in remote areas, or locations with limited AC power |
By understanding the similarities and differences among the models, you can select the TOPENS swing gate opener that best matches your specific needs. Choosing the right system ensures reliable performance, easier installation, and smooth operation for years to come.
