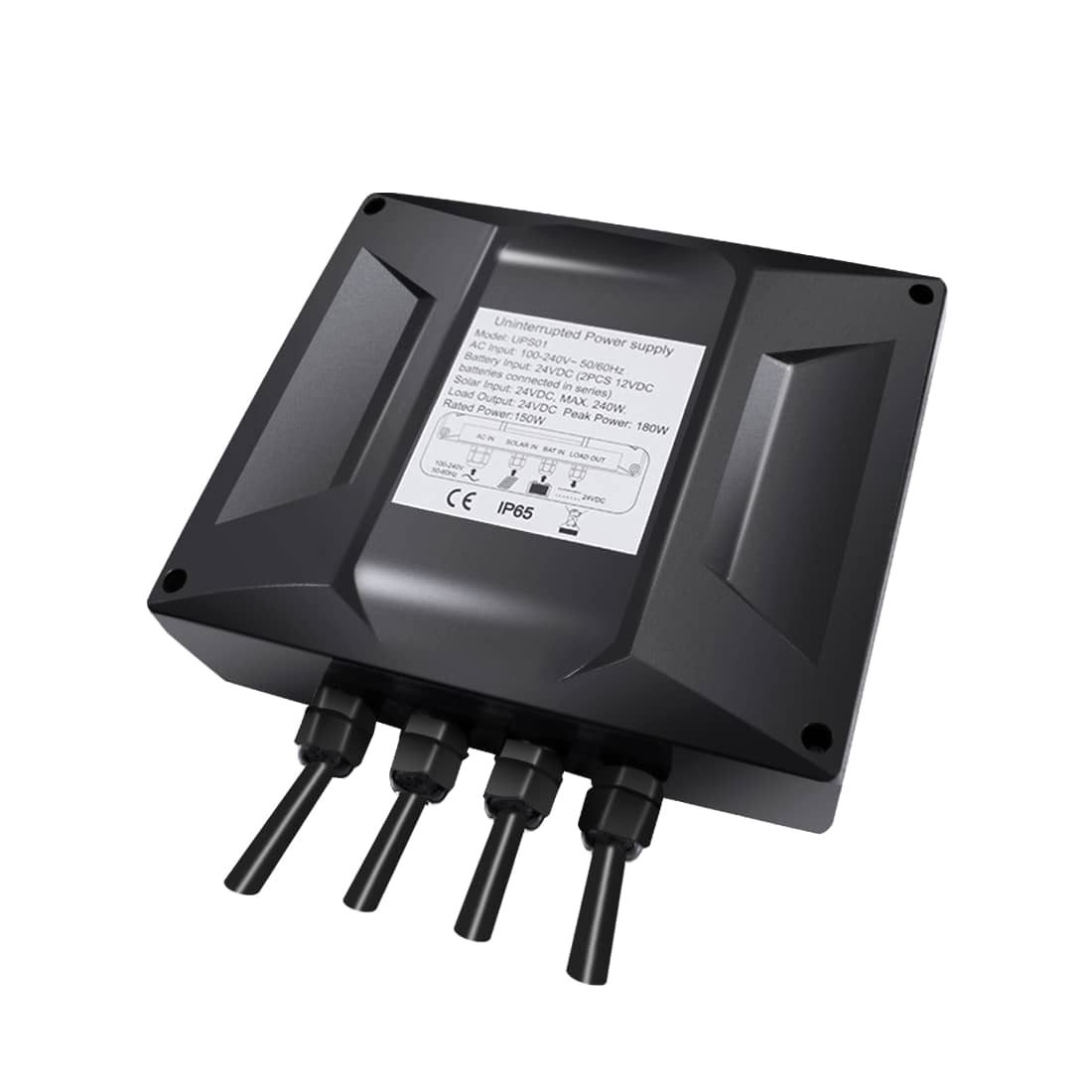

UPS01 100-240VAC to 24VDC Power Supply Transformer

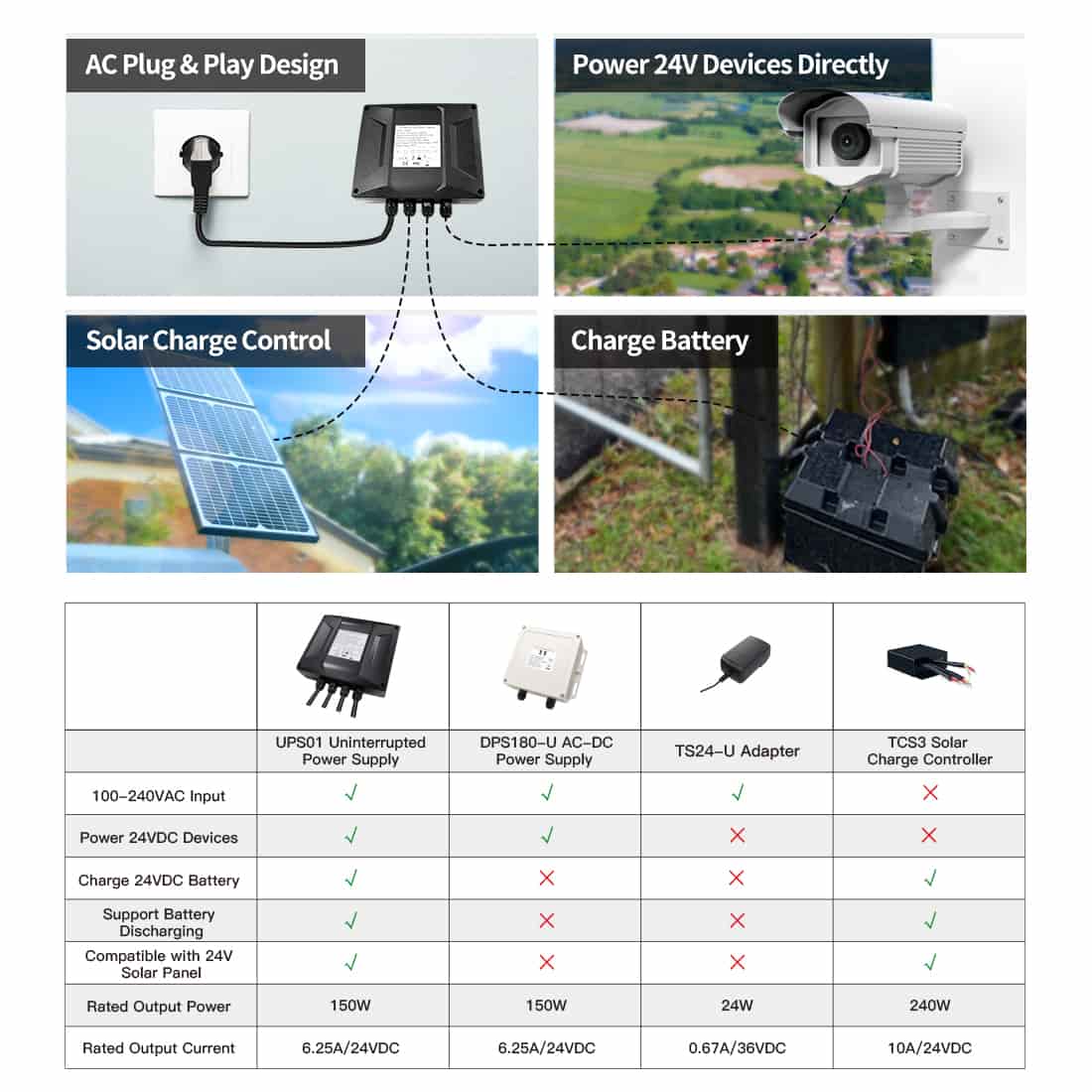

• New Generation Switching Power Supply -The UPS01 Uninterrupted Power Supply efficiently converts 100-240VAC to 24VDC, reducing electromagnetic interference to ensure stable voltage output. This converter provides 150W continuous output power and 180W of peak power. High quality control panel with wide range of input voltage, the UPS01 adapter is used in commercial, industrial and household appliances, popular among worldwide users.

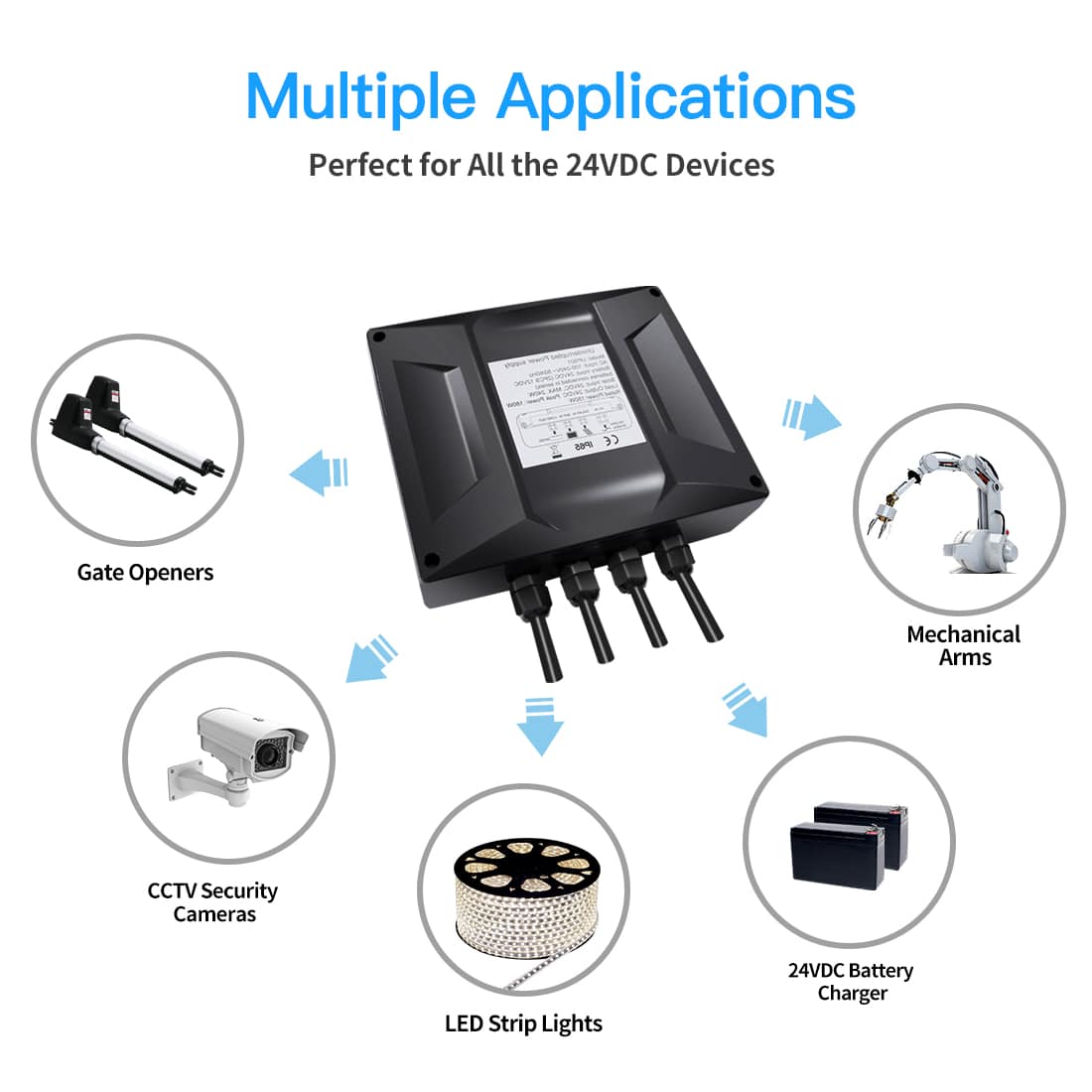

• Multiple Applications -The UPS01 power supply can directly power all the 24VDC devices, such as gate openers, CCTV security cameras, LED strip lights, mechanical arms, door access control system and other DIY tools. Moreover, this adapter is ideal for charging the 24VDC battery, and this battery will power the system directly when AC power is cut. Marine / automotive type battery or lead acid / GEL / AGM / flooded (deep cycle battery) batteries are supported, EXCEPT for lithium-ion battery.

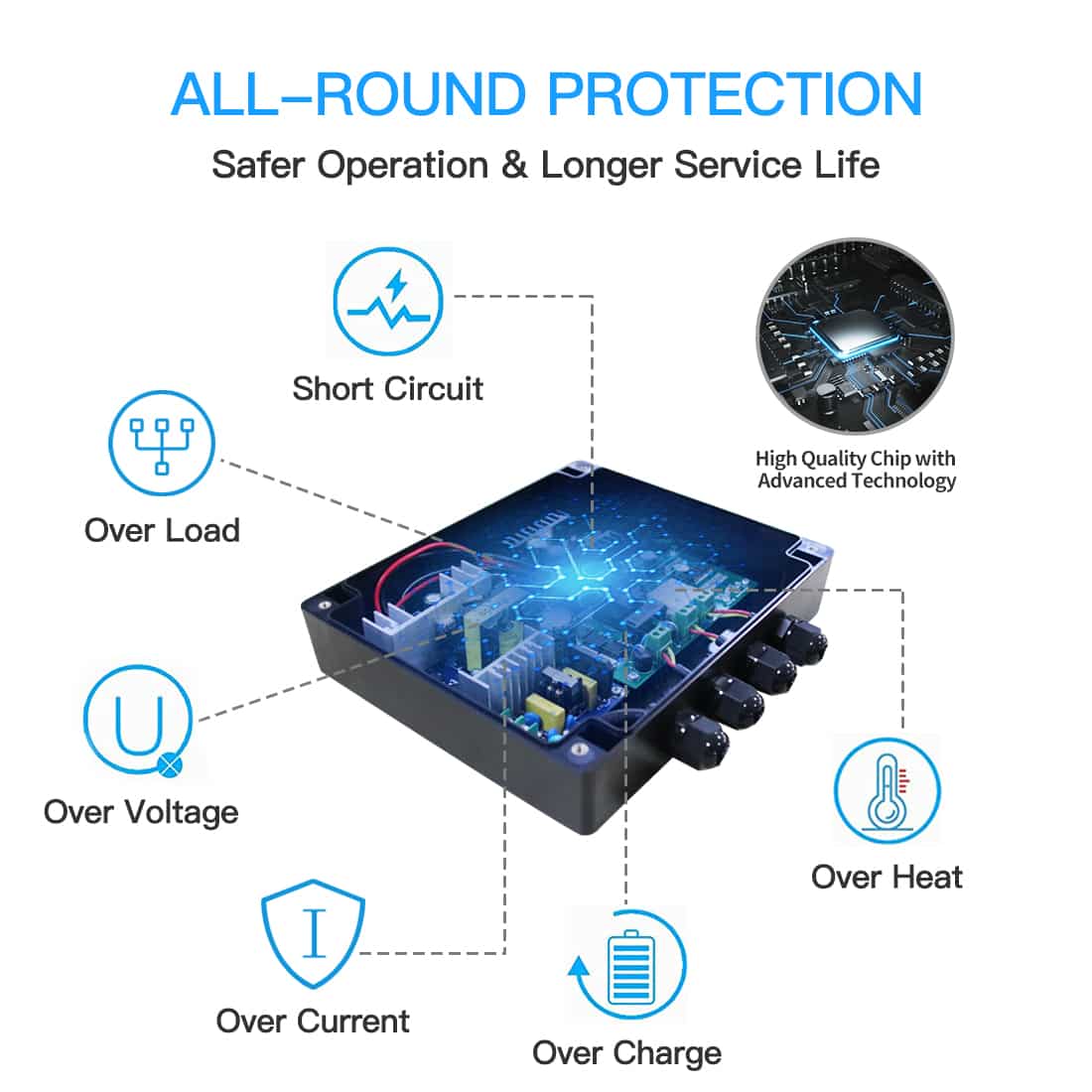

• Solar Controller -Superior to other traditional adapters, TOPENS new updated UPS01 is also an advanced solar charge controller. It offers intelligent management of solar charging for max. 240W 24V solar panels, and ensures multiple safety & security. Smart chip provides ultimate protection against over load/ over current/ short circuit/ over heat/ over charge & over voltage, improving the safety of operation, as well as prolonging its service life.

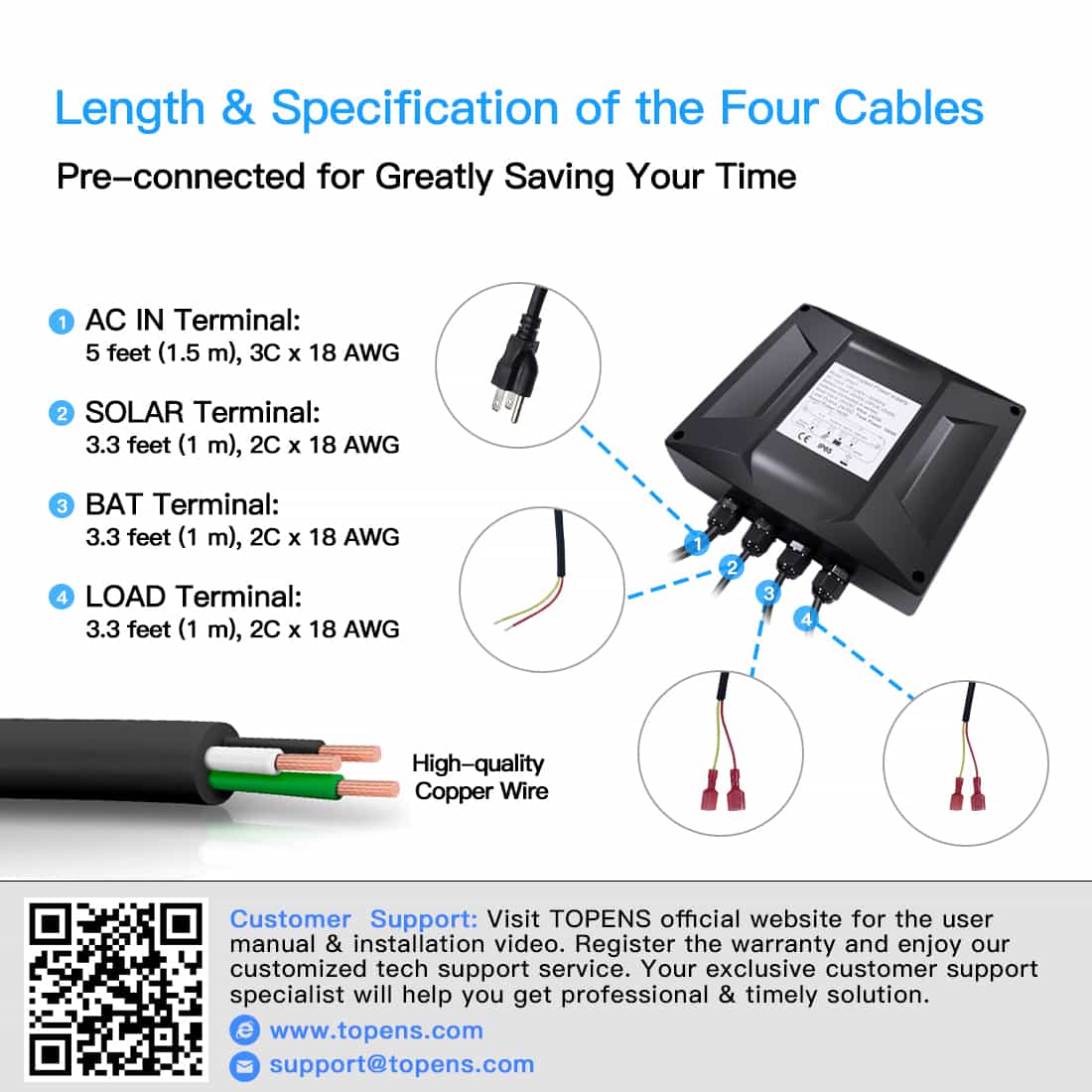

• All-round Protection - Solid ABS housing stands up to all kinds of severe environment, providing perfect protection for the internal components. Fully encapsulated with IP65 waterproof level, no maintenance for outdoor use. Pre-connected cable for easier and safer connection greatly saves your time.

• Product Model :UPS01 Uninterrupted Power Supply
• AC Input :100-240V~50/60Hz

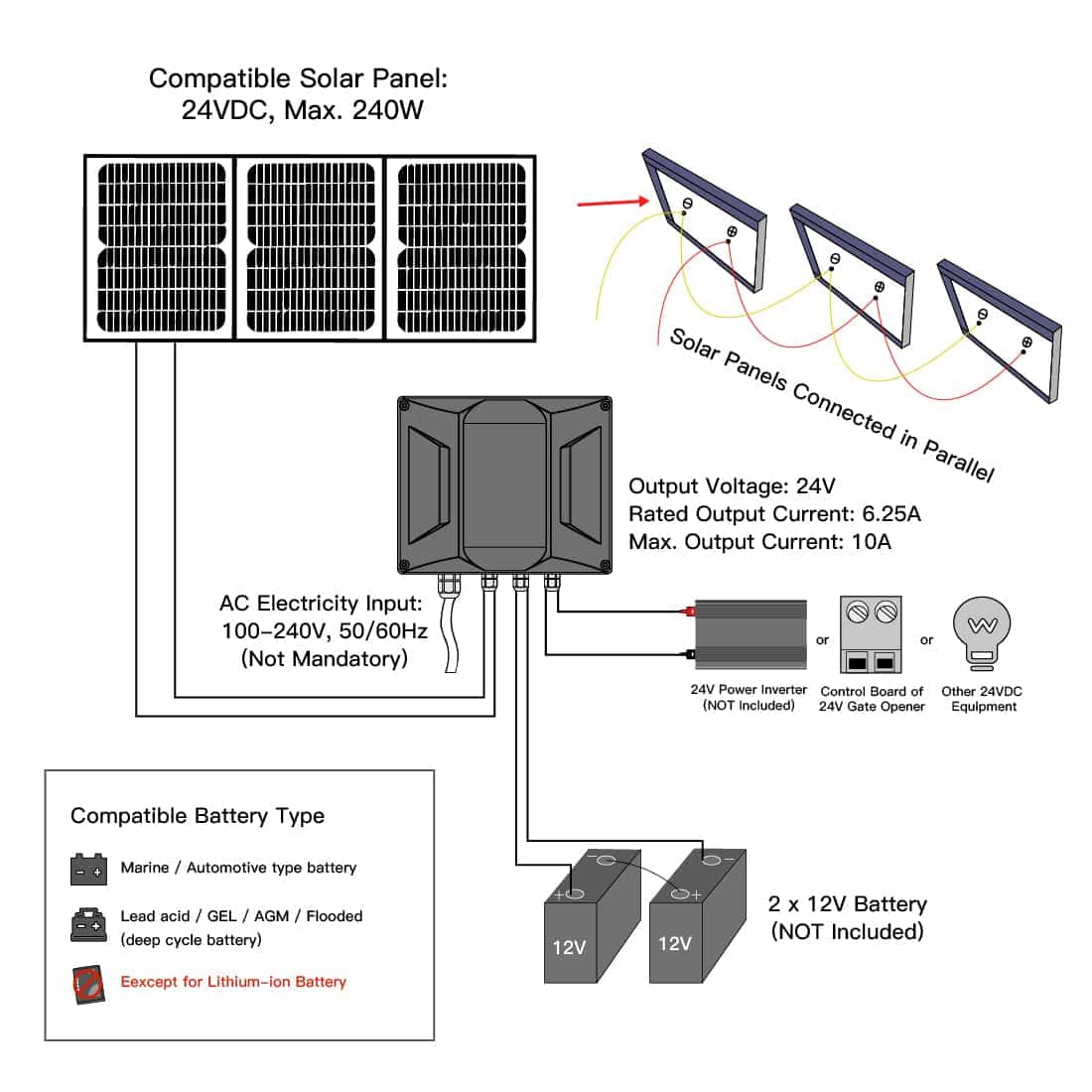

• Battery Input :24VDC (2PCS 12VDC batteries connected in series)
• Solar Input :24VDC (Max. 240W)
• Rated Output Voltage/Power :24VDC/150W
• Output Peak Power :180W
• Rated Load Current :6.25A
• Max. Load Current :10A
• Dimension :205 x 193 x 63 mm (8.1 x 7.6 x 2.5")
• Protection Class :IP65 - Waterproof and Dustproof
• Working Temperature :0°F to 120°F (-20℃~ +50℃)
• Compatibility :TOPENS A/AD/ PW series, AT6131(S), AT6132(S), AT12131(S), AT12132(S) swing gate openers; other 24VDC Equipment
• 100-240VAC Input :Yes
• Power 24VDC Devices :Yes
• Charge 24VDC Battery :Yes
• Support Battery Discharging :Yes
• Compatible with 24V Solar Panel :Yes
