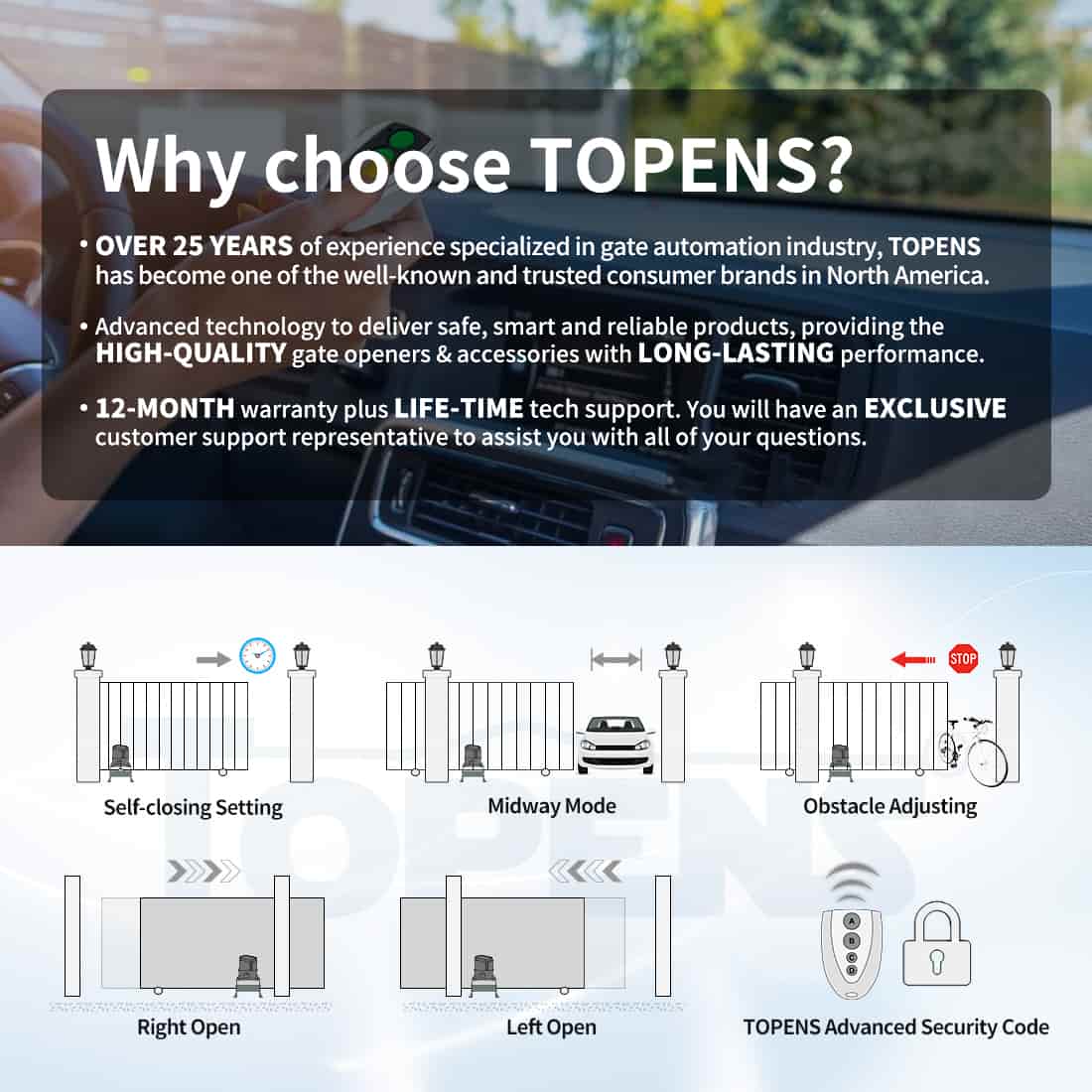

CK1200 Heavy Duty Electric Sliding Gate Opener Motor Smart Features

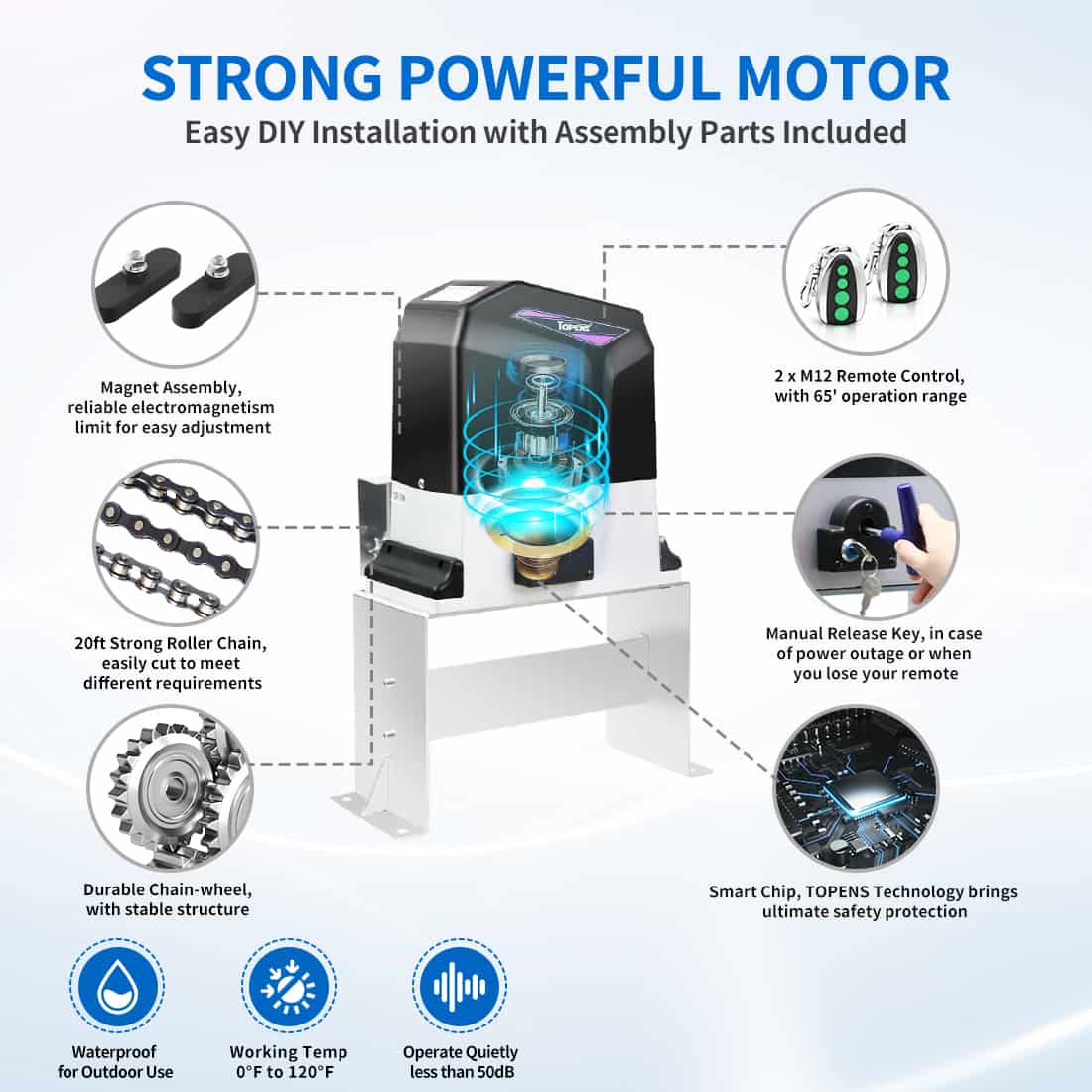

CK1200 Heavy Duty Electric Sliding Gate Opener Motor with Strong Motor

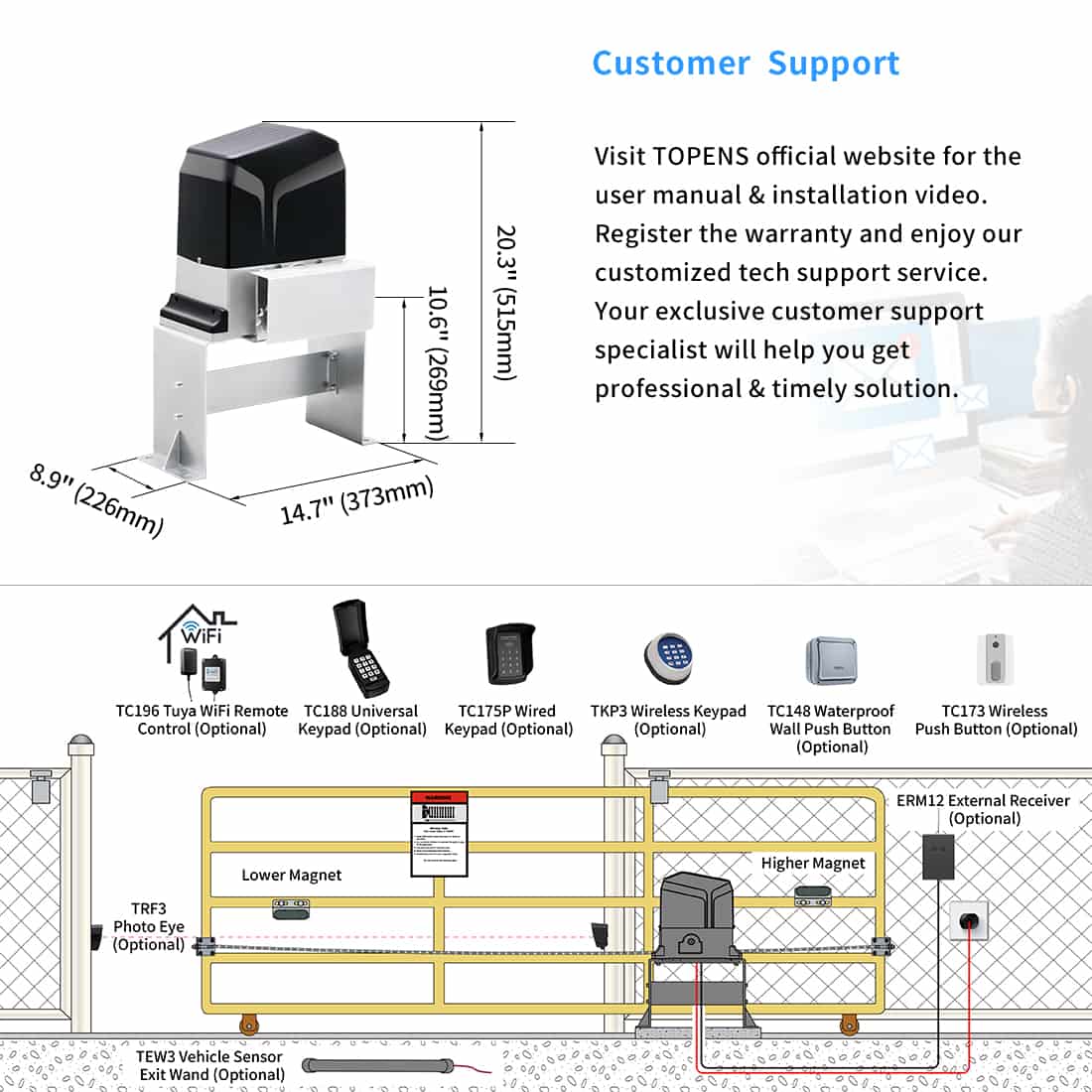

CK1200 Heavy Duty Electric Sliding Gate Opener Motor Dimension and Installation Overview

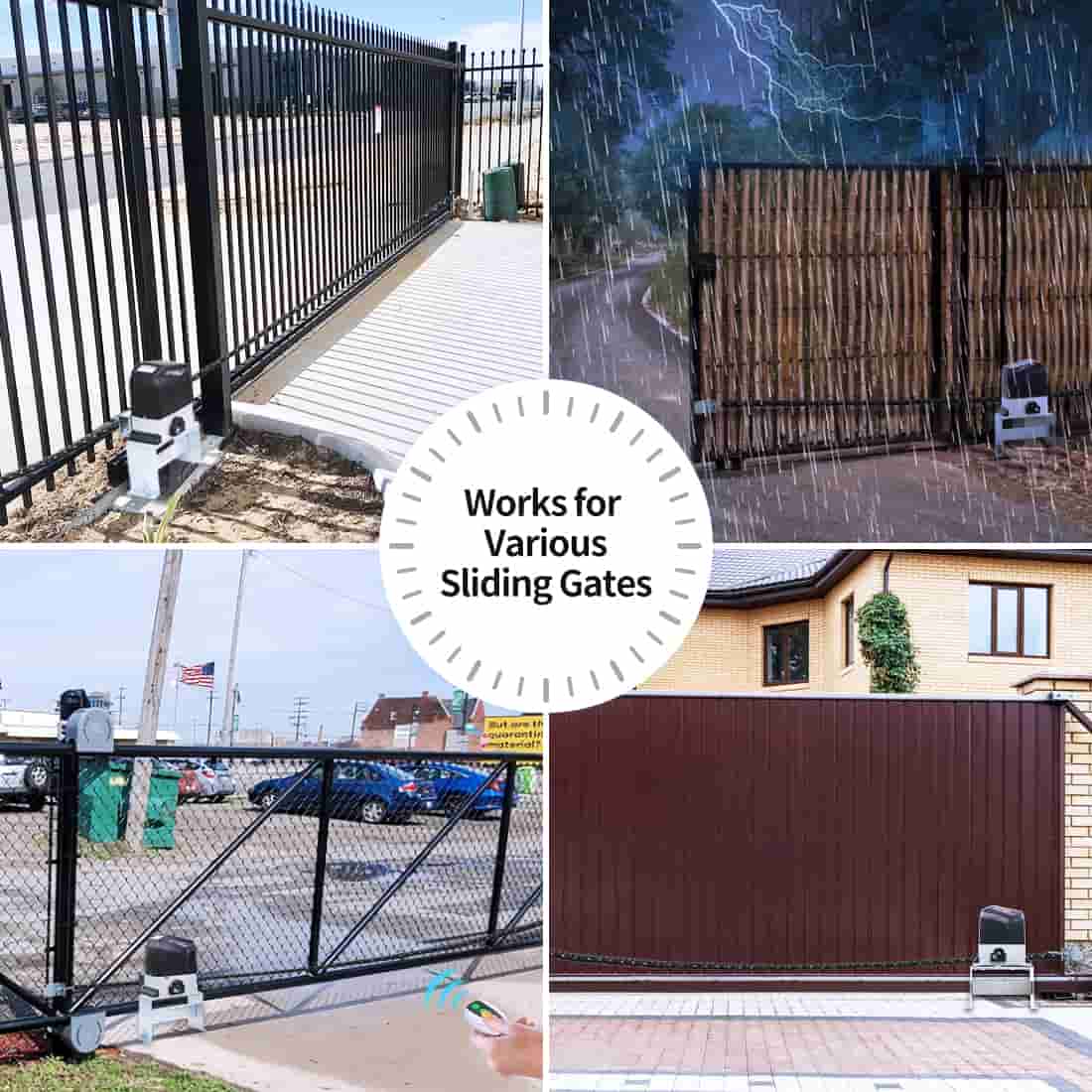

CK1200 Heavy Duty Electric Sliding Gate Opener Motor for Various Sliding Gates

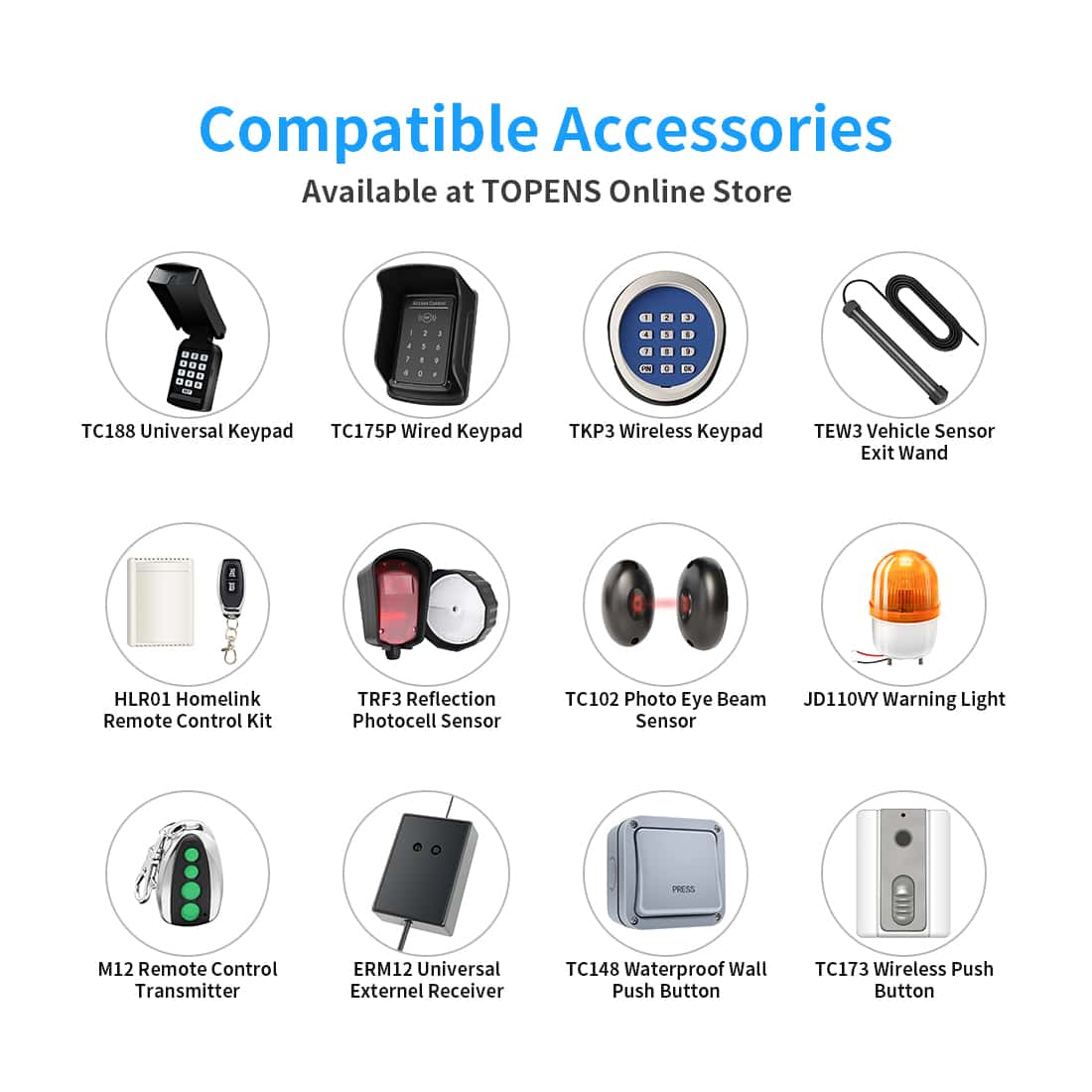

CK1200 Heavy Duty Electric Sliding Gate Opener Motor Compatible Accessories

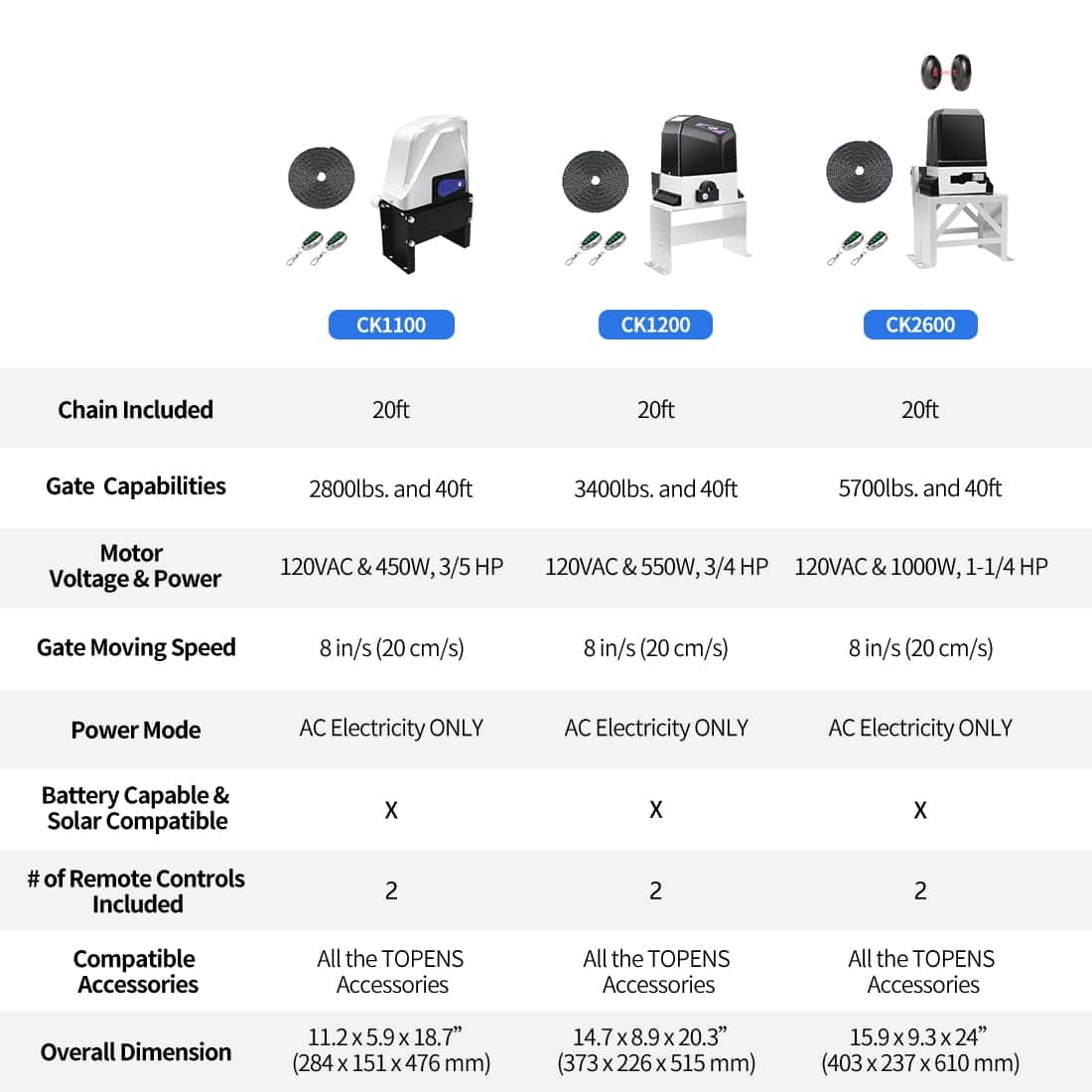

Heavy Duty Sliding Gate Motor Product Compare

Chain Drive550WMax 3400lbs./40ft. AC Only

TOPENS CK1200 Sliding Gate Opener

$499.00 $569.00

Save $70.00

Tax included. Free Shipping.

25+ Years of Expertise -Trusted leader in the automatic gate opener industry.
Lifetime Customer Support -24/7 technical assistance and step-by-step guides for easy installation.
Free Shipping -Enjoy fast, free delivery across the continental U.S.
12-month Warranty -
Extended Warranty -Includes 1-year warranty, extendable up to 2 or 3 years.
Worry-Free Returns -30-day hassle-free return policy on all purchases.

Powerful Performance -Equipped with a STRONG 3/4 HP (550W) 120VAC motor, CK1200 gate opener smoothly drives the heavy-duty sliding gate up to max 3400lbs. in weight and max 40ft. in length.
Quick & Secure -Unique midway mode enables partial gate opening for fast pass-through, while the auto-close function keeps your property safe after every use.
Customizable Gate Automation -Compatible with a wide range of TOPENS accessories, making it easy to tailor your gate system.
Wide Usage -Suitable for various types of sliding gates made of steel, wood, vinyl, chain-link, or other styles. Perfect for residential, commercial, courtyard, farm, and ranch applications.

Warranty:12-Month Warranty

Variant

Checkout Securely with

Product Model :CK1200 Gate Opener
Performance :Heavy Duty
Compatible Accessories :All the TOPENS Accessories
Motor Voltage :120VAC
Motor Power :3/4 HP (550W)
Drive Mode :Chain (20ft. Incl. | Standard #428)
Power Mode :110-120VAC electricity
Battery and Solar Compatible :NOT compatible
Max. Gate Weight & Length :3400lbs. and 40ft.
Gate Opening / Closing Speed :8 in/s (20 cm/s)
Gate Opening / Closing Time :Approx. 20-60 seconds depends on the gate length
Type of Limit Switch :Electromagnetism Limit
Remote Control Operation Range :65ft (20m)
Max. # of Remote Control Supported :8 pcs on its own, up to 250 with the TOPENS ERM12 External Receiver (sold separately)
Working Temperature :0°F to 120°F (-20℃~ +50℃)
Sound Level :< 50 dB
Protection Class :IP44 Waterproof

1 x Gate Opener
1 x 20ft. Chain (Standard #428)
2 x M12 Remote Control Transmitter
1 x T-handle Key
2 x Emergency Release Key
1 x 5ft. 3-Conductor Power Supply Cord
1 x Base Plate
1 x Full Set of Required Installation Hardware
1 x Magnet Assembly
2 x Warning Sign
1 x Installation Manual

Free shipping to the 48 states and Washington, D.C. in mainland USA, with 1-3 business days for processing and 3-6 business days for delivery.

Read full shipping policy HERE

TOPENS offers a 12-month limited warranty for gate openers and accessories purchased directly from our official website or Amazon stores.

Read full warranty policy HERE

24/7 customer support from installation to any questions you may have throughout the life of your product.

Contact us HERE or email us at support@topens.com

30-Day Hassle-Free Returns - Request a return within 30 days of delivery. Orders can also be canceled before shipping for a full refund.

Read full return and refund policy HERE

Topens - GUARD YOUR HAPPY FAMILY

25+ Years' Experience in Gate Automation Industry

Extended Warranty

Comes with 1-year warranty, extendable to 2-3 years.

Extended Warranty

Comes with 1-year warranty, extendable to 2-3 years.

Lifetime Customer Support

Our support team delivers professional, custom solutions.

Free Shipping

Free shipping in continental U.S.: 3-6 work days.

30-Day Worry-Free Return

Give TOPENS a try with 30-day worry-free return.

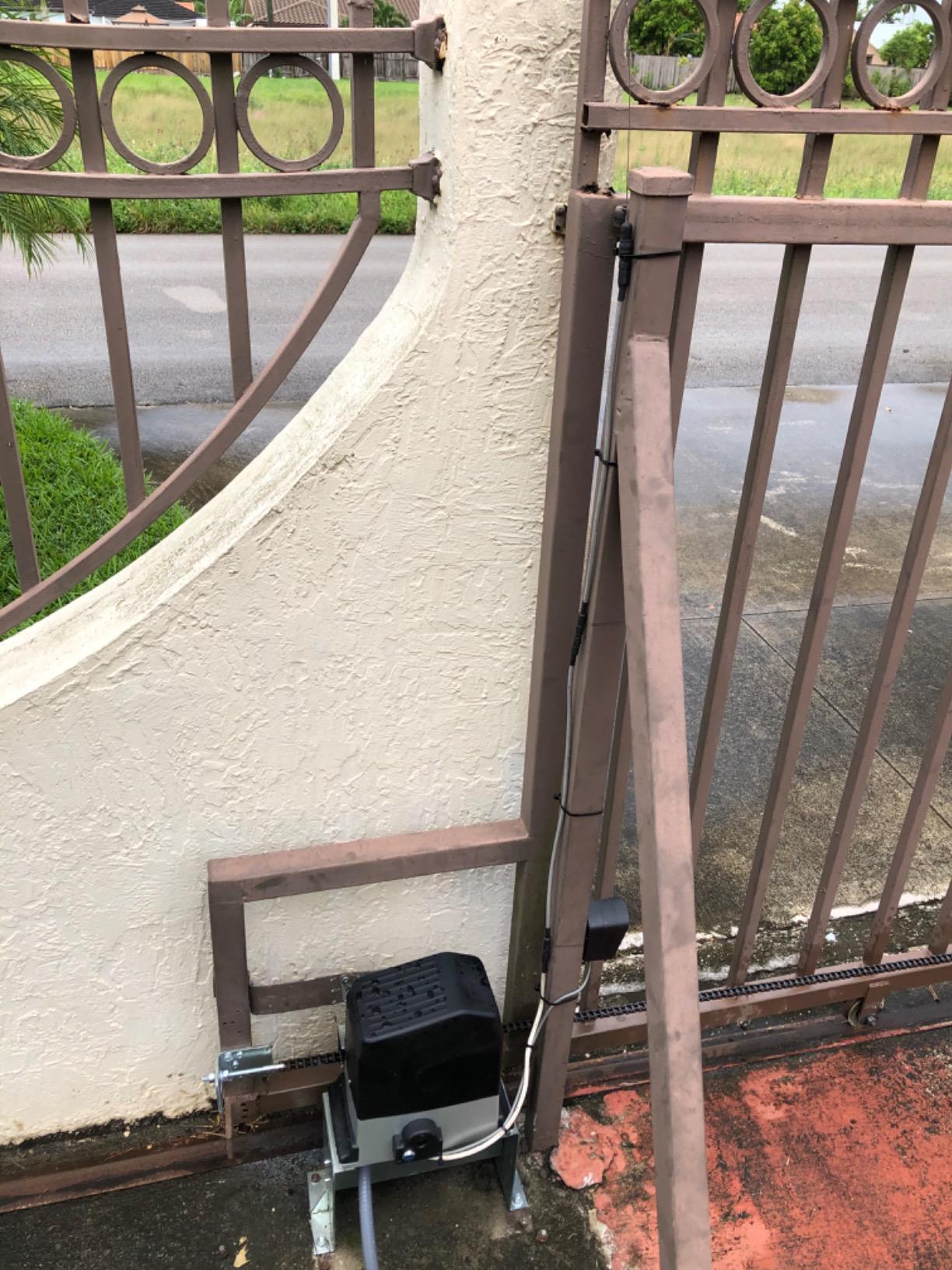

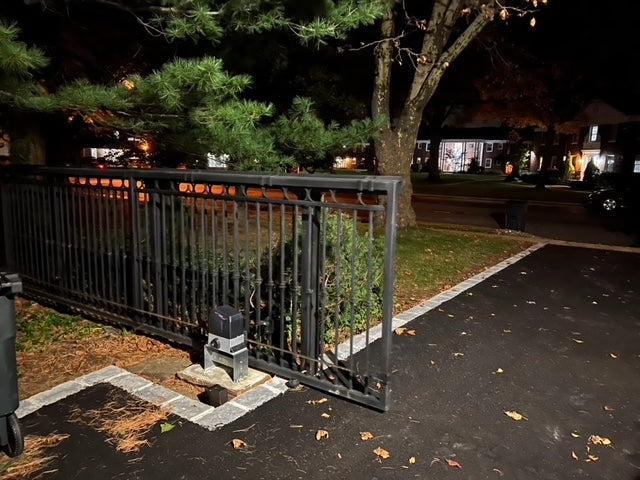

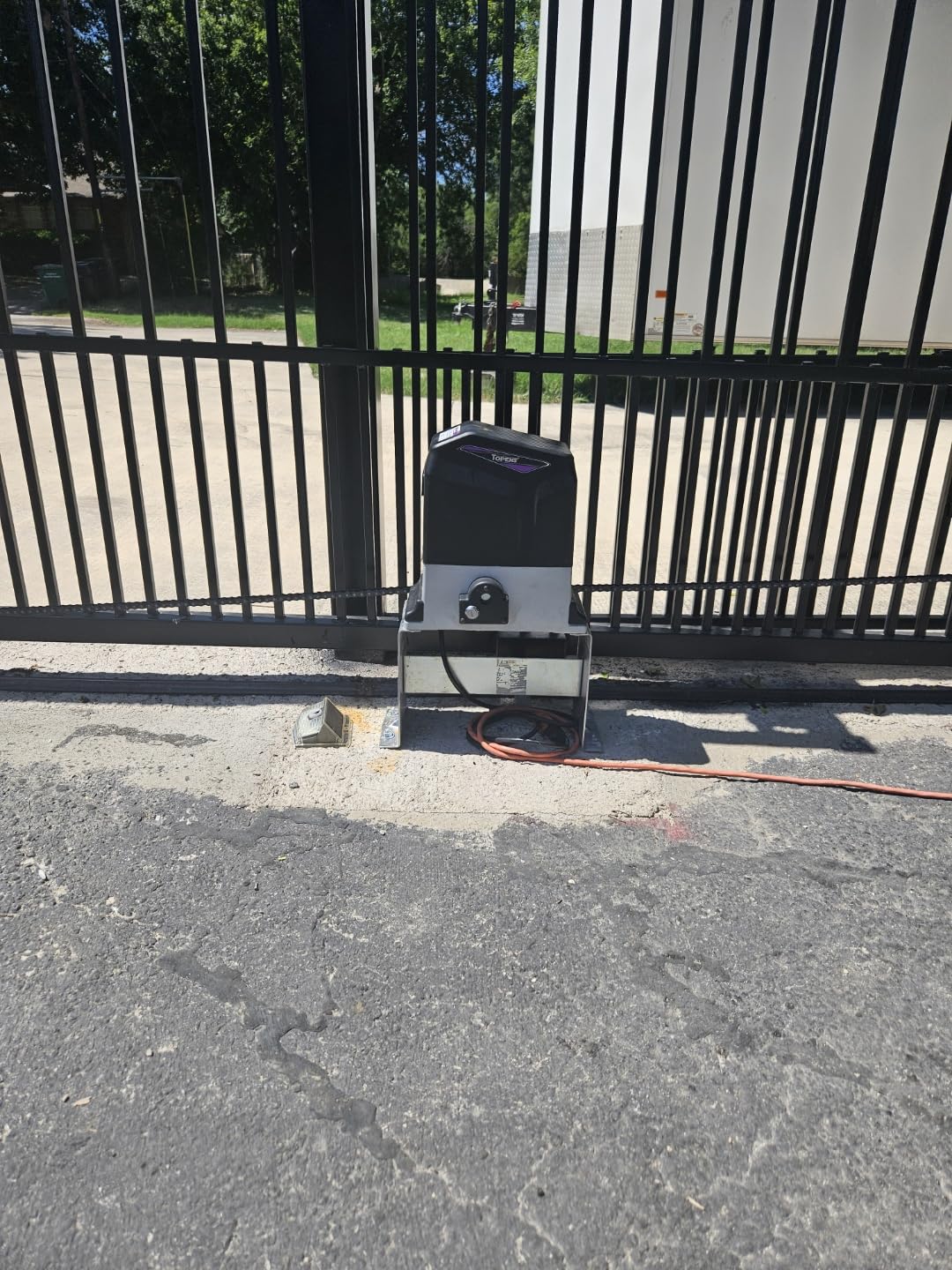

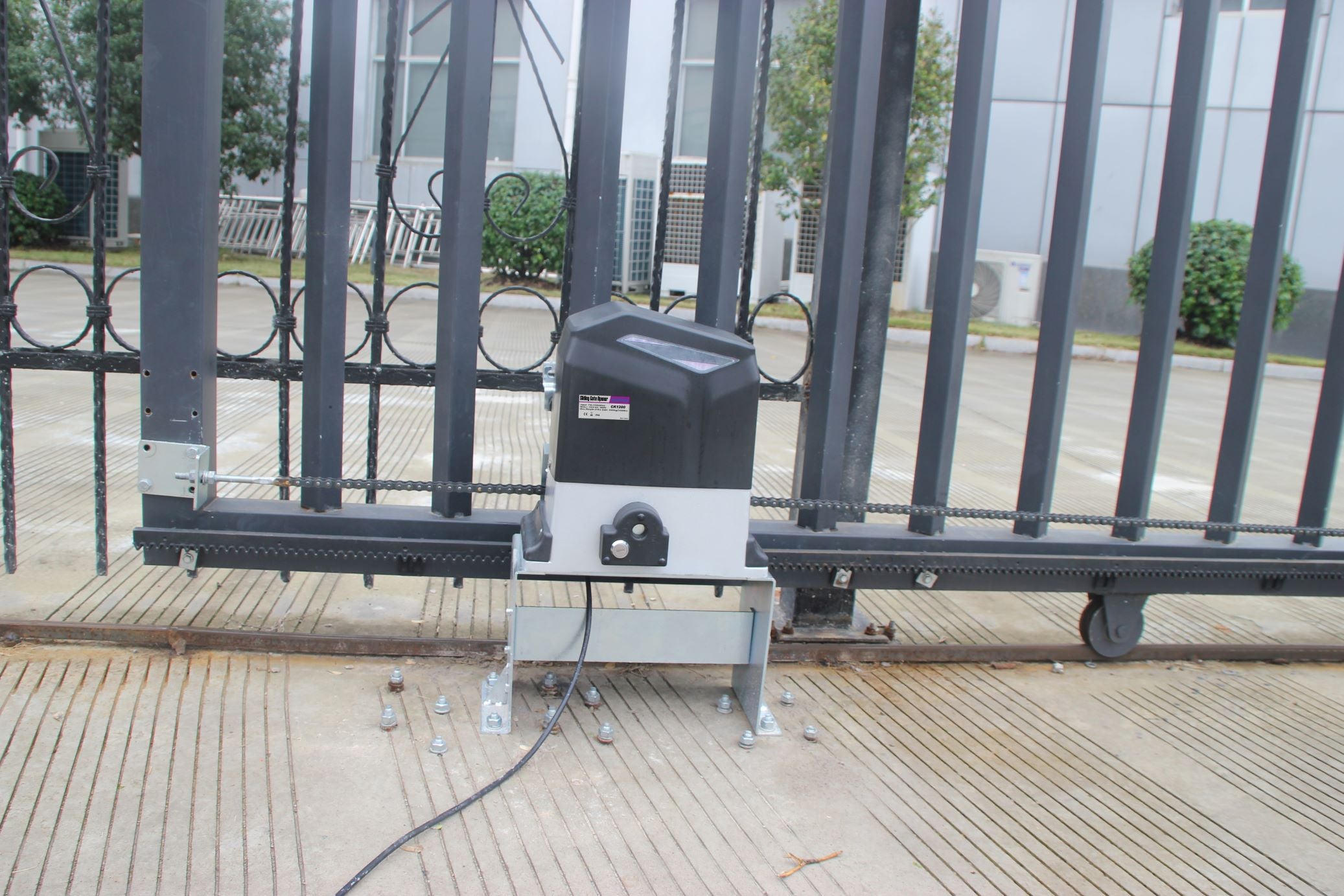

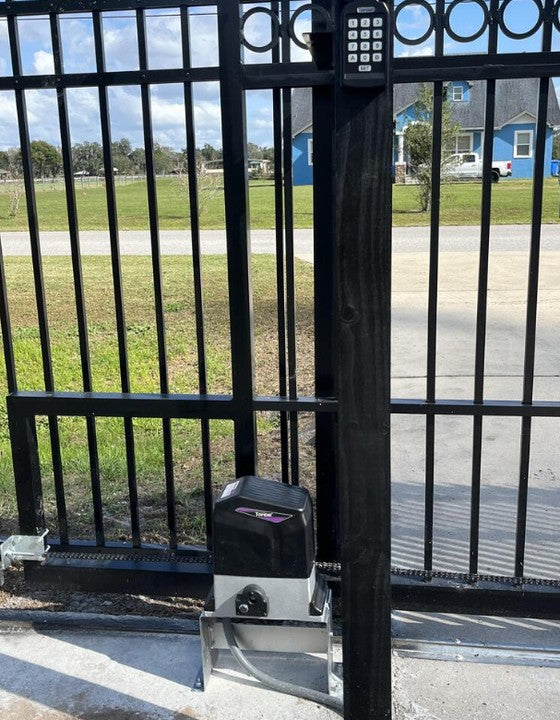

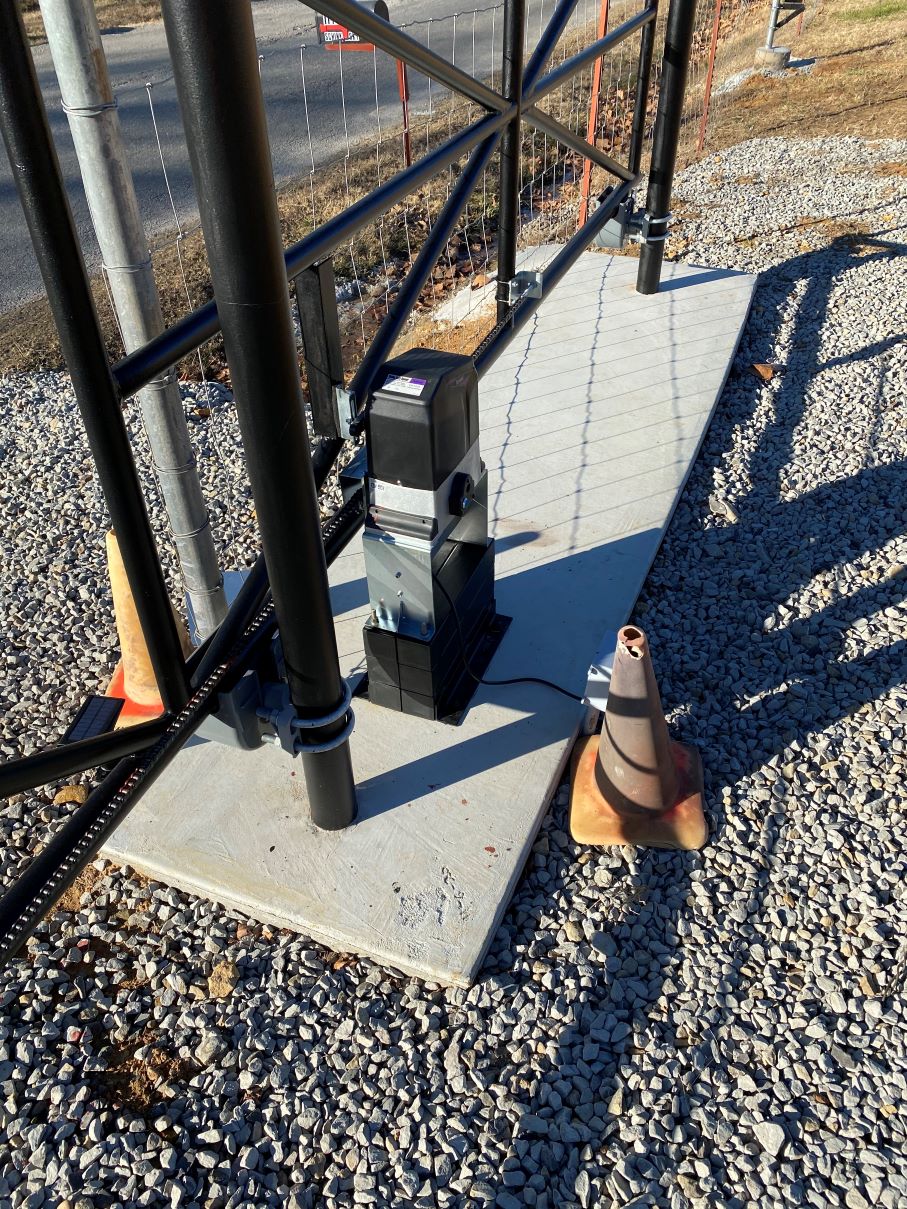

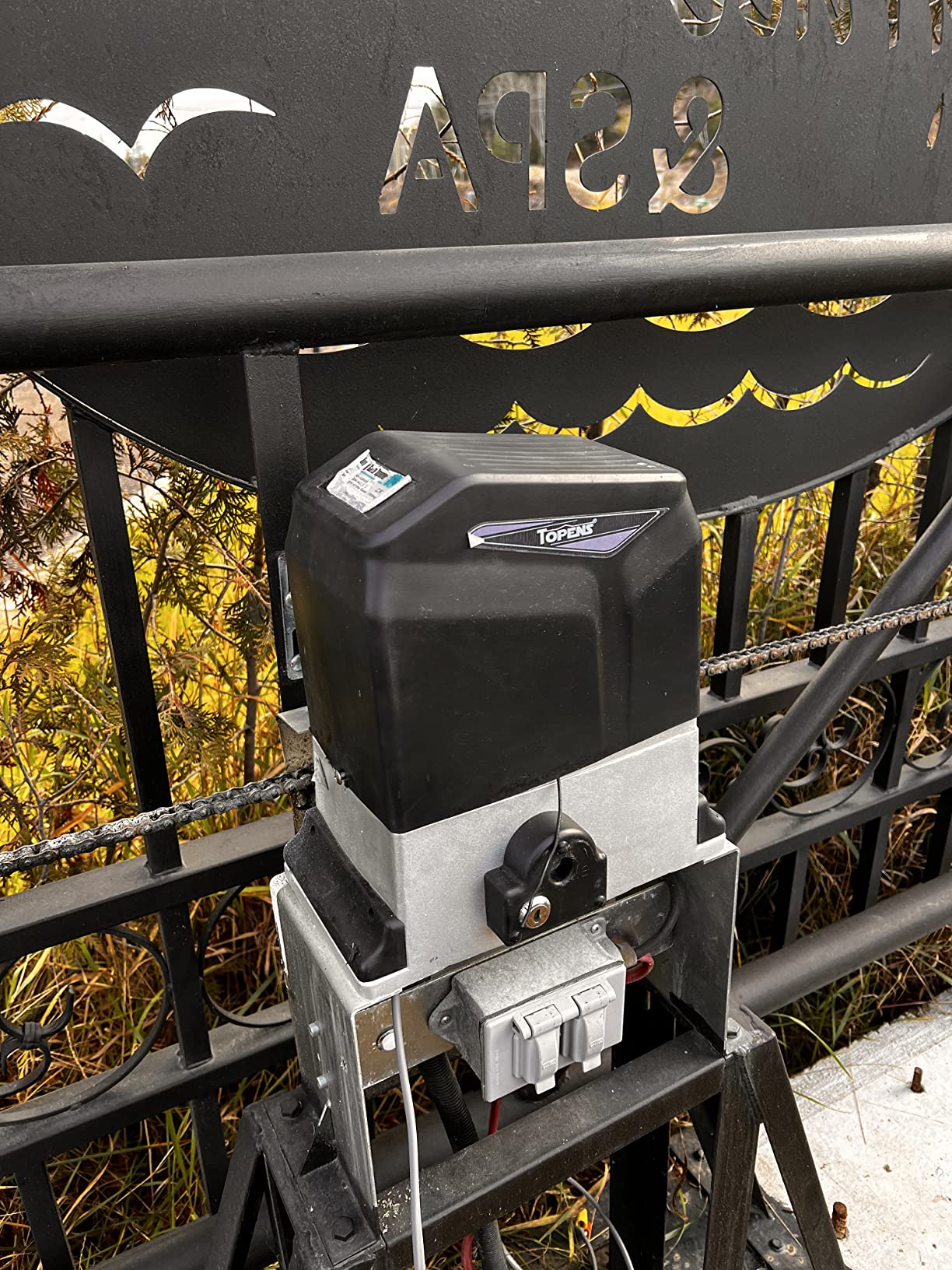

TOPENS in Real Life

Features

Easy DIY Installation

Get started quickly with our step-by-step, easy-to-follow guide.

Easy DIY Installation

Get started quickly with our step-by-step, easy-to-follow guide.

Smart Control Board

Easily customize your gate's operation to fit your exact needs.

Reliable and Quiet

Built to last with a powerful yet quiet motor for daily use.

Wide Applications

The ideal solution for homes, courtyards, farms, and large estates.

open sliding gate using remote in the car

AC Powered
The wire connection is simply, connect the power cord to the gate opener's control board, then plug it into a household outlet.
Advanced TOPENS Code Technology
Our system utilizes advanced rolling code technology, preventing code grabbing and ensuring maximum security against unwanted entry.
Electromagnetic Limit System
The electromagnetic limit switch halts the gate at your preset open and close positions, ensuring consistent and automated gate operation every time.
Dual Open Direction Design
The gate opener can be easily set on the control board to work with your gate, whether it opens to the left or right.

Auto-Reverse & Stop
Stops or reverses the gate upon contact with an obstruction during opening and closing cycles to prevent damage and ensure safety.
Adjustable Obstruction Sensitivity
Obstruction stall force can be adjusted depending on the gate's weight to ensure the gate reaches both the open and close limits without unnecessary reversing or frequent interruptions.
Manual Release for Emergencies
The dedicated manual release key is included to quickly and safely disengage the motor, ensuring gate access during a power outage or if the remote control is lost.

Installation

Manuals

English - TOPENS CK1200 Installation Manual

Videos

English & Spanish - TOPENS CK1200 Installation Video

Tools You May Need

Power Drill
Tape Measure
Open End Wrenches - 14# & 17# or Adjustable Wrenches
Wire Strippers
Level
Phillips Screwdriver
Slotted Screwdriver

Consideration Before Installation

Check the Gate

Ensure that the gate is plumb, level, and slides smoothly in both directions without binding or dragging on the ground.
Confirm that the gate track is straight, horizontal, and firmly affixed, with positive stops installed at each end.
Make sure the gate wheels and guide rollers rotate freely and are clean of dirt or grime.
Ensure that the fence posts are securely set in concrete.
Repair or replace any worn or damaged hardware before installation.

Items Not Included but May Needed

Connection Cable: May be needed for wired accessory installation.
Surge Protector: Use a 10A surge protector with the power cord for safety.
Photocell Sensor: Adds a critical safety layer by detecting obstructions.

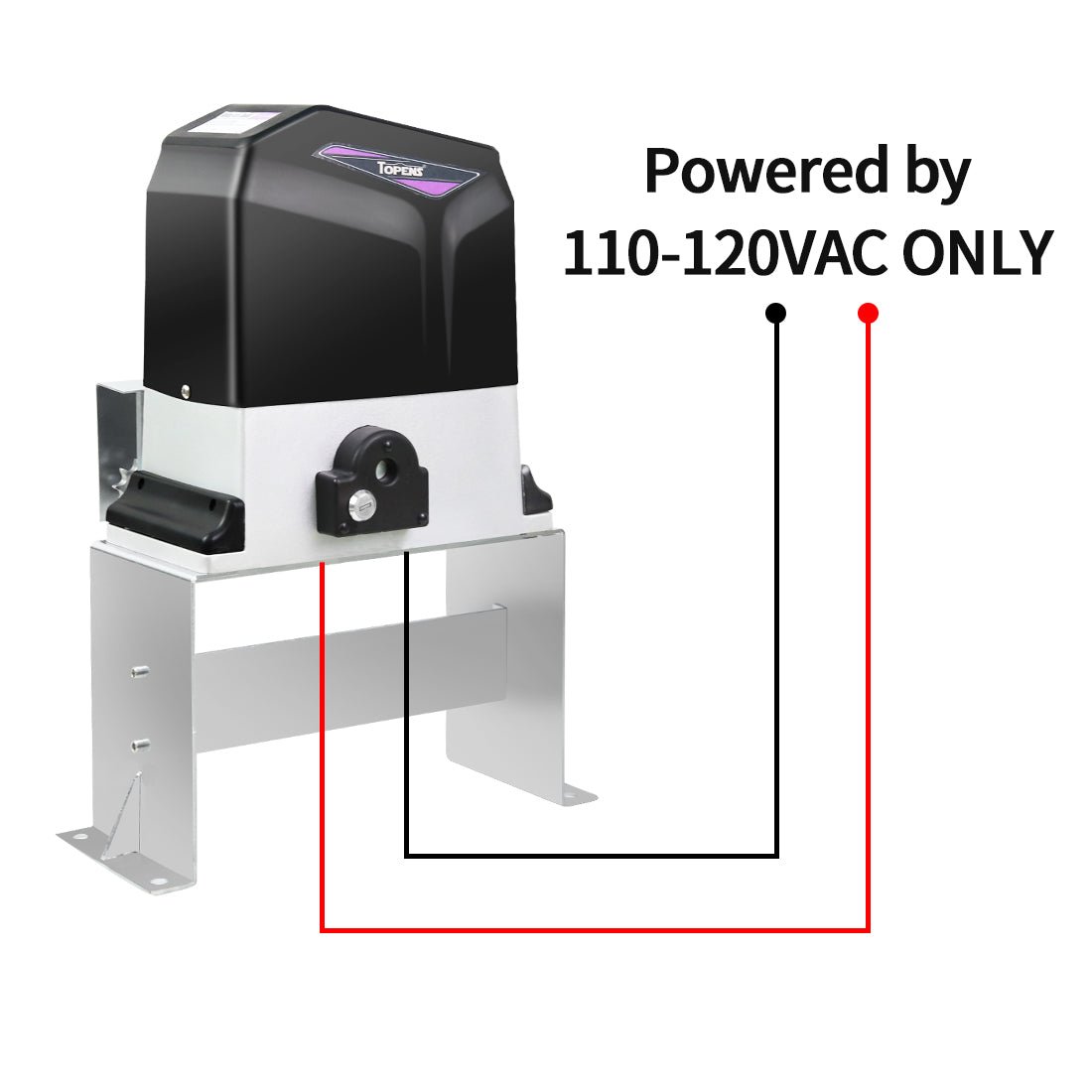

AC Electricity Powered ONLY

CK1200 Gate Opener is ONLY powered by 110-120VAC electricity.
3C × 18AWG (3 × 0.75mm²) power supply cord (incl.)
Release the clutch and open the gate manually in case of power outage.

Roller Chain

The roller chain has gone through strict process for high quality, allowing for the optimum toughness of all component parts, as well as increasing metal fatigue resistance and pre-lubricated for wear resistance.
The package includes 20 feet roller chain (STANDARD #428).
If the included chain is shorter than your gate travel distance, additional LT08B 20 Feet Roller Chain is available for separate purchase.

Topens Sliding Gate Open Direction, Left Open or Right Open Setting

Open Direction Setting

The intelligent control board enables you to switch the open / close direction easily. Your gate is allowed to open toward left or right.
If the gate opener is installed on the left side of the driveway and the gate opens to left, set the opener to Left Open.
If the gate opener is installed on the right side of the driveway and the gate opens to right, set the opener to Right Open.

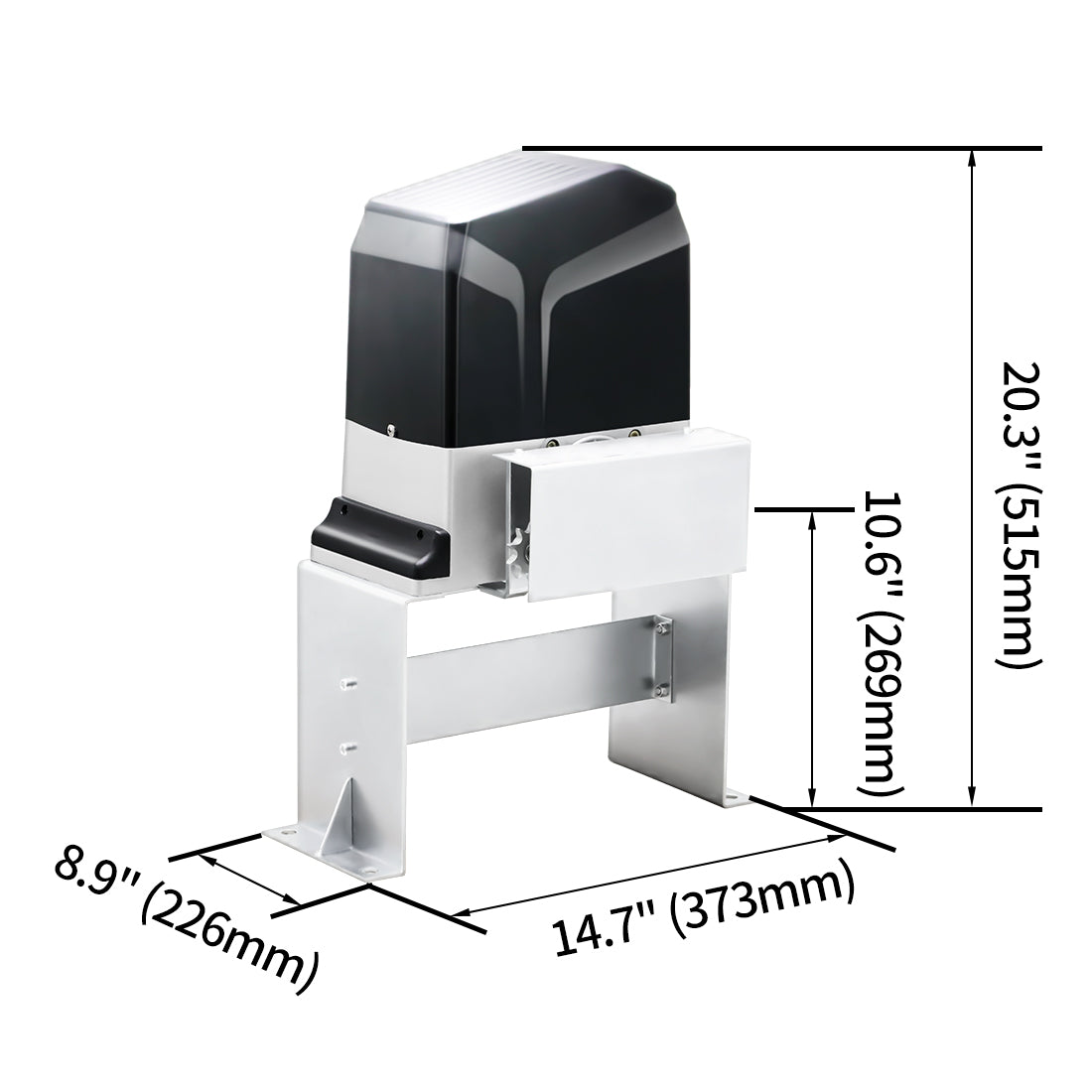

Dimension

Overall Dimension: 14.7 x 8.9 x 20.3” (373 x 226 x 515 mm)
