HLR01 Homelink Receiver for Gate and Garage Door Opener

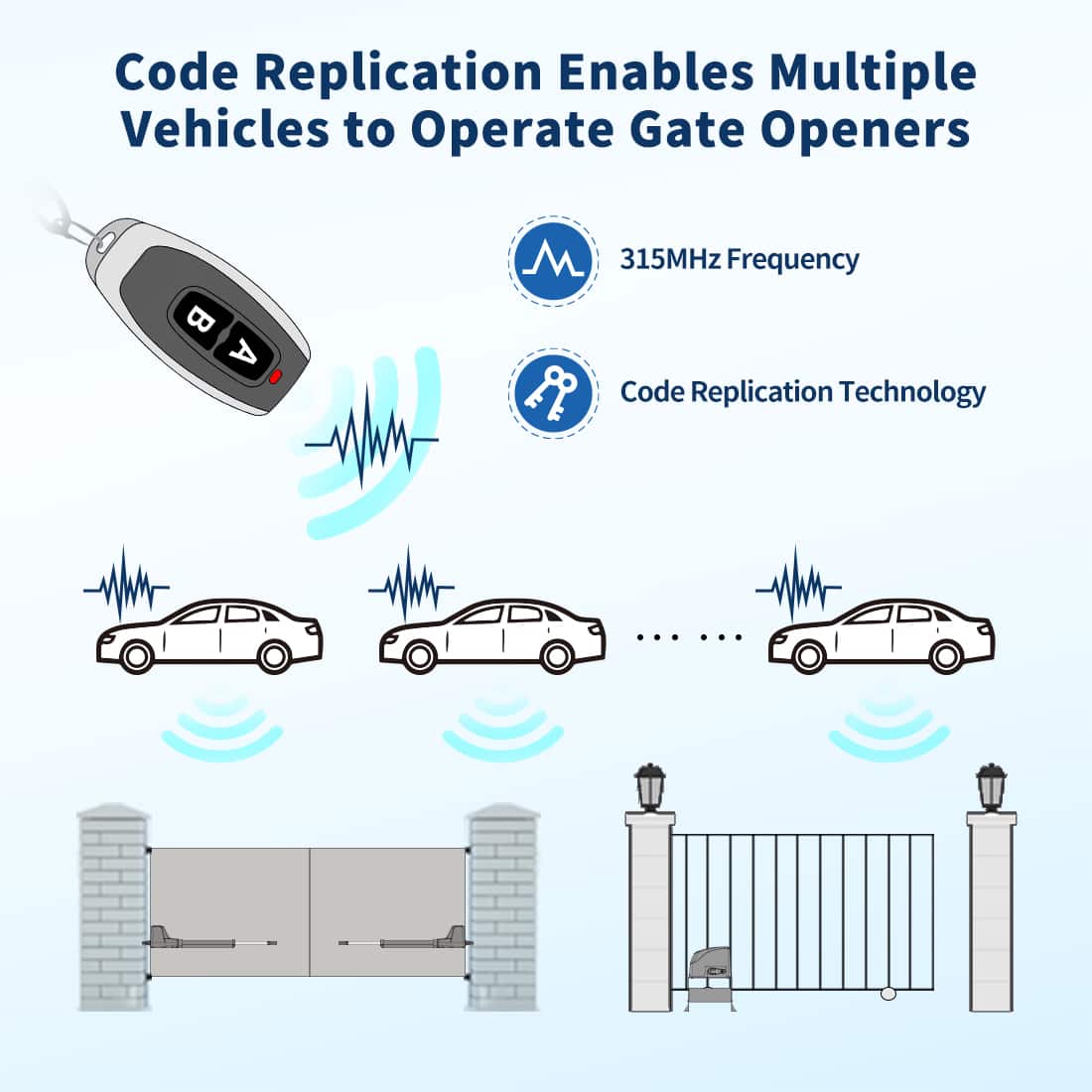

HLR01 Homelink Receiver for Multiple Vehicles

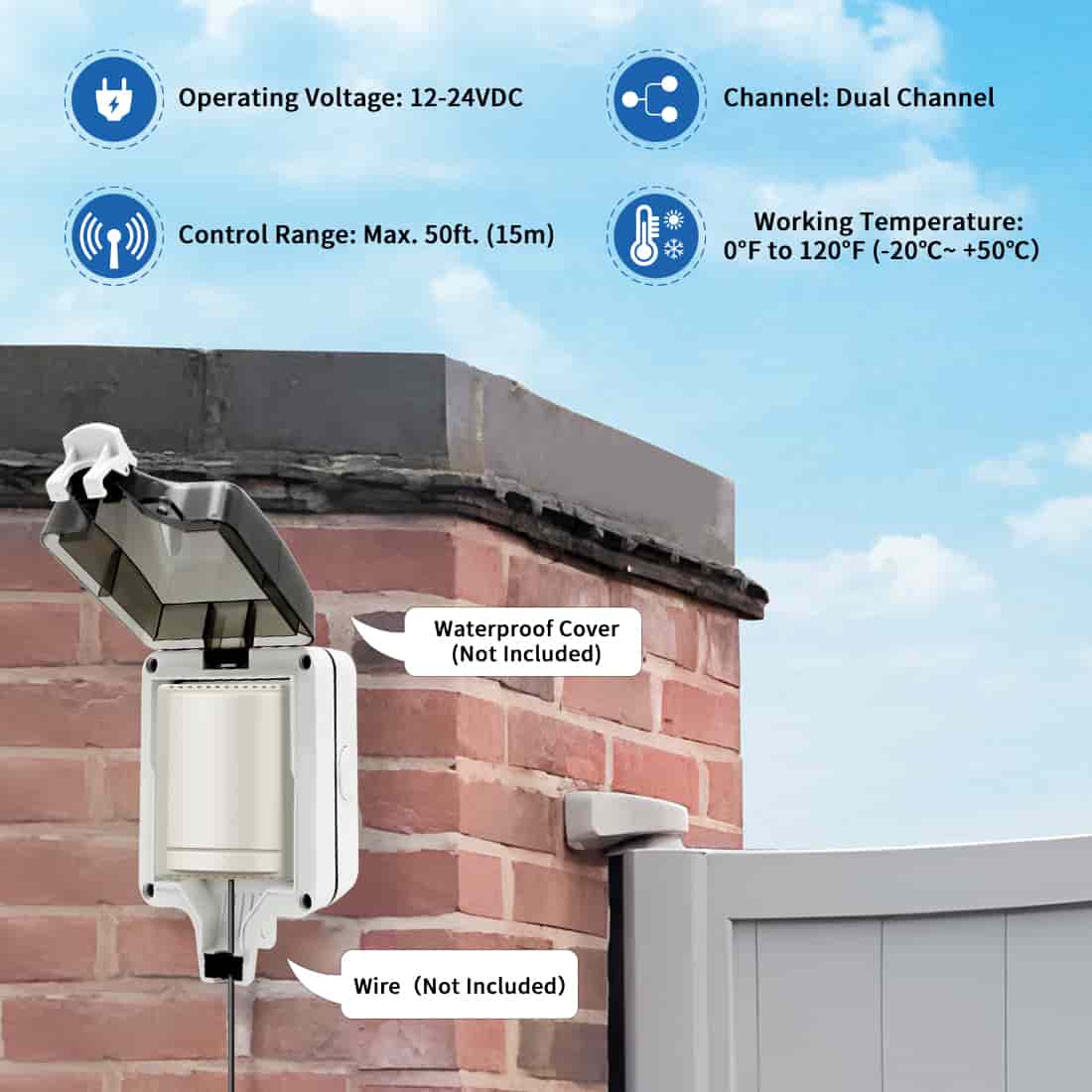

HLR01 Homelink Universal Receiver Not Waterproof

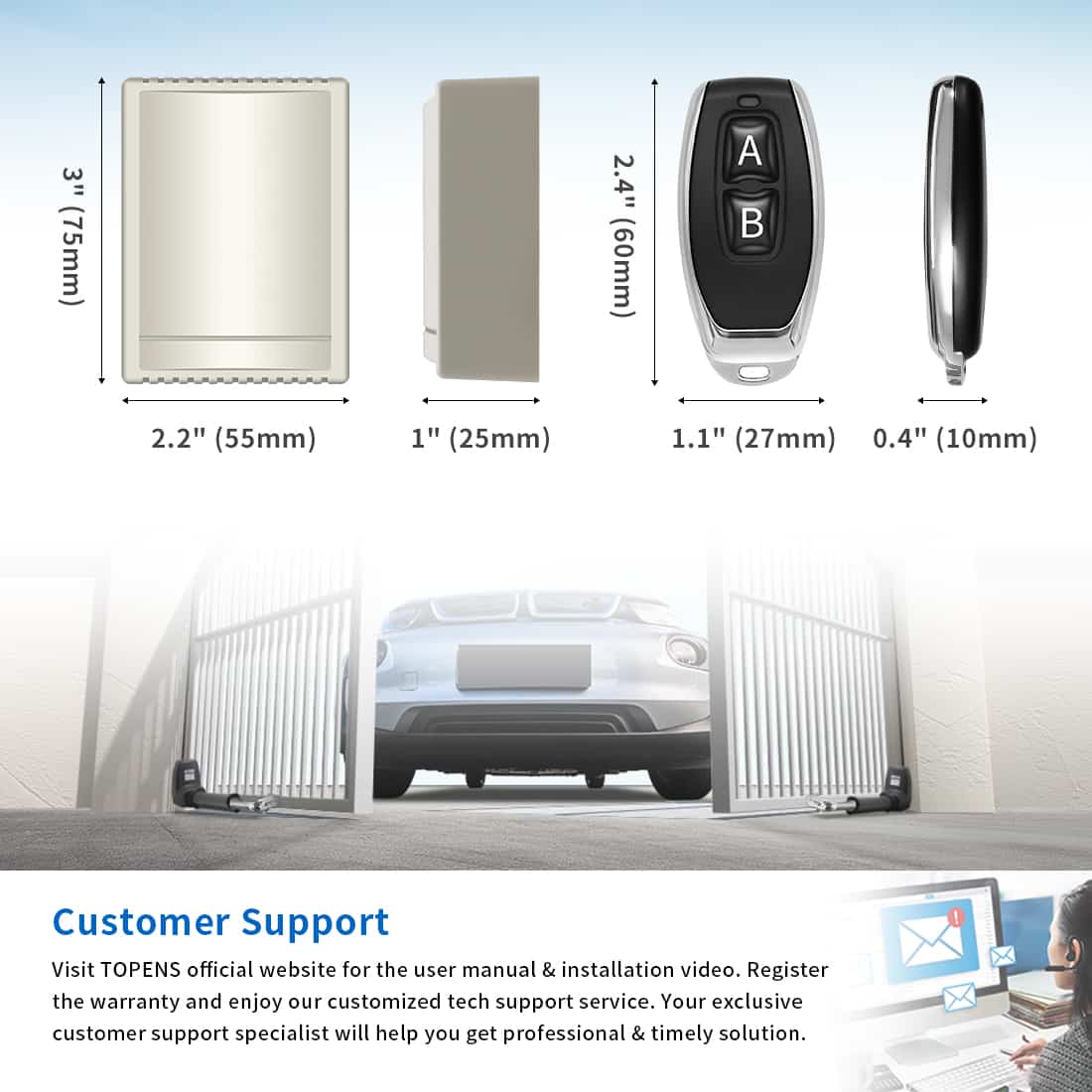

HLR01 Homelink Universal Receiver Dimension

HLR01 Homelink Universal Receiver for Gate and Garage Door Opene

TOPENS Gate Opener Compatible Accessories

50ft. Range

HLR01 Homelink Receiver for Gate & Garage Door Opener

Name: HLR01 Homelink Receiver for Gate & Garage Door Opener
Brand: TOPENS
SKU: HLR01
Price: 49.00 USD
Availability: InStock

$49.00

Tax included. Free Shipping.

25+ Years of Expertise - Trusted leader in the automatic gate opener industry.

Lifetime Customer Support - 24/7 technical assistance and step-by-step guides for easy installation.

Free Shipping - Enjoy fast, free delivery across the continental U.S.

Worry-Free Returns - 30-day hassle-free return policy on all purchases.

Convenient Access -TOPENS HLR01 HomeLink Receiver allows for seamless control of the gate opener through the built-in HomeLink system in the vehicle. Advanced security code technology keeps the gate opener system safe. This integration eliminates the hassle of carrying separate remote controls, providing unmatched convenience. Simply press the HomeLink button to enjoy instant access to your property.

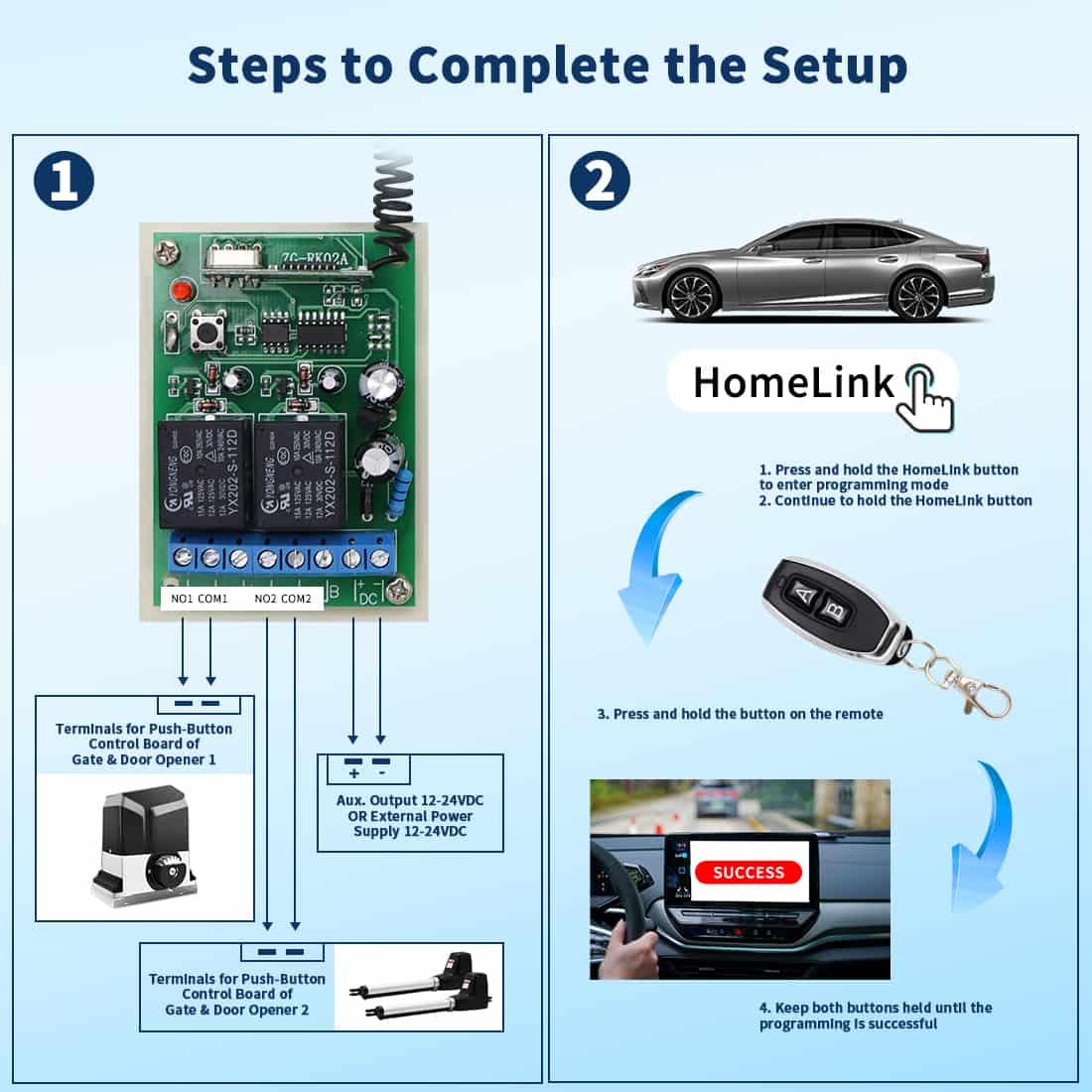

Easy to Program -Press and hold the HomeLink button for approximately 20 seconds until the status light indicates entering programming mode. Continue to hold the HomeLink button, and place the HLR01 remote (incl.) 2 to 5 inches away from HomeLink, and then press and hold the button on the remote. Keep both buttons held until the status light confirms successful programming. Once programmed, every press of the HomeLink button will make the gate operate between open-stop-close-stop-open.
Clever Design -The HLR01 receiver can connect with two gate operators and program with multiple vehicles. Simple wire connection makes installation easy and quick. The HomeLink receiver can be wired to the gate opener system via PORT 1 or PORT 2. Remote control button A is used to control PORT 1, while button B is used to control PORT 2. In addition, the remote control can also be used to control gate operation.
Wide Compability -Works with all TOPENS gate openers, and is compatible with most third party gate opener or garage door opener whose control board accepts the 'Normal Open Dry Contact' signal for the push button. It can be powered by the control board of the gate opener or by the external 12-24VDC power source. Kindly note that the external receiver only works with the gate / garage door openers, and does not support other door access control systems.

Checkout Securely with

Product Model :HLR01 Homelink Receiver
Operating Voltage :12-24VDC
Control Range :Max. 50ft. (15m)
Working Temperature :0°F to 120°F (-20℃~ +50℃)

Free shipping to the 48 states and Washington, D.C. in mainland USA, with 1-3 business days for processing and 3-6 business days for delivery.

Read full shipping policy HERE

TOPENS offers a 12-month limited warranty for gate openers and accessories purchased directly from our official website or Amazon stores.

Read full warranty policy HERE

24/7 customer support from installation to any questions you may have throughout the life of your product.

Contact us HERE or email us at support@topens.com

30-Day Hassle-Free Returns - Request a return within 30 days of delivery. Orders can also be canceled before shipping for a full refund.

Read full return and refund policy HERE
