Selecting the right garage door opener involves more than choosing the motor itself. The design and operating mechanism of your garage door are equally important, as they directly affect compatibility, performance, and long-term reliability.
This guide explains which garage door types work with the TOPENS CASAR800 and CZ120 garage door openers, which door styles may require additional hardware, and which types are not suitable for automation with these systems.
1. How the TOPENS Garage Door Openers Work
The TOPENS CASAR800 and CZ120 are ceiling-mounted garage door openers that use a rail-and-chain drive system. They open and close the door by pulling or pushing it along a straight horizontal rail.
For proper operation, the garage door must:
- Move along a guided track system
- Support straight-line (linear) pulling force
Garage doors that use different movement paths or opening mechanisms are generally not compatible with these openers.
2. Fully Compatible Garage Door Types
2.1 Sectional Garage Doors (Recommended)

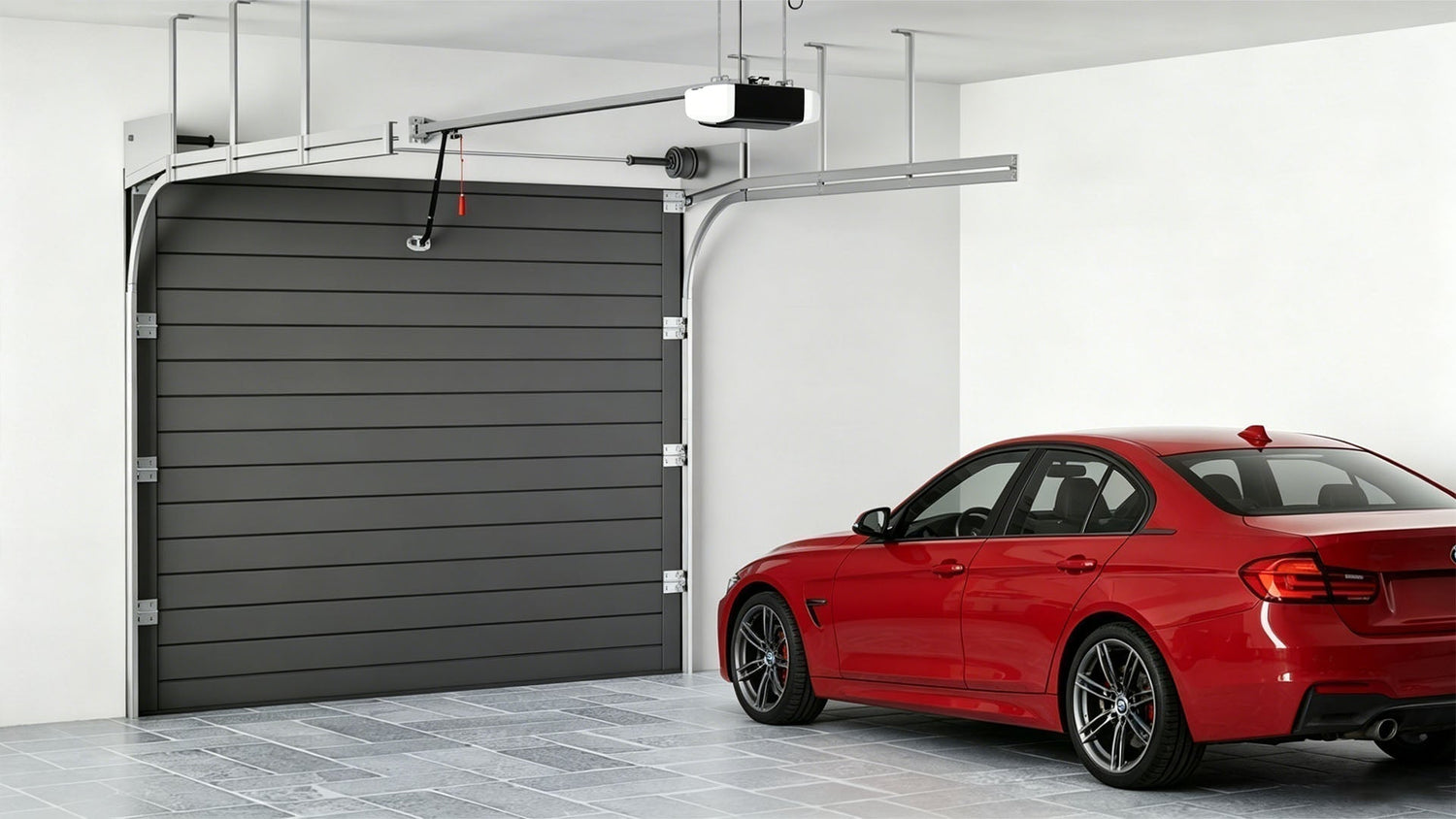

Sectional garage doors are the ideal match for the CASAR800 and CZ120. These doors consist of multiple hinged panels that travel along vertical and horizontal tracks, eventually resting parallel to the ceiling when fully open.
Because the door’s track system aligns naturally with the opener rail, the opener can apply force smoothly and evenly throughout operation. This results in:
- Stable and balanced movement
- Quiet and efficient operation
- Reduced wear on the opener and door components
- Long-term reliability
Sectional doors can typically be installed directly with the opener without additional modifications.
2.2 One-Piece Garage Doors with Horizontal Tracks
These doors consist of a single solid panel that tilts upward and is guided by side-mounted horizontal tracks.
Since the tracks control the door’s movement path, the opener can still apply pulling force in a relatively straight and controlled direction. As a result, these doors are generally compatible and can be installed similarly to sectional doors.
3. Conditionally Compatible Doors (Modification Required)
One-Piece Doors without Tracks (Canopy Type)
One-piece doors without tracks open by pivoting outward and upward in an arc rather than traveling along a guided track system.
Unlike sectional doors or one-piece doors with horizontal tracks, these doors do not follow a controlled linear movement path. As a result, the opener’s straight-line pulling force does not naturally align with the door’s curved movement.
Due to the significant vertical movement of the door during operation, determining an appropriate mounting height for the opener and rail can be challenging. If the rail is mounted too high, the pulling angle may become ineffective and reduce the opener’s ability to operate the door properly. If the rail is mounted too low, the door may interfere or collide with the rail during operation.
For these reasons, direct installation is not recommended.
Recommended Solution: Install a Bow Arm (Curved Conversion Arm)
A bow arm helps adapt the opener’s straight pulling motion to the door’s curved movement path.
Benefits of using a bow arm include:
- Improved motion alignment
- Reduced stress on the opener motor
- Smoother and more stable door movement
- Better long-term durability
Bow Arm Installation Overview
1) Mount the Bow Arm
With the garage door fully closed, mount the bow arm along the vertical centerline on the inside surface of the door, typically near the upper section.
Secure it firmly according to the installation instructions. Make sure the bow arm is aligned with the opener rail centerline to prevent binding during operation.
2) Position the Trolley
Disconnect the opener trolley (attached with the straight door arm) by pulling the emergency release handle. Pull the door arm and move the trolley to the appropriate hole position on the rail where the straight door arm aligns naturally with the bow arm.
3) Connect the Arms
Insert the straight door arm into the slot of the bow arm and fasten the connection securely using the appropriate hardware.
4) Test Manual Operation
Manually open and close the door slowly to confirm smooth movement throughout the entire range of travel without resistance or interference.
Important Note:
Do not reposition the bow arm to force alignment with the straight arm. Instead, adjust the trolley position until the straight arm naturally aligns with the bow arm’s angle. Proper alignment ensures correct operating geometry and helps prevent excessive stress on the opener and door.
4. Incompatible Garage Door Types
The following garage door types are not compatible with the CASAR800 or CZ120:
4.1 Roller Garage Doors
These doors roll into a drum above the garage opening and do not operate on a horizontal track system. Their mechanism is fundamentally different from rail-driven openers.
4.2 Side-Hinged Doors
These doors open inward or outward like traditional double doors. Because they use rotational movement instead of linear movement, they are not compatible with rail-and-chain openers.
4.3 Sliding Garage Doors
These doors slide horizontally along a wall. The opener cannot provide the correct direction of force required for this motion.
4.4 Garage Doors with Built-In Pedestrian Access (Wicket Doors)
These doors include a smaller walk-through door built into the main door panel. They may cause:
- Structural instability during powered operation
- Safety hazards if the access door is not securely closed
These door types are not recommended unless a properly designed safety interlock system is installed.
5. Important Requirements for Safe Operation
Even if your garage door type is compatible, the following conditions must also be met:
- The garage door must be properly balanced
- The door must move smoothly without sticking or binding
- The door size and weight must remain within the opener’s rated capacity
- All tracks, springs, rollers, and hardware must be in good working condition
Failure to meet these requirements can result in motor overload, reduced opener lifespan, unstable operation, or potential safety hazards.
6. Final Takeaway
For the best performance and reliability, sectional garage doors are the recommended choice for use with the TOPENS CASAR800 and CZ120 garage door openers.
One-piece canopy doors without tracks can also be automated successfully when a properly installed bow arm is used to accommodate the door’s curved movement path.
However, garage door types that operate with rolling, sliding, or swinging mechanisms are not designed for rail-and-chain opener systems and should not be used with these models. Ensuring proper door compatibility before installation helps improve safety, reduce mechanical stress, and extend the lifespan of both the opener and the garage door system.
